Description

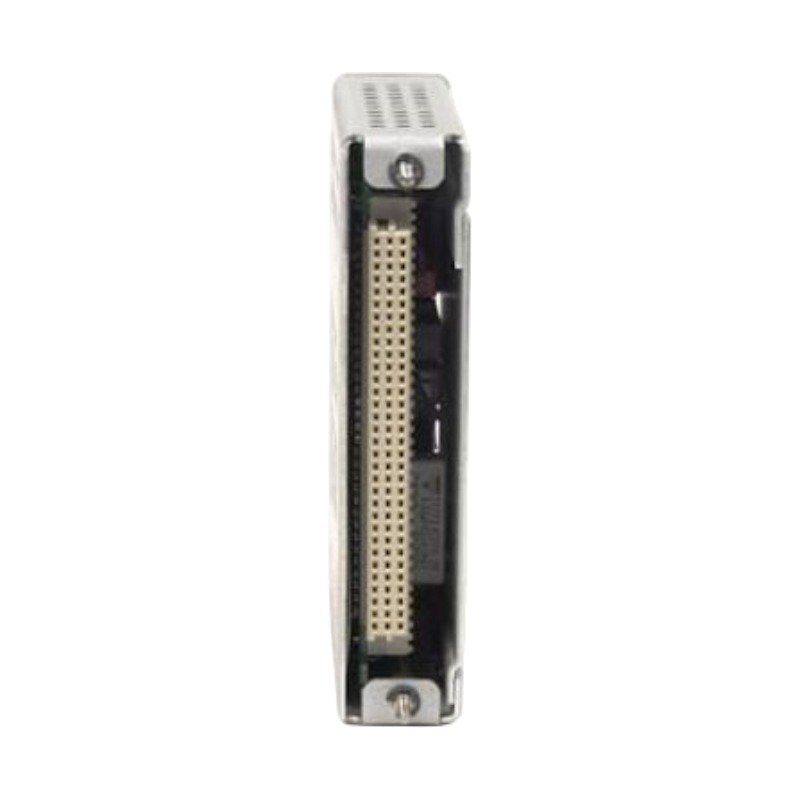

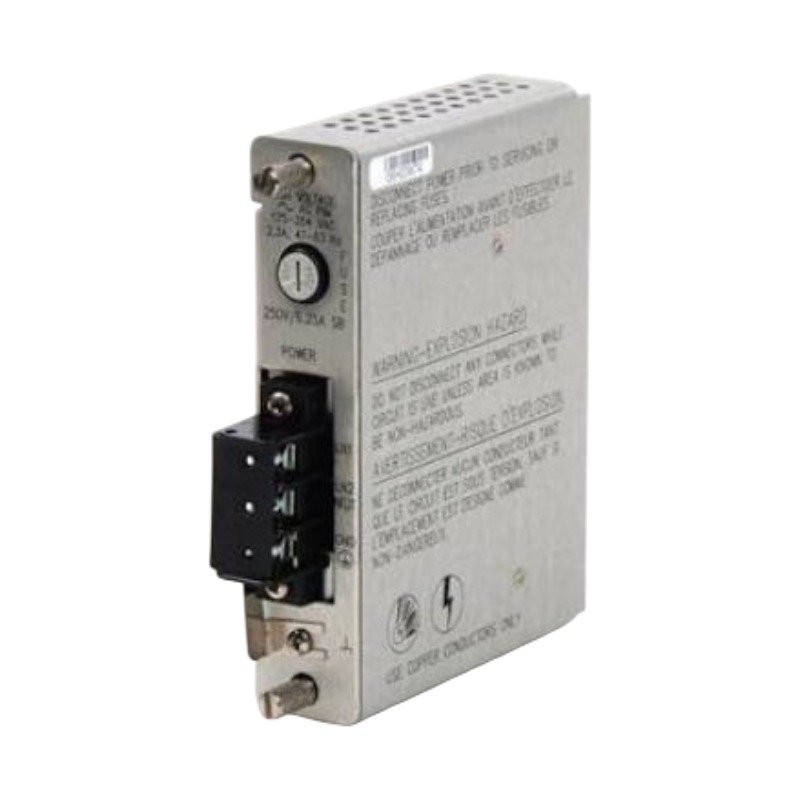

Configured for power conversion and regulation in the 3500 Machinery Protection System rack, the Bently Nevada 3500/15-01-01-00 (Bently Nevada 3500/15 Power Supply Module) provides direct physical/electrical execution. This half-height module accepts input line voltage and converts it to regulated DC voltages required by the backplane to drive adjacent monitoring, communication, and relay modules. The specific variant 125840-02 designates the high-voltage AC/DC power supply infrastructure configured for universal AC inputs or high-voltage DC distribution.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The module directly interfaces with the 3500 backplane to sustain continuous power distribution for critical Turbomachinery Instrumentation (TSI) operations. This architecture actively supports eddy-current probe scaling by maintaining a stable, low-noise supply voltage across all slot positions. Stable internal rails ensure that proximity sensor loops execute gap voltage validation (-10 VDC targets) without drift caused by primary input fluctuations. Furthermore, the internal filtration circuitry prevents cross-talk suppression failures across high-density channels, safeguarding adjacent vibration and thrust monitoring cards from high-frequency switching noise during transient rotor dynamics events.

Frequently Asked Questions

Q: Does the 3500/15 power supply support hot-swap capabilities in redundant configurations?

A: Yes. When a 3500 rack utilizes two identical power supply modules in a redundant configuration, the lower supply or upper supply can be removed or inserted without interrupting rack operation or disturbing monitoring loops.

Q: What indicates a catastrophic failure of the internal DC rail regulation?

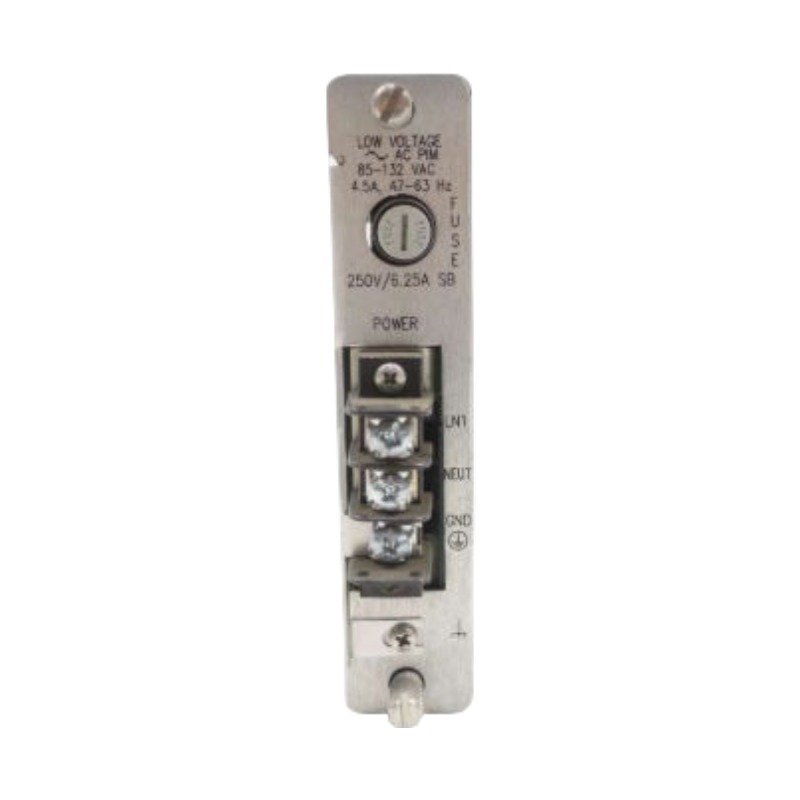

A: The front panel features a “Supply OK” LED. If this indicator turns off, it confirms that one or more output DC voltages dropped below the established internal voltage thresholds.

Field Installation Guidelines

• Chassis Grounding: Secure the primary protective earth (PE) ground wire to the designated ground lug on the 3500 rack chassis before applying power to the supply terminal blocks. Use a minimum wire size of 2.1 mm2 (14 AWG) with a low-impedance path to the master plant instrument ground.
• Torque Specifications: Tighten all terminal block screws to a torque rating between 0.56 N-m and 0.79 N-m to prevent loose electrical connections and thermal hot-spots.
• Cable Routing and Separation: Route AC line power cabling through dedicated conduit entries separate from the low-voltage 4-20 mA or Bently Nevada transducer cables. This separation minimizes electromagnetic interference into the eddy-current probe loops.
