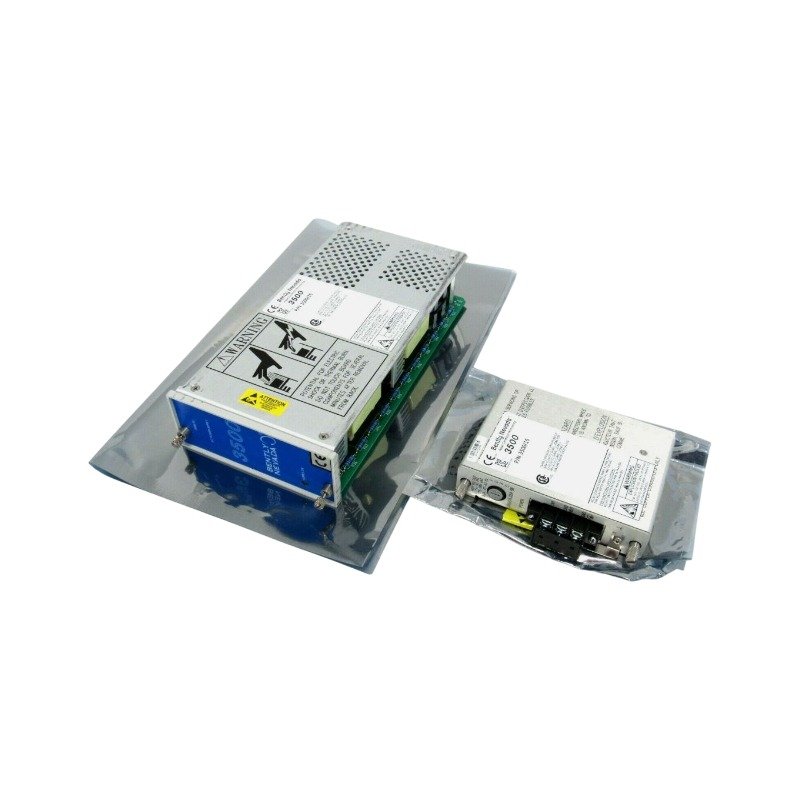

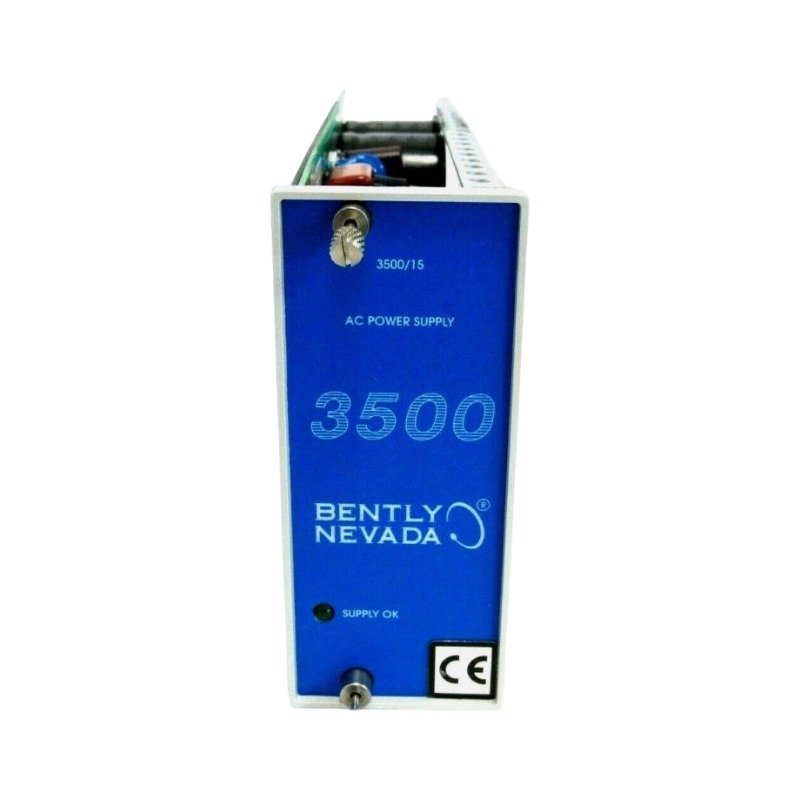

The Bently Nevada 3500/15-05-05-05, also cataloged as the Bently Nevada 3500/15 Power Supply Module, operates as a dedicated hardware component for power conversion and regulation within 3500 Machinery Protection System platforms. This specific assembly configuration combines the 106M1079-01 lower power supply module and the 106M1081-01 lower power supply input module to form a dual-redundant low-voltage DC input system. The hardware accepts 24 VDC input voltage and transforms it into regulated DC power levels across the backplane to drive instrumentation cards.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This low-voltage DC power supply architecture maintains continuous rail stability required for precision Turbomachinery Instrumentation (TSI) deployment. The internal filtering networks isolate the backplane from input bus fluctuations, which directly enhances eddy-current probe scaling accuracy across high-density proximity loops. Consequently, adjacent monitor cards execute critical gap voltage validation (-10 VDC targets) without suffering signal drift or thermal variance. By maintaining rigorous cross-talk suppression between slot channels, the module ensures that transient noise does not compromise raw vibration waveforms or corrupt rotor dynamics data during startup and shutdown cycles.

Frequently Asked Questions

Q: How does the redundant configuration handle power source switching latencies?

A: The 3500/15-05-05-05 design utilizes diode auctioning inside the module to enable instantaneous switching. Because both supplies share the backplane load simultaneously, the failure of one supply causes zero drop in output voltage and zero lag in rack operations.

Q: Can the 106M1081-01 input module handle high-voltage AC or DC inputs?

A: No. The 106M1081-01 input module is designed strictly for low-voltage DC inputs ranging from 18 to 36 VDC. Applying AC mains voltage or high-voltage DC will cause immediate component failure and trip the internal overcurrent safety fuses.

Field Installation Guidelines

• Input Polarity Verification: Verify the correct polarity of the 24 VDC source lines before fastening them to the 106M1081-01 terminal strip. Reverse polarity will prevent module operation and can trigger input fuse breakdown.
• Grounding and Shield Continuity: Connect the incoming power supply shielding to the designated chassis earth lug on the 3500 rack. Ensure a low-impedance ground connection to maintain proper shield drain functionality and suppress external electrical noise.
• Terminal Screw Torque: Tighten all power input terminal connections to a strict specification of 0.56 N-m to 0.79 N-m to prevent loose contact faults or high-resistance heating during continuous full-load operations.
