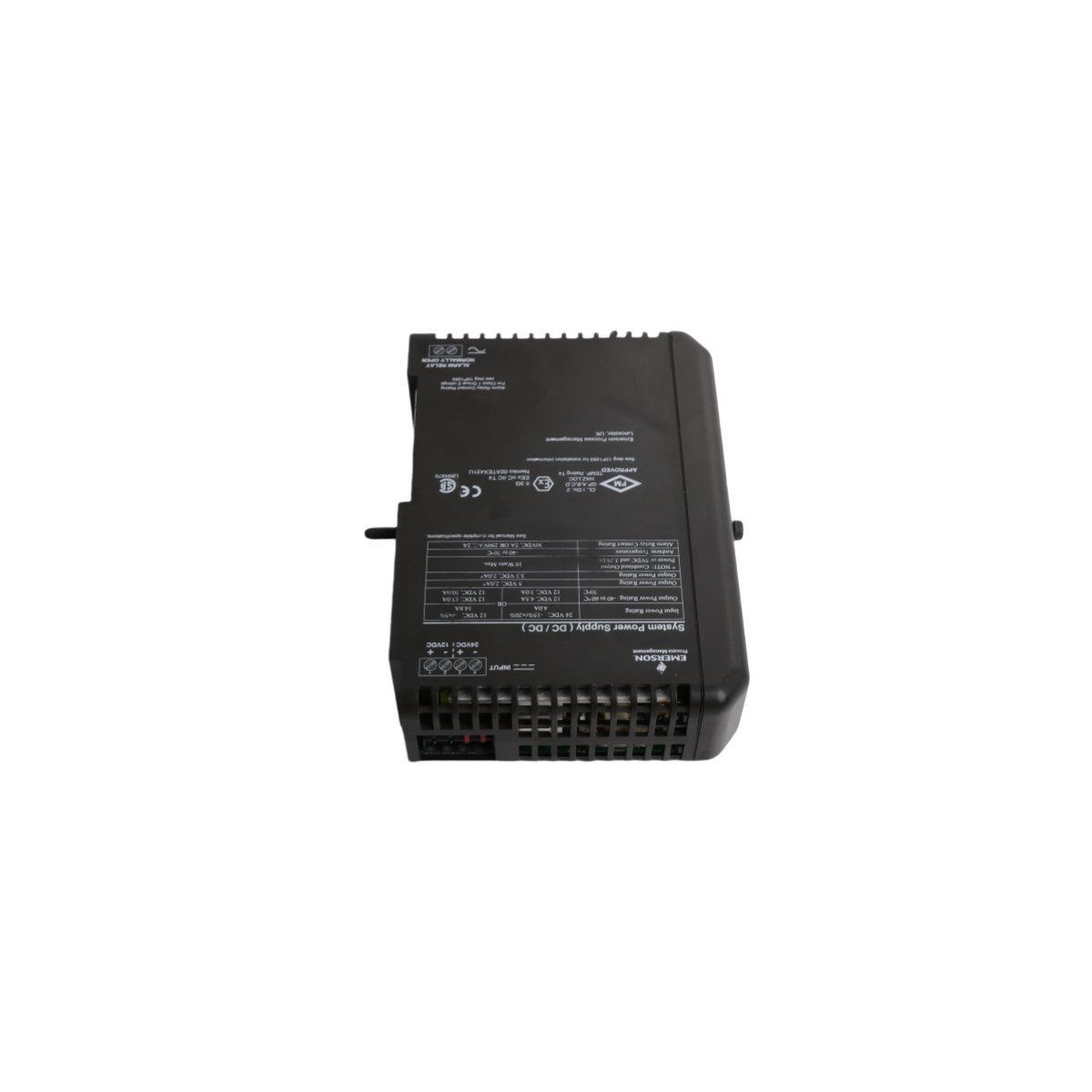

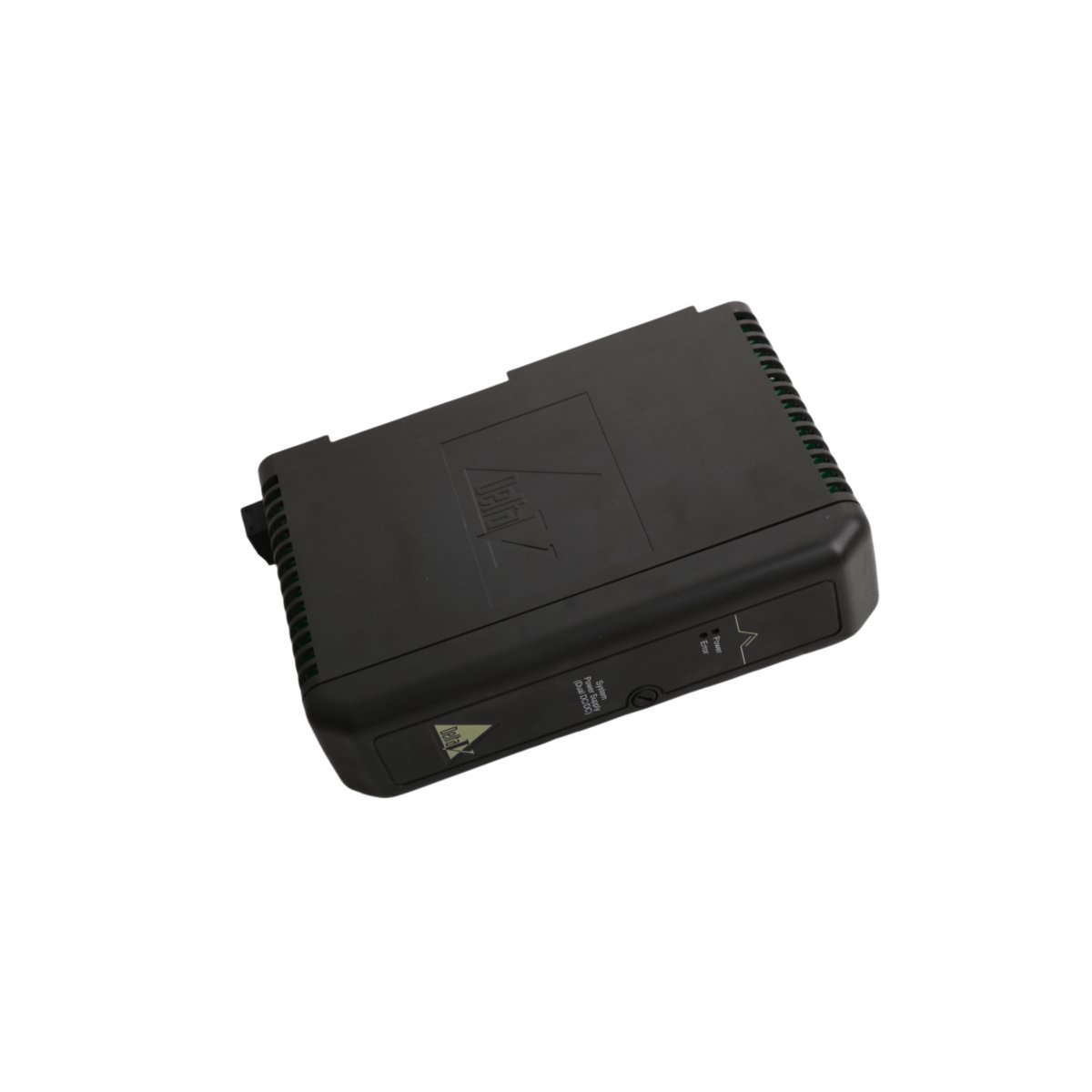

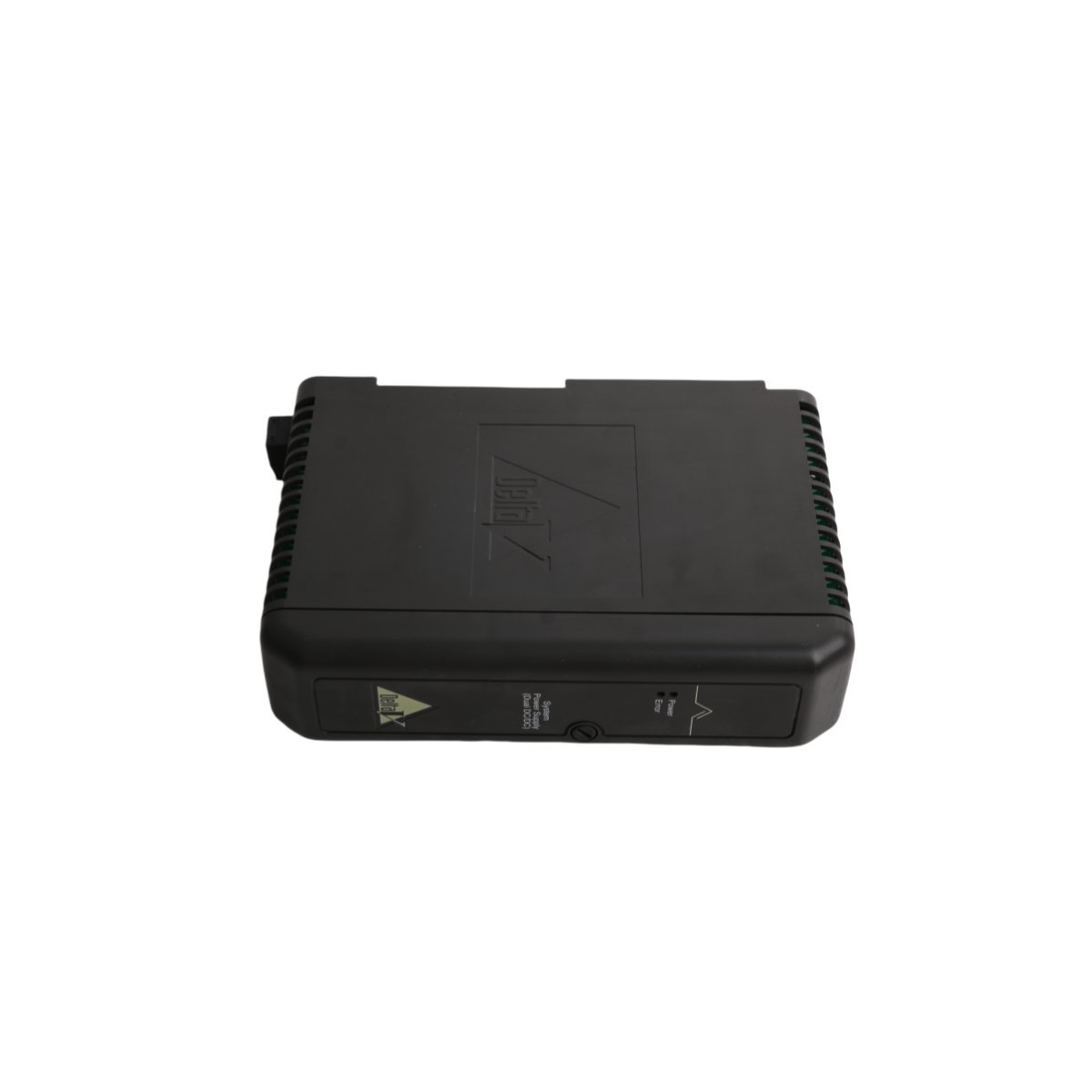

Emerson KJ1501X1-BC2 12P2186X032 VE5008 DeltaV Power Model
The Emerson DeltaV KJ1501X1-BC2 is a legacy System Power Supply Module (also identified as 12P2186X032 and VE5008) engineered to supply clean baseline power to DeltaV DCS and SIS carriers. Featuring a hot-swappable form factor and support for parallel redundant load sharing, this compact power supply prevents process interruptions by absorbing line transients and safeguarding downstream components. It is a critical replacement spare for automation engineers looking to extend the reliability and performance of existing DeltaV control nodes.
Description
Product Overview
The Emerson KJ1501X1-BC2 (cross-referenced by part numbers 12P2186X032 and VE5008) is an integrated System Power Supply Module designed for the Emerson DeltaV™ Distributed Control System (DCS) and DeltaV SIS™ process safety networks. This high-density power module functions as the foundational energy source for the local DeltaV backplane. It converts bulk input infrastructure power into highly filtered, low-voltage direct currents required to run local controllers, I/O nodes, and sensitive internal communications logic.
Advanced Capabilities and Functional Benefits
- Dedicated Backplane Power Injection: Delivers clean, isolated internal DC power directly to the localized DeltaV carrier backplane, preventing power sagging or interference propagation across neighboring I/O structures.
- Fail-Safe Modular Redundancy: Supports real-time parallel load-sharing configurations when installed on a redundant power carrier rack. If one power module drops offline, the sister unit immediately carries the complete system draw without causing a drop in signal continuity or triggering a system reboot.
- Hot-Swappable Replacement Tracking: Built with a structural form factor that permits online maintenance. Technicians can replace a faulty power module under load (“hot-swapping”) without disconnecting wiring or interrupting active plant control processes.
- Transient and Spike Shielding: Equipped with heavy-duty internal filtration, thermal overload safeguards, and surge suppression networks. These defenses prevent electrical utility line fluctuations from passing into delicate processing components.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Manufacturer | Emerson |
| Product Subsystem | DeltaV™ Distributed Control System / DeltaV SIS™ |
| Model Number | KJ1501X1-BC2 |
| Alternative Part Numbers | 12P2186X032 | VE5008 |
| Module Classification | System Power Supply Module |
| Redundancy Support | Yes (Parallel load sharing on redundant carriers) |
| Online Maintenance | Hot-Swappable (Live backplane extraction/insertion) |
| Physical Dimensions | 8.4 cm (H) x 9.0 cm (W) x 5.5 cm (D) |
| Net Hardware Weight | 0.18 kg (approx. 180 grams) |
| Condition Classification | Brand New (Original Industrial Surplus) |
| Country of Origin | United States |
| System Host Type | Decentralized Automation / DCS Network Infrastructure |
| Lifecycle Status | Legacy Platform (Discontinued by manufacturer Dec 31, 2018) |
Industrial Applications
- Process Automation Control Rooms: Supplying continuous, clean baseline electrical power to main DeltaV DCS controller arrays running large facility process lines.
- DeltaV SIS Safety Loops: Serving as the trusted energy foundation for Safety Instrumented Systems (SIS), critical interlocks, and emergency shutdown (ESD) nodes.
- Petrochemical and Refinery Environments: Powering distributed remote marshaling enclosures exposed to local machinery vibration and fluctuating temperatures.
- Utilities and Power Generation Systems: Maintaining uninterrupted automation capabilities inside facility sub-stations, boiler monitoring banks, and industrial turbine management rooms.
Additional information
| Weight | 0.18 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 8.4 x 9 x 5.5 cm |
