Description

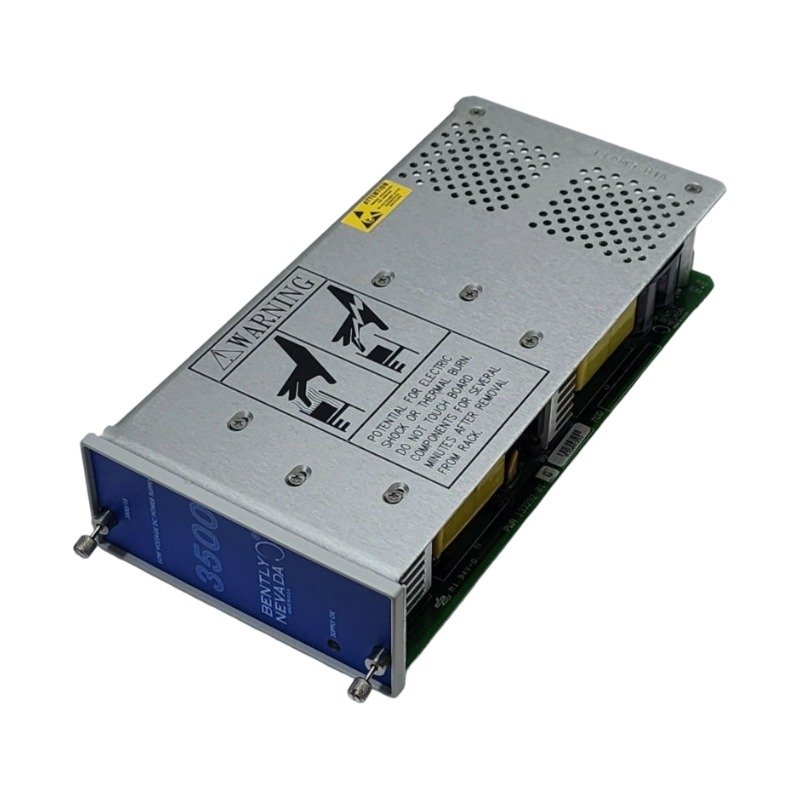

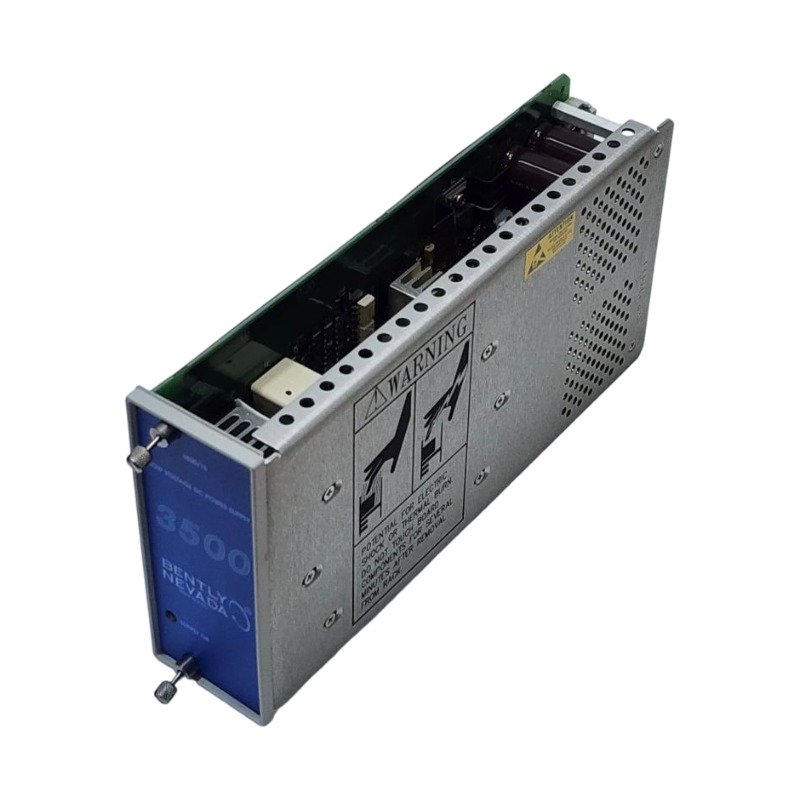

The Bently Nevada 3500/15-07-07-05, also cataloged as the Bently Nevada 3500/15 Power Supply Module, operates as a dedicated hardware component for power conversion and regulation within 3500 Machinery Protection System platforms. This hardware configuration aggregates the legacy low-voltage DC power supply module (133292-01) and the legacy low-voltage DC power input module (133300-01) into a cross-compatible assembly. The combined system accepts direct current feed and outputs multiple isolated DC rails to the internal system backplane, sustaining hardware operations for adjacent monitoring instrumentation.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This low-voltage DC layout provides critical regulation directly to the 3500 backplane, ensuring stable voltage parameters for high-accuracy Turbomachinery Instrumentation (TSI) setups. The internal circuitry actively enforces cross-talk suppression between slot positions, which blocks high-frequency transient anomalies from degrading low-level signals. By delivering smooth, uncorrupted power distribution across the rack, the unit preserves the resolution of eddy-current probe scaling functions. This electrical isolation enables proximity monitor channels to complete gap voltage validation (-10 VDC targets) without processing errors or measurement drift during extreme rotor dynamics events.

Frequently Asked Questions

Q: What actions occur when the input voltage drops below the 20 VDC limit?

A: An under-voltage condition triggers internal protective shutdowns to insulate the system logic, but it will not cause permanent damage to either the 133292-01 power supply or the 133300-01 input module.

Q: How does an over-voltage event impact the power input module hardware?

A: If the incoming voltage significantly exceeds the upper 30 VDC operating threshold, the over-voltage protection circuit forces the dedicated replacement fuse (P/N 01720045) on the 133300-01 input card to open instantly, isolating the internal components from high-current destruction.

Field Installation Guidelines

• Fuse Installation and Ratings: Confirm the presence of a properly rated fuse on the 133300-01 card prior to sliding the module into the rear slot. Never substitute higher amperage generic fuses, as doing so bypasses the safety limits of the power supply infrastructure.
• Chassis Grounding and Impedance Control: Fasten a low-impedance copper ground conductor from the primary rack chassis earth terminal directly to the master plant instrument ground bus. This arrangement controls residual noise and stabilizes transducer ground potentials.
• Input Wiring and Termination: Strip input DC conductor insulation cleanly to ensure full physical contact inside the terminal clamps. Tighten terminal block connection screws to a torque spec between 0.56 N-m and 0.79 N-m to neutralize risk of intermittent power distribution.
