Description

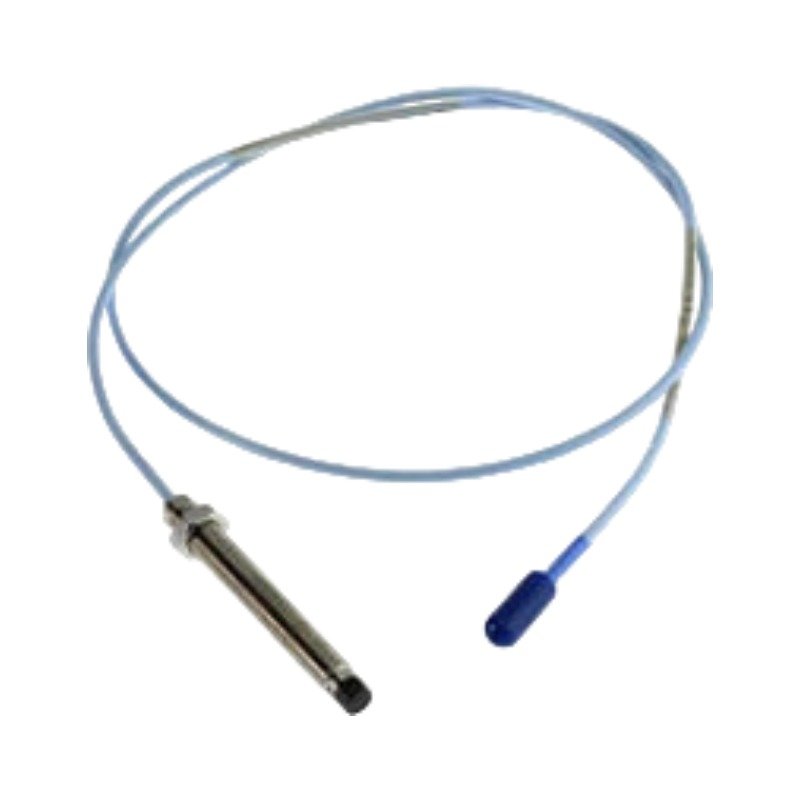

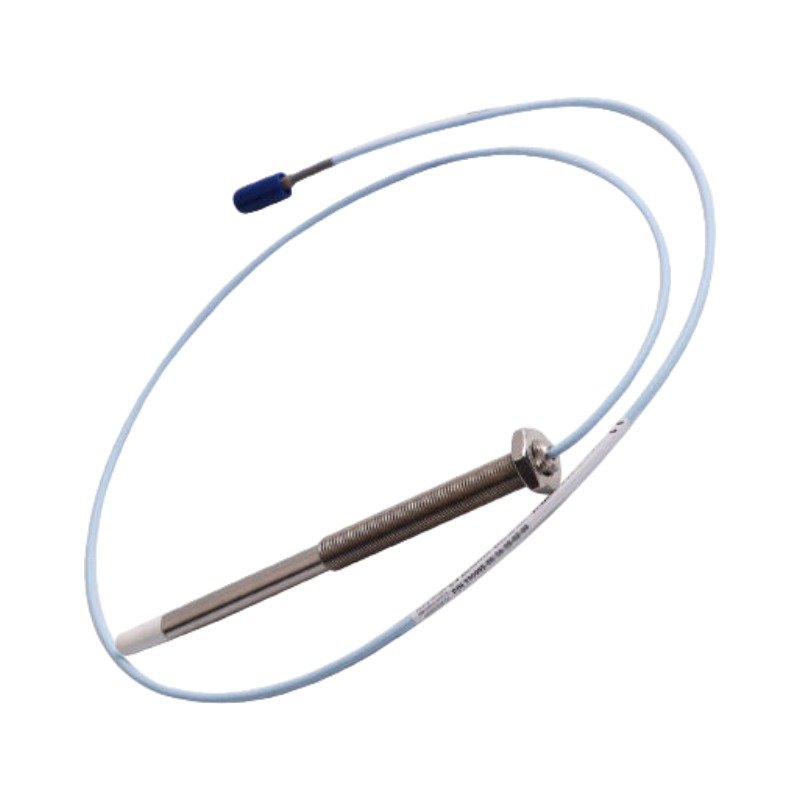

The Bently Nevada 330905-00-25-05-01-CN, also cataloged as the 330905 Proximity Probe, operates as a dedicated hardware component for capturing dynamic and static shaft displacement within 3500 Machinery Protection Systems platforms. This metric-threaded sensor targets small shafts or installations characterized by severely restricted mechanical clearances. By generating a localized high-frequency electromagnetic field, the probe tip measures gap variations without physical surface contact. Consequently, the hardware continuously converts proximity variations into modulated electrical outputs to track rotor dynamics and vibration profiles on small-scale industrial machinery.

Suffix Breakdown & Model Matrix

Alphanumeric suffix codes designate the exact physical geometry, connection safety enhancements, and regional certifications for this sensor configuration:

• 330905: Base model number for the 3300 NSv Proximity Probe featuring M10 x 1 standard threads without integrated stainless steel armor.
• -00: Establishes a completely unthreaded case length of 0 mm.
• -25: Specifies a total threaded case length of 25 mm.
• -05: Dictates a total integral cable length of 0.5 meter (20 inches).
• -01: Configures a miniature coaxial ClickLoc connector equipped with a factory-installed connector protector sleeve.
• -CN: Selects localized safety agency approvals specifically designated for mainland China industrial deployment.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The hardware executes a calibrated voltage output curve based on eddy-current probe scaling, generating a standard 7.87 V/mm (200 mV/mil) response against AISI 4140 steel targets. To ensure accurate measurement, field technicians execute gap voltage validation during the mechanical setup procedure. They adjust the installation depth of the probe casing until the corresponding Proximitor output measures a stable reference voltage. This precise adjustment positions the target surface exactly at the midpoint of the narrow 60 mil (1.5 mm) linear measurement envelope.

Because the 3300 NSv system features internal tuning for specific overall electrical lengths, technicians must accurately manage the combined loop capacitance. Connecting this 0.5-meter probe cable to a matching 4.5-meter or 6.5-meter extension cable completes the required total circuit path. This matched arrangement enforces maximum cross-talk suppression inside high-density multi-conductor wireways. Conversely, altering the loop parameters shifts the circuit impedance, which corrupts voltage data and invalidates critical rotor dynamics analysis.

Frequently Asked Questions

Q: What specific advantage does the connector protector option provide during field installation?

A: The connector protector option adds a specialized physical sleeve that seals the miniature coaxial junction against moisture, oil, and dust ingress. Consequently, this sleeve maintains insulation resistance while preventing environmental contamination from degrading high-frequency signal transmission.

Q: Can this 3300 NSv probe connect directly to a standard 3300 XL 8mm Proximitor sensor?

A: No, because the 3300 NSv probe uses unique coil geometries optimized for small target surfaces, whereas the standard 3300 XL 8mm sensor utilizes a different calibration curve. Intermixing these platforms causes severe eddy-current probe scaling errors and disrupts machinery protection loops.

Field Installation Guidelines

• Mounting Torque Restrictions: Insert the M10 x 1 stainless steel body into the mounting bracket or sleeve structure using manual hand tools. Do not exceed a torque ceiling of 22.6 N-m (200 in-lb), as excessive force stretches the casing structure and permanently fractures the internal ceramic or plastic assemblies.
• Coaxial Coiling Precautions: Ensure that the miniature coaxial cable retains smooth, sweep-style bends during layout routing. Maintain a strict minimum bend radius of 25.4 mm; bending the cable past this limit damages the internal shielding structures and creates baseline impedance shifts.
• Ground Isolation Isolation: Position the clear fluoropolymer insulation sleeve squarely over the completed ClickLoc connection joint. This mechanical sleeve prevents the outer metal ring of the connector from touching structural conduits or machine casings, thereby eliminating stray ground loop interference.
