Description

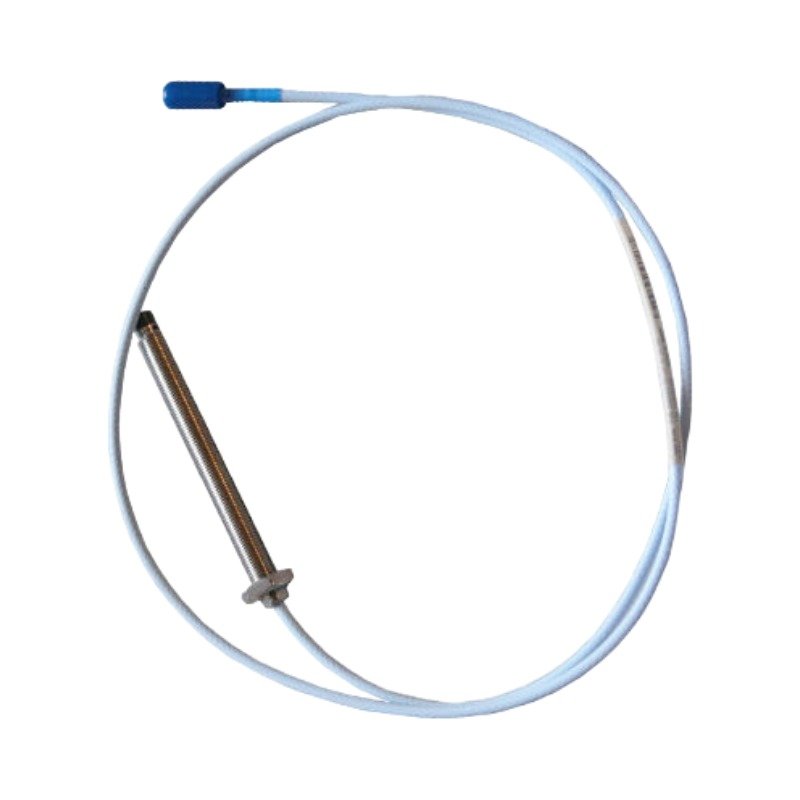

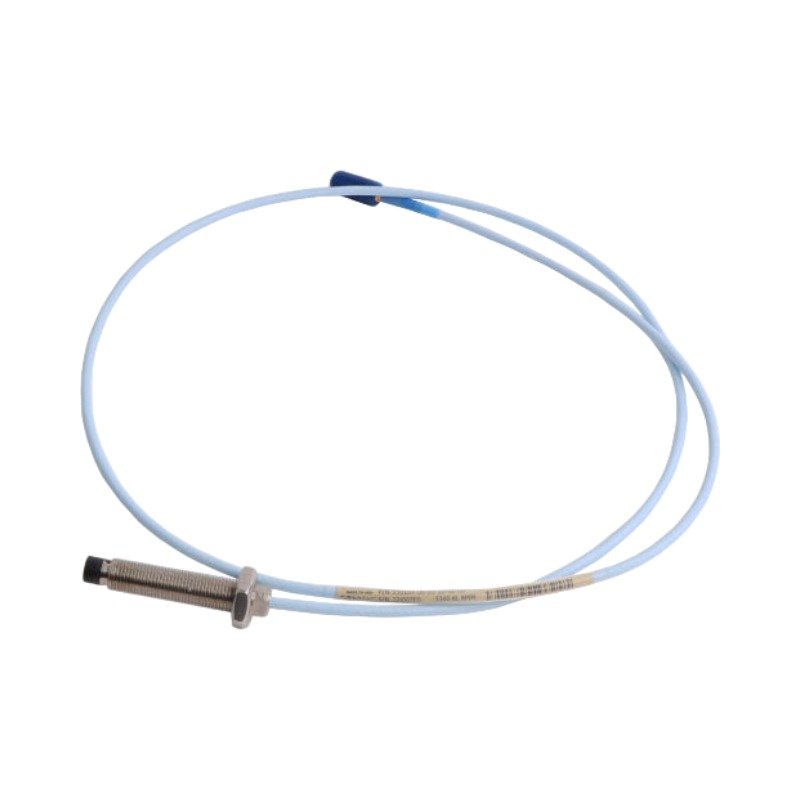

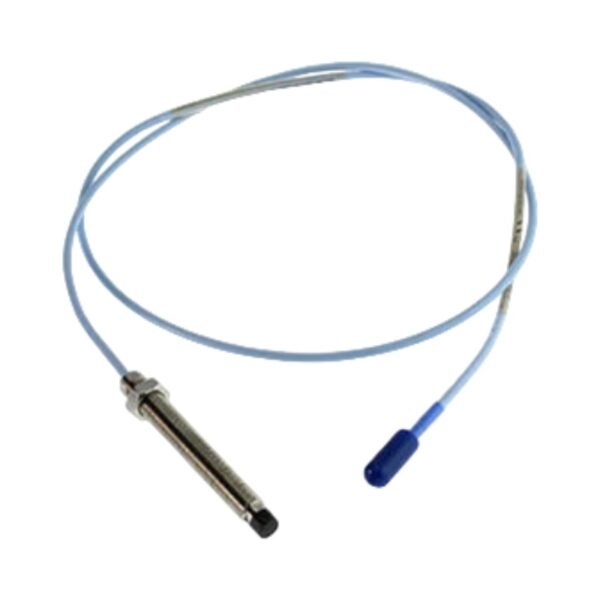

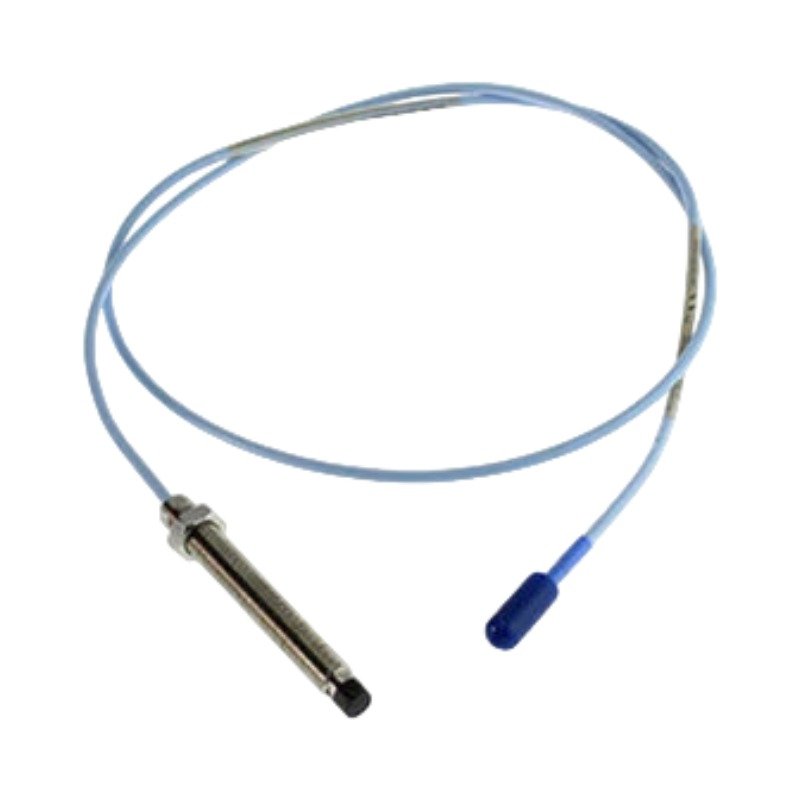

The Bently Nevada 330103-00-03-10-02-00, also cataloged as the 330103 Proximity Probe, operates as a dedicated hardware component for capturing dynamic and static shaft displacement within 3500 Machinery Protection Systems. This metric-threaded hardware component generates an alternating magnetic field that interacts directly with conductive target surfaces. Consequently, this non-contact interaction captures critical vibration and position parameters near fluid-film bearings. Ultimately, the sensor continuously passes these physical gap variations down the line as modulated electrical signals to drive real-time machinery diagnostics.

Suffix Breakdown & Model Matrix

Specific alphanumeric suffixes designate the exact physical dimensions, structural options, and regulatory ratings for this hardware assembly:

• 330103: Base model identifier for the 3300 XL 8 mm Proximity Probe featuring standard M10 x 1 threads without internal cable armor.
• -00: Establishes a completely unthreaded case length of 0 mm.
• -03: Defines a total threaded case length of 30 mm.
• -10: Specifies a total integral cable length of 1.0 meter (3.3 feet).
• -02: Selects a miniature coaxial ClickLoc connector paired with a standard unarmored cable structure.
• -00: Indicates that this configuration lacks specific hazardous area agency approvals.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The probe tip continuously executes a linear voltage response relative to the physical distance separating the sensor from the observed shaft. To ensure accuracy, field technicians perform gap voltage validation during the initial commissioning routine. They adjust the physical mounting depth of the probe body until the connected proximitor sensor outputs a steady -10 VDC. This adjustment successfully centers the system within its 80 mil (2.0 mm) linear performance window.

Because proper eddy-current probe scaling requires a strict calibration factor of 7.87 V/mm (200 mV/mil), technicians must maintain precise total system lengths. Joining this 1.0-meter integral probe cable with a matching 4.0-meter extension cable forms the required 5.0-meter electrical path. This deliberate match optimizes cross-talk suppression and secures signal integrity through high-density cable trays. Conversely, altering the overall cable length shifts the baseline capacitance, which immediately corrupts the voltage output curve and distorts critical rotor dynamics measurements.

Frequently Asked Questions

Q: Does this 1.0-meter probe allow direct connection to a 3300 XL Proximitor sensor without an extension cable?

A: No, because the Proximitor sensor requires a specific total loop length of either 5.0 meters or 9.0 meters to maintain its tuning. Bypassing the extension cable introduces a severe impedance mismatch, which immediately invalidates the calibration.

Q: How does a disconnected probe cable impact the downstream protection system while the machinery is running?

A: Disconnecting the cable instantly opens the sensor loop. Consequently, the Proximitor drives the associated monitor channel into a “Not OK” fault state, which automatically triggers a downstream machine trip unless the operator activates channel bypasses beforehand.

Field Installation Guidelines

• Mechanical Torque Controls: Thread the M10 x 1 stainless steel body into the mounting bracket using standard hand tools. Never exceed a maximum torque of 14.7 N-m (130 in-lb), as excessive force strips the threads and deforms the internal sensor coils.
• Connector Integrity and Assembly: Inspect the gold-plated miniature coaxial ClickLoc interfaces to ensure they remain completely free of oil, moisture, and dust. Afterward, push and twist the connectors together by hand until they click firmly into place; never use pliers or locking wrenches.
• Shield Isolation: Slide the clear fluoropolymer sleeve over the finished coaxial junction. This step isolates the outer connector ring from the local machine housing, thereby preventing ground loops that feed stray electromagnetic noise into the vibration signal path.
