Description

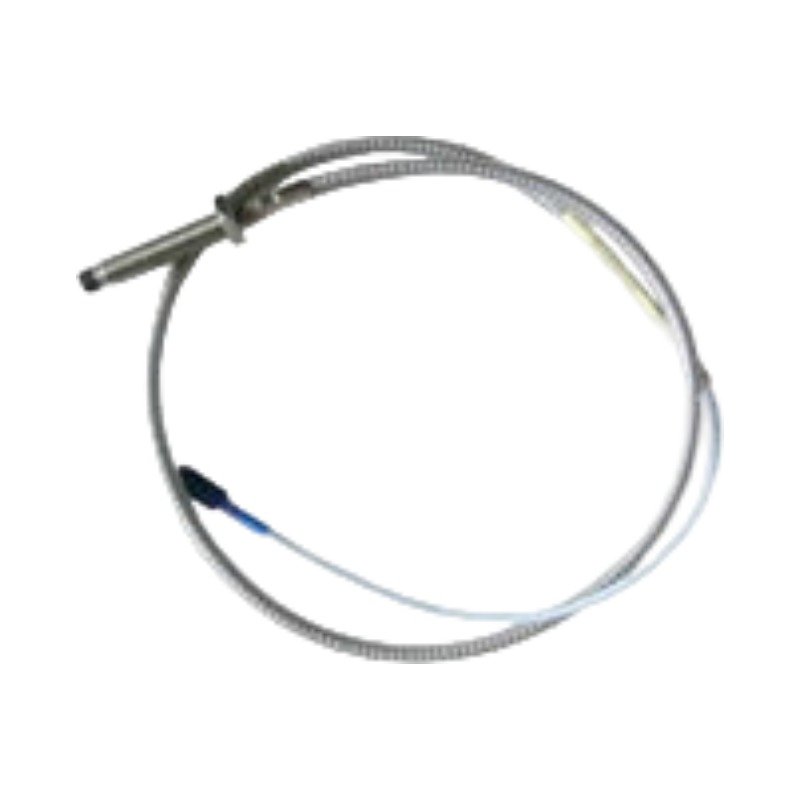

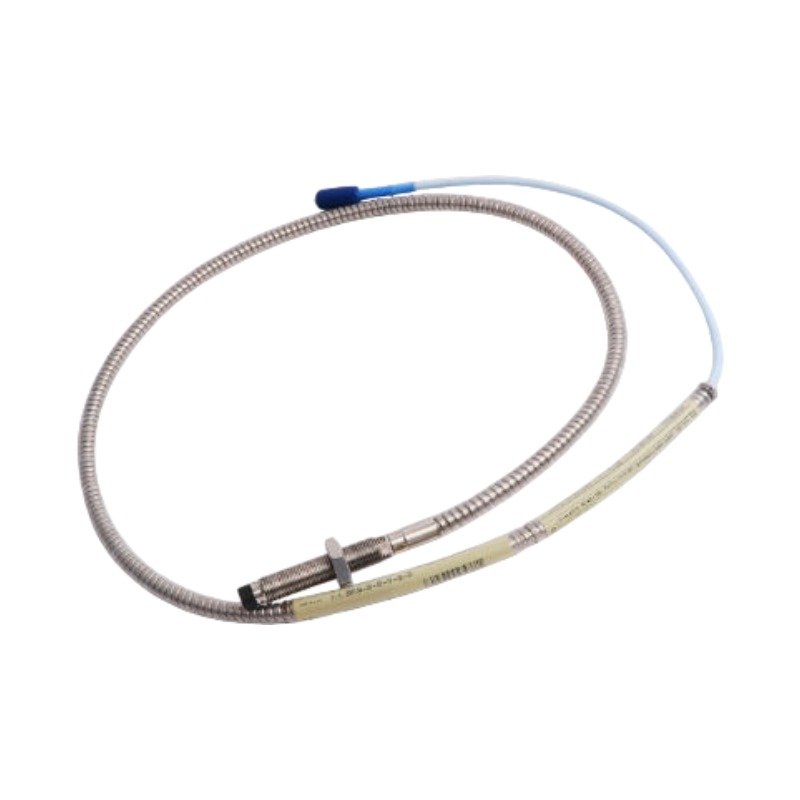

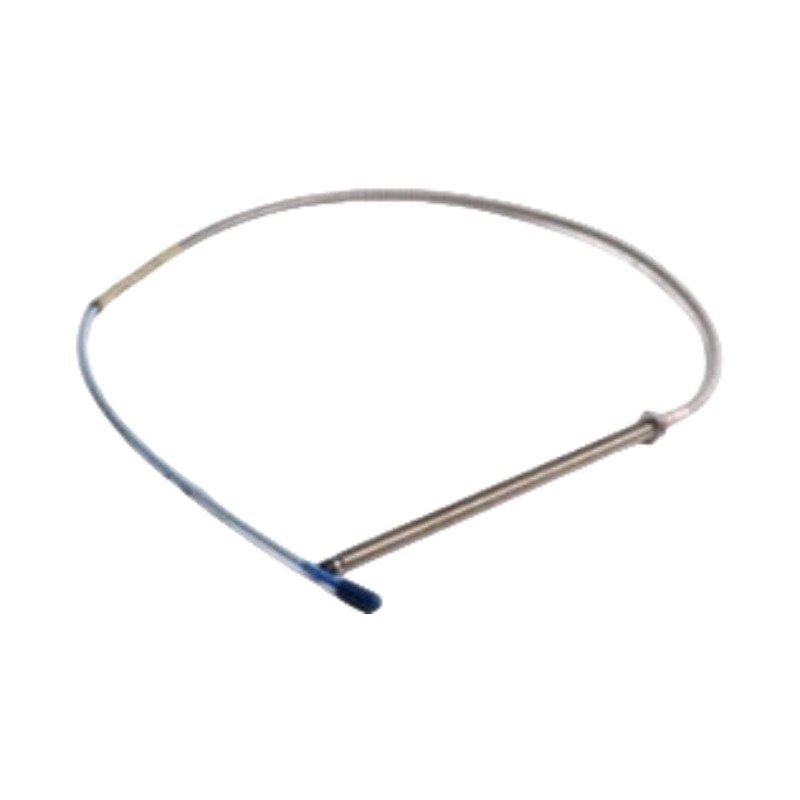

The Bently Nevada 330104-00-22-10-02-05, also cataloged as the 330104 Proximity Probe, operates as a dedicated hardware component for continuous machinery protection and shaft displacement monitoring within 3300 XL Proximity Transducer System platforms.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The proximity probe generates high-frequency eddy currents when excited by an external oscillator circuit, monitoring changes in impedance caused by relative shaft movement. During standard field commissioning, technicians execute gap voltage validation across the associated Proximitor terminals to ensure the tip sits precisely in the middle of its linear operating envelope, targeting an electrical baseline of -10 VDC. Furthermore, the specialized coaxial shielding configuration suppresses cross-talk between adjacent probe leads in multi-axis X-Y configurations, preserving phase angle and amplitude metrics during high-speed rotor dynamics tracking. The paired 3300 XL Proximitor sensor automatically maintains the standard 200 mV/mil scale factor over the full 2.0 mm linear sweep without requiring unique component matching or bench recalibration.

Frequently Asked Questions

Q: Does this specific 1.0-meter probe require an additional extension cable before connecting to the Proximitor sensor? A: Yes, because the total system calibration requires a matching length of either 5.0 meters or 9.0 meters, technicians must install a matching 3300 XL extension cable to bridge the distance between this 1.0-meter probe and the Proximitor housing.

Q: How does the ClickLoc coaxial connector prevent accidental detachment caused by machine casing vibration? A: The gold-plated ClickLoc connector architecture incorporates an engineered mechanical locking ring that requires only finger-tight torque to engage, generating a physical click when fully locked to prevent rotational backing off.

Field Installation Guidelines

• Mechanical Thread Engagement: Thread the M10 x 1 probe body into the bracket housing, observing the physical target gap via a digital voltmeter until reaching the -10 VDC target threshold. Next, lock the position by tightening the external locknut to a torque specification of 5.1 N-m.
• Shield Grounding Control: Ensure that the coaxial cable shield maintains complete electrical isolation from the machine case. Specifically, isolate the intermediate connector using silicone tape or connector protectors, grounding the loop exclusively at the monitoring rack bus bar.
• Cable Bend Radius Limits: Route the integrated armored coaxial lead through local flexible paths, observing a strict minimum physical bend radius of 25.4 mm (1.0 inch) to eliminate high-frequency signal attenuation and structural cable failure.
