Description

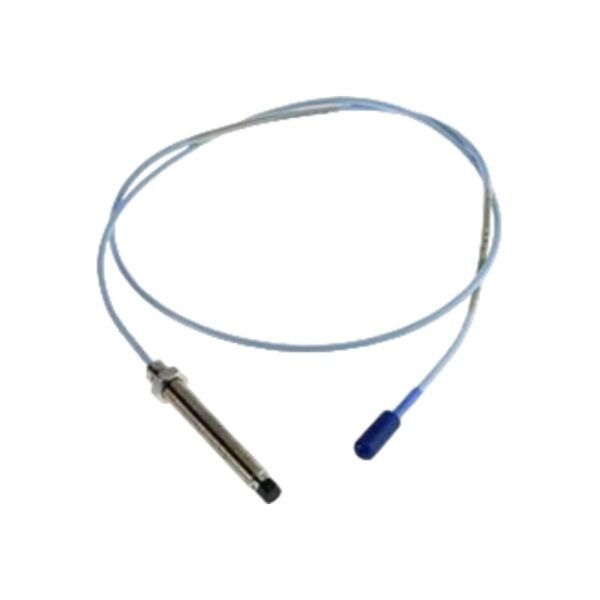

The Bently Nevada 330903-02-16-05-02-00 belongs to the specialized 3300 XL NSv (Narrow Side-View) Proximity Transducer System family. Personnel deploy this precise hardware solution on industrial rotating machinery with highly restricted installation clearances, such as small centrifugal air compressors, refrigeration compressors, and process gas assemblies.

Suffix Part Number Breakdown

The specific option strings map directly to the following structural specifications:

• 330903: Base Model Number for the 3300 XL NSv Probe (M8 x 1 metric thread, without armor).
• 02: 20 mm unthreaded case length.
• 16: 160 mm overall case length.
• 05: 0.5 metre (20 inches) total physical cable length.
• 02: Miniature coaxial ClickLoc connector, standard cable.
• 00: No specialized regional agency approvals required (Standard configuration).

Hardware Specifications

Eddy-Current Signal Conditioning and TSI Characteristics

The hardware executes automated eddy-current probe scaling to output a continuous high-frequency signal directly proportional to the physical gap between the probe tip and the observed conductive target. Because the NSv system optimizes its field for narrow areas, it delivers a precise incremental scale factor of 7.87 V/mm (200 mV/mil). This specialized side-view focus allows the system to monitor tight areas accurately, providing a 1.5 mm (60 mils) linear operating range.

Meanwhile, the high-frequency demodulation circuitry tracks rapid rotor dynamics, capturing critical metrics for radial vibration, axial thrust position, and phase reference (Keyphasor) indication. Furthermore, the probe tip design limits side-view field expansion, which actively prevents target signal distortion from nearby machine structural walls, bearing shoulders, or narrow counterbore limits.

Frequently Asked Questions

Q: When should engineers choose the 3300 XL NSv probe over a standard 3300 XL 8 mm probe?

A: Personnel should select the 3300 NSv system when measuring radial vibration on shafts smaller than 51 mm (2 inches) or axial position on flat targets smaller than 15 mm (0.6 inches). The narrow magnetic field prevents cross-talk and side-wall interference.

Q: How does the 0.5-metre cable length choice modify the required extension cable configuration?

A: This exact probe features an integrated 0.5-metre physical cable. Therefore, technicians must connect either a 4.5-metre extension cable to create a 5.0-metre system loop or a 6.5-metre extension cable to finish a 7.0-metre total system configuration.

Field Installation Guidelines

• Thread the probe body into the M8 x 1 mounting bracket or machine casing, taking care to keep installation torque within standard limits to avoid casing strain.
• Next, adjust the physical position of the probe tip relative to the target shaft until your monitoring instrument records a center gap voltage of approximately -7 VDC to -10 VDC.
• Subsequently, push the male and female ClickLoc connector halves together firmly until the internal spring mechanism clicks into place.
• After that, wrap self-fusing silicone tape tightly over the exposed coaxial junction to safeguard the raw signal line from moisture and grounding faults against the machine body.
• Finally, route the short 0.5-metre coaxial line into protective conduit, and verify that all installation parameters remain secure under heavy industrial vibration.
