Description

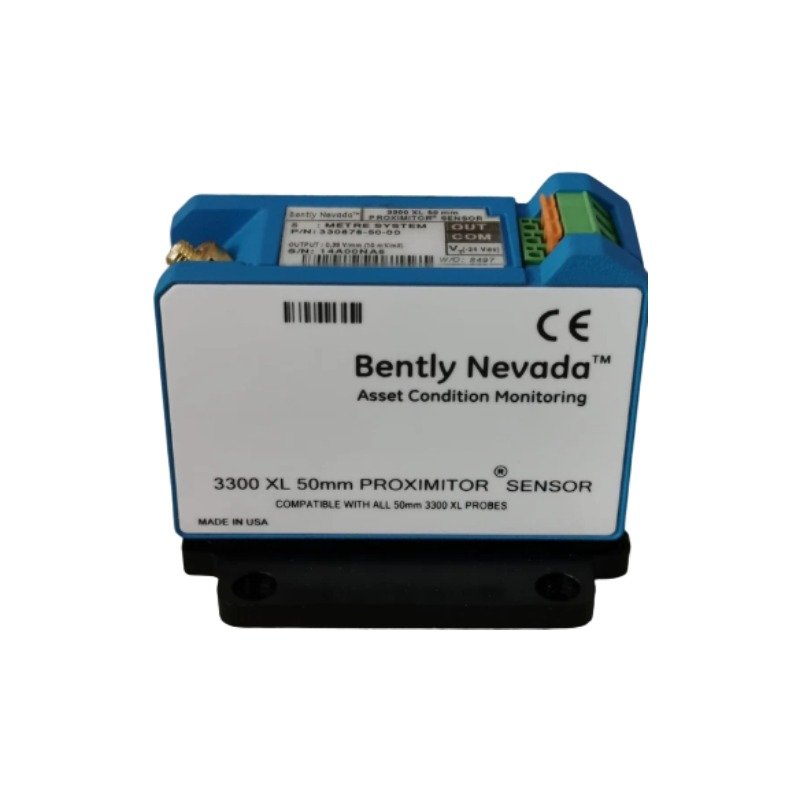

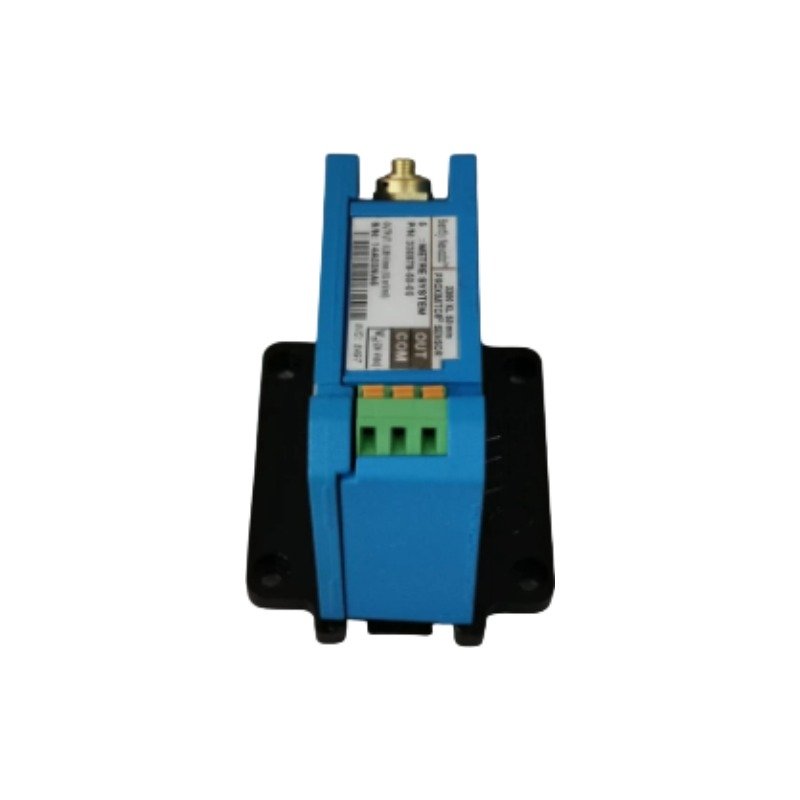

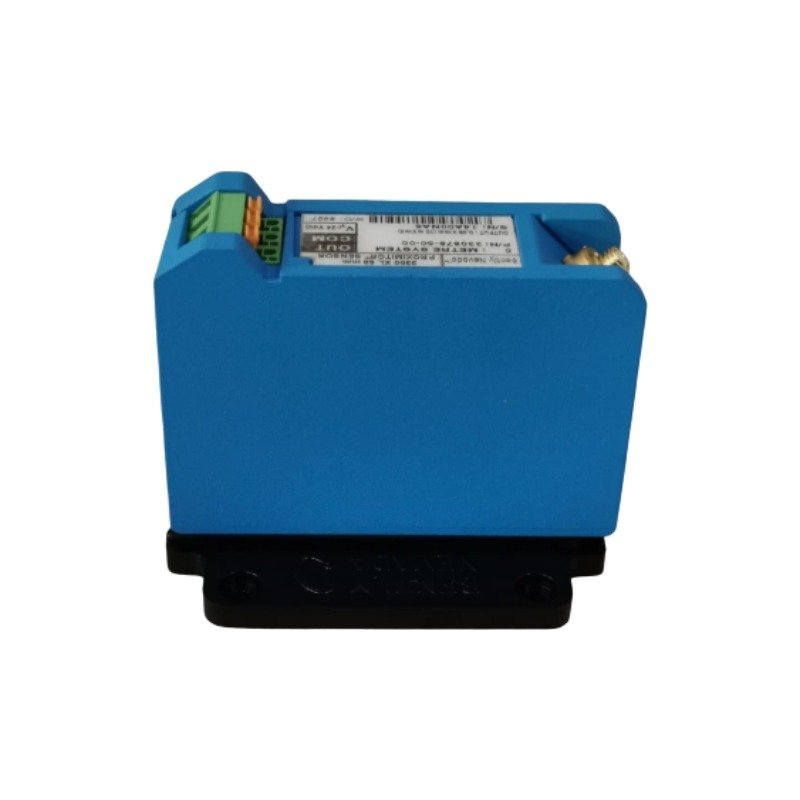

The Bently Nevada 330878-50-00, which engineering teams also catalog as the Bently Nevada 330878 3300 XL 50 mm Proximitor Sensor, operates as a dedicated hardware component for converting dynamic proximity probe signals to proportional voltage outputs within TSI vibration monitoring racks. Consequently, the unit directly translates high-frequency mechanical displacement into highly precise electrical values for continuous machine protection.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

First, the 330878 Proximitor Sensor processes eddy-current field modulations that the target metal induces. Therefore, precise calibration requires rigorous gap voltage validation to ensure the sensor operates in the linear range of the RF field. Specifically, field technicians must adjust the probe position during installation to achieve a target gap voltage of -10 VDC, which establishes the physical midpoint of the linear region. Additionally, standard factory calibration targets AISI 4140 steel, meaning other rotor metallurgies will alter the eddy-current depth of penetration and require specialized probe scaling factors. Furthermore, the system successfully maintains dynamic rotor dynamics signals without cross-talk suppression degradation, provided that technicians install proper coaxial shielding and match the system length to the hardware specifications.

Frequently Asked Questions

Q: What operational risks arise if a technician connects a 9.0 meters cable system to a Proximitor that requires a 5.0 meters system configuration?

A: Connecting incorrect system lengths mismatches the calibration impedance. Consequently, this error introduces severe linearity issues and alters the sensor scale factor, which ultimately corrupts the vibration readings. Therefore, technicians must match the physical cable system length with the specific AA option of the sensor.

Q: Can technicians safely hot-swap the 330878 Proximitor Sensor under load?

A: No, technicians cannot hot-swap this device. Specifically, operators must isolate power from the monitoring rack before replacing the Proximitor sensor. Otherwise, transient electrical surges may damage the delicate high-frequency RF circuitry inside the unit.

Field Installation Guidelines

First, installers must securely mount the housing on a clean, flat surface using either the panel mount or DIN-rail options. Additionally, technicians must electrically isolate the Proximitor housing from the mounting surface to eliminate ground loop interference. Subsequently, personnel must verify that all coaxial extension cable connectors are dry, clean, and properly torqued. Indeed, wrapping coaxial connection points with self-fusing silicone tape effectively prevents moisture ingress. Finally, installers must maintain a physical clearance of at least 50 mm between the sensor housing and any adjacent AC power lines to suppress external electromagnetic noise.
