Description

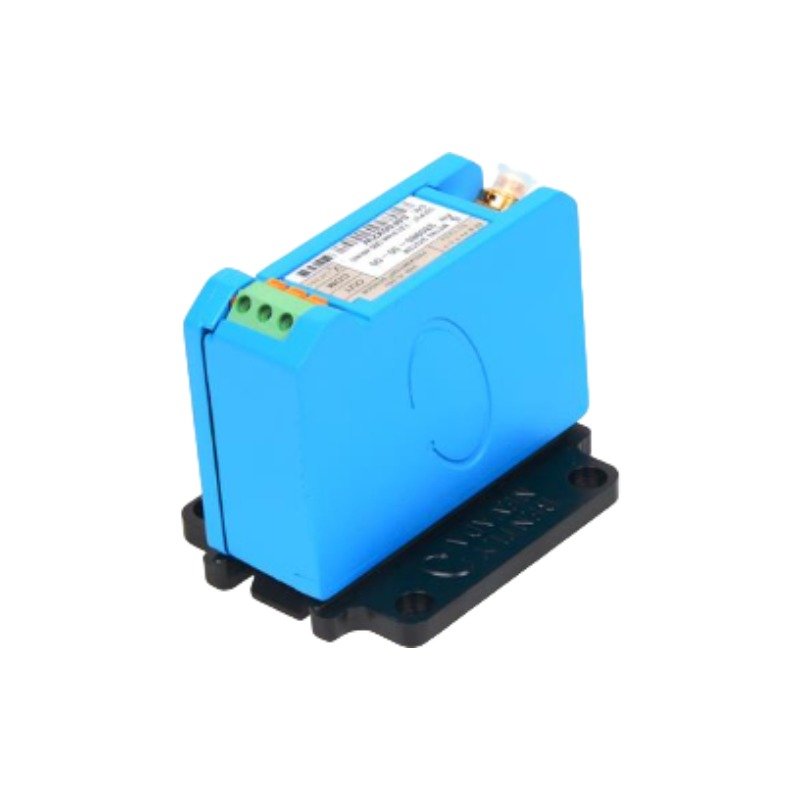

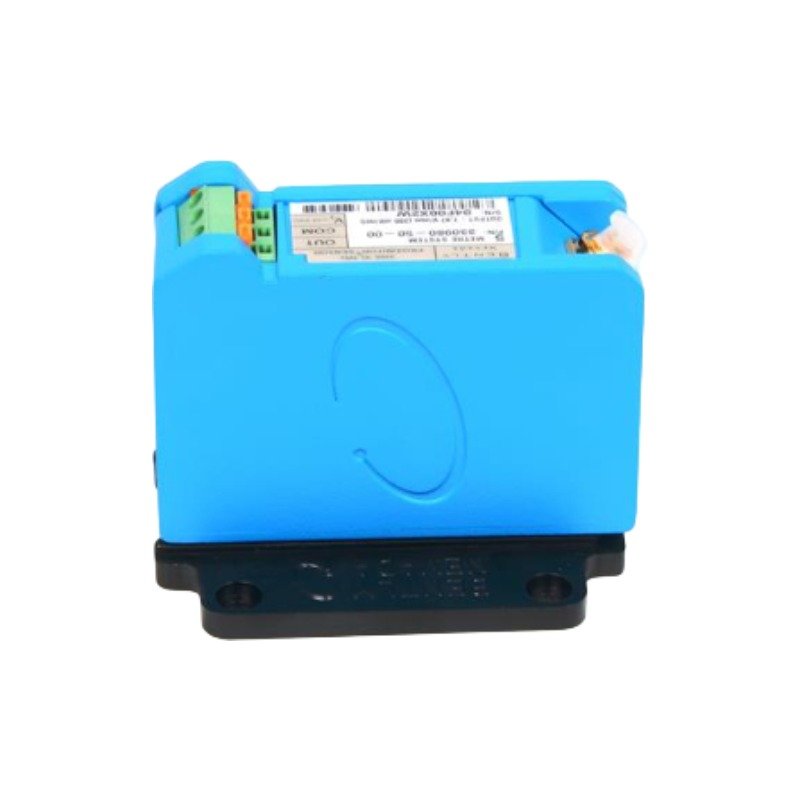

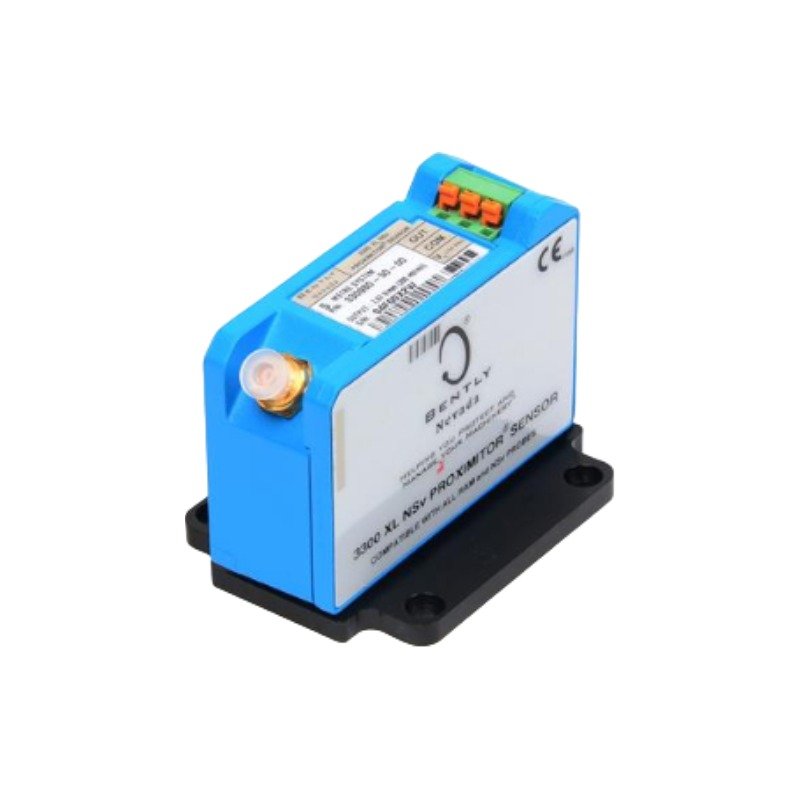

The Bently Nevada 330980-50-00, also cataloged as the 330980 Proximitor Sensor, operates as a dedicated hardware component for proximity transducer signal conditioning within 3300 XL NSv vibration and position monitoring platforms.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling & Rotor Dynamics

The 3300 XL NSv Proximitor Sensor utilizes advanced eddy-current probe scaling to operate in tight clearances and confined mechanical spaces where regular 3300 XL 8 mm systems face severe cross-talk suppression limitations. The hardware translates the high-frequency RF field disruptions caused by target shaft movement into an exact voltage output proportional to the gap. In rotor dynamics tracking, validating the exact gap voltage (-10 VDC targets representing the center of the linear range) remains critical to prevent mechanical probe strike or signal saturation during fluid-film bearing displacement.

Frequently Asked Questions

Q: Can the 330980-50-00 Proximitor Sensor be mixed with standard 3300 XL 8 mm probes?

A: No, the 3300 XL NSv Proximitor Sensor requires specific NSv probes and extension cables. Intermixing components alters the eddy-current probe scaling, inducing significant calibration linearity errors.

Q: What are the primary structural differences for mounting under option code 50?

A: Option code 50 specifies a 5.0-meter system length configured with integrated panel-mount flanges. It features pre-drilled holes intended for direct fast insertion onto standard internal enclosure backplates.

Field Installation Guidelines

• Isolation Integrity: Ensure the Proximitor housing remains electrically isolated from the system ground. Use the provided isolation washers or DIN-rail isolation feet to prevent destructive ground loops.
• Coaxial Connector Handling: Tighten the coaxial connections finger-tight only. Do not use pliers or mechanical wrenches, which will permanently damage the internal gold-plated center pins.
• Terminal Block Torquing: Strip field wiring to 7 mm. Terminate field connections in the screw terminal block using a torque threshold not exceeding 0.56 N-m.
