Description

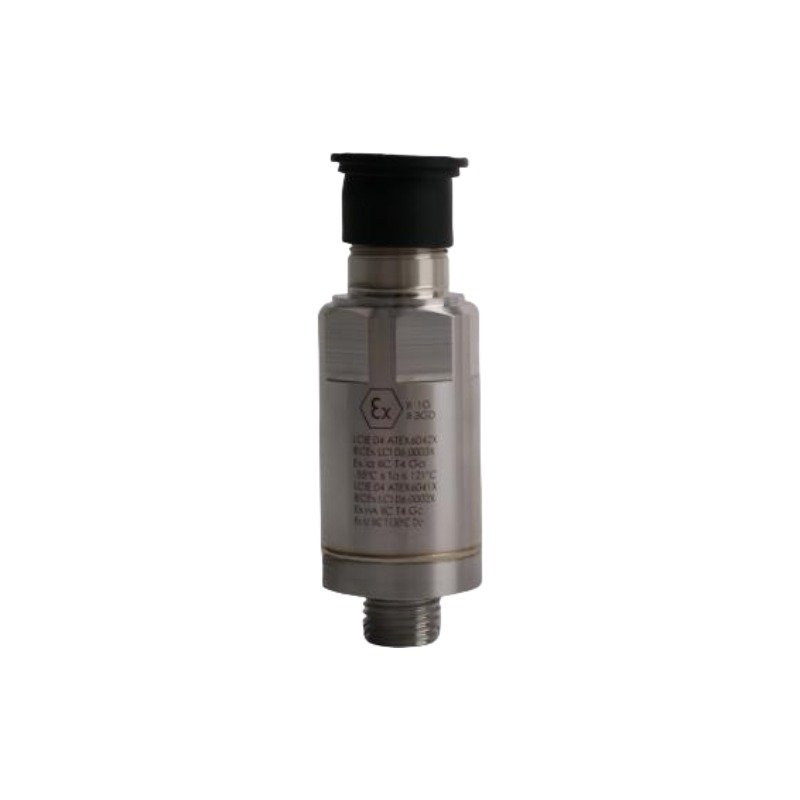

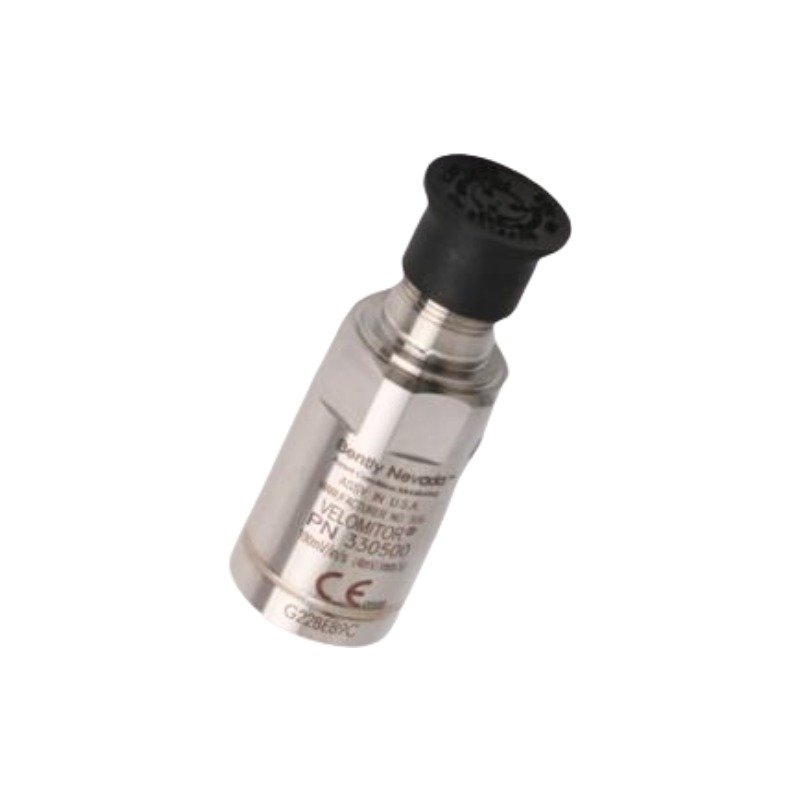

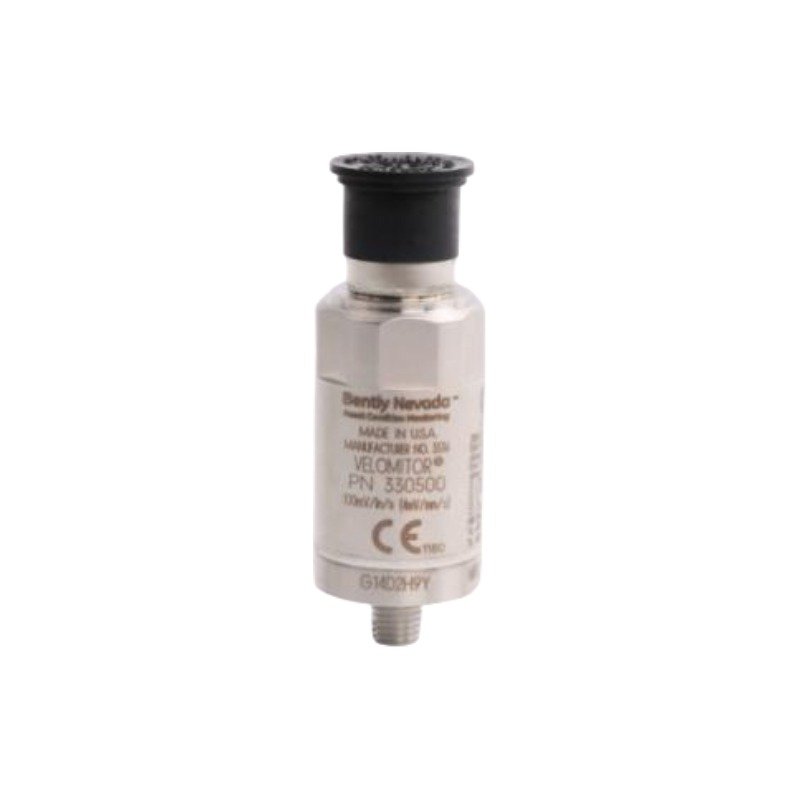

The Bently Nevada 330500-00-00, also cataloged as the Bently Nevada 330500 Velomitor Piezo-velocity Sensor, operates as a dedicated hardware component for absolute casing velocity measurement within machinery protection platforms. It converts high-frequency mechanical vibration directly into a proportional proportional-voltage signal via an internal piezoelectric crystal matrix and integrated solid-state charge amplifier circuits.

Suffix Breakdown & Model Matrix

Hardware Specifications

Transducer Signal Conditioning and Cross-Talk Suppression

Because the sensor internal electronics produce a low-impedance voltage output, the signal loop actively counters the cross-talk suppression difficulties found in multi-axial industrial machine trains. This integrated hardware implementation modifies raw charge signals before transmission, which eliminates the requirement for external charge amplifiers. Consequently, the interface maintains signal integrity across long-distance field cable runs to the monitor backplane without degradation from electro-magnetic fields or structural cross-coupling.

Frequently Asked Questions

Q: Does the 330500-00-00 sensor require an external bias voltage or a dedicated proximity monitor power supply?

A: Yes. The device requires excitation from a constant current source within the 2 mA to 10 mA range, which is standard on Bently Nevada 3500/42M or equivalent monitors. Connecting the output pin to a direct voltage channel without current limiting will cause immediate hardware failure.

Q: How do the internal electronics manage structural high-frequency noise spikes above 5.0 kHz?

A: The sensor physical crystal design and internal processing loop incorporate a low-pass filter profile. Consequently, the hardware attenuates high-frequency resonance spikes outside the specified bandwidth to prevent amplifier saturation.

Field Installation Guidelines

• Mechanical Torquing Sequence: Mount the sensor directly onto a prepared flat surface using a calibrated torque wrench to achieve exactly 4.5 N-m of torque. Lower values fail to transmit high-frequency vibration, whereas excessive torque stresses the internal piezoelectric crystals.
• Surface Preparation Criteria: The target mounting surface must possess a flat profile within 0.025 mm tolerances and a surface finish matching or exceeding 0.8 micrometers Ra. Apply a thin layer of silicone fluid or acoustic coupling grease before final thread engagement.
• Shielding Termination Protocols: Run the twisted-shielded field cable through rigid or flexible conduit separate from high-voltage AC lines. Terminate the cable shield at a single point inside the monitor housing while keeping the sensor end fully isolated to prevent ground loops.
