Description

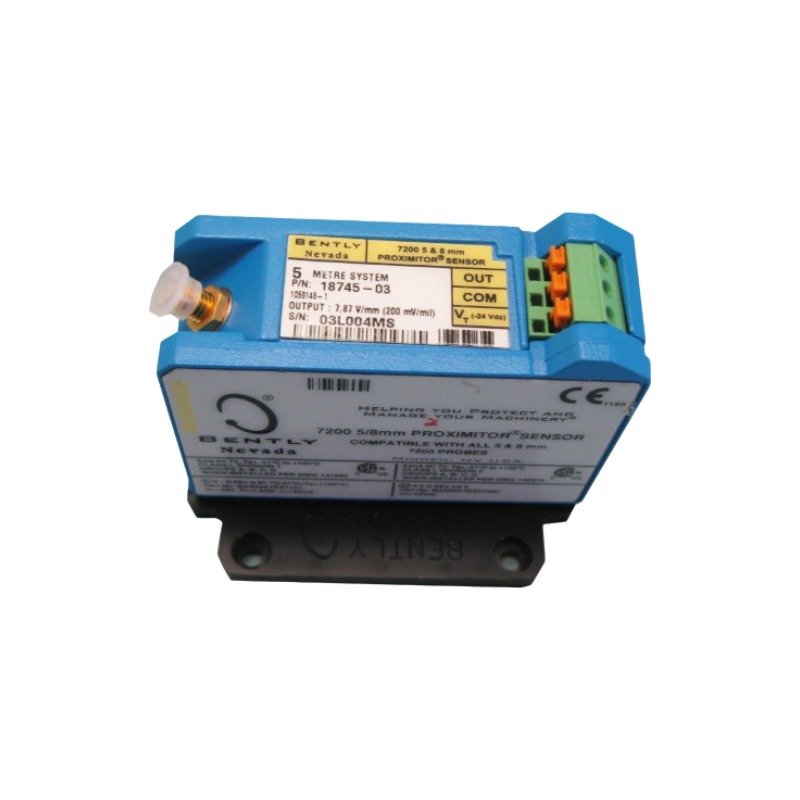

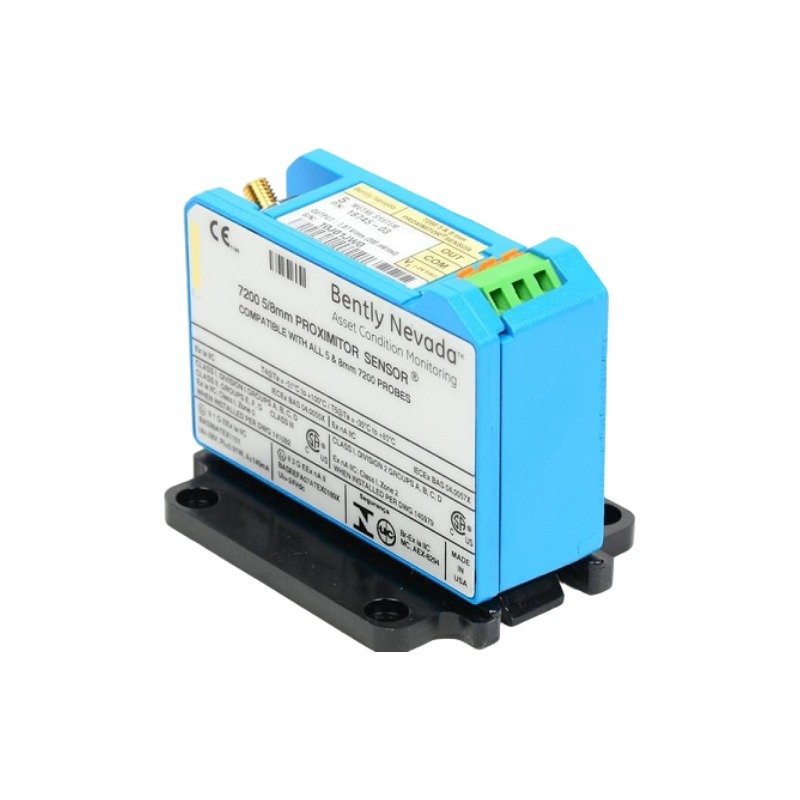

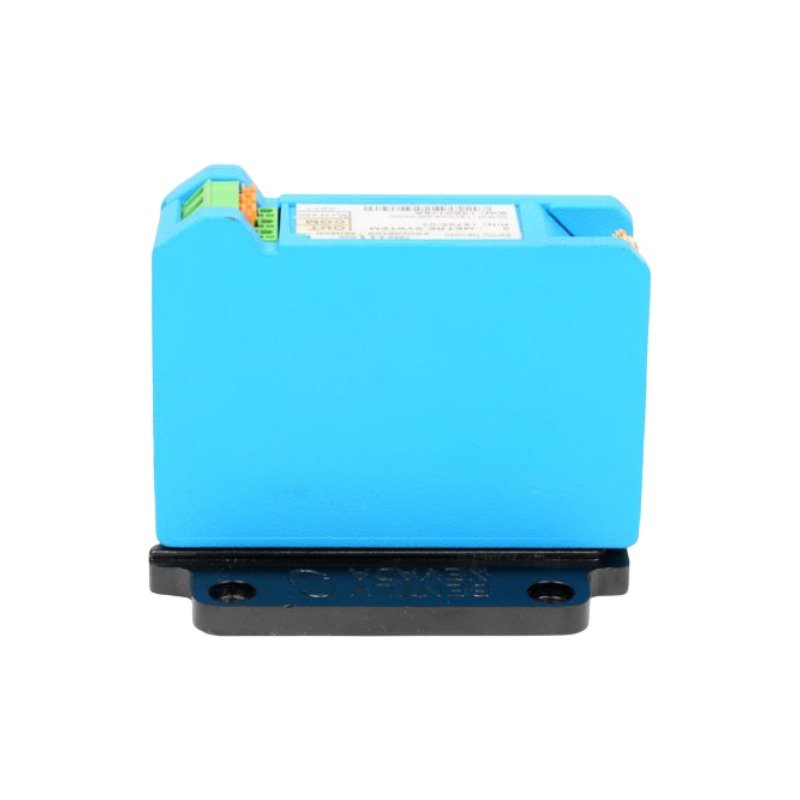

The Bently Nevada 18745-03, also cataloged as the Bently Nevada 18745 7200 Series Proximitor Sensor, operates as a dedicated hardware component for absolute vibration and position measurement within machinery protection platforms. It generates a radio frequency signal to excite an eddy-current probe loop, subsequently converting the modulated return signal into a linear DC voltage or dynamic AC signal proportional to target displacement.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

This module directly governs eddy-current probe scaling mechanics by translating high-frequency RF field disturbances into reliable physical measurements. During system commissioning, field technicians execute gap voltage validation (-10 VDC targets) to ensure the transducer operates within the linear region of its calibration curve. Precise matching between the probe, extension cable, and the Bently Nevada 18745-03 sensor electronics stabilizes the voltage-to-displacement conversion slope, directly suppressing temperature-induced drift across the mechanical rotor dynamics spectrum.

Frequently Asked Questions

Q: Does the 18745-03 Proximitor Sensor support hot-swap physical replacement while the system backplane is energized?

A: No. Power must be removed from the dedicated instrumentation circuit prior to disconnecting or reconnecting the sensor. Splicing or decoupling live signals risks creating transient voltage spikes that damage the internal RF oscillator circuitry.

Q: How does a mismatch in extension cable length affect the 18745-03 sensor calibration?

A: The internal tank circuit of the sensor relies on a strict total system length profile. Connecting an incorrect cable length alters the aggregate circuit capacitance, which disrupts the eddy-current probe scaling parameters and results in inaccurate gap voltage outputs.

Field Installation Guidelines

• Mechanical Panel Fastening: Secure the Proximitor housing directly onto a clean, unpainted DIN-rail or mounting plate inside an eco-shielded junction box. Ensure solid physical contact to establish a low-impedance path for thermal dissipation and electrical reference.
• Coaxial Cable Termination: Thread the probe and extension cable connections into the miniature coaxial ports until fully seated. Insulate the outer metal couplings using clear teflon sleeving or heat-shrink tubing to isolate the signal from accidental structural grounds.
• Shielding and Field Wiring Protocols: Connect the three-wire terminal block (COM, VT, OUT) using twisted-shielded instrumentation wire. Ground the cable shield at a single terminal point within the local monitor rack enclosure while leaving the field sensor shield floating.
