Description

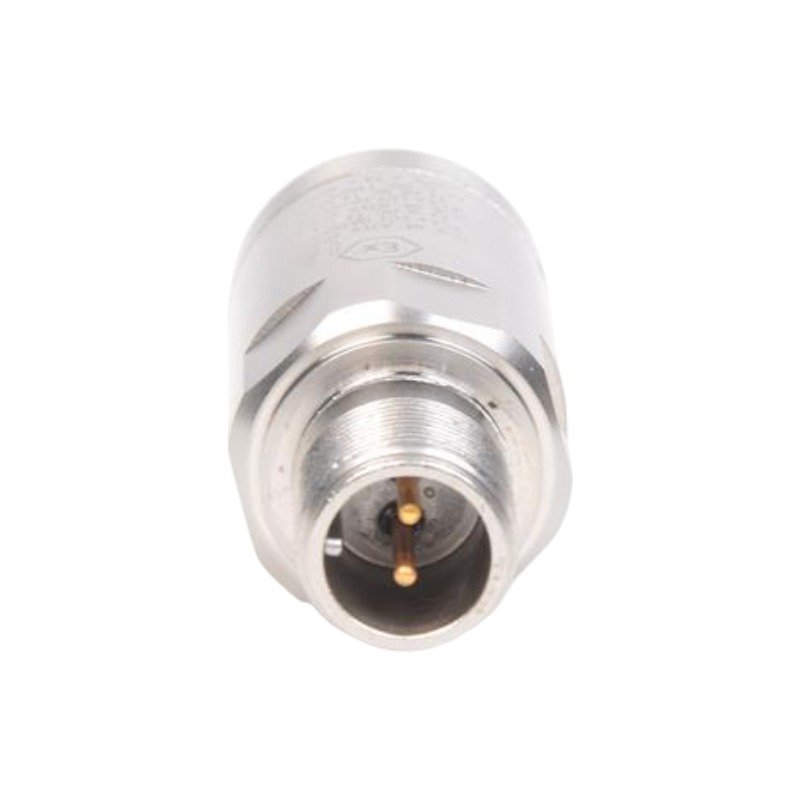

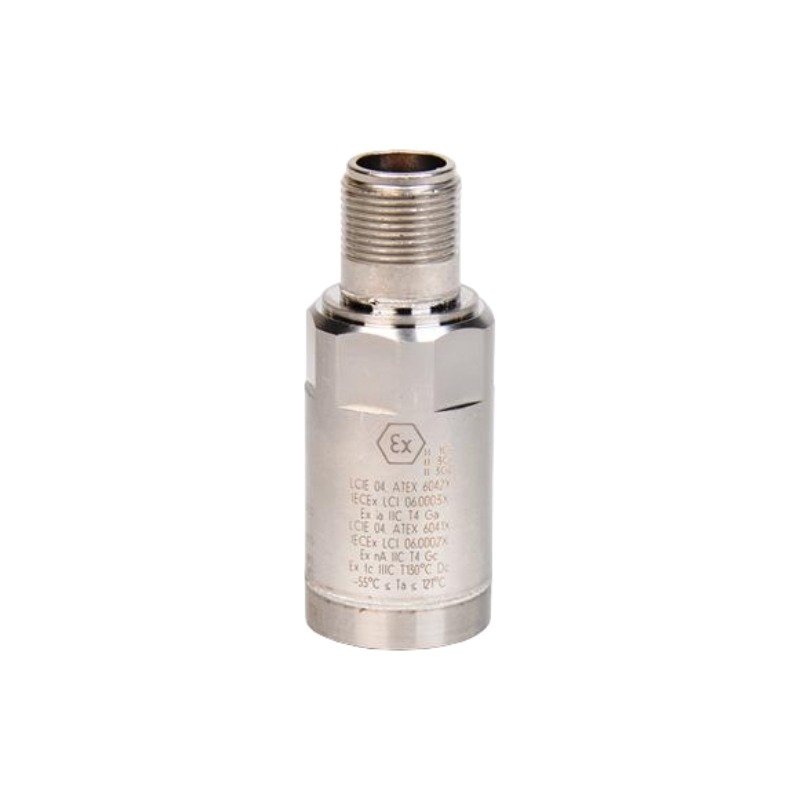

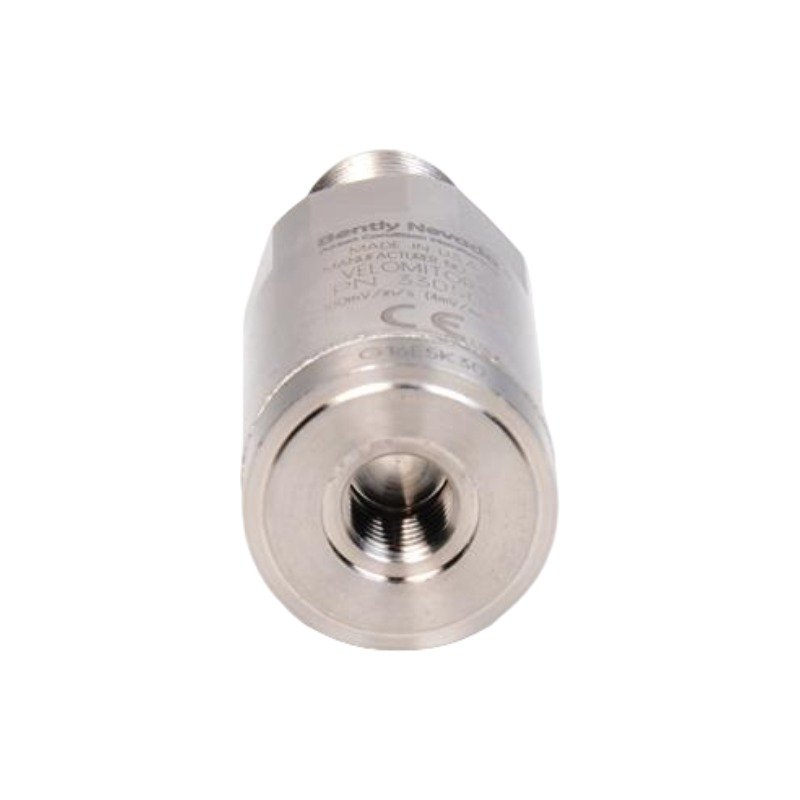

Configured for specific vibration monitoring in machinery protection systems, the Bently Nevada 330500-03-00, also cataloged as the Bently Nevada 330500 Velomitor Piezo-velocity Sensor, provides direct physical/electrical execution. Specifically, it measures absolute casing velocity because the internal piezoelectric sensing elements and integrated electronics convert mechanical vibration into a proportional electrical signal.

Suffix Breakdown & Model Matrix

Hardware Specifications

Transducer and Rotor Dynamics Integration

As an integral element of machinery protection and TSI networks, this piezo-velocity sensor bypasses standard eddy-current probe scaling constraints. Instead, the device measures casing velocity directly rather than relative shaft displacement. Furthermore, the internal solid-state electronics actively suppress cross-talk suppression issues common in high-density multi-axial sensor deployments. By transforming high-frequency casing transmission into low-impedance voltage signals, the hardware consequently delivers accurate inputs necessary for evaluating rotor dynamics, bearing housing defects, and structural resonance.

Frequently Asked Questions

Q: Can this sensor connect directly to a standard voltage-input data collector?

A: No. The unit requires an external constant current source between 2 mA and 10 mA. Consequently, a direct connection to a standard voltage input without a proper interface or monitor power supply will prevent operation and can damage the internal circuit.

Q: How does the 1/4 – 28 UNF thread adapter affect the sensor instead of direct mounting?

A: The 03 option provides a calibrated 1/4 – 28 UNF adapter. However, technicians must apply the exact installation torque to maintain mechanical coupling stiffness. As a result, this stiffness ensures that high-frequency transmission up to the rated 5.0 kHz limit remains unattenuated.

Field Installation Guidelines

• Mounting Torque: Tighten the sensor to the mounting surface with a torque of 4.5 N-m (40 in-lb). Exceeding this limit causes permanent internal crystal strain; conversely, under-torque attenuates the high-frequency response.
• Surface Preparation: The mechanical mating surface must be flat to within 0.025 mm (0.001 in). Additionally, technicians must maintain a surface finish of at least 0.8 micrometers (32 microinches) Ra to ensure correct acoustic coupling.
• Cabling and Shielding: Utilize the dedicated internal shielding matrix. Furthermore, ground the shield at one single point—typically at the monitor rack terminal—to eliminate ground loops that introduce electrical interference into the velocity signal.
