Description

Operational Role and System Integration

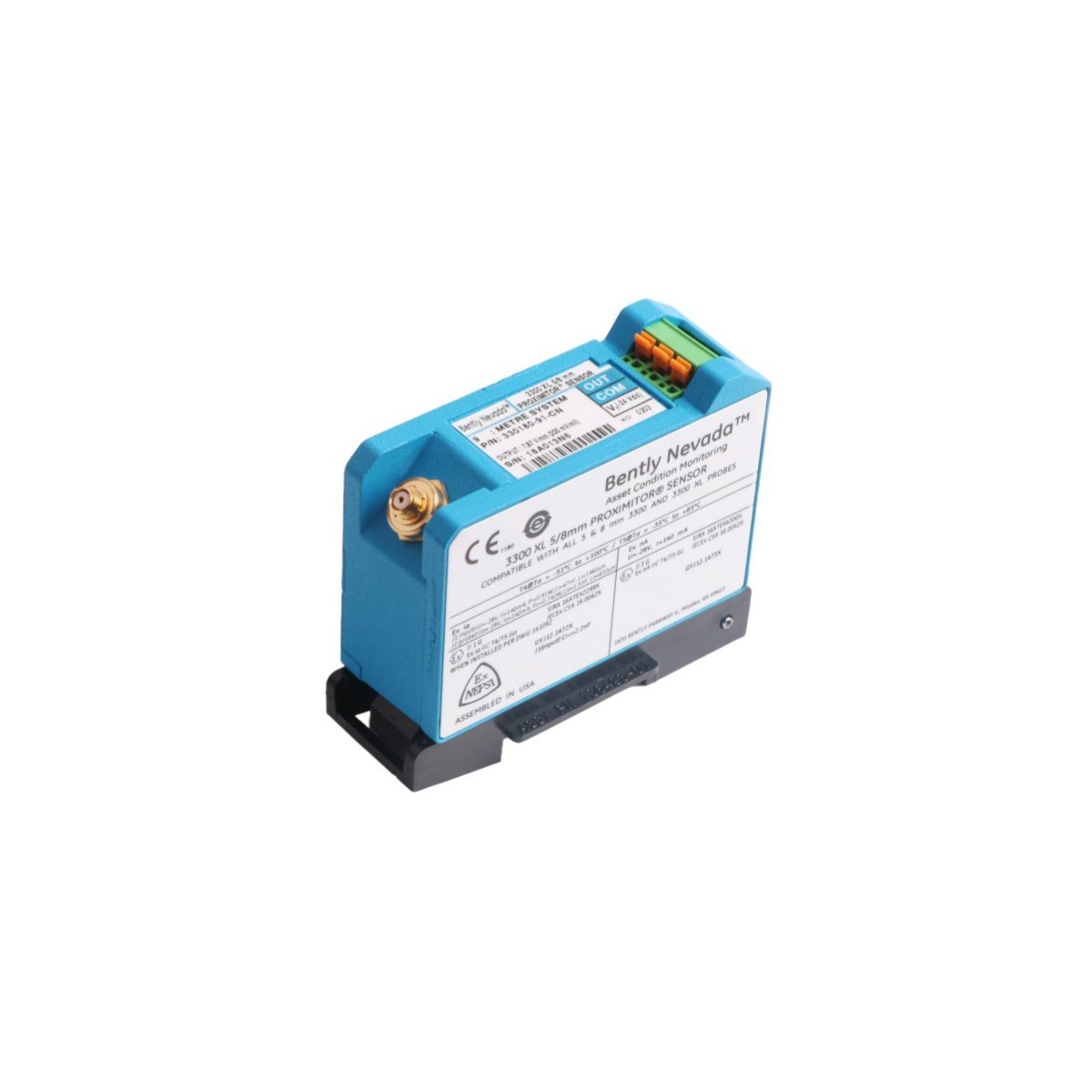

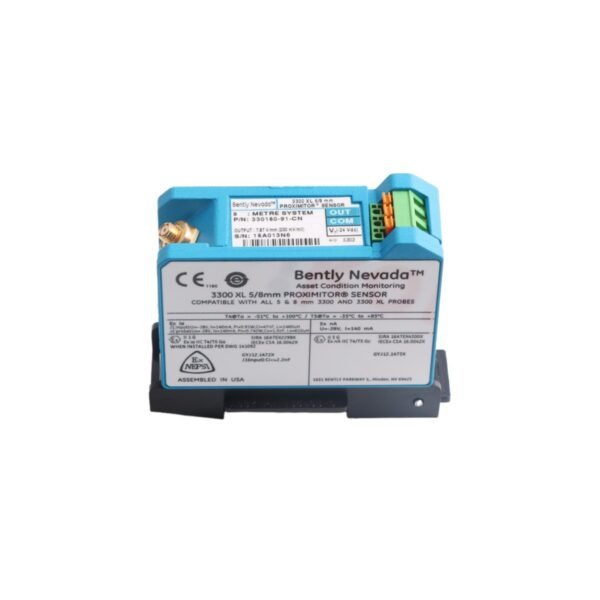

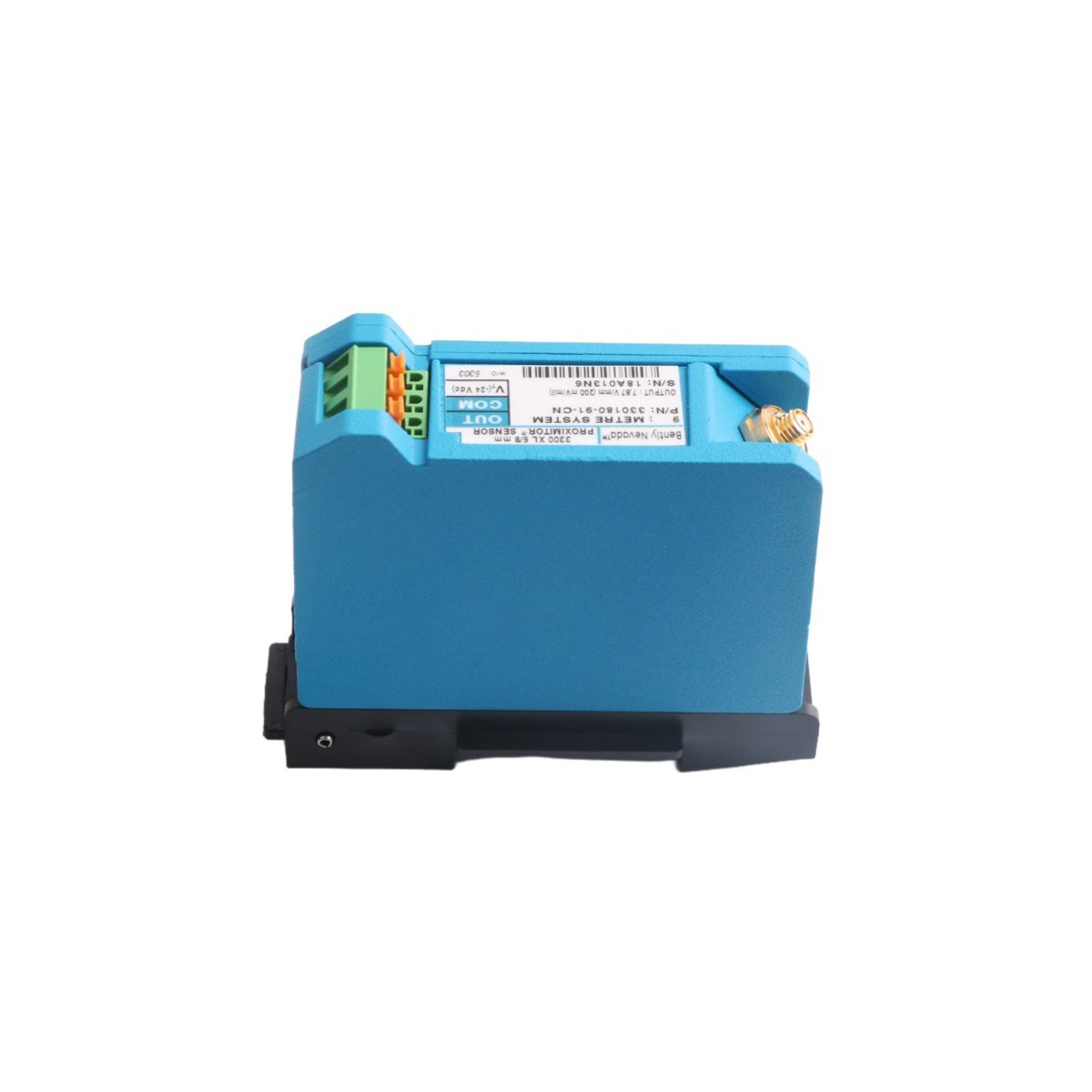

The Bently Nevada 330180-91-CN acts as the sophisticated signal processing hub for the 3300 XL 8 mm Proximity Transducer System. This Proximitor Sensor generates an RF signal that travels to the probe tip, creating an electromagnetic field around the observed shaft surface. As the shaft moves or vibrates, it modulates this field, which the 330180-91-CN then converts into a linear DC voltage output. Because this output is directly proportional to the physical gap between the probe and the target, it provides maintenance teams with high-fidelity data regarding machinery health.

Core Technical Specifications

The 330180-91-CN model incorporates specific design parameters to ensure seamless integration within the 3300 XL ecosystem. Key technical details include:

• Component Type: 3300 XL Proximitor Sensor
• Model Specification: 330180-91-CN
• System Compatibility: Works exclusively with 3300 XL 8 mm Proximity Probes and Extension Cables
• Output Sensitivity: 7.87 V/mm (200 mV/mil)
• Linear Range: 2.0 mm (80 mils) starting at approximately 0.25 mm (10 mils) from the probe tip
• Input Requirements: -24 Vdc nominal power supply
• Physical Weight: 0.55 kg
• Mounting Dimensions: 20.5 x 22.4 x 3.3 cm
• Environmental Protection: Designed for high-resistance against industrial contaminants and moisture

Functional Advantages and Advanced Monitoring

One of the primary benefits of the 330180-91-CN is its exceptional interchangeability. Users can replace sensors without requiring field calibration, provided they remain within the 3300 XL 5-meter or 9-meter system limits. Furthermore, the “CN” designation indicates compliance with specific regional standards, ensuring the unit meets rigorous safety and performance criteria.

By delivering a stabilized signal even over long cable distances, the sensor maintains data integrity between the machine-mounted probe and the centralized control room. Consequently, this reliability makes it an indispensable tool for protecting high-capital assets like industrial turbines and large-scale compressors from catastrophic failure.

Principal Machinery Applications

• Continuous radial vibration monitoring on fluid-film bearing machines
• Axial thrust position measurement to detect bearing wear
• Shaft eccentricity tracking during thermal expansion or startup phases
• Keyphasor signal generation for speed and phase angle measurements
