Description

Primary Function and Operating Principle

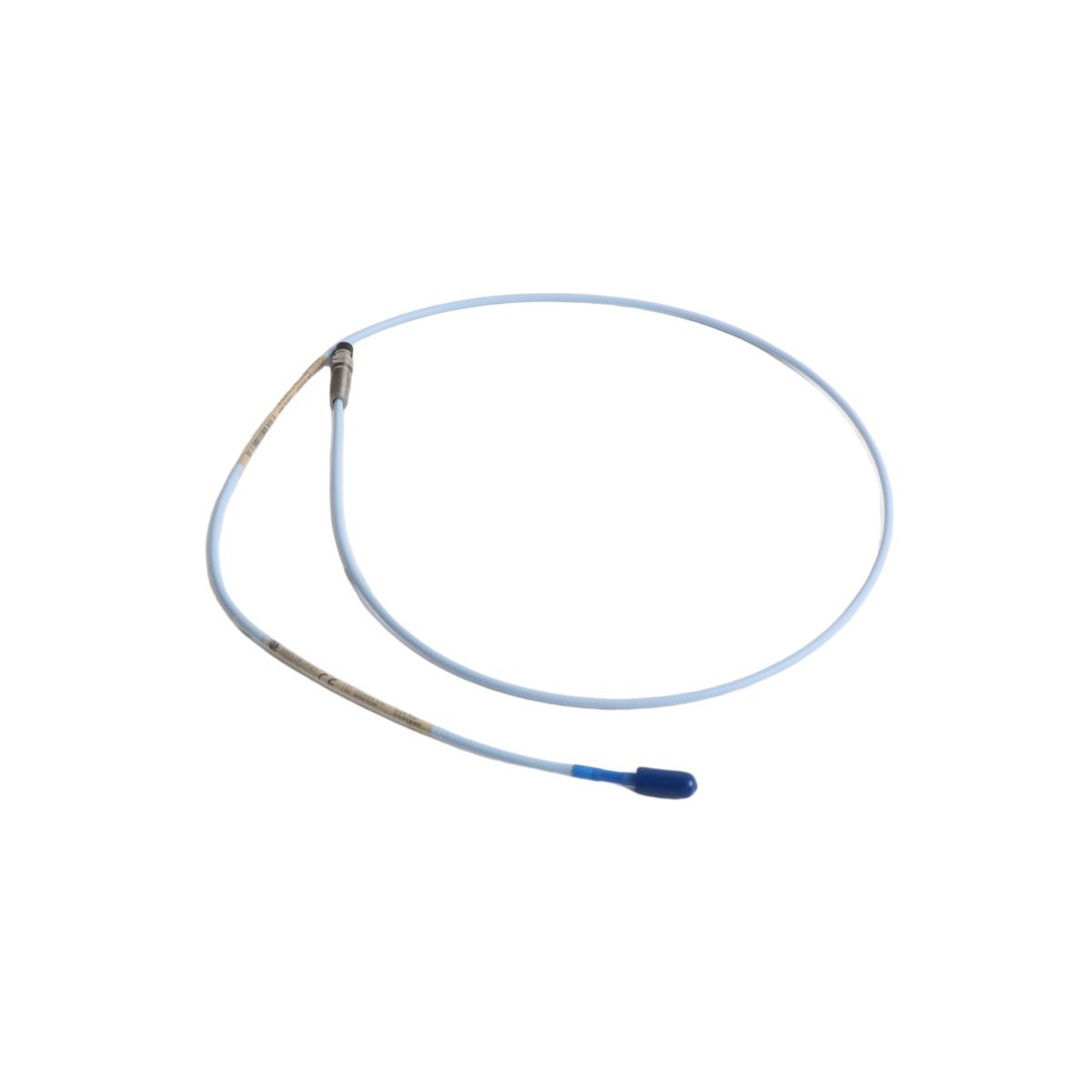

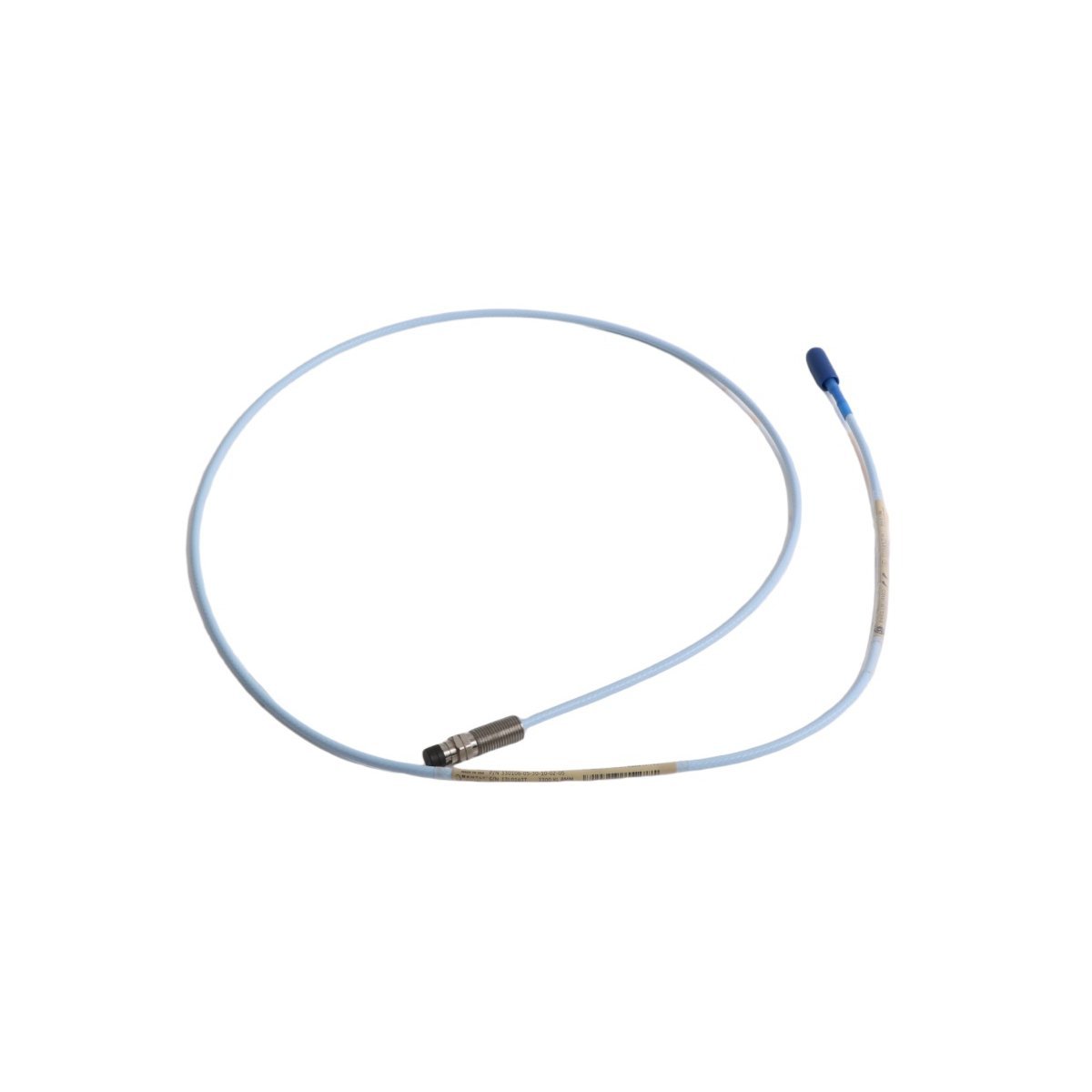

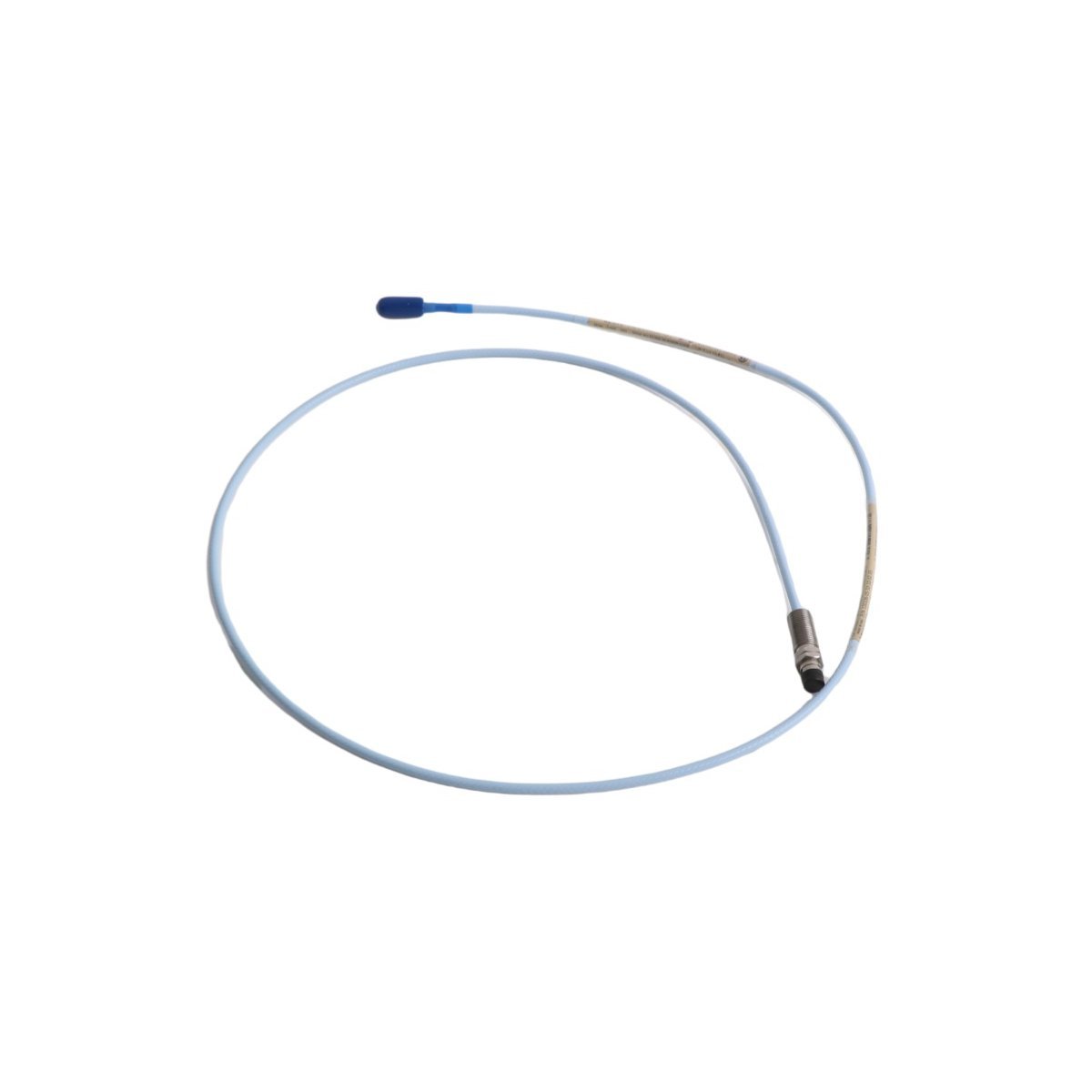

The Bently Nevada 330106-05-30-05-12-05 serves as a fundamental sensing element for the 3300 XL Proximity Transducer System. This reverse-mount probe utilizes eddy current technology to observe the distance between the sensor tip and a rotating shaft without physical contact. By generating a signal proportional to this gap, the probe allows the monitoring system to track shaft vibration and axial position with extreme precision. Consequently, operators can identify mechanical anomalies such as rotor unbalance, shaft misalignment, or bearing degradation before they lead to catastrophic equipment failure.

Technical Configuration and Specs

This specific 3300 XL variant features a reverse-mount mechanical interface, which facilitates installation from the internal side of machine housings or specialized brackets. Key technical parameters include:

• Model Number: 330106-05-30-05-12-05
• Mounting Style: Reverse Mount (M10 x 1 thread)
• Probe Diameter: 8 mm
• Total Case Length: 3.0 inches
• Cable Length: 0.5 meter
• Cable Type: FluidLoc armored cable for oil migration resistance
• Connector Type: Miniature coaxial ClickLoc connector
• Hazardous Area Approvals: CSA, ATEX, and IECEx certifications
• Output Range: 2.0 mm (80 mils) linear measurement capability
• Interchangeability: Fully compatible with standard 3300 XL Proximitor Sensors and extension cables

Engineering Advantages

The 330106-05-30-05-12-05 incorporates FluidLoc technology, which effectively blocks oil and other process fluids from leaking through the cable interior. Because industrial environments often involve high-pressure lubricants, this feature significantly enhances the longevity of the electrical connections. Furthermore, the ClickLoc connector mechanism utilizes a gold-plated, vibration-resistant coupling that prevents signal loss even in high-frequency environments. Since the probe complies with API 670 standards, it maintains excellent temperature stability and linear accuracy across its entire operating range.

Diverse Industrial Applications

• Monitoring radial vibration in high-speed centrifugal compressors
• Tracking axial thrust position in steam and gas turbines
• Measuring shaft eccentricity during machinery warm-up cycles
• Providing Keyphasor reference signals for phase angle and speed measurements
• Implementing predictive maintenance for balance-of-plant rotating assets
