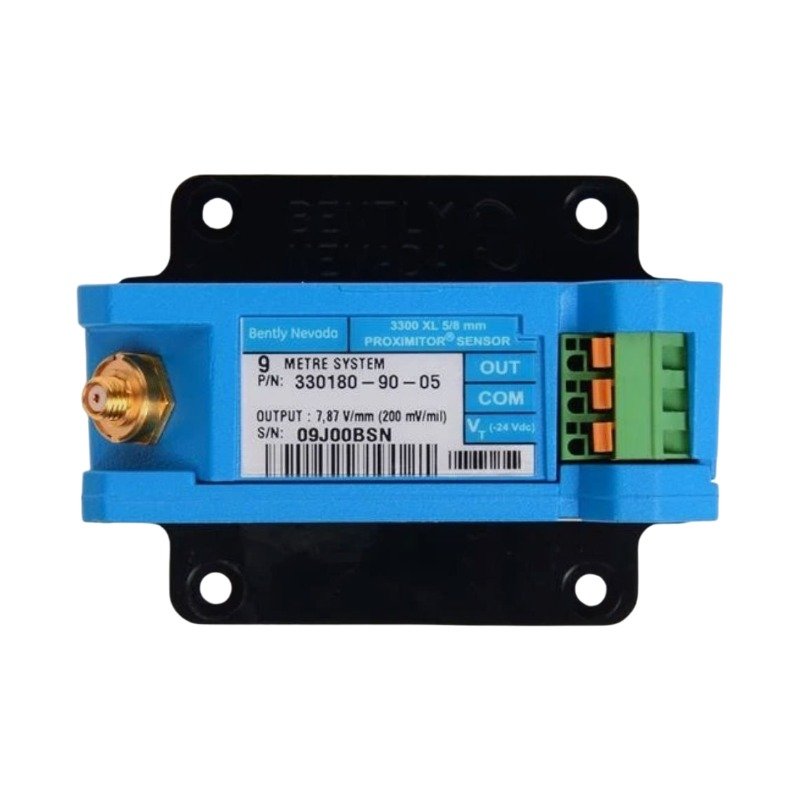

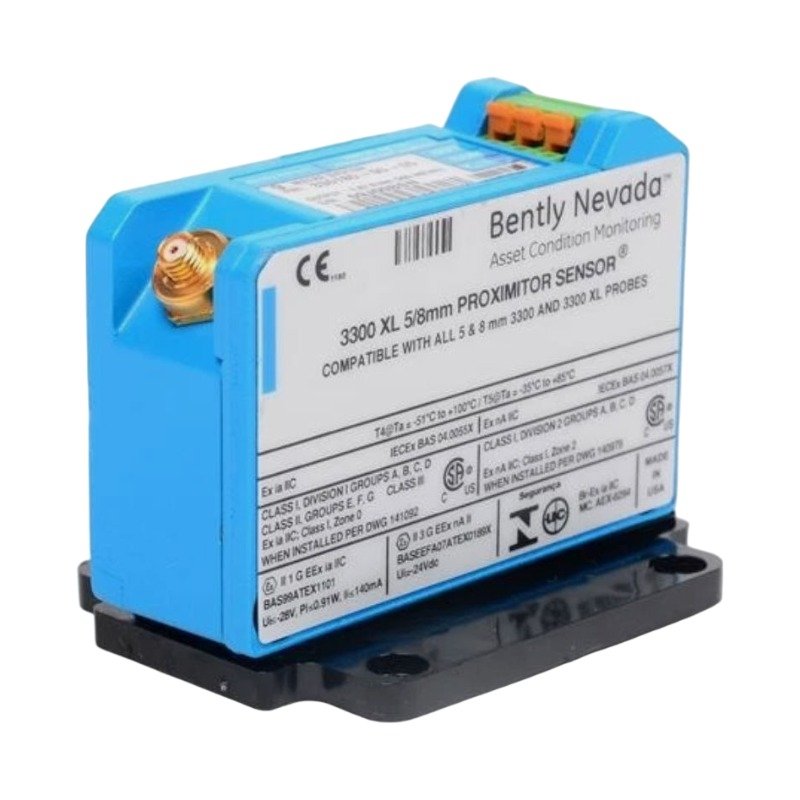

Configured for non-contacting vibration and displacement measurement in Bently Nevada 3500 and 3300 monitoring systems, the Bently Nevada 330180-90-05 (330180 Proximity Transducer) provides direct physical/electrical execution. It operates as part of the 3300 XL 8 mm Proximity Transducer System to translate the physical distance between the probe tip and a conductive target area into a linear voltage signal proportional to dynamic shaft motion.

Hardware Specifications

Proximity Probe Scaling and Rotor Dynamics Calibration

The Bently Nevada 330180-90-05 relies on correct eddy-current probe scaling to ensure accuracy across its 2.0 mm linear range. Proper calibration requires strict gap voltage validation, targeting a -10 VDC baseline at the electrical midpoint of the linear window. Field variations in target material chemistry modify magnetic permeability and electrical conductivity, shifting the nominal 7.87 V/mm scale factor. For critical rotor dynamics monitoring, cross-talk suppression between adjacent probes must be managed by maintaining physical separation distances exceeding twice the probe tip diameter to prevent electromagnetic field overlap and subsequent heterodyne interference.

Frequently Asked Questions

Q: What is the purpose of the -90-05 suffix in the part number?

A: The suffix designates specific hardware physical length and certification options. The “-90” indicates a total unarmored length of 9.0 meters, while the “-05” confirms standard agency approvals for hazardous locations.

Q: How is cross-talk prevented when installing multiple 330180 probes?

A: To eliminate cross-talk suppression failures, maintain a minimum physical distance of 40 mm between probe tips when mounted parallel, and prevent the probe tips from intersecting the magnetic fields of adjacent eddy-current units.

Field Installation Guidelines

• Thread Mechanical Engagement: Ensure a minimum thread engagement of five full turns into the mounting bracket or machine casing to maintain physical stability under structural vibration.
• Gap Voltage Target: Verify using a calibrated digital multimeter that the gap voltage measures -10.0 VDC (+/- 0.5 VDC) at the cold-state centerline of the rotor journal to position the probe at the exact midpoint of its linear range.
• Coaxial Cable Routing: Maintain a minimum bend radius of 25.4 mm (1.0 inch) for the coaxial extension cable to avoid crushing the internal dielectric core and altering characteristic impedance.
• Terminal Isolation: Ensure all terminal block connections within the field junction box are dry, secure, and isolated from structural earth ground to prevent ground loops from corrupting the dynamic voltage output.
