Description

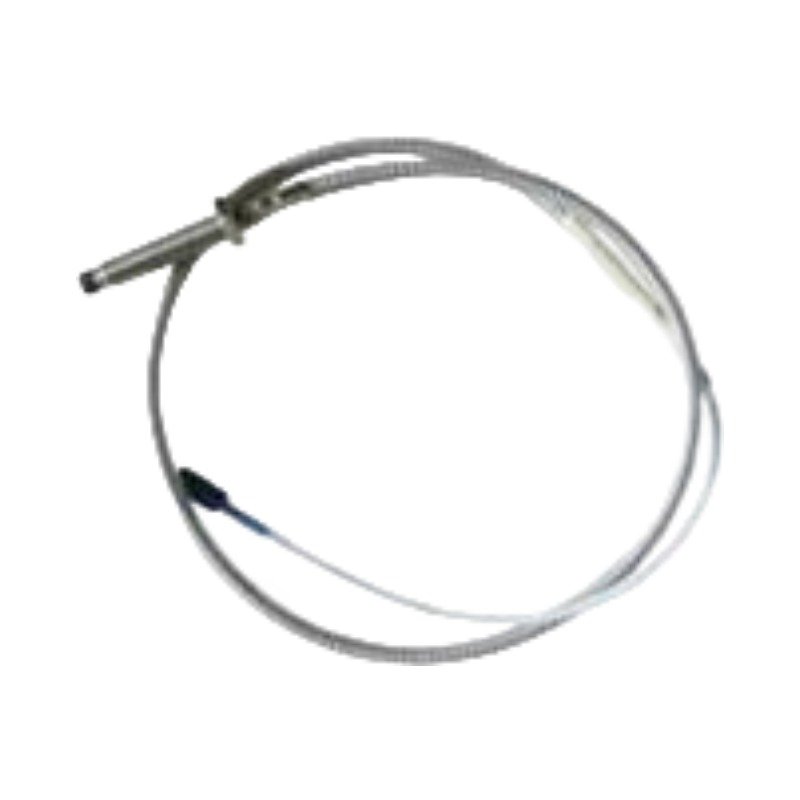

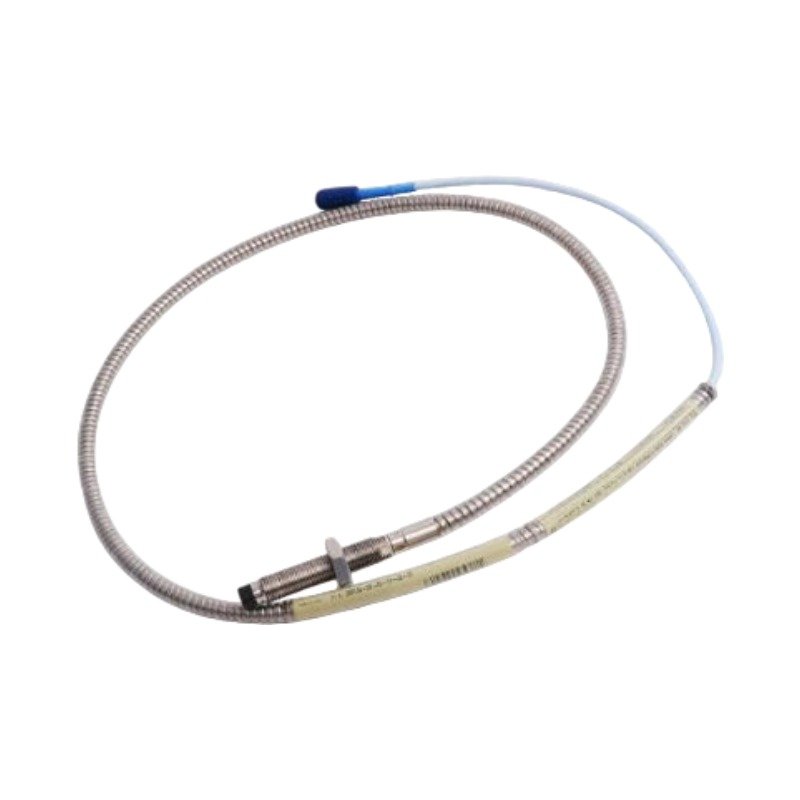

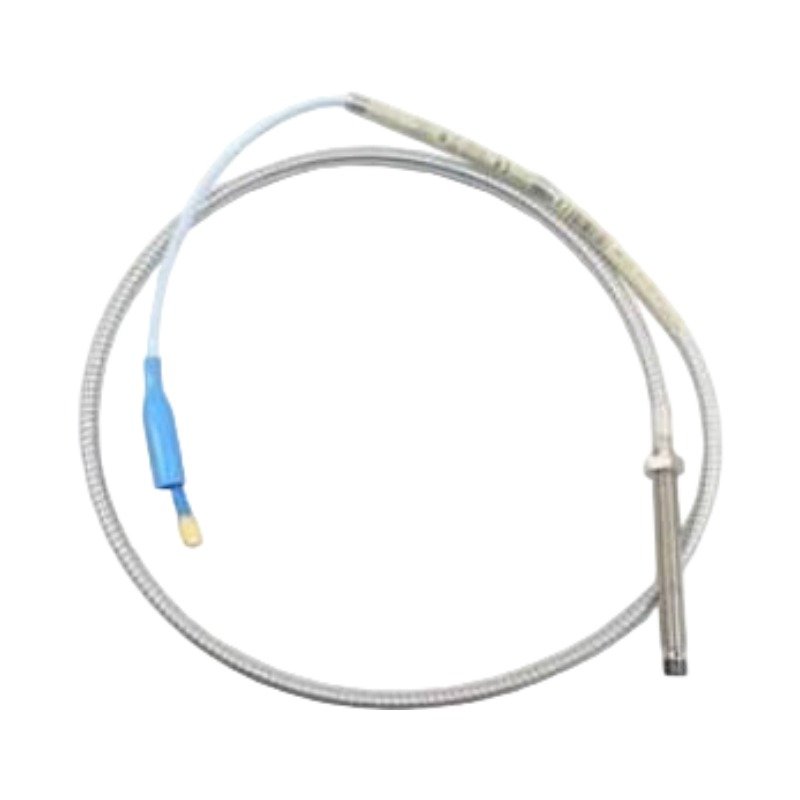

The Bently Nevada 330104-00-20-05-02-00 serves as the primary 330104 Proximity Probe utilized to execute non-contacting vibration and displacement measurements across 3300 XL 8mm Proximity Transducer platforms. Accordingly, it translates the physical clearance between the probe face and the rotating shaft target into a dynamic electrical voltage signal that a matching Proximitor Sensor processes.

Hardware Specifications

Proximity Probe Scaling and Rotor Dynamics Calibration

The Bently Nevada 330104-00-20-05-02-00 relies on correct eddy-current probe scaling to ensure accuracy across its 2.0 mm linear range. Consequently, proper calibration requires strict gap voltage validation, which targets a -10 VDC baseline at the electrical midpoint of the linear window. Furthermore, field variations in target material chemistry modify magnetic permeability and electrical conductivity, shifting the nominal 7.87 V/mm scale factor. To maintain critical rotor dynamics monitoring, engineers must execute cross-talk suppression between adjacent probes by establishing physical separation distances that exceed twice the probe tip diameter, thereby preventing electromagnetic field overlap and subsequent heterodyne interference.

Frequently Asked Questions

Q: How do the configuration suffixes break down for this specific part number?

A: The configuration breaks down into explicit parameters. Specifically, the “00” specifies a 0 mm unthreaded length, “20” indicates a 20 mm overall case length, “05” defines a 0.5-meter total cable length, “02” adds miniature coaxial connectors, and “00” designates standard agency approvals.

Q: Why does the system require a matching extension cable and Proximitor Sensor?

A: The probe behaves as a tuned inductive circuit element. Therefore, field technicians must match the 0.5-meter probe with a 4.5-meter or 8.5-meter extension cable to reach the calibrated 5.0-meter or 9.0-meter electrical system length required by the Proximitor.

Field Installation Guidelines

• Thread Mechanical Engagement: Ensure a minimum thread engagement of five full turns into the mounting bracket or machine casing to maintain physical stability under structural vibration.
• Gap Voltage Target: Verify using a calibrated digital multimeter that the gap voltage measures -10.0 VDC (+/- 0.5 VDC) at the cold-state centerline of the rotor journal to position the probe at the exact midpoint of its linear range.
• Coaxial Cable Routing: Maintain a minimum bend radius of 25.4 mm (1.0 inch) for the coaxial extension cable to avoid crushing the internal dielectric core and altering characteristic impedance.
• Terminal Isolation: Ensure all terminal block connections within the field junction box are dry, secure, and isolated from structural earth ground to prevent ground loops from corrupting the dynamic voltage output.
