Description

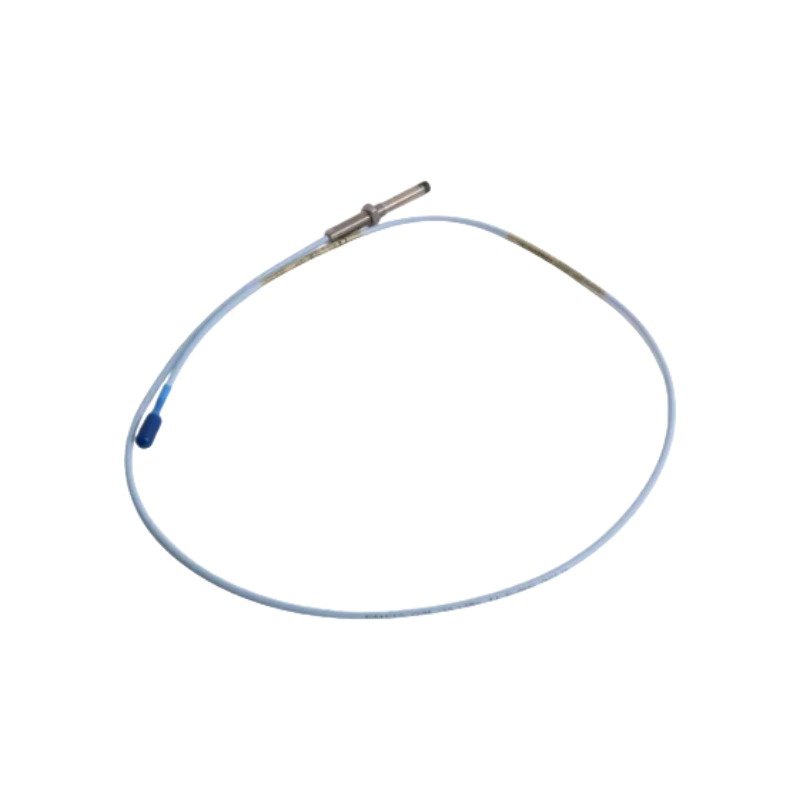

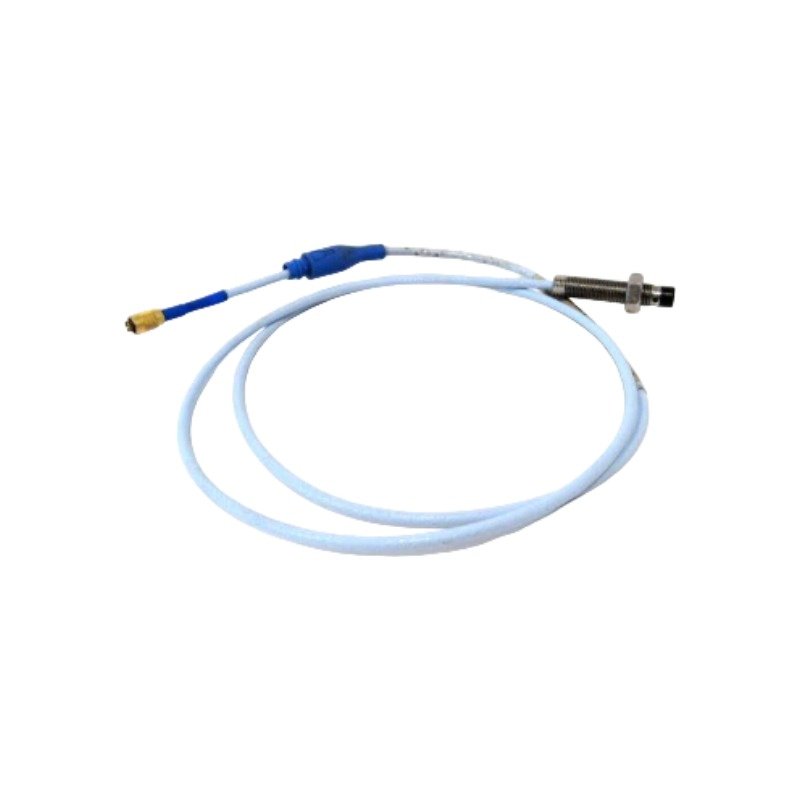

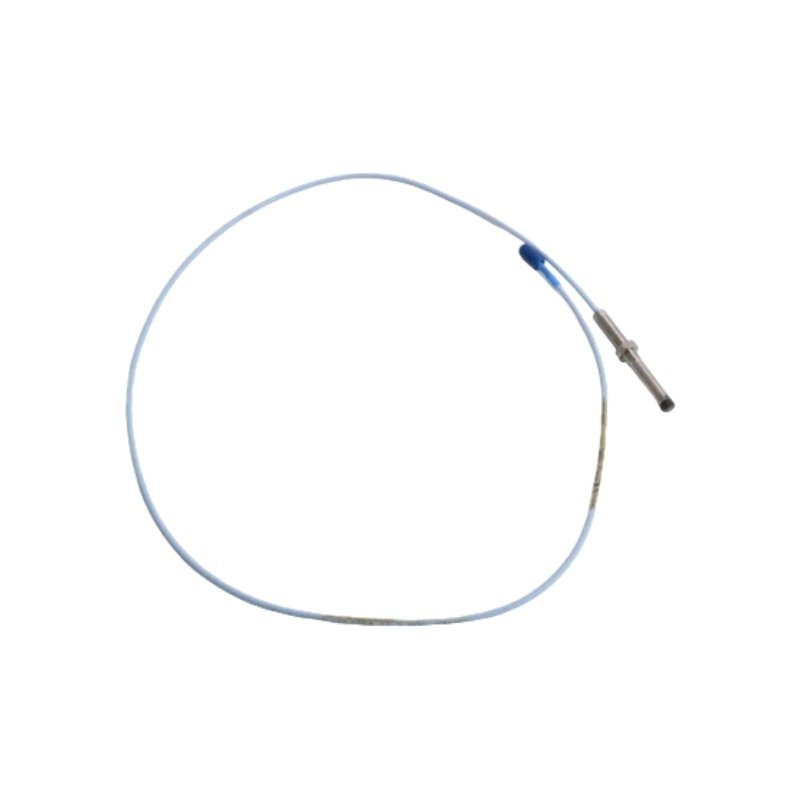

The Bently Nevada 330171-00-20-10-02-00, part of the 330171 series, operates as a high-reliability hardware component for eddy-current signal generation and non-contact displacement measurement within 3300 5 mm Proximity Transducer System platforms. This hardware tracks dynamic shaft movements to deliver accurate monitoring results.

Suffix Part Number Breakdown

The specific option strings map directly to the following structural specifications:

• 330171: Base Model Number for the 3300 5 mm Proximity Probe.
• 00: 0.0 inches unthreaded case length.
• 20: 2.0 inches overall case length.
• 10: 1.0 metre (3.3 feet) physical cable length.
• 02: Miniature coaxial ClickLoc connector, standard cable.
• 00: No specialized regional agency approvals required (Standard configuration).

Hardware Specifications

Eddy-Current Signal Conditioning and TSI Characteristics

The hardware executes automated eddy-current probe scaling to output a continuous analog voltage directly proportional to the physical gap between the probe tip and the observed conductive target. Consequently, during commissioning, the field technician must perform gap voltage validation (-10 VDC targets) to verify that the transducer operates within the linear midpoint of the calibration curve. Meanwhile, the high-frequency demodulation circuitry tracks high-velocity rotor dynamics, capturing precise metrics for radial vibration, axial thrust position, and phase reference indication. Furthermore, internal cross-talk suppression features actively prevent signal degradation from electromagnetic coupling when technicians install multiple probes in close proximity on the same machine bearing housing.

Frequently Asked Questions

Q: Can technicians hot-swap the Bently Nevada 330171-00-20-10-02-00 probe while the machinery protection system runs online?

A: No. Operators must isolate and de-energize the associated Proximitor Sensor loop prior to disconnecting or connecting the probe coaxial joint, because this precaution prevents voltage transients and inadvertent trip signals in the monitoring rack.

Q: How does the 1.0-metre cable length choice modify the required extension cable configuration?

A: This exact probe features an integrated 1.0-metre physical cable. Therefore, technicians must match this probe with a 4.0-metre or 8.0-metre extension cable to fulfill the total electrical length requirement of a 5.0-metre or 9.0-metre Proximitor Sensor system.

Field Installation Guidelines

• Thread the probe body into the 1/4-28 UNF mounting bracket or machine casing, taking care not to exceed the recommended installation torque of 2.3 N m (20 in lbf).
• Next, adjust the physical position of the probe until the multi-meter records a gap voltage reading of -10 VDC, which indicates the center of the linear calibration range.
• Subsequently, connect the miniature coaxial ClickLoc connector to the extension cable or Proximitor interface, applying finger-tight torque until the internal mechanism clicks.
• After that, route the integrated 1.0-metre cable through flexible metal conduit, keeping the line separate from high-voltage AC cables to minimize electromagnetic interference.
• Finally, install physical insulation sleeves or self-fusing tape over the exposed coaxial junction to prevent grounding faults caused by direct contact with the machinery framework.
