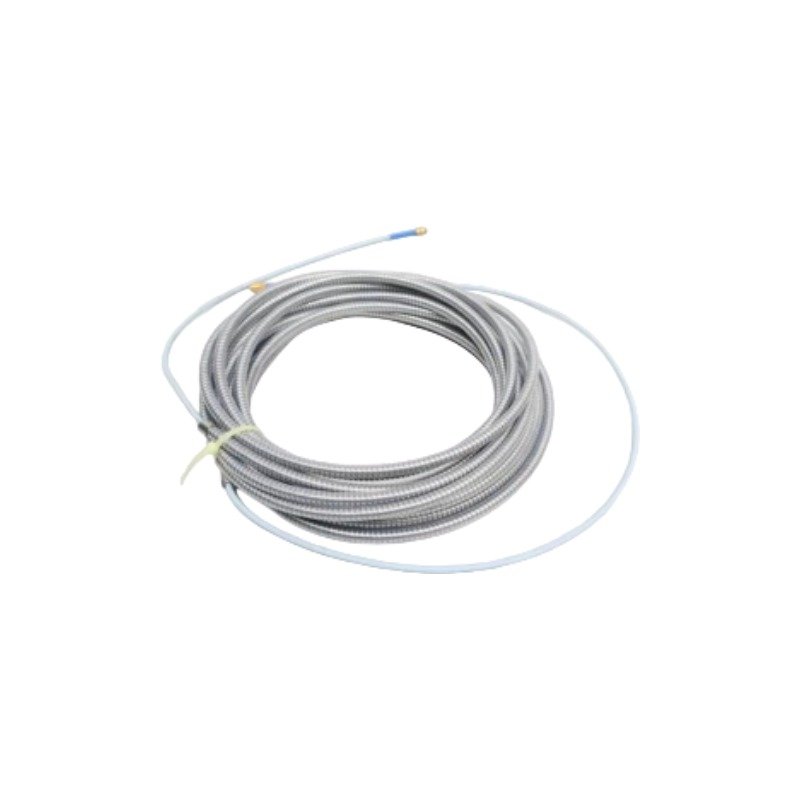

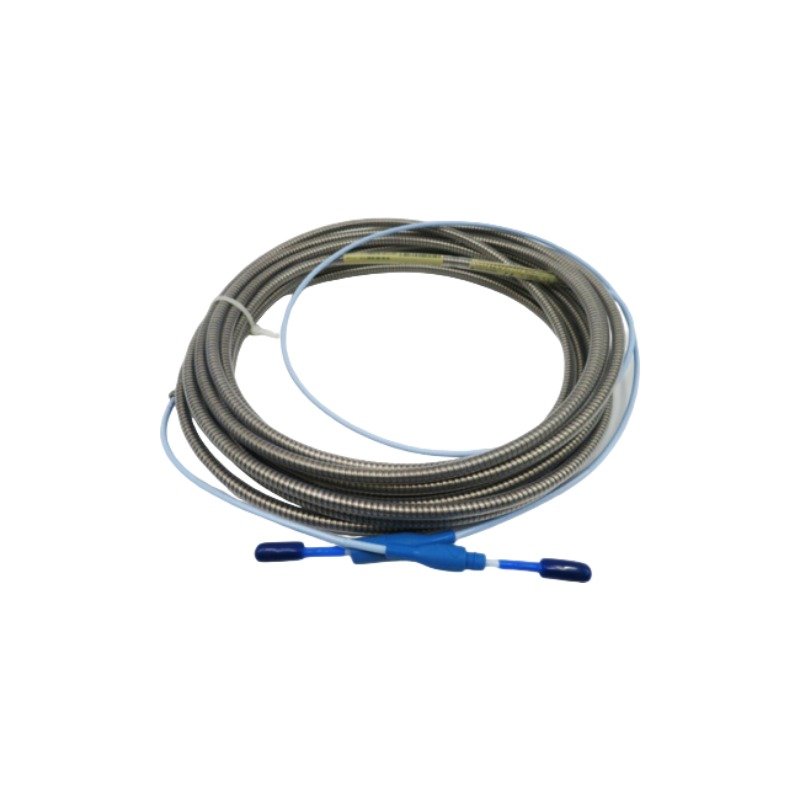

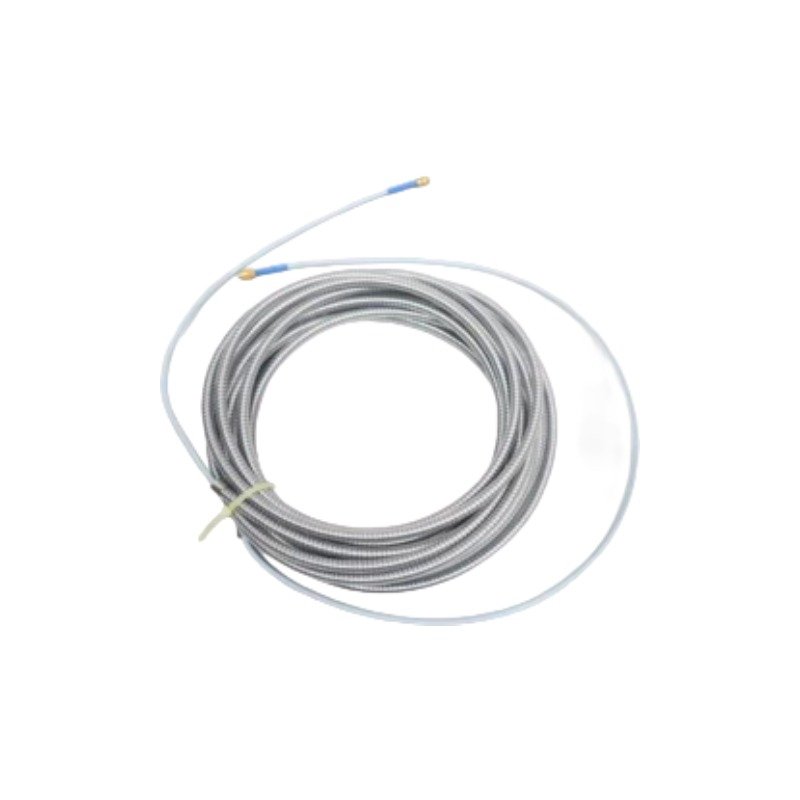

Bently Nevada 330130-085-03-00 3300 XL Standard Extension Cable
Purchase authentic Bently Nevada 330130-085-03-00 3300 XL Standard Extension Cables. Brand New in original factory packaging with Original Stock and Global Shipping.
Description
Configured for high-frequency signal transmission between proximity transducers and signal conditioning hardware in 3300 XL machinery monitoring networks, the Bently Nevada 330130-085-03-00 (330130 Extension Cables) provides direct physical/electrical execution.
Suffix Breakdown & Model Matrix
| Option | Specification |
|---|---|
| 330130 | 3300 XL Standard Extension Cable base model |
| -085 | Cable length option: 8.5 meters (27.9 feet) |
| -03 | Armored cable with connector protector option |
| -00 | Agency approval option: Not required |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 330130-085-03-00 |
| Brand | Bently Nevada |
| Origin | USA |
| Weight | 0.34 kg |
| Dimensions | 20.2 x 22.2 x 3.5 cm (Shipping dimensions) |
| Operating Temp | -51 deg C to +177 deg C |
| Power Consumption | Passive coaxial signal path (no direct power draw) |
| Product Type | Extension Cables |
| Cable Length | 8.5 meters (27.9 feet) |
| Protection Type | Flexible stainless steel armor with ClickLoc connector protector |
| Probe Case Compatibility | AISI 303 or 304 stainless steel (SST) |
| Proximitor Housing | A308 aluminum compatibility |
Eddy-Current Probe Scaling and Cross-Talk Suppression
The Bently Nevada 330130-085-03-00 maintains uniform capacitance and impedance across its 8.5-meter length, ensuring linear eddy-current probe scaling when coupled with matched 3300 XL probes and Proximitor sensors. The outer metallic armor shielding suppresses electromagnetic field interference and channel-to-channel cross-talk within crowded cable trays. This preserves dynamic wave accuracy for precise rotor dynamics analysis and gap voltage validation across critical vibration channels.
Frequently Asked Questions
Q: Why must the extension cable length match the specified system length on the Proximitor sensor?
A: Proximitor sensors require a fixed total electrical length (e.g., 9.0 meters total for an 0.5 m probe and 8.5 m cable) to maintain calibrated scale factor accuracy and achieve target -10 VDC gap voltage.
Q: What physical protection does option -03 provide over standard extension cables?
A: Option -03 incorporates stainless steel armor over the coaxial cable to prevent crushing and mechanical wear, along with a protective boot to seal the ClickLoc coaxial connection against environmental contaminants.
Field Installation Guidelines
- First, inspect the coaxial pins and ClickLoc connectors at both ends to ensure they are clean, dry, and free from oxidation.
- Next, join the extension cable to the proximity probe tail cable and lock the ClickLoc mechanism securely in place.
- Additionally, slide the integrated connector protector completely over the mated coaxial junction to prevent moisture and oil ingress.
- Finally, route the armored cable to the Proximitor sensor enclosure using dedicated cable clamps, ensuring bend radiuses do not exceed mechanical limits.
Additional information
| Weight | 0.34 kg |
|---|---|
| Dimensions | 64 × 52 × 84 mm |
