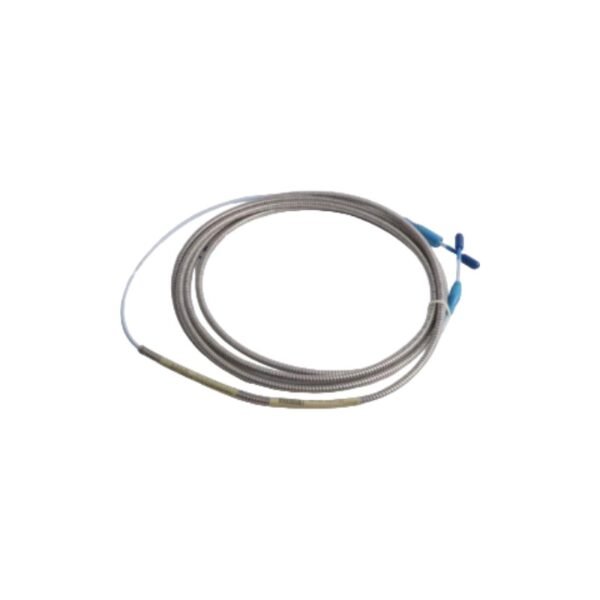

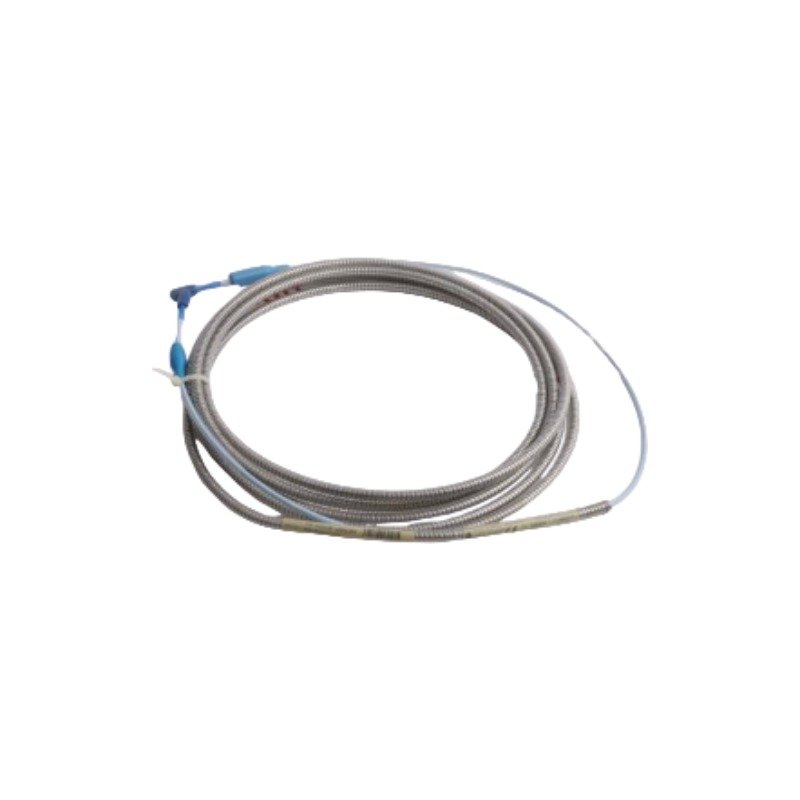

Bently Nevada 330130-045-03-00 3300 XL Standard Extension Cable
Purchase authentic Bently Nevada 330130-045-03-00 3300 XL Standard Extension Cables. Brand New in original factory packaging with Original Stock and Global Shipping.
Description
The Bently Nevada 330130-045-03-00, also cataloged as the 330130 Extension Cables, operates as a dedicated hardware component for RF signal transmission between proximity probes and Proximitor sensors within 3300 XL monitoring systems.
Suffix Breakdown & Model Matrix
| Option | Specification |
|---|---|
| 330130 | 3300 XL Standard Extension Cable base model |
| -045 | Cable length option: 4.5 meters (14.8 feet) |
| -03 | Armored cable with connector protector option |
| -00 | Agency approval option: Not required |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 330130-045-03-00 |
| Brand | Bently Nevada |
| Origin | USA |
| Weight | 0.15 kg |
| Dimensions | 28 x 28 x 3 cm (Shipping dimensions) |
| Operating Temp | -51 deg C to +177 deg C |
| Power Consumption | Passive coaxial transmission line (no active power draw) |
| Product Type | Extension Cables |
| Cable Length | 4.5 meters (14.8 feet) |
| Protection Type | Stainless steel flexible armor with ClickLoc connector protector |
| Cable Capacitance | 69.9 pF/m (21.3 pF/ft) typical |
| Frequency Response | 0 to 10 kHz (+0, -3 dB with up to 305 meters field wiring) |
Eddy-Current Probe Scaling and Cross-Talk Suppression
The Bently Nevada 330130-045-03-00 maintains continuous electrical impedance matching across the complete sensor loop. Precise internal capacitance (69.9 pF/m typical) preserves calibrated eddy-current probe scaling and prevents signal distortion over dynamic displacement frequencies up to 10 kHz. Furthermore, the high-density shielding suppressed electromagnetic interference and cross-talk during multi-channel rotor dynamics measurement in high-density monitor racks.
Frequently Asked Questions
Q: Why is matching the total system cable length critical for 3300 XL Proximitor sensors?
A: Proximitor sensors are calibrated to specific total electrical system lengths (e.g., 5.0 meters or 9.0 meters combining probe and extension cable). Matching length ensures accurate scale factor linearity and target -10 VDC gap voltage calibration.
Q: How does the integrated stainless steel armor protect the internal coaxial core?
A: The flexible outer armor provides mechanical crush resistance and shields the inner coaxial conductor against physical abrasion, oil ingress, and mechanical impact in harsh turbine deck environments.
Field Installation Guidelines
- First, confirm that the total system length (probe cable plus extension cable) matches the exact length requirement specified on the paired Proximitor sensor label.
- Next, inspect the ClickLoc coaxial connectors for contamination and join them securely until fully seated.
- Additionally, slide the integrated connector protector over the coaxial junction to establish an airtight environmental seal.
- Finally, route the armored cable along cable trays, avoiding sharp bends that exceed the minimum bend radius, and tie down at regular intervals to minimize vibration fatigue.
Additional information
| Weight | 0.15 kg |
|---|---|
| Dimensions | 65 × 42 × 63 mm |
