Description

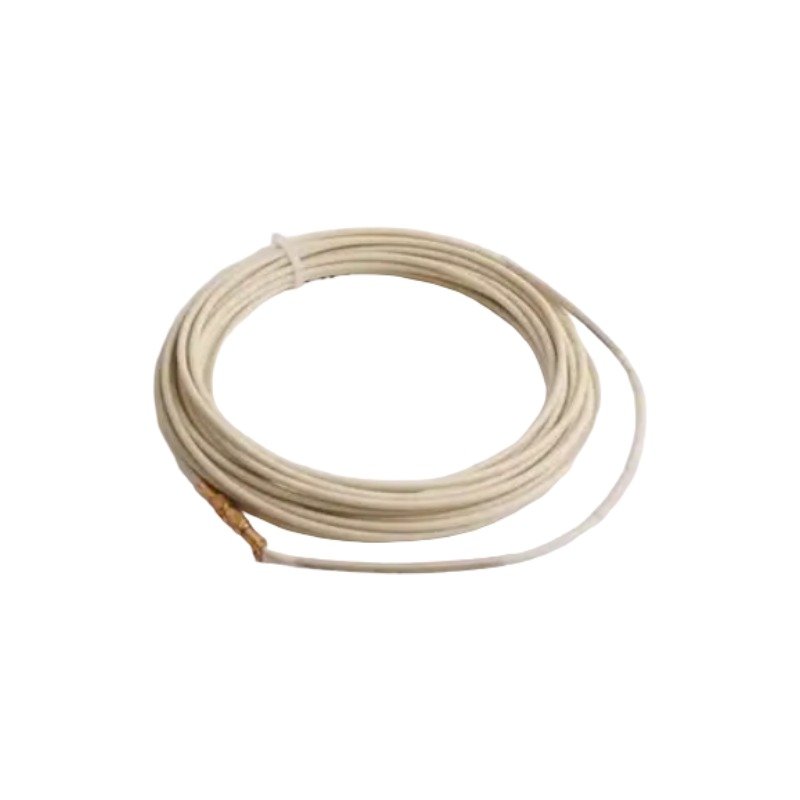

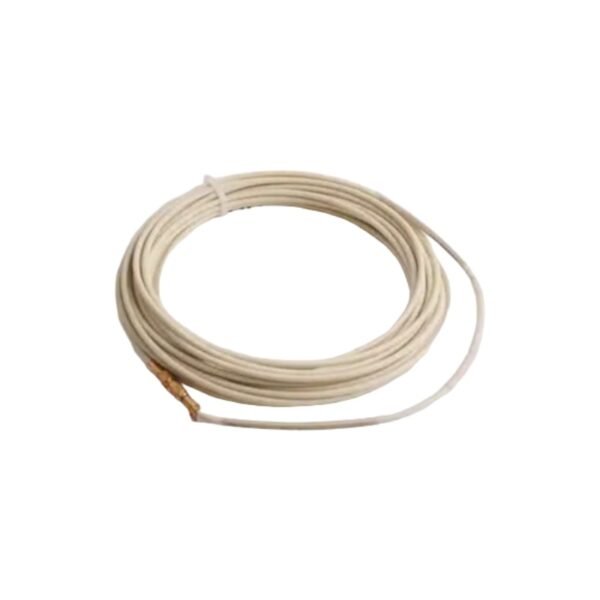

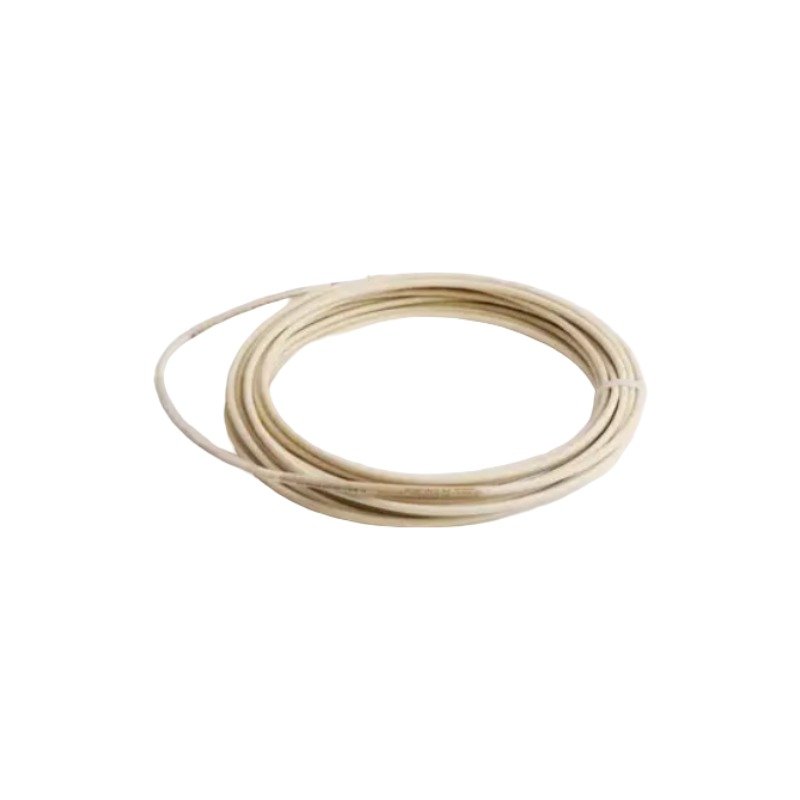

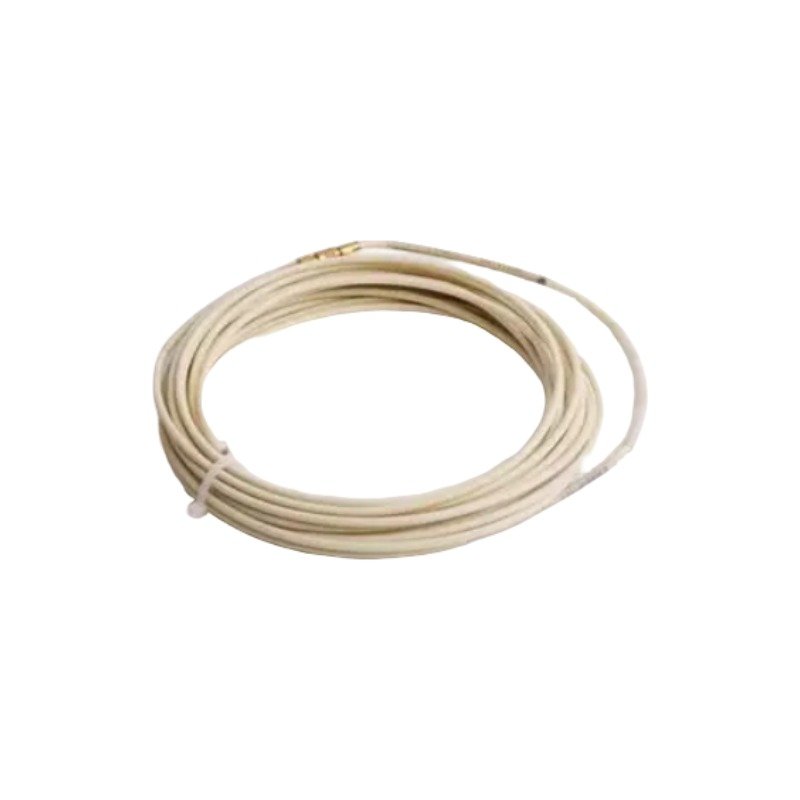

Configured for connecting proximity transducers to conversion hardware in machinery monitoring networks, the Bently Nevada 21747-080-00 (21747 Proximitor Probe Extension Cable) provides direct physical/electrical execution. Specifically, this coaxial transmission medium routes low-amplitude, high-frequency voltage displacements between an eddy-current probe sensor head and a remote Proximitor module. Furthermore, the cable assembly operates without external armor shielding, utilizing precise internal physical impedances to eliminate capacitive signal loss across the complete multi-meter transmission length.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This proximitor probe extension cable actively preserves the calibrated baseline required for precise eddy-current probe scaling by maintaining a constant internal electrical capacitance matrix. The stable dielectric construction guarantees that high-frequency analog signals undergo no phase shift, which facilitates accurate gap voltage validation (-10 VDC targets) without manual calculation tracking adjustments. During high-velocity rotor dynamics transitions, the matched physical impedance characteristics prevent transient echo reflections from corrupting real-time shaft vibration profiles. Additionally, the outer jacket insulation layout provides high cross-talk suppression, preventing inductive plant noise fields from modifying low-voltage telemetry lines.

Frequently Asked Questions

Q: Does cutting or shortening the 8.00 metres physical cable length alter the sensor calibration?

A: Yes, modifying the factory length alters the baseline capacitance and electrical impedance of the passive link. This disruption skews the eddy-current probe scaling verification, preventing accurate gap voltage validation (-10 VDC targets) at the Proximitor module.

Q: How does the absence of physical armor plating affect routing protocols near sharp metallic edges?

A: The 00 non-armored option provides high flexibility but lacks impact protection. Technicians must pull the cable run through external conduit or secure it within a protective wireway to shield the outer jacket from mechanical cuts or abrasion hazards.

Q: Can this extension cable interface interchangeably with both 5-metre and 9-metre Proximitor configurations?

A: No, this extension cable must match the specific system tuning design metrics (e.g., a total length combination of 5 or 9 metres including the probe lead) as prescribed by the manufacturer’s transducer sensor matching framework.

Field Installation Guidelines

• Mounting Mechanics: Route the cable structure through dedicated industrial conduits or junction boxes. Avoid applying tight physical bends, maintaining a minimum bend radius of 25.4 mm (1.0 in) to prevent internal coaxial structural damage.
• Shielding Requirements: Connect the extension cable coaxial connectors tightly using specialized terminal insulators. Ensure the outer shield isolates from the machine frame ground, linking strictly to the instrument common point at the Proximitor end.
• Wiring Separations: Maintain a physical clearance distance of at least 300 mm between the extension cable run and high-voltage AC electrical lines or variable frequency drive cabling to prevent noise coupling.
• Thermal Management: Verify that localized ambient parameters do not exceed the rated limits of -51 deg C to +177 deg C. Keep connectors free from moisture, oil, and dust by sealing the intermediate junction box assemblies.
