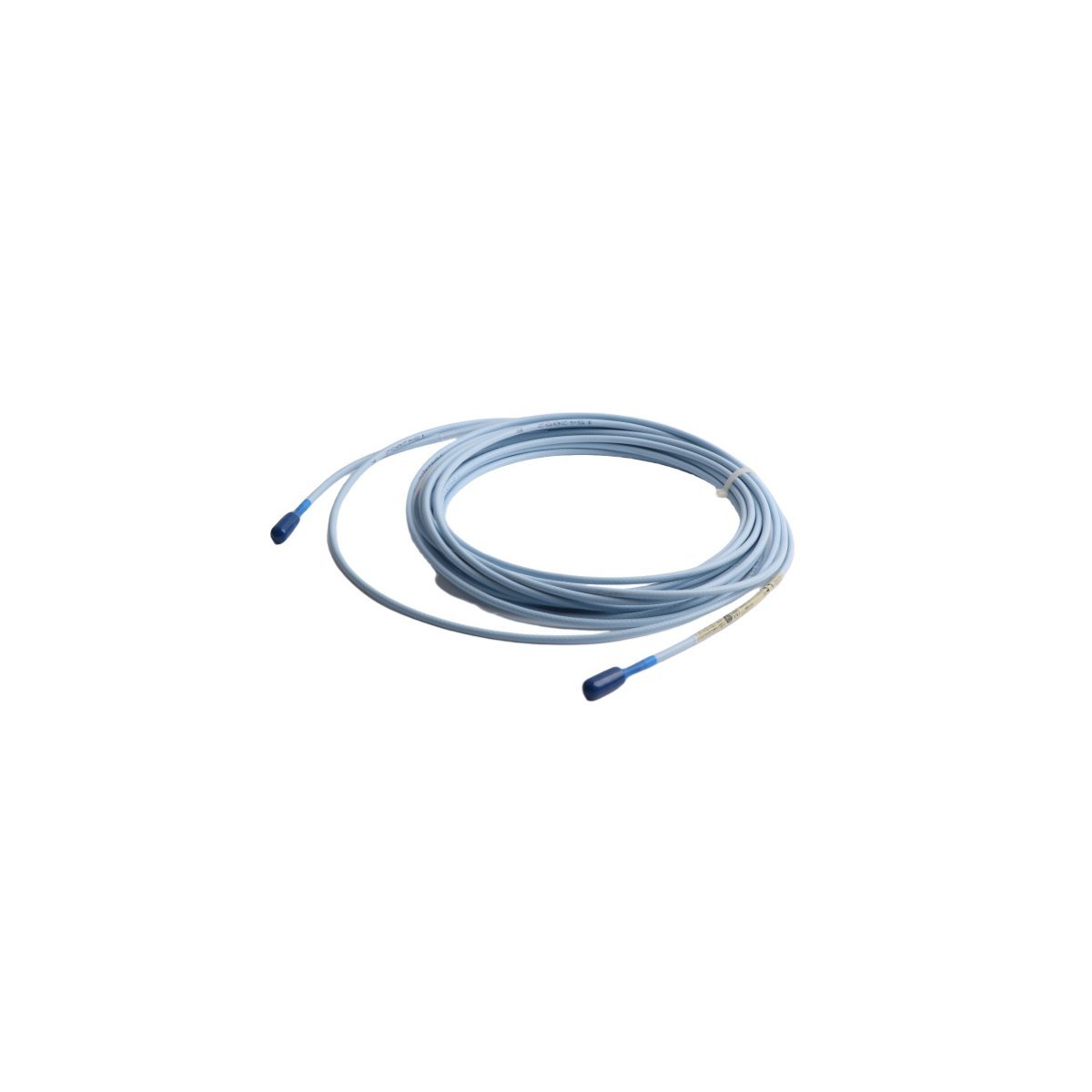

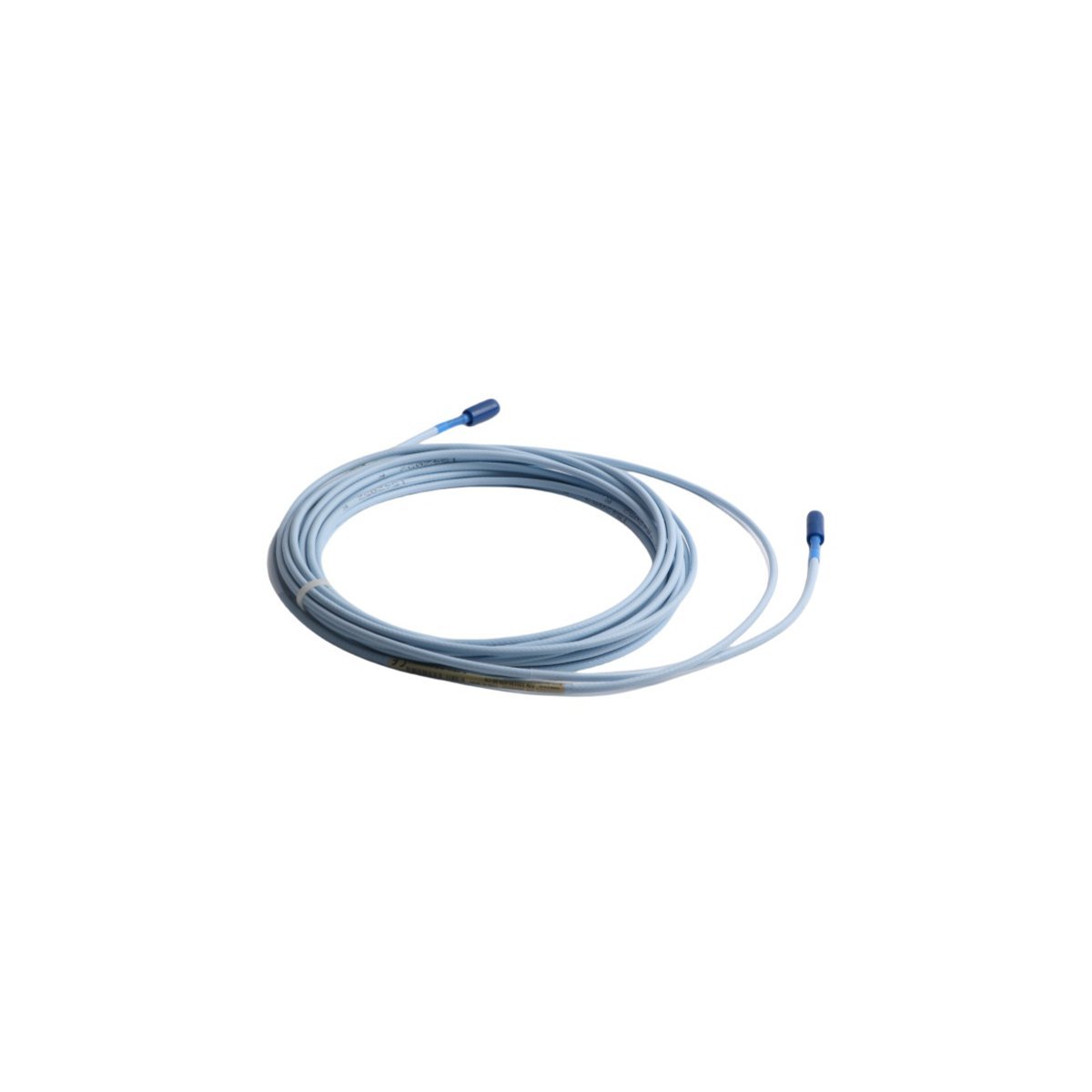

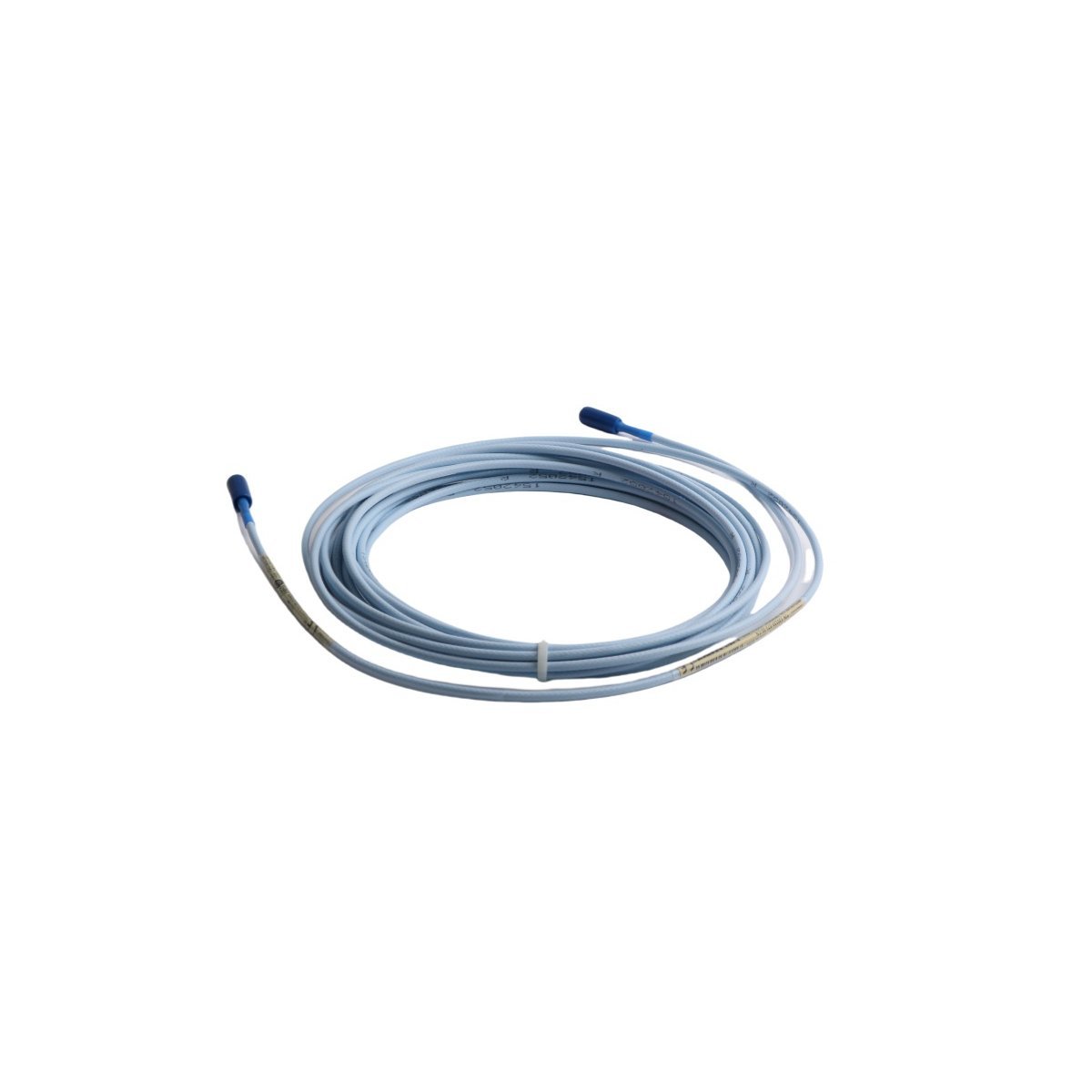

Bently Nevada 330130-075-00-CN 3300 XL 8mm Standard Extension Cable

The Bently Nevada 330130-075-00-CN is a precision-engineered extension cable designed for use within the 3300 XL 8mm Proximity Transducer System. This cable serves as the vital electrical link between a proximity probe and a Proximitor sensor, ensuring the transmission of high-frequency eddy current signals with minimal loss. By maintaining strict electrical impedance and capacitance standards, the 330130 series allows for accurate displacement and vibration monitoring in critical rotating machinery. The “-CN” designation indicates compliance with specific regional regulatory requirements, ensuring the product meets necessary industrial certifications for localized deployment.

Technical Performance and Connectivity

Designed to withstand the rigors of industrial environments, this extension cable features high-quality coaxial construction. Furthermore, it is equipped with gold-plated ClickLoc connectors that provide a secure, vibration-resistant interface between system components. In addition, the cable’s insulation is engineered to resist degradation from common industrial contaminants such as lubricating oils, moisture, and chemical solvents. Consequently, the 330130-075-00-CN ensures a stable 200 mV/mil (7.87 V/mm) scale factor across the entire measurement chain. Moreover, its design facilitates easy installation in conduit or cable trays without compromising the integrity of the transducer signal.

Technical Specification Matrix

Industrial Utility and System Calibration

This extension cable is a fundamental part of Turbine Supervisory Instrumentation (TSI) used in power generation, oil and gas, and mining sectors. Specifically, the 7.5-meter length is typically paired with a 0.5-meter or 1.5-meter probe lead to achieve the standard 8.0-meter or 9.0-meter total system length. Therefore, it plays a critical role in monitoring shaft vibration and thrust position on steam turbines, compressors, and large industrial motors. As a result, utilizing genuine Bently Nevada cabling is essential for maintaining the calibration of the 3500 Monitoring System. Ultimately, this high-reliability cable helps prevent unplanned machinery downtime by ensuring accurate data for predictive maintenance.

FAQ

What is the significance of the 7.5-meter length?

In proximity transducer systems, the total electrical length must be matched to the Proximitor’s calibration. Specifically, a 7.5-meter extension cable is often used to reach a total system length of 9.0 meters when combined with a probe lead. Consequently, using an incorrect length will lead to significant measurement errors and false alarms.

Does this cable include protective armor?

The 330130-075-00-CN is the standard version without stainless steel fluid-tight armor. In addition, while the standard jacket is highly durable, it is best suited for installations where the cable is protected by conduit or located in less physically demanding areas. Accordingly, if your environment involves extreme mechanical risks, an armored version may be more appropriate.

Is this cable compatible with non-XL 3300 probes?

The 3300 XL extension cables are designed to be backward compatible with standard 3300 8mm probes. Nevertheless, to ensure the best temperature stability and frequency response, it is recommended to use a complete XL-series chain. Moreover, always verify that the Proximitor sensor is configured for the total cable length used.

How does the ClickLoc connector prevent signal dropouts?

The ClickLoc design features a mechanical locking mechanism that requires a specific “click” to engage. Therefore, unlike standard threaded connectors, it cannot vibrate loose over time. As a result, the electrical contact remains constant, preventing signal spikes that could cause unnecessary machinery trips.
