Description

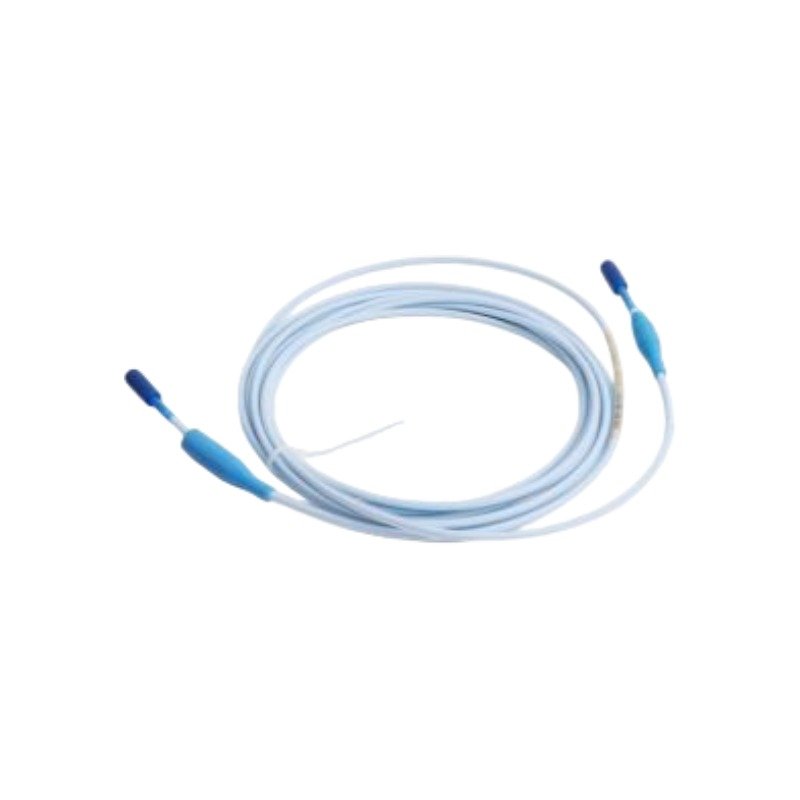

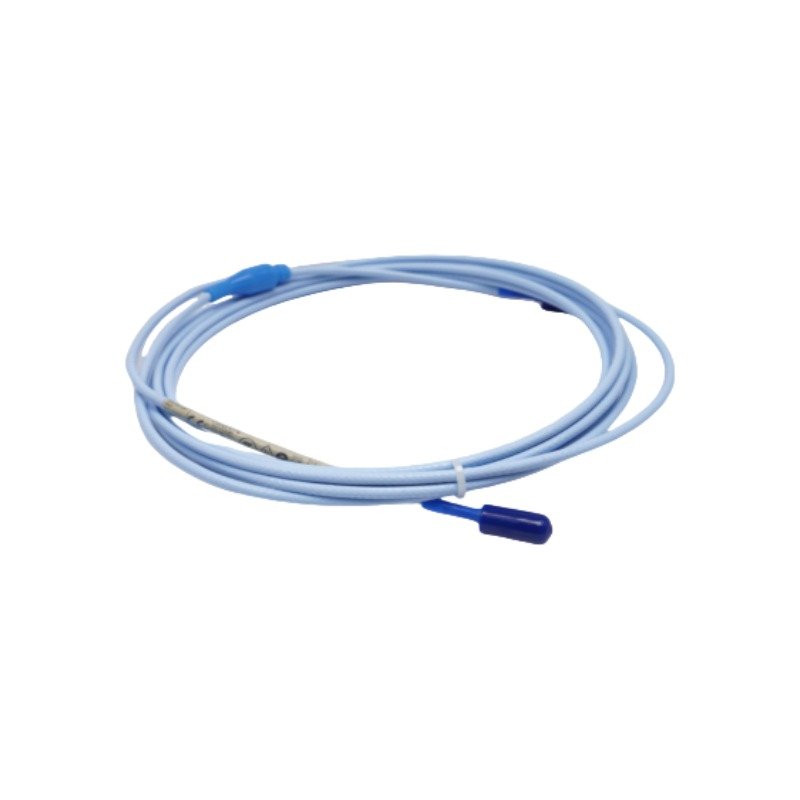

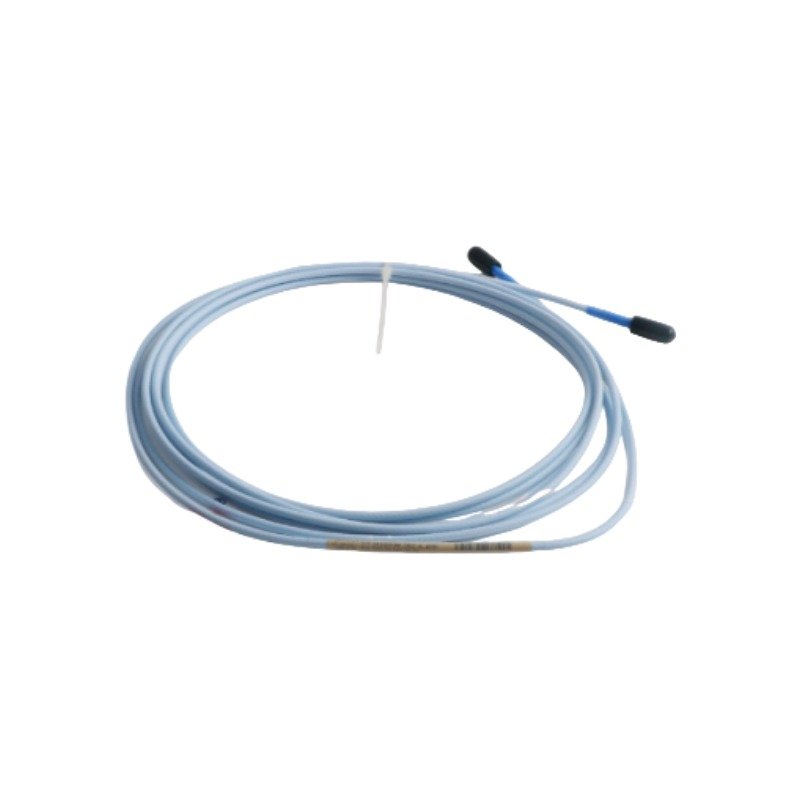

Configured for RF signal transmission in Bently Nevada 3500 and 3300 Proximity Transducer Systems, the Bently Nevada 330130-040-02-00 (330130 Standard Extension Cable) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

Hardware Specifications

Machinery Monitoring and TSI Characteristics

Consequently, the Bently Nevada 330130-040-02-00 maintains precise electrical impedance matching to ensure accurate eddy-current probe scaling across the entire system loop. During installation, field technicians must execute calibrated physical routing because impedance shifts will skew the required gap voltage validation (-10 VDC targets) that determines accurate rotor dynamics. Furthermore, the integrated shielding within the cable core provides robust cross-talk suppression. As a result, this shielding mitigates external electromagnetic interference and prevents false vibration spikes in the machinery protection system monitor.

Frequently Asked Questions

Q: What specific benefits does the -02 suffix provide compared to the standard -00 suffix variant?

A: The -02 suffix variant features a factory-installed connector protector at the terminal link while remaining unarmored. Therefore, it provides heightened environmental isolation against moisture and oil ingress without adding the physical rigidity of metallic armor.

Q: How does the presence of moisture at the connection terminal impact system diagnostics?

A: If moisture compromises the connector junction, the sensor loop impedance shifts. Consequently, the 3500 monitoring system detects a voltage drift away from the -10 VDC target, which can trigger a “Not OK” status or generate erroneous vibration data.

Field Installation Guidelines

• Minimum Bend Radius: Maintain a minimum physical bend radius of 25.4 mm (1.0 inch) throughout the unarmored cable routing; otherwise, you risk structural damage or kinking of the internal coaxial dielectric layers.
• Connector Torque and Insulation: First, tighten the miniature coaxial connectors using appropriate finger torque. Next, slide the integrated connector protector securely over the terminal junction to establish a fluid-isolated barrier.
• Isolation from High-Voltage Lines: Always route the extension cable in dedicated, grounded metal conduits. In addition, separate these runs from high-voltage AC or variable frequency drive (VFD) motor cables to preserve signal integrity.
