Description

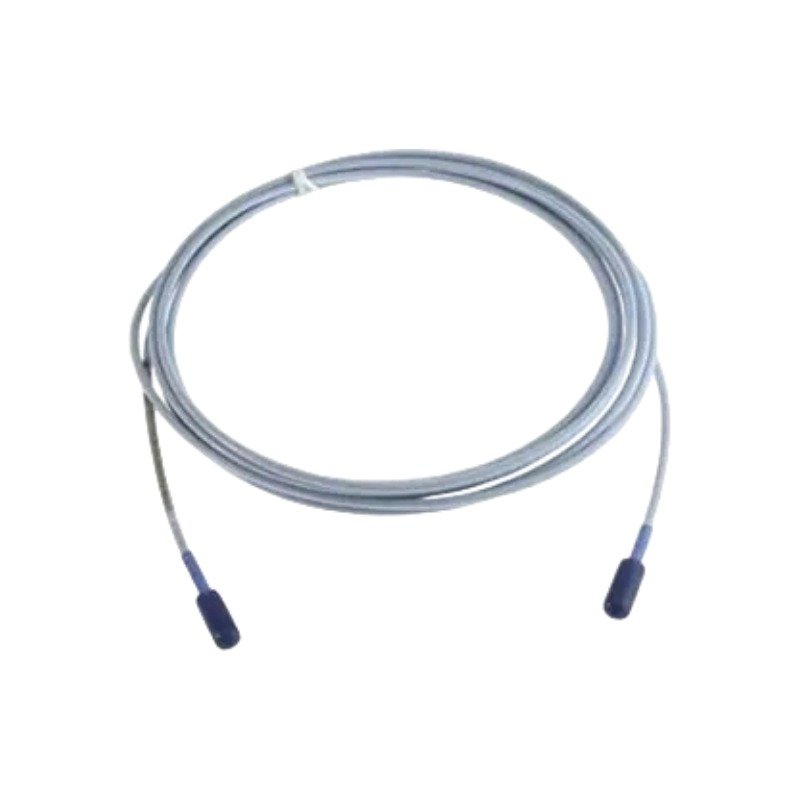

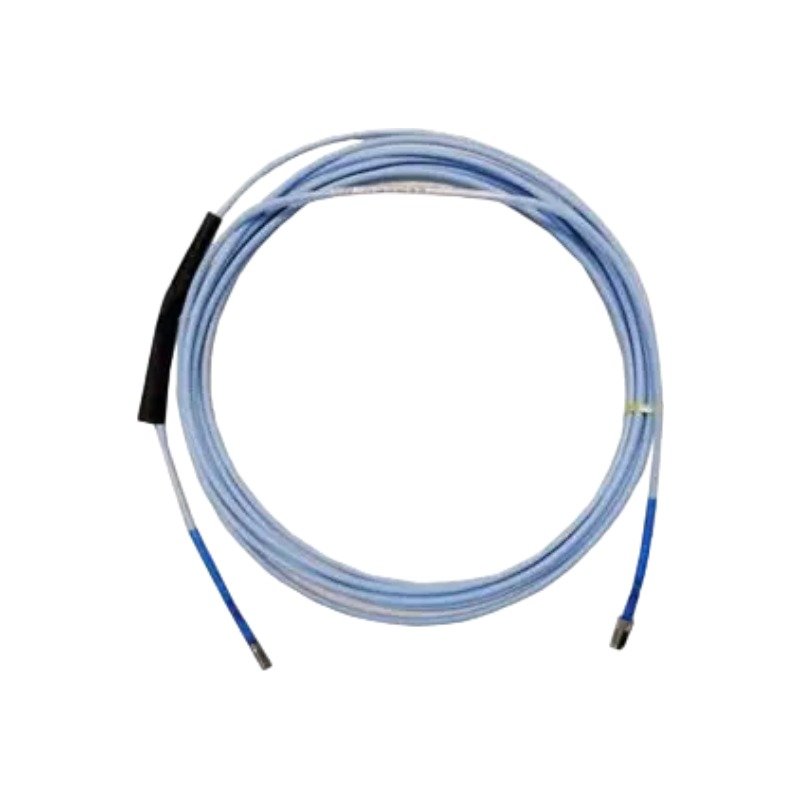

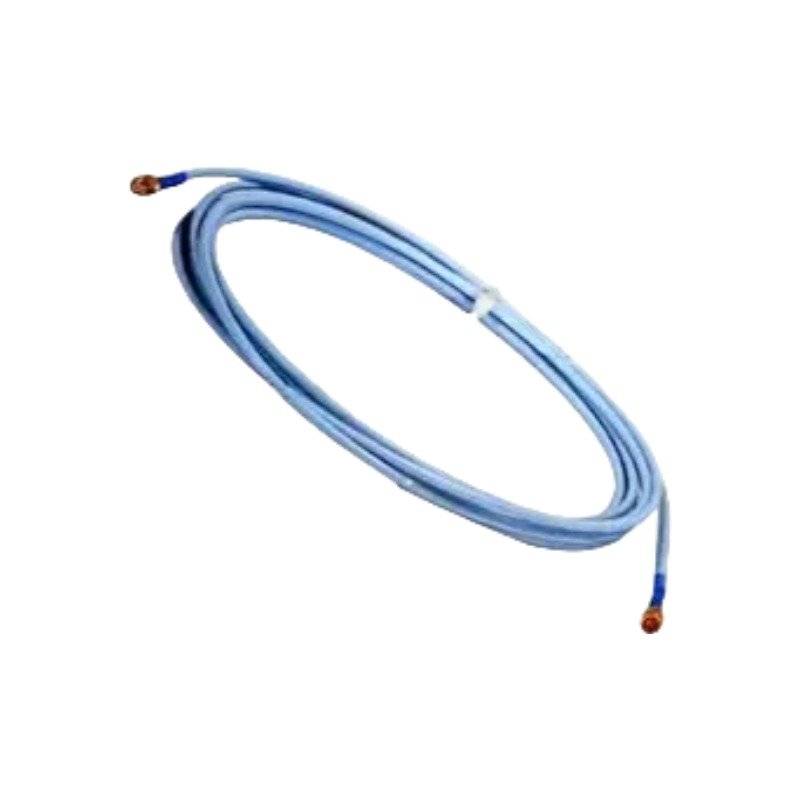

The Bently Nevada 330130-040-01-CN, also cataloged as the 330130 Standard Extension Cable, transmits RF signals within Bently Nevada 3500 and 3300 Proximity Transducer Systems.

Suffix Breakdown & Model Matrix

Hardware Specifications

Machinery Monitoring and TSI Characteristics

Consequently, the Bently Nevada 330130-040-01-CN maintains precise electrical impedance matching to ensure accurate eddy-current probe scaling across the entire system loop. During installation, field technicians must execute calibrated physical routing because impedance shifts will skew the required gap voltage validation (-10 VDC targets) that determines accurate rotor dynamics. Furthermore, the integrated shielding within the cable core provides robust cross-talk suppression. As a result, this shielding mitigates external electromagnetic interference and prevents false vibration spikes in the machinery protection system monitor.

Frequently Asked Questions

Q: What specific benefits does the -01 suffix provide for mechanical installation compared to unarmored cables?

A: The -01 option provides flexible stainless steel armor that shields the internal coaxial line from physical abrasion. Additionally, the factory-installed connector protector provides an environmental seal directly at the junction.

Q: Can engineers use the flexible armor on the 330130-040-01-CN as the primary electrical safety ground?

A: No. The flexible stainless steel armor serves solely for mechanical containment and external shielding. Therefore, technicians must establish system grounding via the dedicated Proximitor Sensor base connection to avoid injecting noise into the sensor circuit.

Field Installation Guidelines

• Minimum Bend Radius: Maintain a minimum physical bend radius of 25.4 mm (1.0 inch) throughout the armored cable routing; otherwise, you risk structural damage or kinking of the stainless steel external layer.
• Connector Torque and Insulation: First, tighten the miniature coaxial connectors using appropriate finger torque. Next, slide the integrated connector protector securely over the terminal junction to establish a fluid-isolated barrier.
• Isolation from High-Voltage Lines: Always route the extension cable in dedicated, grounded metal conduits. In addition, separate these runs from high-voltage AC or variable frequency drive (VFD) motor cables to preserve signal integrity.
