Description

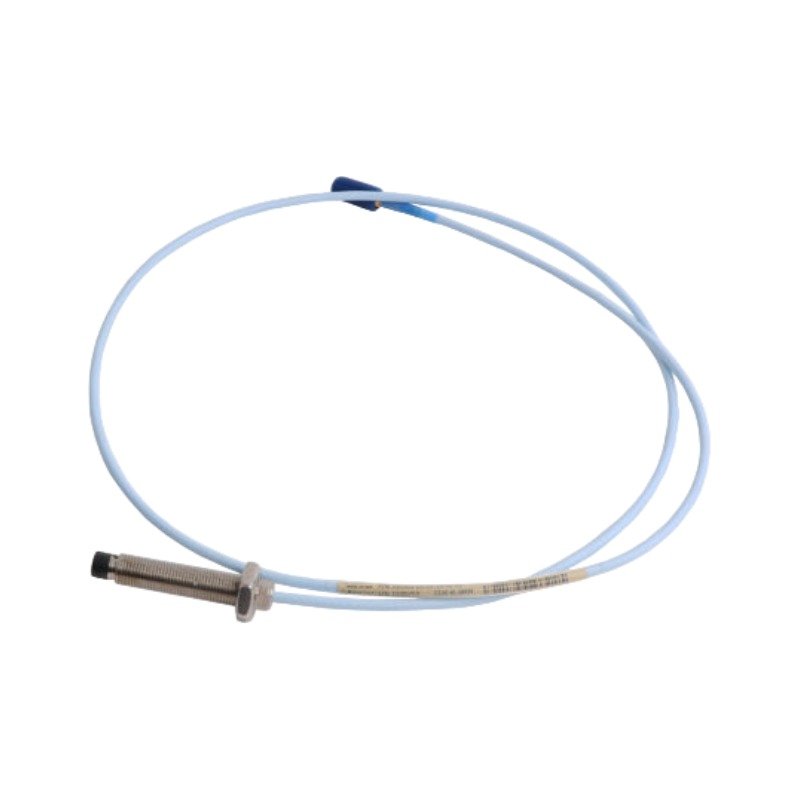

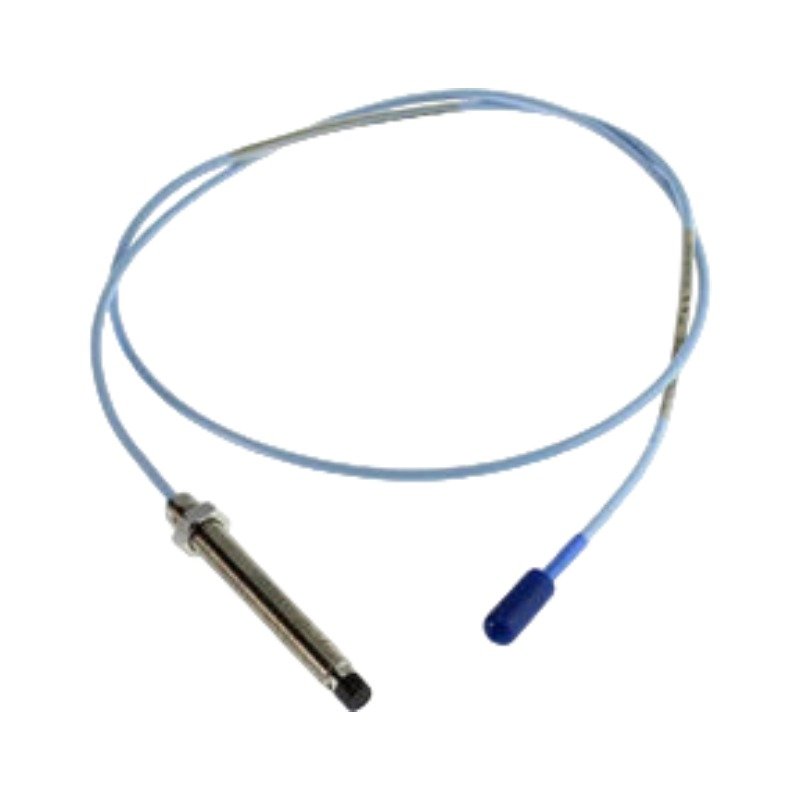

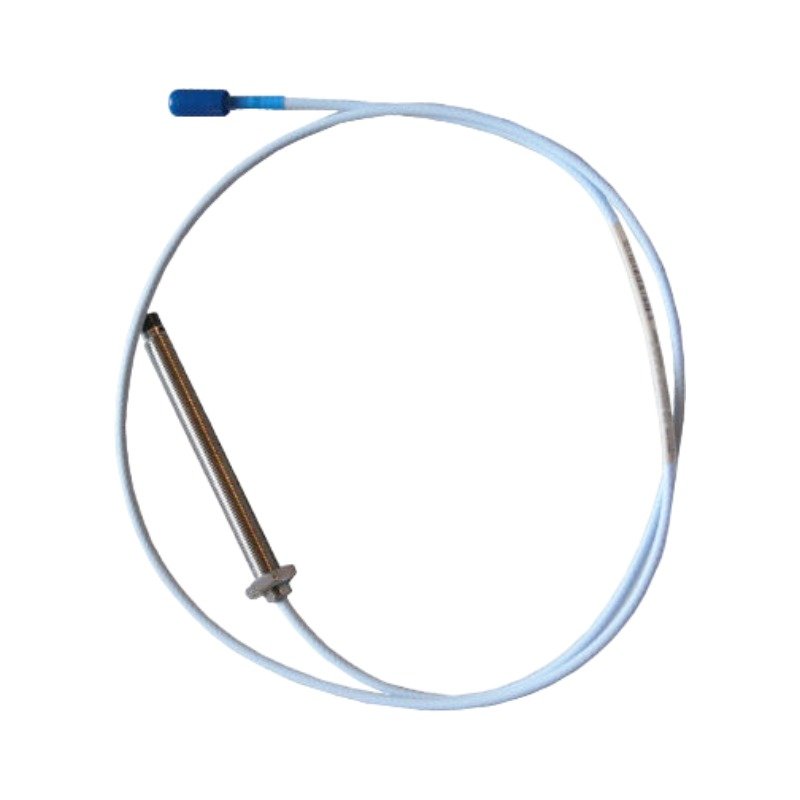

The Bently Nevada 330103-00-10-05-02-00 serves as the primary 330103 Proximity Probe utilized to execute non-contacting shaft displacement and dynamic vibration measurements across 3300 XL Transducer platforms. Consequently, the hardware converts the physical distance between the probe tip and the target conductive surface into a proportional analog voltage. The module operates continuously under extreme industrial conditions, providing real-time mechanical loop feedback to downstream machinery protection systems without physical contact.

Suffix Breakdown & Model Matrix

The specific alphanumeric configuration of the model number determines the physical dimensions and component attributes as follows:

• 00 (Unthreaded Length Option): Defines a 0.0 in unthreaded length on the probe case.
• 10 (Overall Case Length Option): Establishes a 1.0 in overall threaded case length with 3/8-24 UNF-2A threads.
• 05 (Total Length Option): Specifies a 0.5 meter (1.6 feet) integrated cable length.
• 02 (Connector and Cable-Type Option): Features a miniature coaxial ClickLoc connector on standard cable.
• 00 (Agency Approval Option): Indicates no specific hazardous area certifications are required for this unit.

Hardware Specifications

Gap Voltage Validation and Calibration Targets

Because proper mechanical positioning dictates system accuracy, field engineers must execute a gap voltage validation procedure during installation. This step requires the adjustment of the physical probe position until the Proximitor Sensor output registers a -10 VDC target voltage, which marks the exact midpoint of the 2.0 mm linear calibration envelope. Furthermore, the internal eddy-current probe scaling relies heavily on the metallurgical properties of the target material. Standard factory calibration matches AISI 4140 steel targets; therefore, choosing any alternative alloy alters the voltage-to-displacement curve and necessitates custom system recalibration.

Frequently Asked Questions

• Q: Can this probe connect directly to a standard analog control system input card?
  • A: No, the passive probe cannot output a standard 4-20 mA or 0-10 V signal autonomously. It must link to a 3300 XL Proximitor Sensor via an extension cable to modulate the high-frequency RF signal into a usable voltage output.
• Q: What occurs if the ClickLoc connector is over-tightened during field assembly?
  • A: The ClickLoc mechanism prevents the need for tools. Tightening with pliers or wrenches damages the gold-plated brass interfaces, degrades signal integrity, and introduces measurement noise. Engineers must tighten the connector finger-tight until it clicks.

Field Installation Guidelines

• Mechanical Clearance Limits: Ensure a minimum clearance of 16 mm (0.63 in) diameter around the 8 mm probe tip to prevent side-loading interference from adjacent machine components.
• Thread Engagement and Torque: Thread the probe body into the mounting bracket using a calibrated torque wrench. Do not exceed 3.9 N-m (35 in-lb) of torque on the 3/8-24 threads to avoid structural damage.
• Cable Routing and Isolation: Route the integrated 0.5 meter cable through dedicated, rigid or flexible conduit. Keep the coaxial lines physically isolated from high-voltage AC power lines to suppress external electromagnetic cross-talk.
• Shielding and Grounding: Terminate the coaxial outer shield exclusively at the Proximitor Sensor housing. This practice prevents the formation of ground loops, which introduce measurement inaccuracies into the vibration monitoring system.
