Description

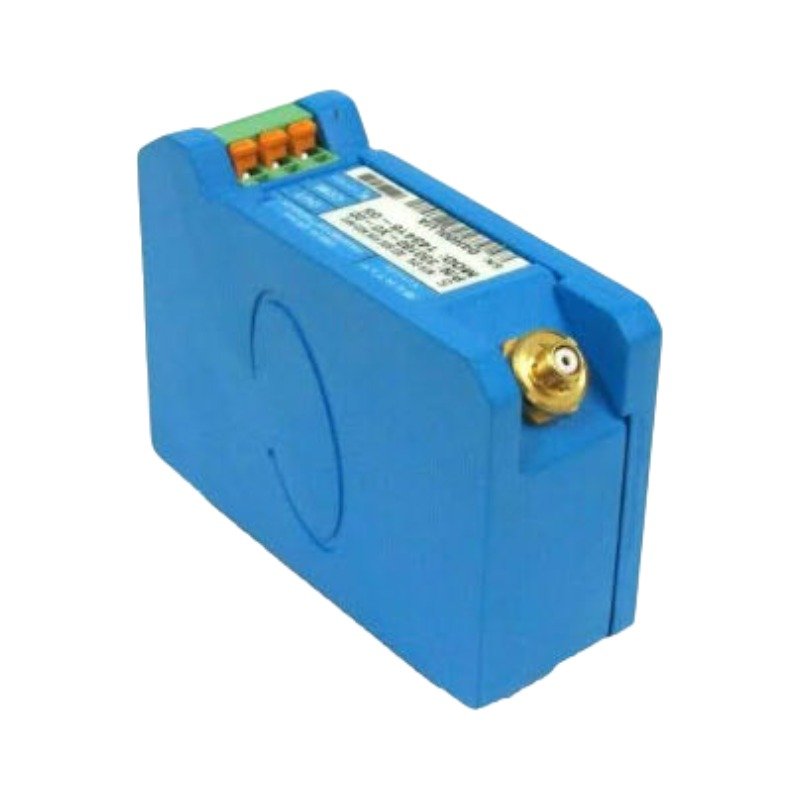

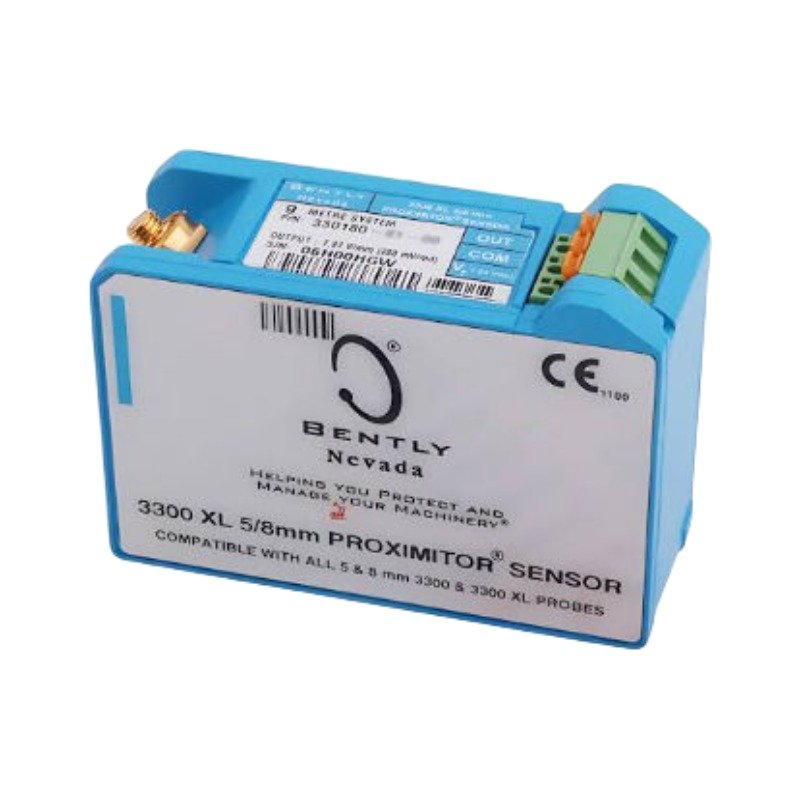

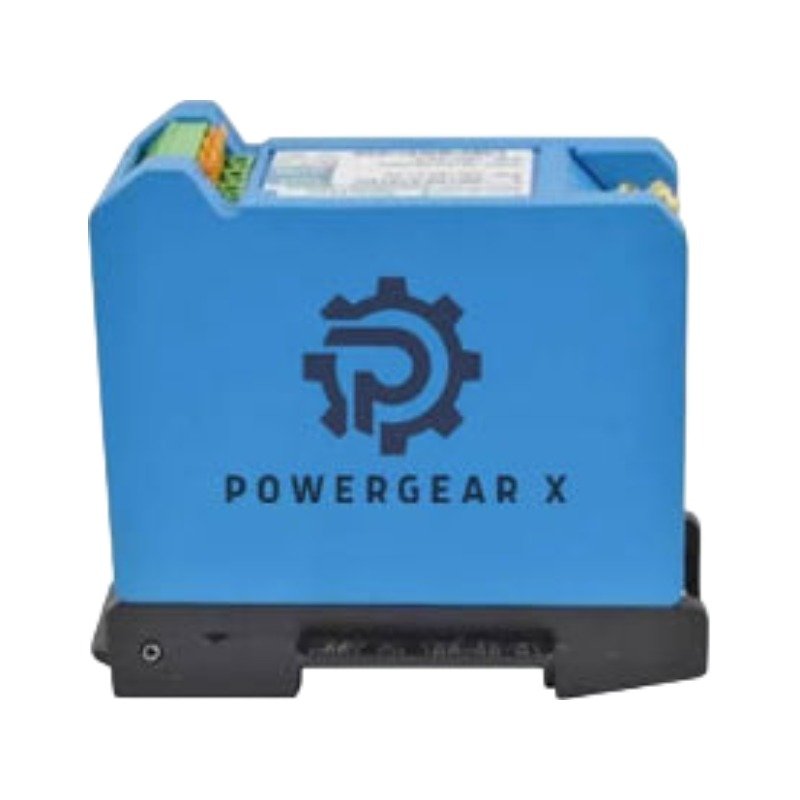

Configured for non-contacting displacement conditioning in machinery protection networks, the Bently Nevada 330180-X0-05 (330180 Proximitor Sensor) provides direct physical/electrical execution. Specifically, this DIN-rail or panel-mounted device generates a high-frequency radio frequency (RF) signal, sending it down to the probe tip to form an electromagnetic field. As the observed conductive shaft moves relative to the probe, the internal circuitry demodulates the resulting eddy-current variations into a proportional analog voltage. Consequently, this continuous conversion allows downstream monitors to track radial vibration, axial position, or rotational speed without contacting the rotating asset.

Hardware Specifications

Eddy-Current Probe Scaling and Mechanical Validation

Because the sensor matches specific cable and probe parameters, electrical compatibility directly determines the accuracy of the eddy-current probe scaling. To maintain strict sensor linearity across the full 2.0 mm operational range, field engineers verify that the total electrical length of the probe and extension cable equals the exact system length tuned into the Bently Nevada 330180-X0-05 module. Any mismatch in these components alters the high-frequency impedance, which degrades the calibrated output and causes deviation from the best fit straight line.

During the installation phase, technicians rely on front-panel terminal verification to perform gap voltage validation. Adjusting the physical probe depth inside the casing allows the installer to establish a stable -10 VDC target, indicating that the target face rests directly in the center of the sensor’s linear zone. Furthermore, the integrated SpringLoc terminal strips provide continuous mechanical clamping force on the field wiring. This layout eliminates screw-type connection loosening from surrounding rotor dynamics, while the isolated base structure prevents cross-talk suppression failures caused by structural ground loops.

Frequently Asked Questions

Q: What indicates an out-of-range or short-circuit fault condition on this sensor module?

A: An open probe loop or a direct short to ground shifts the analog output voltage beyond the linear operating thresholds. If the supply voltage drops or the probe detaches, the output signal swings to a more positive value than -1.0 VDC or approaches the raw supply voltage rail, alerting the monitoring rack to a transducer fault.

Q: How does the module handle high radio frequency interference from surrounding machinery areas?

A: The aluminum housing features enhanced RFI/EMI shielding properties that suppress high-frequency induction noise. As a result, technicians can install the module inside non-metallic fiberglass enclosures without requiring extra shielded metal conduit or specialized filtering hardware.

Field Installation Guidelines

• Ensure that the mounting footprint matches the standard 4-hole template, or snap the integrated base clips directly onto a standard 35 mm DIN rail.
• Route the extension cable carefully to prevent tight kinks, maintaining a minimum cable bend radius of 25.4 mm throughout the run.
• Connect the gold-plated ClickLoc coaxial fittings by hand, turning them until they produce a distinct mechanical click to lock the connection.
• Terminate the three field wires (VT, OUT, COM) into the SpringLoc terminal strip using a small screwdriver to depress the tension clamp.
• Insulate the outer coaxial shield connection from any conduit junction boxes to maintain the single-point grounding framework at the monitor rack.
