Description

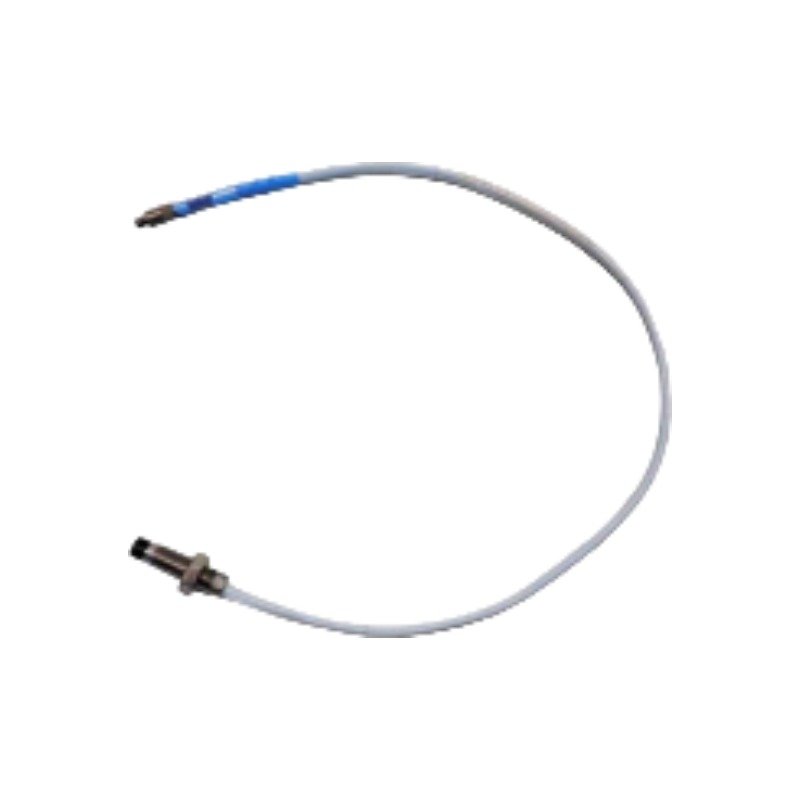

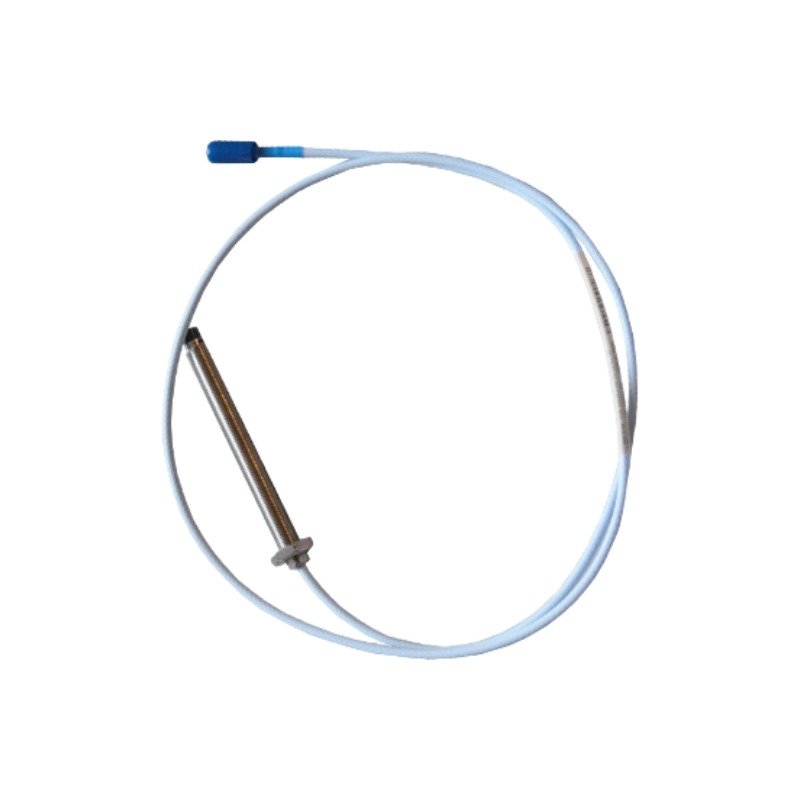

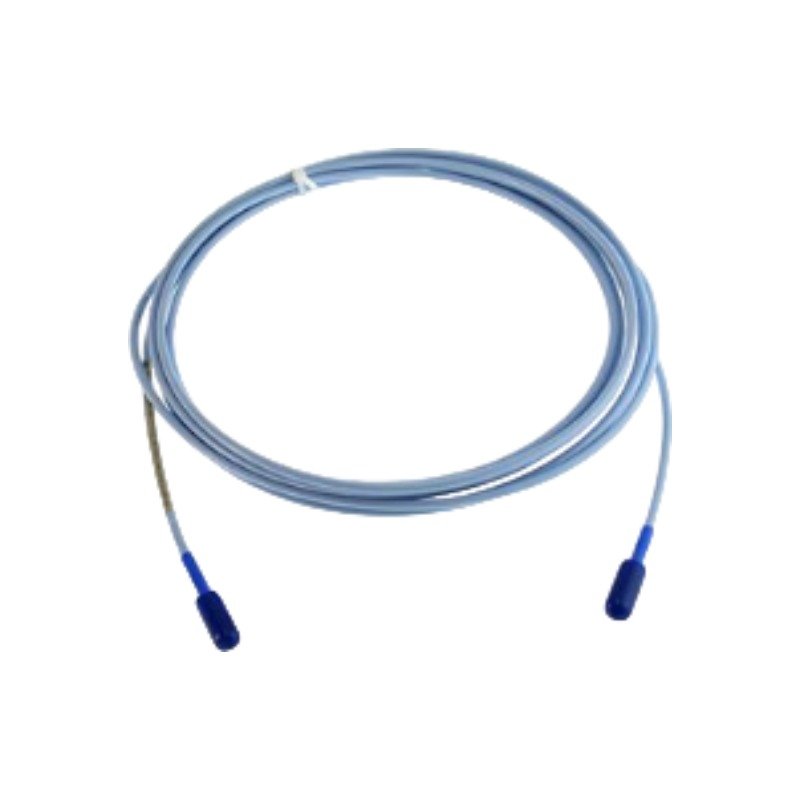

The Bently Nevada 330103-00-05-90-02-00, also cataloged as the 330103 Proximity Probe, operates as a dedicated hardware component for non-contacting shaft displacement and dynamic vibration measurement within Turbine Supervisory Instrumentation (TSI) platforms.

Suffix Breakdown & Model Matrix

The alphanumeric suffix combination defines the specific mechanical and electrical configurations of the hardware assembly:

• 330103: Base model for 3300 XL 8 mm proximity probe with M10 x 1 thread, unarmored.
• 00: Unthreaded Length Option (00 = 0 mm).
• 05: Overall Case Length Option (05 = 50 mm).
• 90: Total Length Option (90 = 9.0 meters / 29.5 feet).
• 02: Connector and Cable-Type Option (02 = Miniature coaxial ClickLoc connector, standard cable).
• 00: Agency Approval Option (00 = Not required / no approvals).

Hardware Specifications

Eddy-Current Probe Scaling & Rotor Dynamics

The probe operates via eddy-current proximity principles where high-frequency RF fields generated by the Proximitor loop penetrate the target surface. Proper calibration requires an exact eddy-current probe scaling profile matching the metallurgy of the shaft. To establish a stable operating baseline for rotor dynamics tracking, the gap voltage validation must achieve a target value of -10 VDC at the geometric center of the linear zone. Cross-talk suppression is managed via tight winding geometry, preventing electromagnetic interference between adjacent multi-axis probes installed in the same bearing housing block.

Frequently Asked Questions

Q: What is the physical significance of the -10 VDC gap voltage target?

A: A gap voltage validation value of -10 VDC indicates that the physical distance between the probe tip face and the target surface is exactly at the midpoint of the linear range, typically 1.27 mm (50 mils) clearance.

Q: Can this 9.0 meter probe be connected to a standard 5.0 meter extension cable?

A: No. The total system length must match the Proximitor sensor tuning parameters. A 9.0 meter probe must connect directly to a 9.0 meter Proximitor sensor without an extension cable, or be part of an engineered 9.0 meter total system length. Mismatching components will cause errors in scale factor accuracy.

Field Installation Guidelines

• Mechanical Clearance: Maintain a minimum counterbore clearance of 2 or more probe tip diameters (16 mm minimum) to prevent side-loading errors caused by surrounding metal structures.
• Torque Limits: When installing the M10 x 1 threaded case into the mounting bracket, do not exceed the maximum allowable tightening torque of 22.6 N m.
• Connector Integrity: Ensure the miniature coaxial ClickLoc connector faces are free of moisture and particulate matter. Twist the collar until a mechanical click occurs to confirm lock engagement. Do not use tools to tighten the connector.
• Shielding Protocols: The coaxial cable shield must remain floating at the probe end. Terminal grounding must be executed solely at the instrument rack or the Proximitor isolation housing ground terminal block to prevent ground loops.
