Description

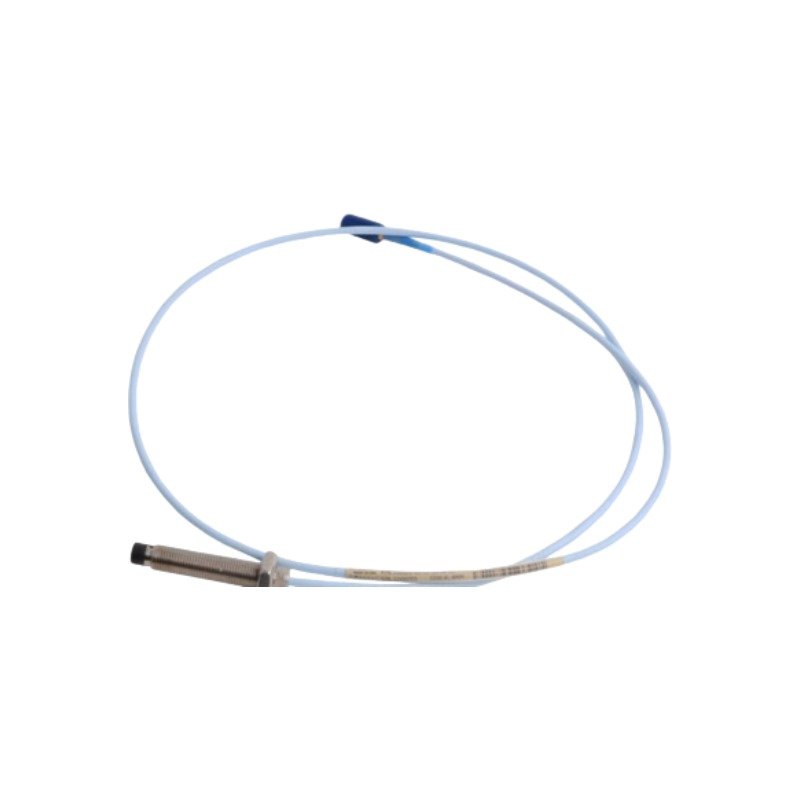

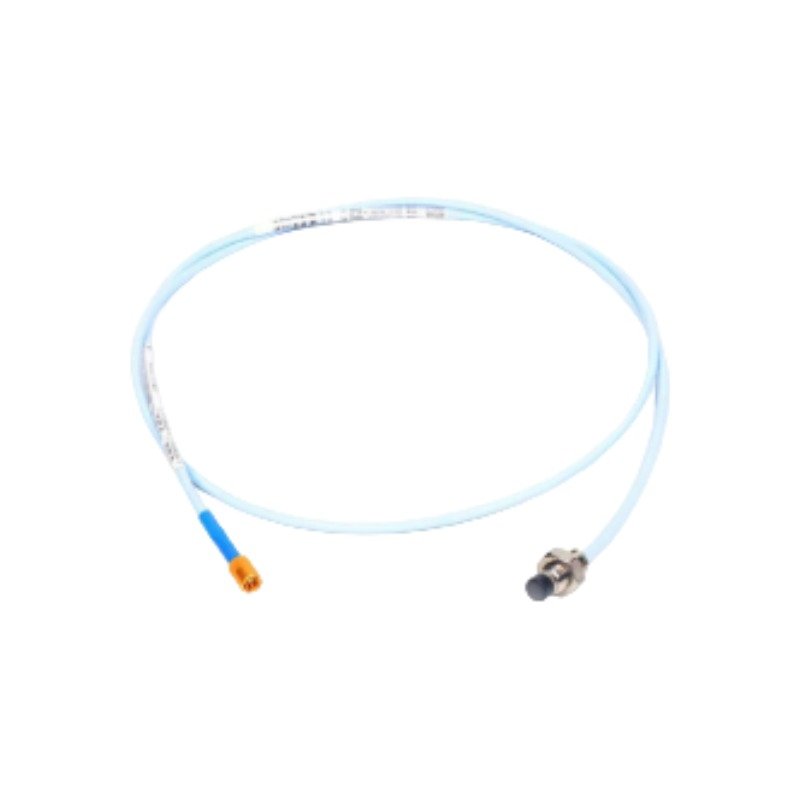

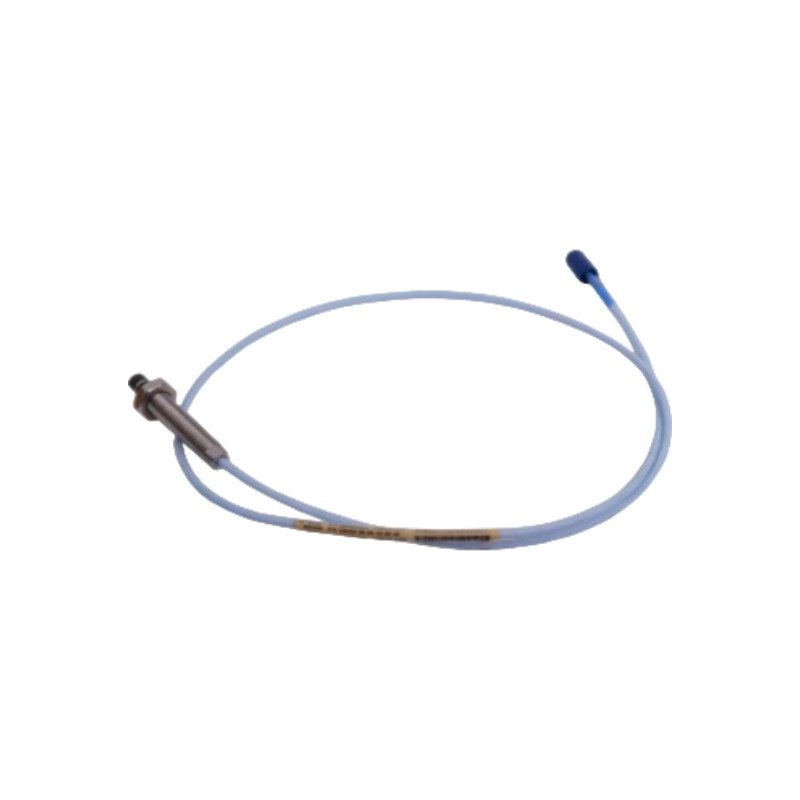

The Bently Nevada 330103-00-05-10-02-CN serves as the primary 330103 8 mm Metric Proximity Probe utilized to execute contactless displacement and vibration measurements across 3300 XL Proximity Transducer System platforms.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 8 mm proximity probe utilizes eddy-current technology to execute high-precision distance scaling relative to a rotating shaft target surface. During operation, the 3300 XL Proximitor Sensor drives an RF signal through the extension cable to the probe tip, generating a high-frequency electromagnetic field. As the target undergoes rotor dynamics perturbations, variations in the physical gap modulate the eddy-current density on the target material surface. This translates to an output voltage modulation directly proportional to the physical clearance. Proper gap voltage validation requires biasing the probe to target a baseline of -10 VDC at the physical midpoint of the linear range. Strict impedance matching across the total length system suppresses cross-talk interference between adjacent channels monitoring the same rotor plane.

Frequently Asked Questions

Q: What specific requirements does the -CN suffix fulfill for machinery deployment?

A: The -CN designation represents region-specific agency approvals, certifying the component under NEPSI and CCC criteria for installation within hazardous areas inside China when integrated with matching certified barriers.

Q: Can this metric probe operate properly if installed in an imperial 3/8-24 UNF threaded hole?

A: No. Thread profiles are completely incompatible. Attempting to force the M10 x 1 metric thread into a 3/8-24 imperial port results in immediate mechanical thread stripping and cross-threading failure.

Field Installation Guidelines

• Thread Engagement: Ensure a minimum thread engagement of 5 full turns within the mounting bracket or housing to prevent mechanical looseness under high-frequency structural vibration.
• Shield Grounding: Terminate the external coaxial extension cable outer shield only at the Proximitor Sensor housing. Do not allow the probe case or coaxial connector bodies to touch intermediate conduit boxes or structural steel to prevent ground loops.
• Bend Radius Limits: Maintain a minimum physical bend radius of 25.4 mm for the coaxial cable lead during routing to eliminate internal conductor degradation and signal impedance shifts.
