Description

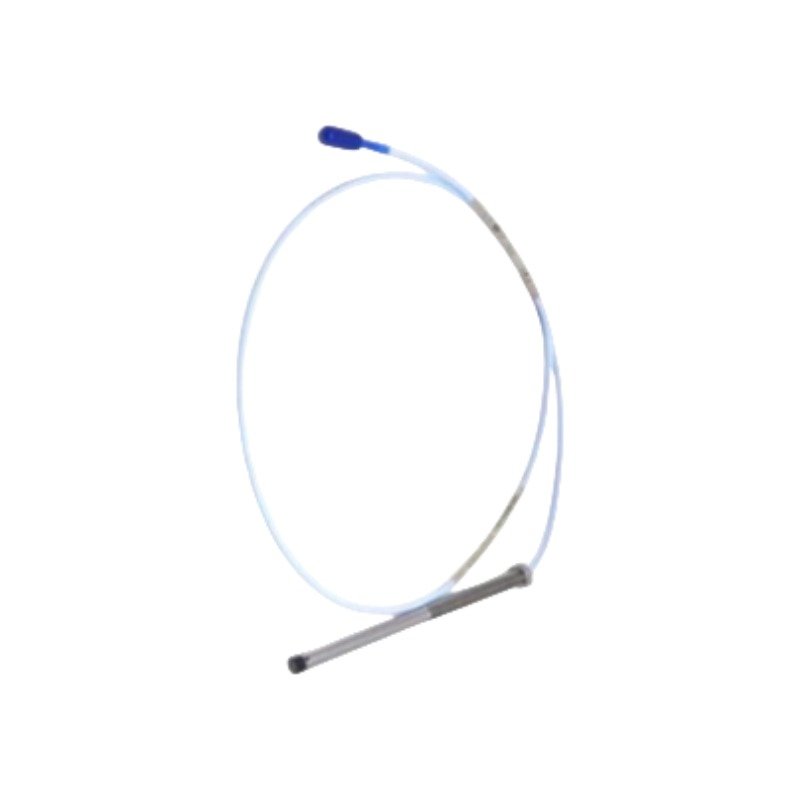

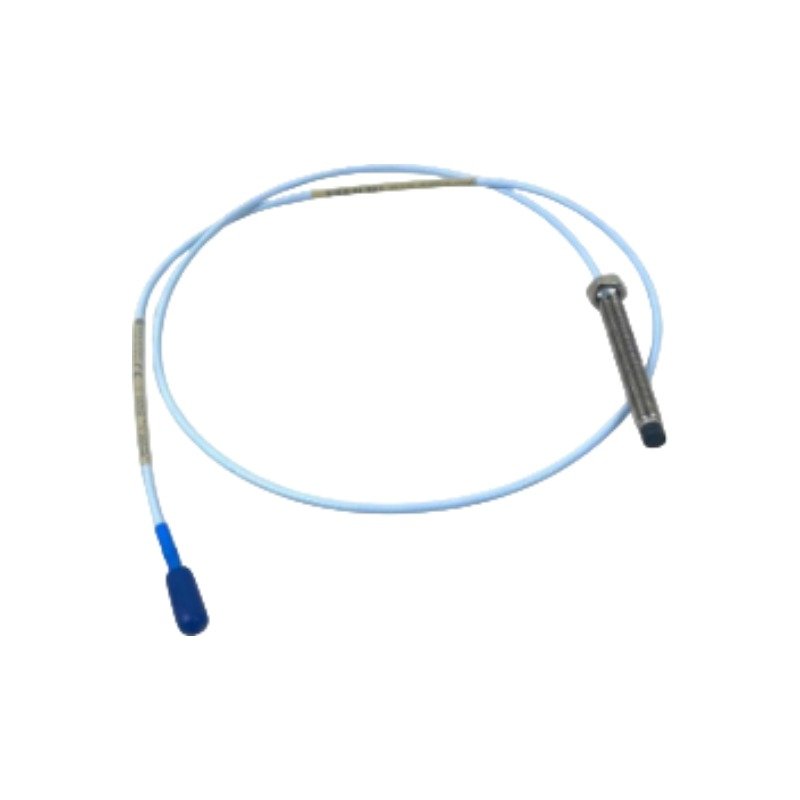

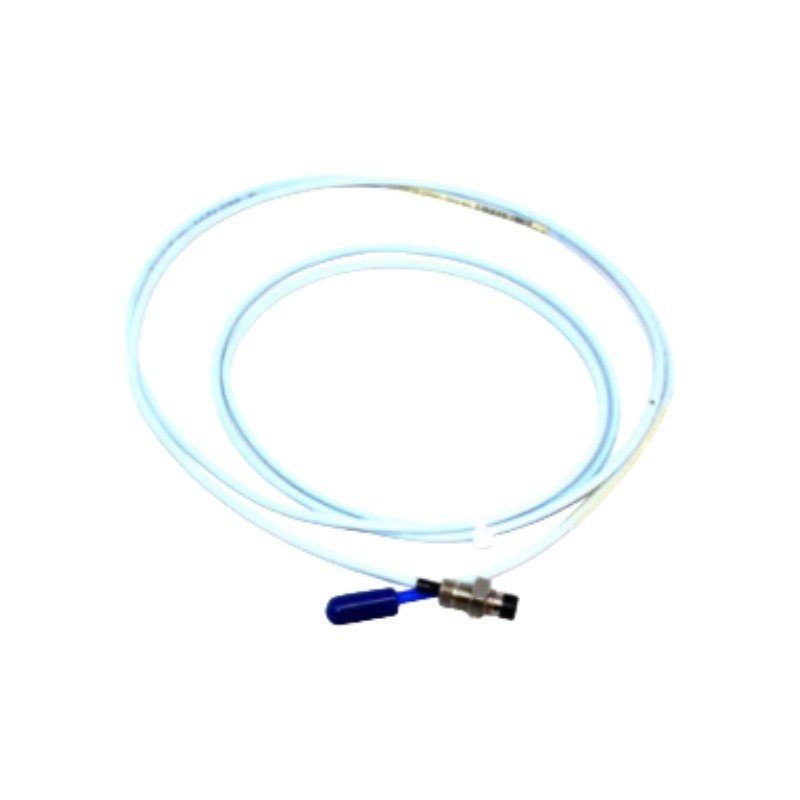

The Bently Nevada 330101-00-79-15-02-05 serves as the primary 330101 Proximity Probe utilized to execute eddy-current displacement measurements across 3500 and 3300 Machinery Protection System platforms. It continuously translates the physical gap distance between the probe tip and the target rotating shaft into a proportional electrical voltage signal for vibration and position monitoring.

Suffix Breakdown & Model Matrix

• 330101: 3300 XL 8mm Proximity Probe, 3/8-24 UNF thread, without armor
• -00: Unthreaded length option (0.0 in)
• -79: Overall case length option (7.9 in)
• -15: Total length option (1.5 metre / 4.9 feet)
• -02: Connector option (Miniature coaxial ClickLoc connector, standard cable)
• -05: Agency approval option (Multiple Approvals including ATEX/IECEx intrinsic safety and non-incendive zones)

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330101-00-79-15-02-05 operates via high-frequency eddy-current probe scaling, generating an electromagnetic field that interacts with the target rotor surface. Gap voltage validation targets an operational midpoint of -10 VDC within the nominal -24 VDC supply loop, corresponding to the center of the linear calibration spectrum. This voltage profile prevents cross-talk suppression failures when multiple probe tips are arrayed in close radial proximity. Accurate configuration is vital for isolating true rotor dynamics from physical shaft runout and ensuring proper phase angle and radial vibration tracking under approved hazardous area conditions.

Frequently Asked Questions

Q: What specific mounting constraint necessitates the 7.9 in case length (-79)?

A: The 7.9 in case length provides the necessary reach through specialized deep-pocket fluid film bearing housings or thick thermal jackets, allowing the 8 mm tip to maintain proper proximity to the shaft journal.

Q: Does the longer 7.9 in mechanical body affect the sensor’s frequency response?

A: The internal electrical frequency response remains unaffected. However, longer mechanical housings are more susceptible to physical vibration if not rigidly supported. The locknut must be fully torqued to mitigate internal housing resonance.

Q: Can this unarmored cable configuration withstand continuous submersion in synthetic lube oil?

A: The standard coaxial cable assembly (-02) provides high resistance to typical turbine oils. For environments with harsh corrosive chemical washing or high mechanical abrasion risks, external protective conduit is recommended.

Field Installation Guidelines

1. Ensure the probe tip and shaft surface maintain clean, perpendicular alignment to eliminate geometric error.
2. Thread the 3/8-24 UNF body into the brackets, adjusting depth carefully across the extended 7.9 in case length until a digital multimeter confirms a gap voltage of -10 VDC at the Proximitor sensor output terminals.
3. Observe standard industrial NPT and UNF engagement limits, securing the locknut tightly to prevent physical drift caused by high-amplitude rotor dynamics.
4. Route the 1.5 m coaxial cable using dedicated conduit or tray lines, implementing strict separation from high-voltage lines to isolate the loop from cross-talk suppression vectors.
5. Adhere to all intrinsic safety grounding protocols required by the -05 agency approvals to maintain zone isolation.
