Description

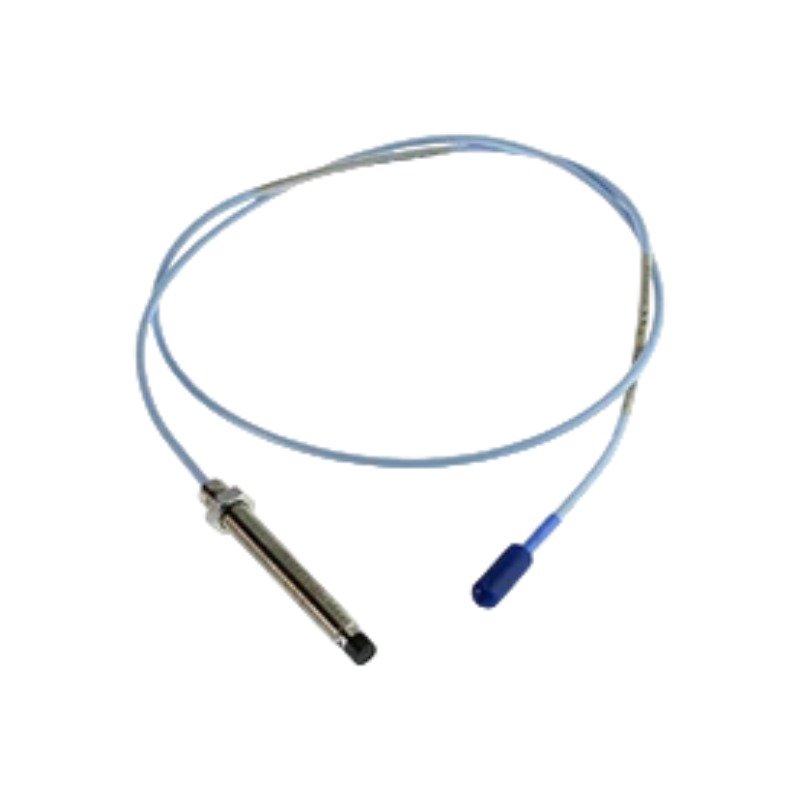

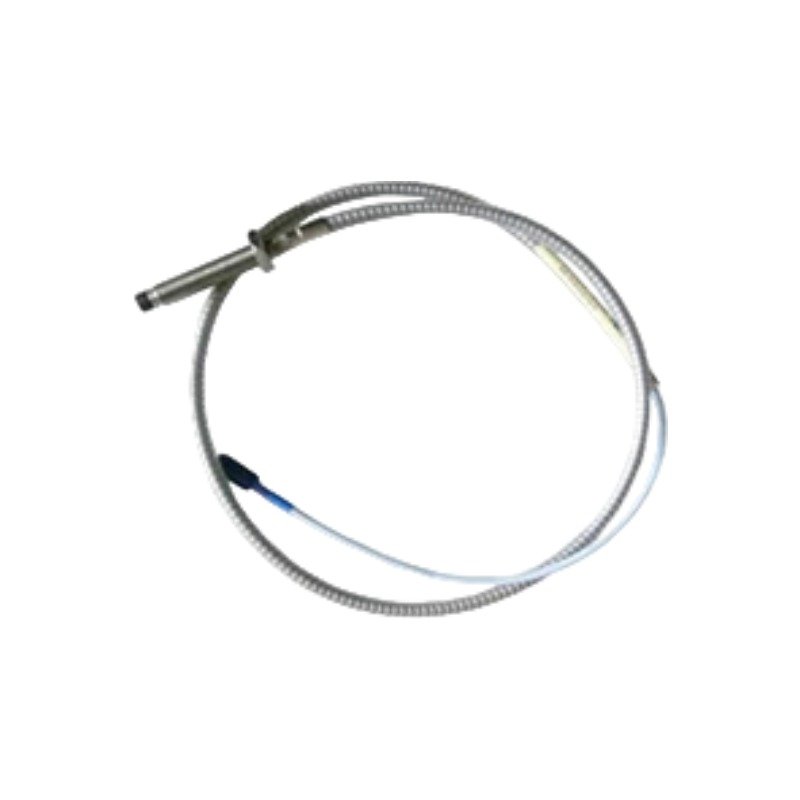

The Bently Nevada 330101-00-75-15-02-05 serves as the primary 330101 Proximity Probe utilized to execute eddy-current displacement measurements across 3500 and 3300 Machinery Protection System platforms. It continuously translates the physical gap distance between the probe tip and the target rotating shaft into a proportional electrical voltage signal for vibration and position monitoring.

Suffix Breakdown & Model Matrix

• 330101: 3300 XL 8mm Proximity Probe, 3/8-24 UNF thread, without armor
• -00: Unthreaded length option (0.0 in)
• -75: Overall case length option (7.5 in)
• -15: Total length option (1.5 metre / 4.9 feet)
• -02: Connector option (Miniature coaxial ClickLoc connector, standard cable)
• -05: Agency approval option (Multiple Approvals including ATEX/IECEx intrinsic safety and non-incendive zones)

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330101-00-75-15-02-05 operates via high-frequency eddy-current probe scaling, generating an electromagnetic field that interacts with the target rotor surface. Gap voltage validation targets an operational midpoint of -10 VDC within the nominal -24 VDC supply loop, corresponding to the center of the linear calibration spectrum. This voltage profile prevents cross-talk suppression failures when multiple probe tips are arrayed in close radial proximity. Accurate configuration is vital for isolating true rotor dynamics from physical shaft runout and ensuring proper phase angle and radial vibration tracking under approved hazardous area conditions.

Frequently Asked Questions

Q: What physical installation challenge does the 7.5 in case length (-75) address?

A: The 7.5 in case allows the probe to pass completely through thick machine components, complex bearing housings, or external cooling jackets to position the tip precisely within the linear measurement zone of the target rotor.

Q: Which extension cable must be implemented with this 1.5 m probe for a 9.0 m system?

A: A 7.5 m extension cable is required. The combined physical length of the probe cable (1.5 m) and extension cable (7.5 m) must equal 9.0 m to preserve the factory-calibrated scale factor tuning.

Q: Does the longer 7.5 in mechanical housing increase vulnerability to rotor dynamics resonance?

A: Long unbraced probe sleeves can exhibit mechanical resonance if subjected to high-frequency machine acceleration. Installers must verify rigid housing support along the insertion path to prevent measurement modulation.

Field Installation Guidelines

1. Ensure the probe tip and shaft surface maintain clean, perpendicular alignment to eliminate geometric error.
2. Thread the 3/8-24 UNF body into the brackets, adjusting depth carefully across the extended 7.5 in case length until a digital multimeter confirms a gap voltage of -10 VDC at the Proximitor sensor output terminals.
3. Observe standard industrial NPT and UNF engagement limits, securing the locknut tightly to prevent physical drift caused by high-amplitude rotor dynamics.
4. Route the 1.5 m coaxial cable using dedicated conduit or tray lines, implementing strict separation from high-voltage lines to isolate the loop from cross-talk suppression vectors.
5. Adhere to all intrinsic safety grounding protocols required by the -05 agency approvals to maintain zone isolation.
