Description

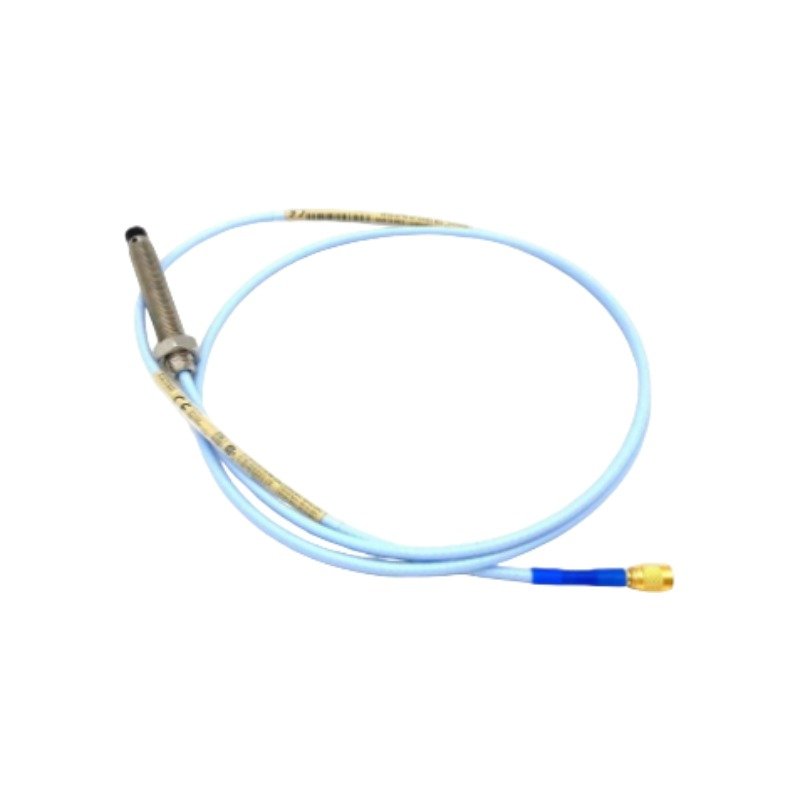

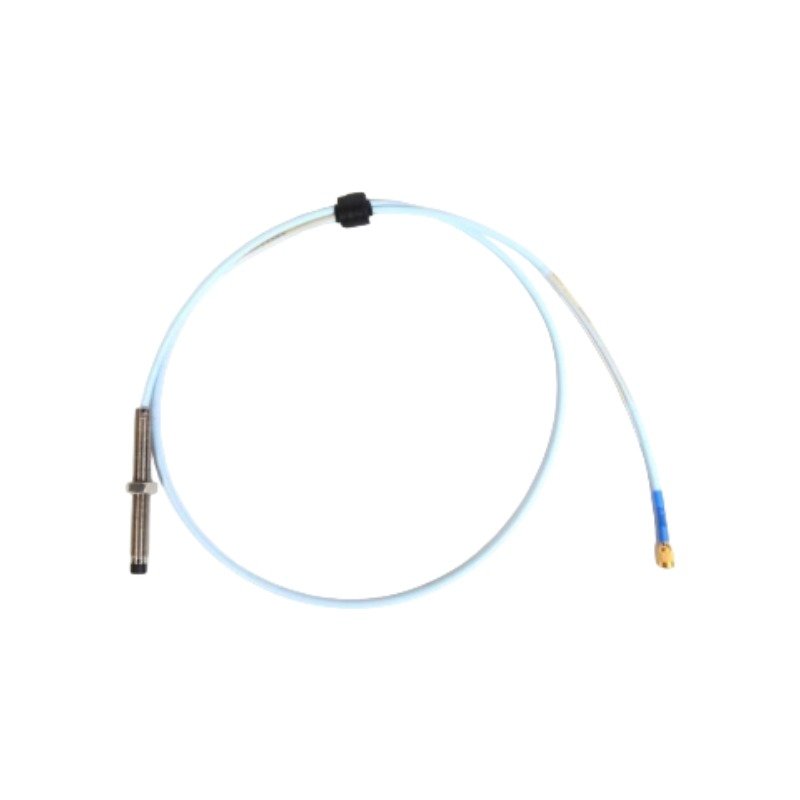

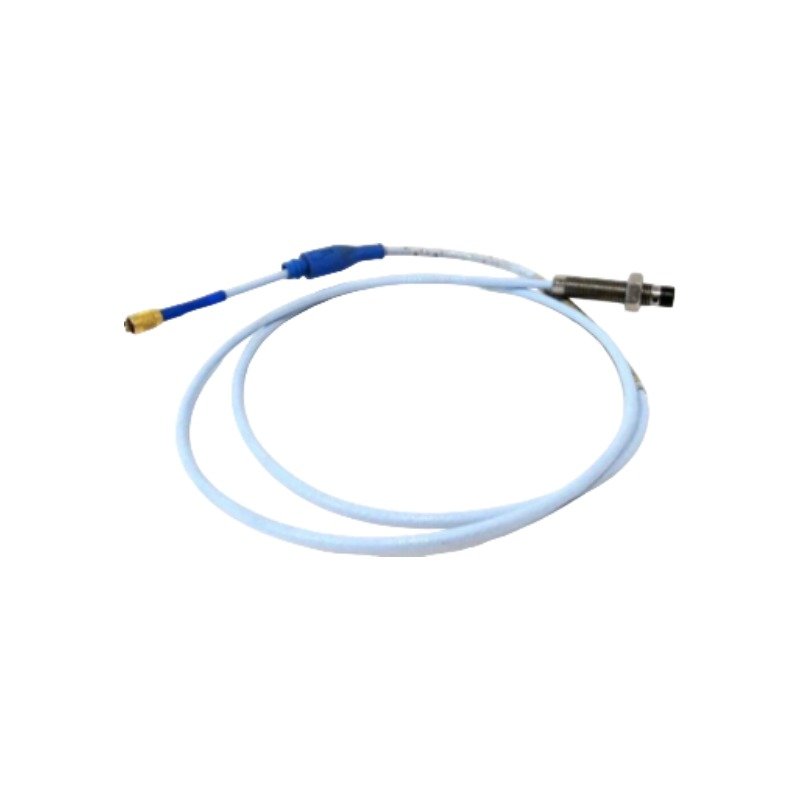

The Bently Nevada 330101-00-43-15-02-05 serves as the primary 330101 Proximity Probe utilized to execute eddy-current displacement measurements across 3500 and 3300 Machinery Protection System platforms. It continuously translates the physical gap distance between the probe tip and the target rotating shaft into a proportional electrical voltage signal for vibration and position monitoring.

Suffix Breakdown & Model Matrix

• 330101: 3300 XL 8mm Proximity Probe, 3/8-24 UNF thread, without armor
• -00: Unthreaded length option (0.0 in)
• -43: Overall case length option (4.3 in)
• -15: Total length option (1.5 metre / 4.9 feet)
• -02: Connector option (Miniature coaxial ClickLoc connector, standard cable)
• -05: Agency approval option (Multiple Approvals including ATEX/IECEx intrinsic safety and non-incendive zones)

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330101-00-43-15-02-05 operates via high-frequency eddy-current probe scaling, generating an electromagnetic field that interacts with the target rotor surface. Gap voltage validation targets an operational midpoint of -10 VDC within the nominal -24 VDC supply loop, corresponding to the center of the linear calibration spectrum. This voltage profile prevents cross-talk suppression failures when multiple probe tips are arrayed in close radial proximity. Accurate configuration is vital for isolating true rotor dynamics from physical shaft runout and ensuring proper phase angle and radial vibration tracking under approved hazardous area conditions.

Frequently Asked Questions

Q: How does the 1.5 m cable length (-15) affect system matching with a Proximitor sensor?

A: The total electrical length of the proximity probe system must remain consistent (typically 5.0 m or 9.0 m). A 1.5 m probe requires a dedicated 3.5 m or 7.5 m extension cable to prevent eddy-current probe scaling errors.

Q: What physical protection does this coaxial cable configuration provide?

A: The -02 option specifies a standard unarmored coaxial cable configuration. For heavy industrial fluid exposure or mechanical risk, external conduit or an armored alternative (-01 base series) should be considered.

Q: What is the mechanical significance of the 4.3 in case length (-43)?

A: The 4.3 in dimension dictates the maximum physical insertion depth available through machine housings or brackets using the standard 3/8-24 UNF external thread profile.

Field Installation Guidelines

1. Ensure the probe tip and shaft surface maintain clean, perpendicular alignment to eliminate geometric error.
2. Thread the 3/8-24 UNF body into the brackets, adjusting depth until a digital multimeter confirms a gap voltage of -10 VDC at the Proximitor sensor output terminals.
3. Observe standard industrial NPT and UNF engagement limits, securing the locknut to prevent drift from high-frequency rotor dynamics.
4. Route the 1.5 m coaxial cable using dedicated conduit or tray lines, implementing strict separation from high-voltage lines to isolate the loop from cross-talk suppression vectors.
5. Adhere to all intrinsic safety grounding protocols required by the -05 agency approvals to maintain zone isolation.
