Description

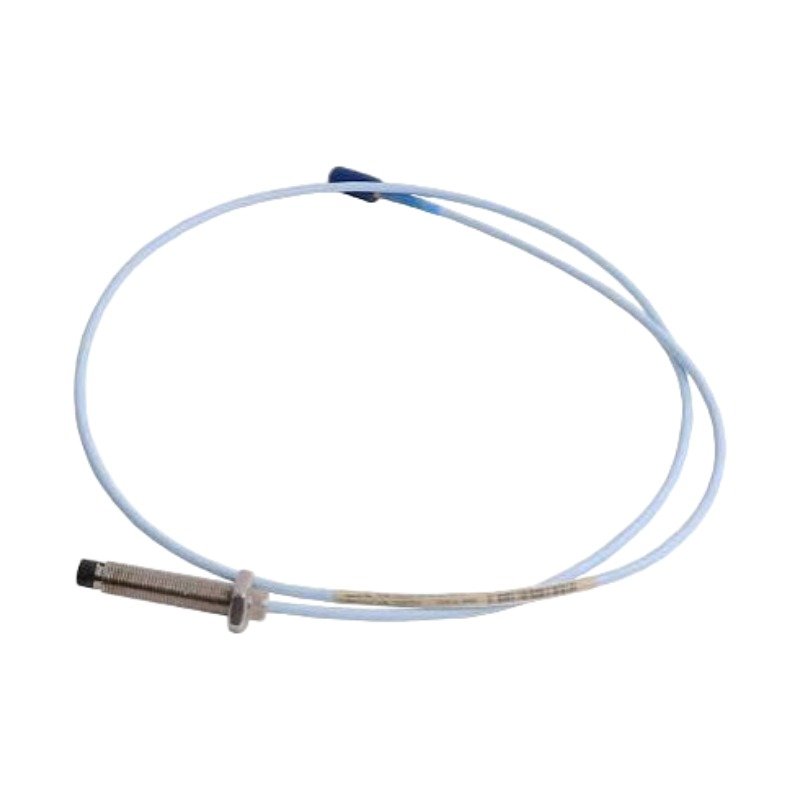

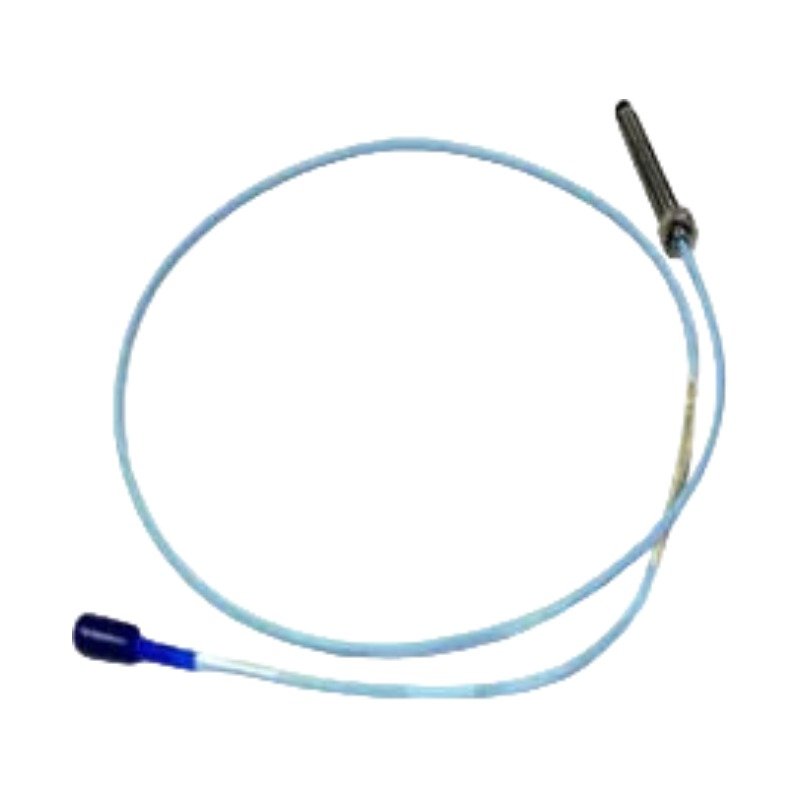

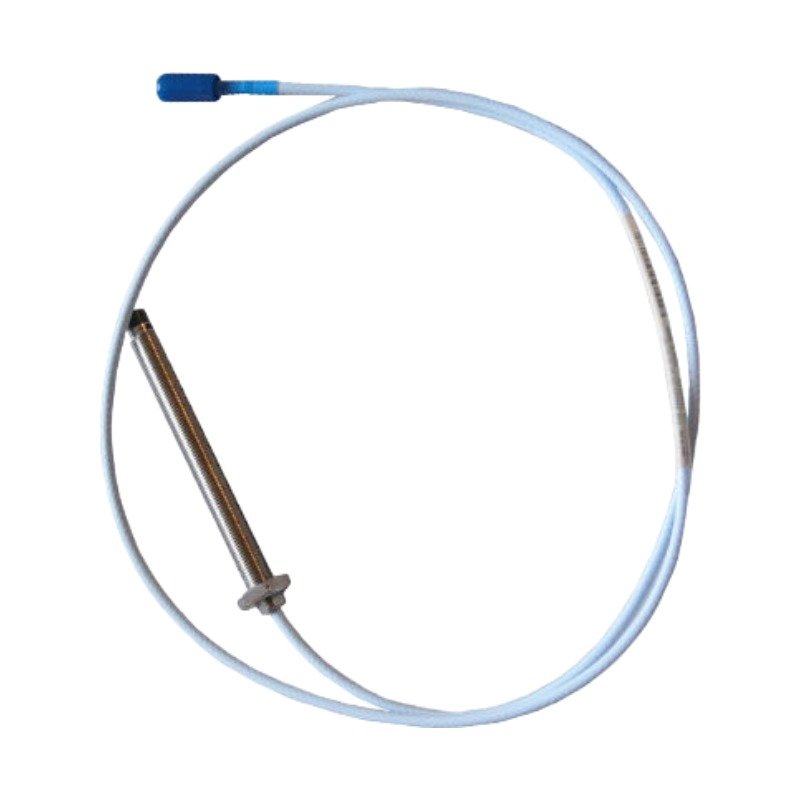

The Bently Nevada 330103-00-15-10-02-00, also cataloged as the 330103 3300 XL 8 mm Proximity Probe (M10 x 1 thread), operates as a dedicated hardware component for noncontacting displacement measurement within 3300 Machinery Protection System platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This metric-threaded probe monitors continuous mechanical position deviations during high-velocity rotor dynamics evaluation. Specifically, the internal coil structure projects an RF magnetic field to track microscopic shaft displacements. Consequently, this geometry preserves a precise eddy-current probe scaling ratio when paired with a matching 3300 XL Proximitor. Furthermore, the specialized insulation configuration limits inductive signal losses. Therefore, the complete loop maintains highly repeatable gap voltage validation metrics targeting the standard -10 VDC operational benchmark while enforcing cross-talk suppression against adjacent sensor lines.

Frequently Asked Questions

Q: What precise layout metrics do the 00-15-10-02 options define for this probe?

A: The options designate a 0.0 mm unthreaded case length (00), a 15.0 mm total threaded case length (15), a 1.0-meter overall cable length (10), and a miniature coaxial connector termination (02).

Q: Can this M10 x 1 threaded probe interchange directly with a 330101 English-thread probe?

A: No, the 330103 features a metric M10 x 1 thread profile, whereas the 330101 features a 3/8-24 UNF thread profile. Consequently, attempting to cross-thread them destroys the mounting bracket interface.

Field Installation Guidelines

First, thread the metric probe body into the mounting bore until the tip achieves the required gap distance from the target shaft surface. Subsequently, confirm that the static gap matches the factory-recommended voltage baseline using a digital voltmeter. Always run the probe lead wire through grounded metal conduit. Consequently, this protective shielding maintains cross-talk suppression and blocks electromagnetic interference paths. Finally, hand-tighten the miniature coaxial connector into the extension cable link, applying self-fusing silicone tape over the connection to block moisture entry.
