Description

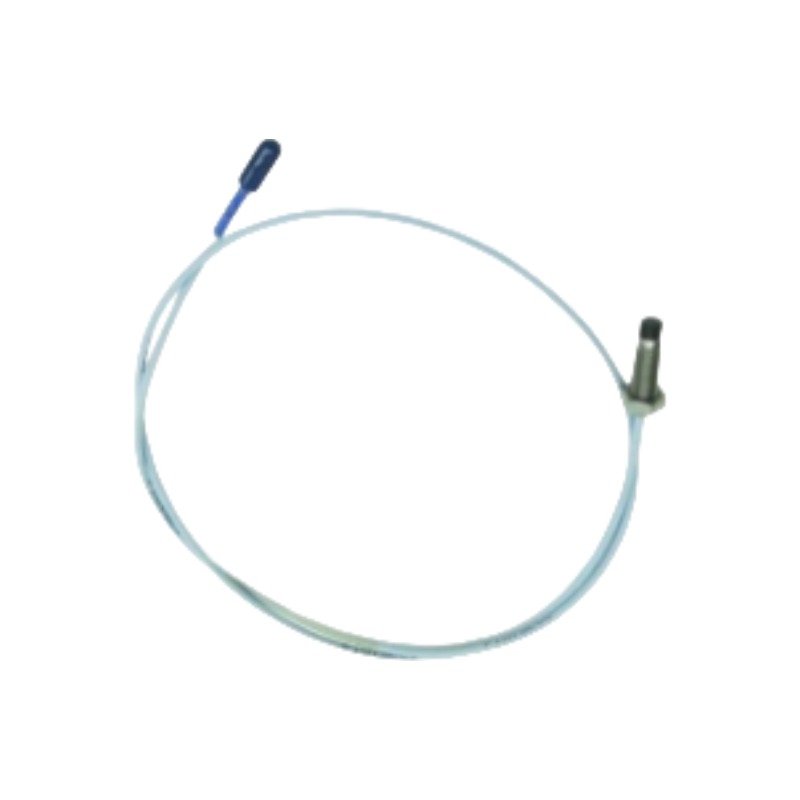

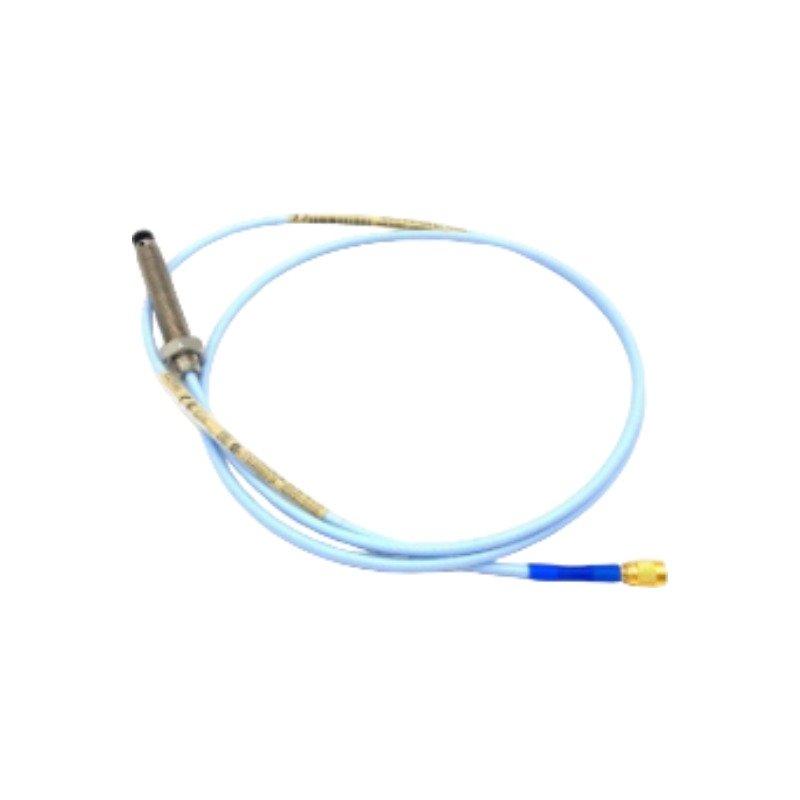

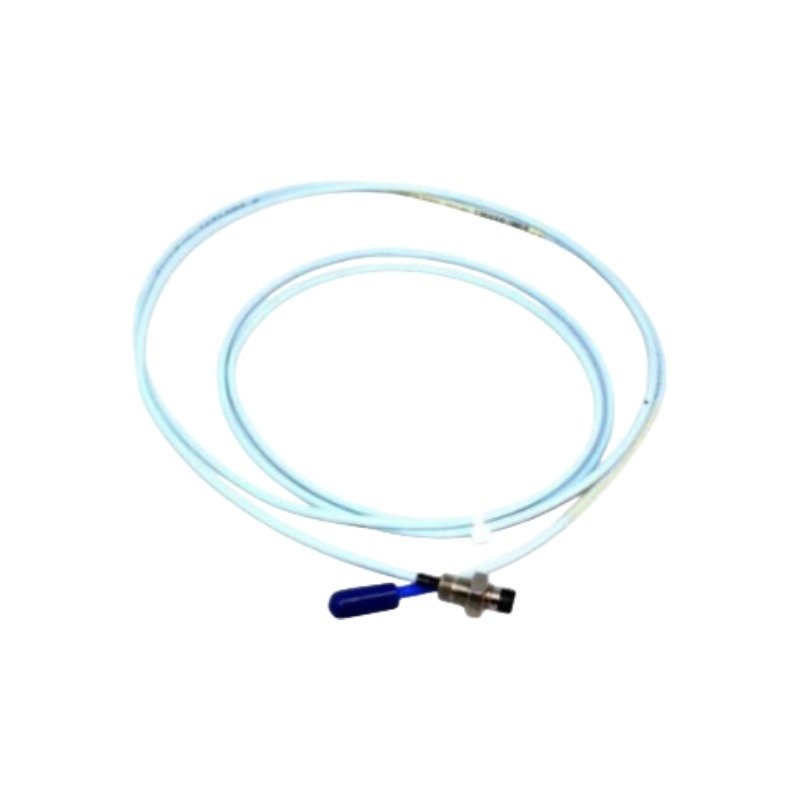

The Bently Nevada 330101-00-52-15-02-05 serves as the primary 330101 Proximity Probe utilized to execute eddy-current displacement measurements across 3500 and 3300 Machinery Protection System platforms. It continuously translates the physical gap distance between the probe tip and the target rotating shaft into a proportional electrical voltage signal for vibration and position monitoring.

Suffix Breakdown & Model Matrix

• 330101: 3300 XL 8mm Proximity Probe, 3/8-24 UNF thread, without armor
• -00: Unthreaded length option (0.0 in)
• -52: Overall case length option (5.2 in)
• -15: Total length option (1.5 metre / 4.9 feet)
• -02: Connector option (Miniature coaxial ClickLoc connector, standard cable)
• -05: Agency approval option (Multiple Approvals including ATEX/IECEx intrinsic safety and non-incendive zones)

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330101-00-52-15-02-05 operates via high-frequency eddy-current probe scaling, generating an electromagnetic field that interacts with the target rotor surface. Gap voltage validation targets an operational midpoint of -10 VDC within the nominal -24 VDC supply loop, corresponding to the center of the linear calibration spectrum. This voltage profile prevents cross-talk suppression failures when multiple probe tips are arrayed in close radial proximity. Accurate configuration is vital for isolating true rotor dynamics from physical shaft runout and ensuring proper phase angle and radial vibration tracking under approved hazardous area conditions.

Frequently Asked Questions

Q: What is the primary purpose of the 5.2 in case length (-52)?

A: The 5.2 in length provides extended reach through thick machine casings, insulation layers, or specialized mounting brackets where shorter probe housings cannot reach the target shaft surface.

Q: Can this 1.5 m probe be matched with a standard 9.0 m Proximitor sensor?

A: Yes, provided it is connected via a 7.5 m extension cable. The sum of the probe length (1.5 m) and extension cable length (7.5 m) must equal the total 9.0 m system calibration requirement to maintain scale factor integrity.

Q: Is the coaxial connector susceptible to moisture ingress?

A: The standard ClickLoc connector (-02) requires proper environmental sealing. In fluid-intensive or humid areas, connector protectors or silicone self-fusing tape must be applied during installation.

Field Installation Guidelines

1. Ensure the probe tip and shaft surface maintain clean, perpendicular alignment to eliminate geometric error.
2. Thread the 3/8-24 UNF body into the brackets, adjusting depth carefully across the 5.2 in case length until a digital multimeter confirms a gap voltage of -10 VDC at the Proximitor sensor output terminals.
3. Observe standard industrial NPT and UNF engagement limits, securing the locknut to prevent drift from high-frequency rotor dynamics.
4. Route the 1.5 m coaxial cable using dedicated conduit or tray lines, implementing strict separation from high-voltage lines to isolate the loop from cross-talk suppression vectors.
5. Adhere to all intrinsic safety grounding protocols required by the -05 agency approvals to maintain zone isolation.
