Description

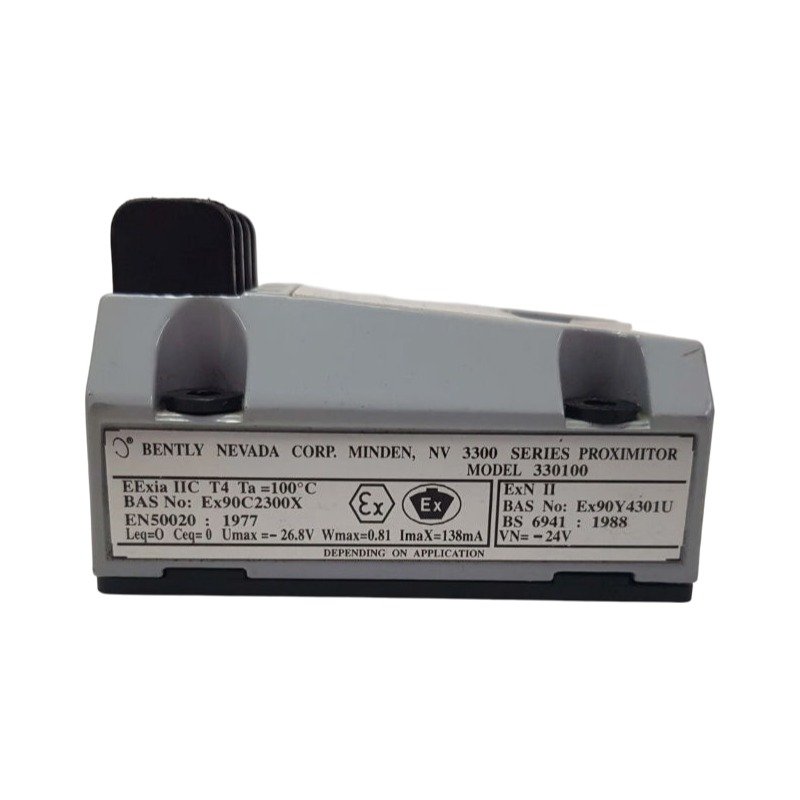

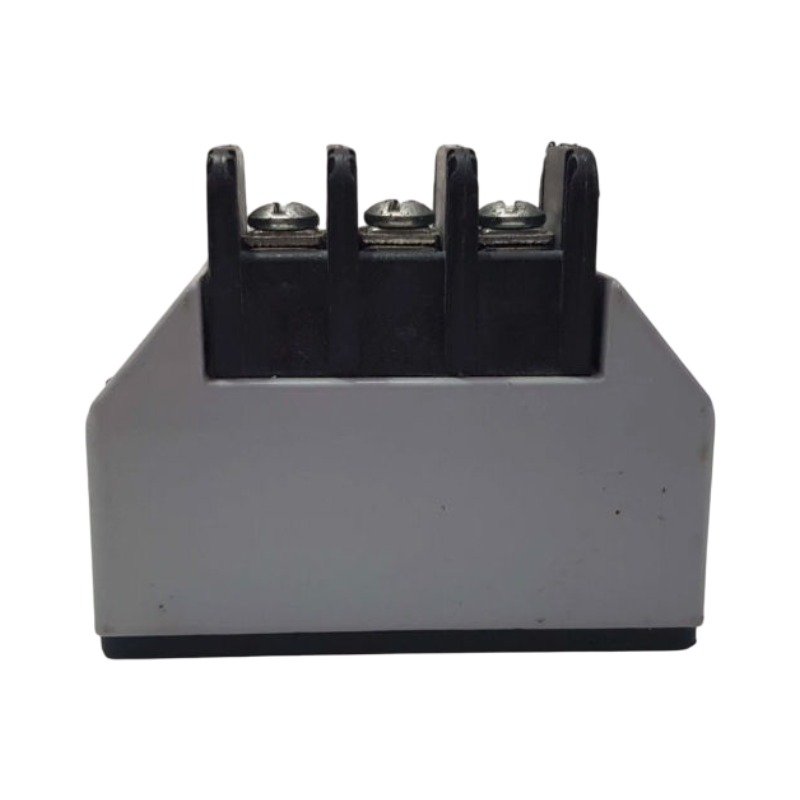

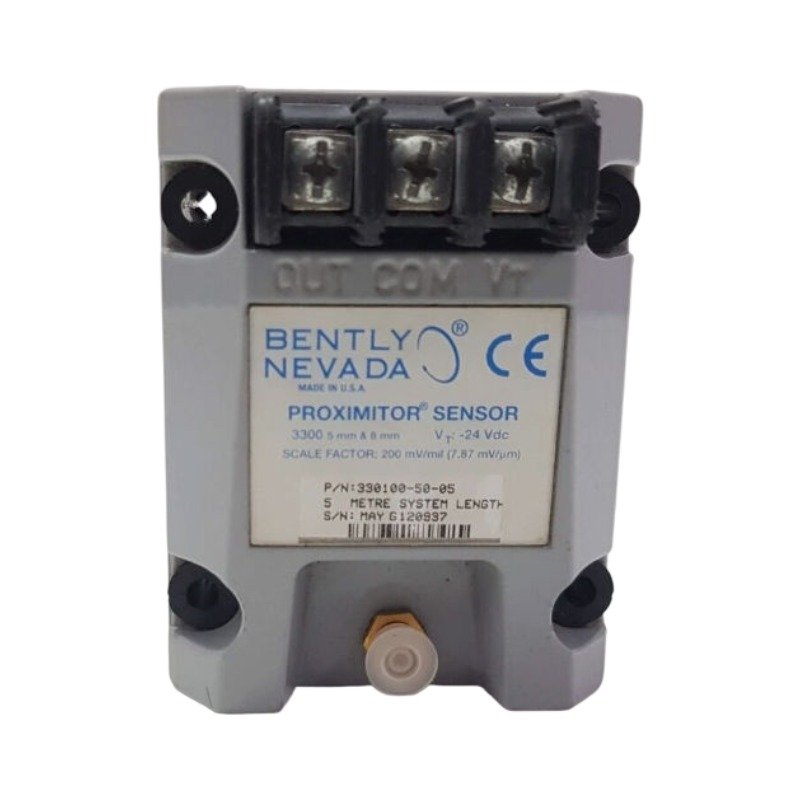

The Bently Nevada 330100-50-05, also cataloged as the 330100 Proximitor Sensor, operates as a dedicated hardware component for noncontacting displacement measurement within 3300 Machinery Protection System platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

Consequently, the physical circuit design provides enhanced linearity and temperature stability. Furthermore, the housing layout incorporates an integrated isolation plate. This structural arrangement eliminates the need for separate external isolation hardware during multi-rack installation configurations. Specifically, the processing core translates incoming high-frequency eddy-current signal variations into a standardized gap-to-voltage loop output. Therefore, the device maintains strict eddy-current probe scaling limits, preserving accuracy across changing thermal profiles. Simultaneously, internal design elements optimize cross-talk suppression between close-set sensors, securing reliable gap voltage validation targeting standard -10 VDC operational baselines.

Frequently Asked Questions

Q: How does a modification in system length alter the scaling factor of the sensor?

A: The internal tank circuit balances specifically against a 5.0-meter combined path length. Subsequently, altering the length parameters changes the loop capacitance and severely degrades the 7.87 mV/um scale factor accuracy.

Q: What action does the sensor execute when an input cable open-circuit occurs?

A: The device automatically drives its analog output voltage toward the positive supply limit. Therefore, this signal shift alerts the primary monitor rack to flag a Not OK channel status immediately.

Field Installation Guidelines

First, mount the A383 aluminum housing securely to the designated panel bracket inside an environmentally shielded enclosure. Subsequently, install the coaxial cable link using only finger-tight torque limits on the ClickLoc junctions. Always route the field wiring away from heavy AC power cables. Consequently, this separate layout prevents external electromagnetic noise injection into the low-voltage analog signal path. Finally, terminate the shield braid cleanly at the single-point system common ground terminal; this exact deployment intercepts ambient common-mode current loops.
