Description

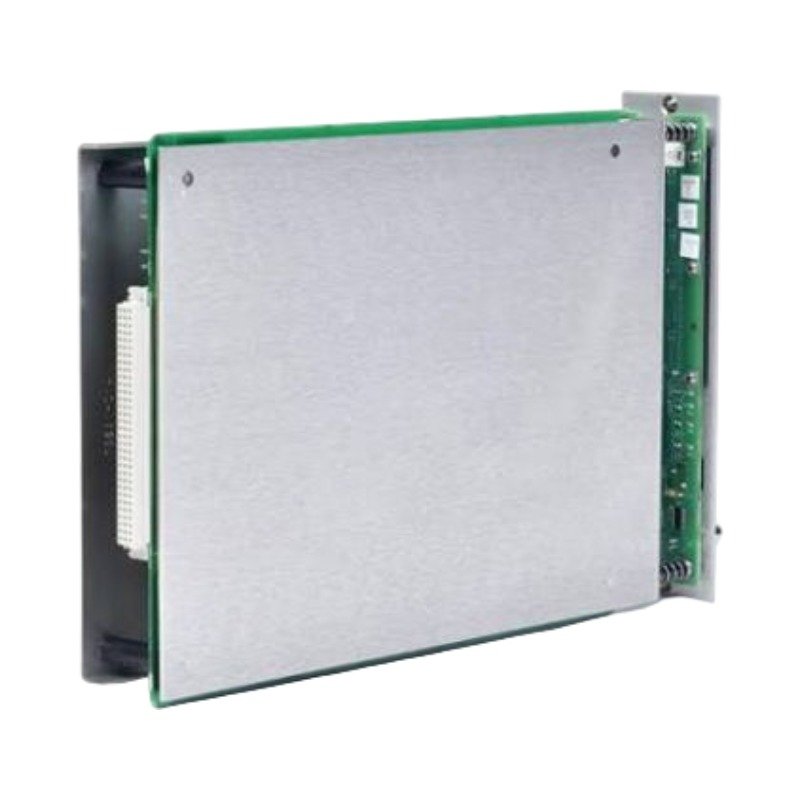

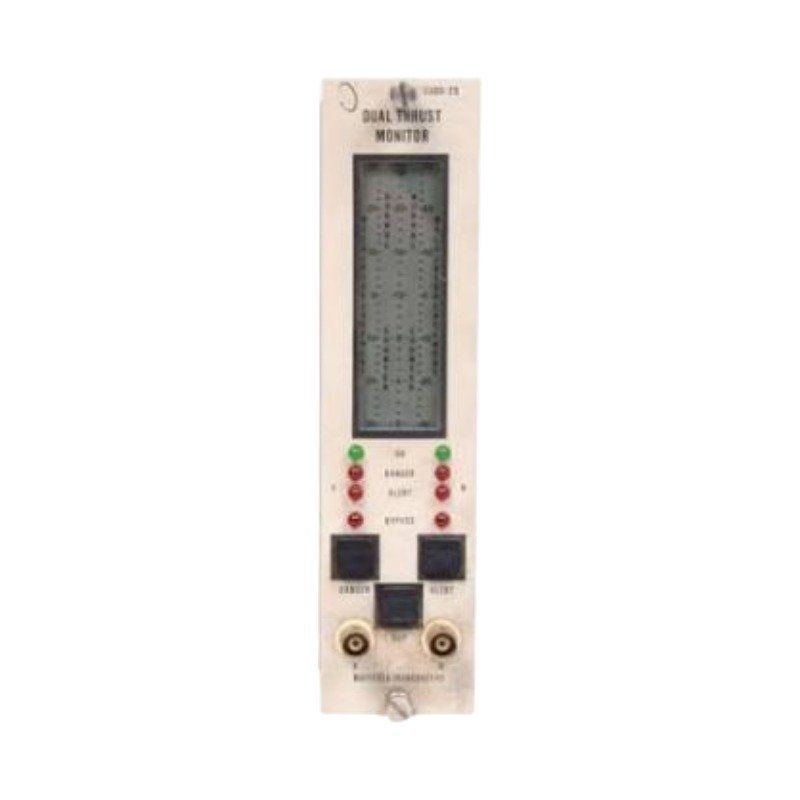

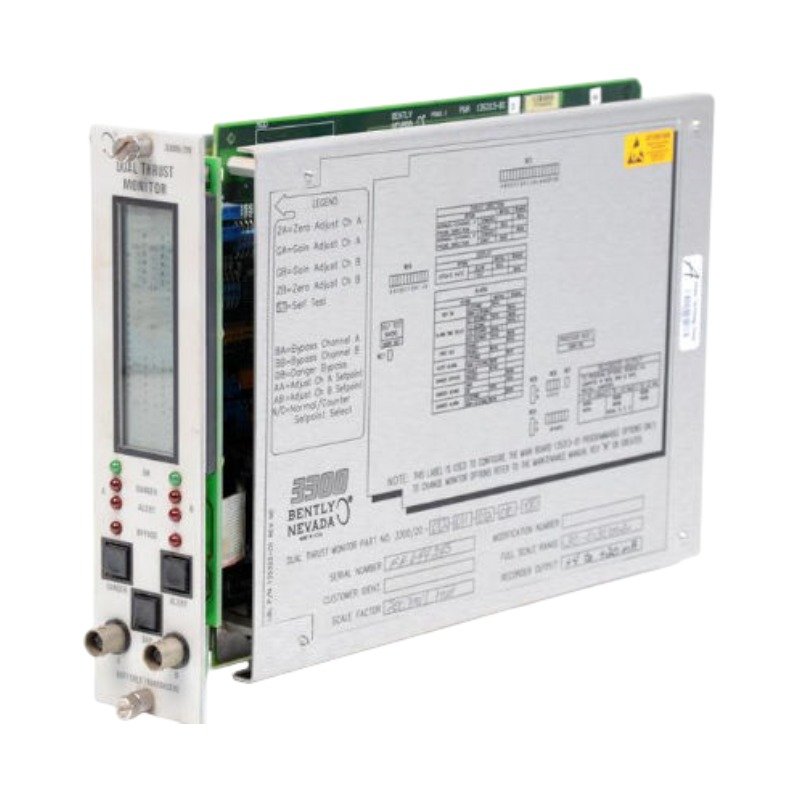

The Bently Nevada 3300/20, also cataloged as the 3300/20 Dual Thrust Monitor, operates as a dedicated hardware component for axial shaft position measurement within 3300 Machinery Protection System platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This module provides continuous axial position metrics to assess rotor dynamics and prevent catastrophic thrust bearing failures. Specifically, the internal conditioning loops translate high-frequency signals from proximity sensors into direct physical displacement measurements. Subsequently, the onboard circuitry maintains precise eddy-current probe scaling across changing temperature profiles. Furthermore, internal filtration loops optimize cross-talk suppression between close-set probe leads. Consequently, the monitor performs highly repeatable gap voltage validation targeting the standard -10 VDC operational baseline, ensuring instantaneous trip relay execution if the shaft moves beyond axial clearance thresholds.

Frequently Asked Questions

Q: How does the 3300/20 differentiate between real axial movement and a sensor malfunction?

A: The module tracks the raw voltage input continuously. Consequently, if the signal crosses outside the valid gap voltage validation zone, the internal OK circuit isolates that channel and defeats the alarm relays to avoid a false machine trip.

Q: Can you configure the module for single-channel operation if only one thrust probe is installed?

A: Yes, you can disable the second channel using an internal configuration plug-in jumper. Subsequently, this programming prevents the unused channel from triggering a continuous Not OK error status across the rack backplane.

Field Installation Guidelines

First, insert the 3300/20 card into any available monitor slot within the 3300 chassis, securing the front panel thumbscrews to anchor it into the backplane frame. Subsequently, route all sensor field wiring through dedicated, grounded metal conduit. Specifically, this layout choice ensures strong electromagnetic noise rejection and isolates low-voltage proximity sensor loops from high-power AC distribution lines. Finally, connect the outer shielding braids directly to the single-point instrument earth strip; this exact termination paths common-mode ground currents away from the measurement loops.
