Description

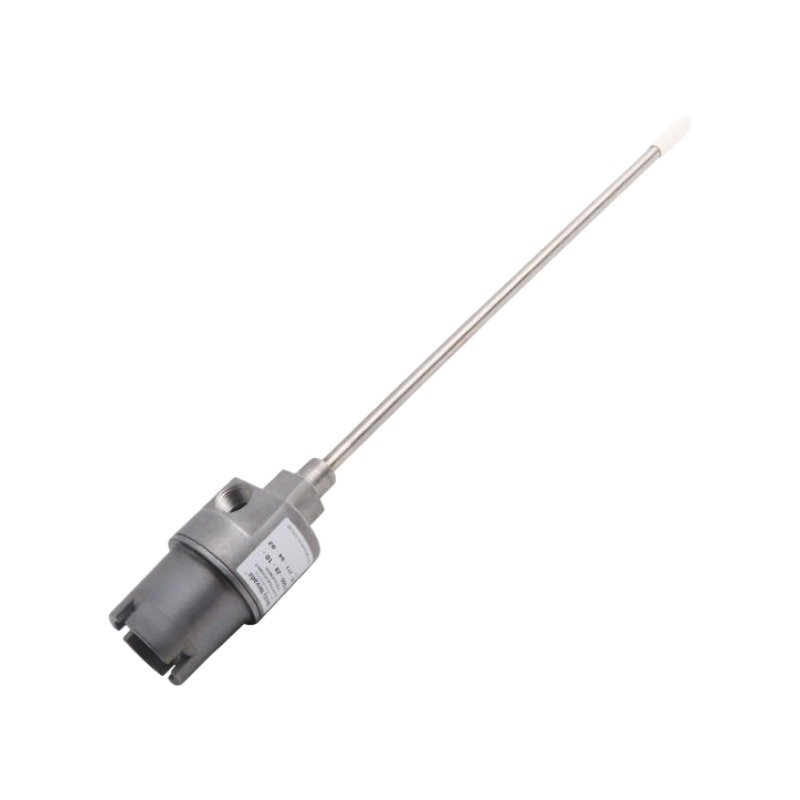

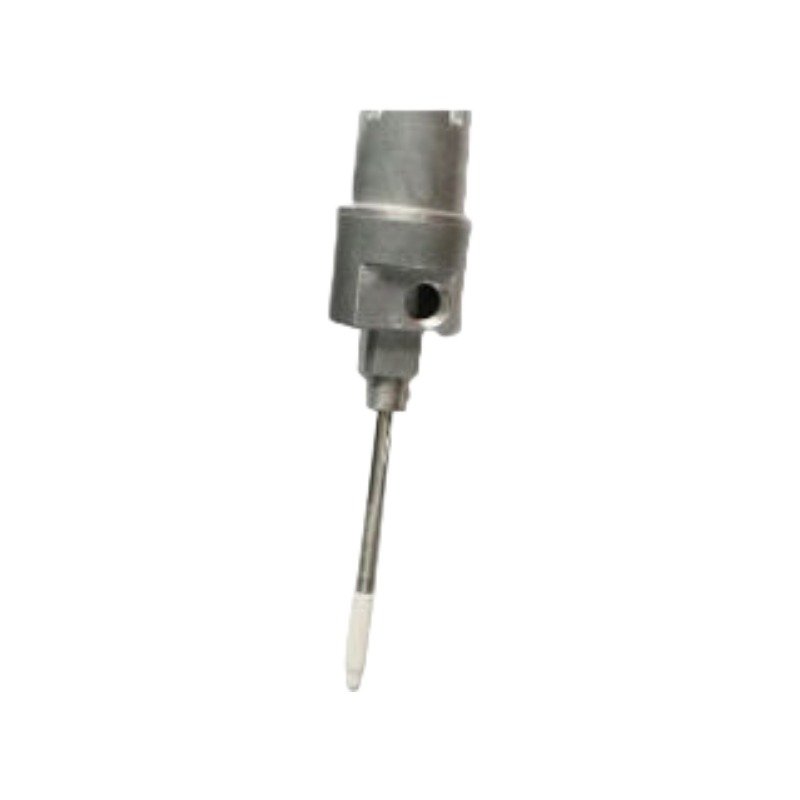

The Bently Nevada 21000-16-10-00-077-03-02, also cataloged as the 21000 Proximity Probe Housing, operates as a dedicated hardware component for mechanical encapsulation and environmental protection of proximity transducers within machinery casing pathways.

Suffix Breakdown & Model Matrix

The 21000 product code utilizes a standard seven-part variable matrix to define the precise mechanical dimensions and material properties of the housing assembly:

• 16 (Probe Thread Option): 3/8-24 UNF thread profile.
• 10 (Explosion-Proof Rating): CSA explosion-proof approval configuration.
• 00 (Fitting Type): Single-end cable entry conduit configuration.
• 077 (Total Length Option): 7.7 inches overall sleeve extension length.
• 03 (Stilling Well Option): 3.0 inches stilling well sleeve protection addition.
• 02 (O-Ring Material): Viton synthetic fluoropolymer elastomer seal.

Hardware Specifications

Mechanical Protection and Rotor Dynamics Integrity

The rugged exterior shell isolates the sensitive transducer from internal process gases and lubricating oils. Consequently, the assembly preserves steady-state eddy-current probe scaling under high casing pressures, allowing accurate gap voltage validation (-10 VDC targets) across fluid-film bearings. Furthermore, the robust physical mounting structure delivers excellent cross-talk suppression by fixing the probe axis relative to the target shaft, mitigating stray vibrations and preventing high-amplitude rotor dynamics from causing structural resonance within the measurement assembly itself.

Frequently Asked Questions

Q: How do field technicians adjust the probe gap spacing while utilizing the 21000 housing?

A: Personnel loosen the external locknut on the housing sleeve, allowing rotation of the threaded assembly within the machine casing. Technicians monitor the DC gap voltage directly at the Proximitor sensor until reaching the target calibration value before torquing the locknut back down.

Q: Is it possible to replace an internal proximity probe without shutting down the operational machinery?

A: Yes, the external sleeve architecture permits manual removal of the inner probe assembly through the outer housing guide while the machine runs, provided that the process seal remains intact and local safety protocols for pressurized casings are strictly maintained.

Field Installation Guidelines

• NPT Thread Engagement: Apply thread sealant to the 3/4-14 NPT conduit interface and engage a minimum of 5 full threads to guarantee explosion-proof containment integrity.
• Locknut Torque Specification: Tighten the primary sleeve locknut to 34 N-m to prevent mechanical shifting or rotation caused by machine housing vibrations.
• O-Ring Lubrication: Coat the Viton seals lightly with silicone-based lubricant prior to sliding the sleeve into the machine casing to avoid seal tearing or pinching.
• Conduit Drainage Routing: Route the field conduit with a downward slope away from the housing junction box. This orientation ensures that condensation drains away from the internal electrical connections.
