Description

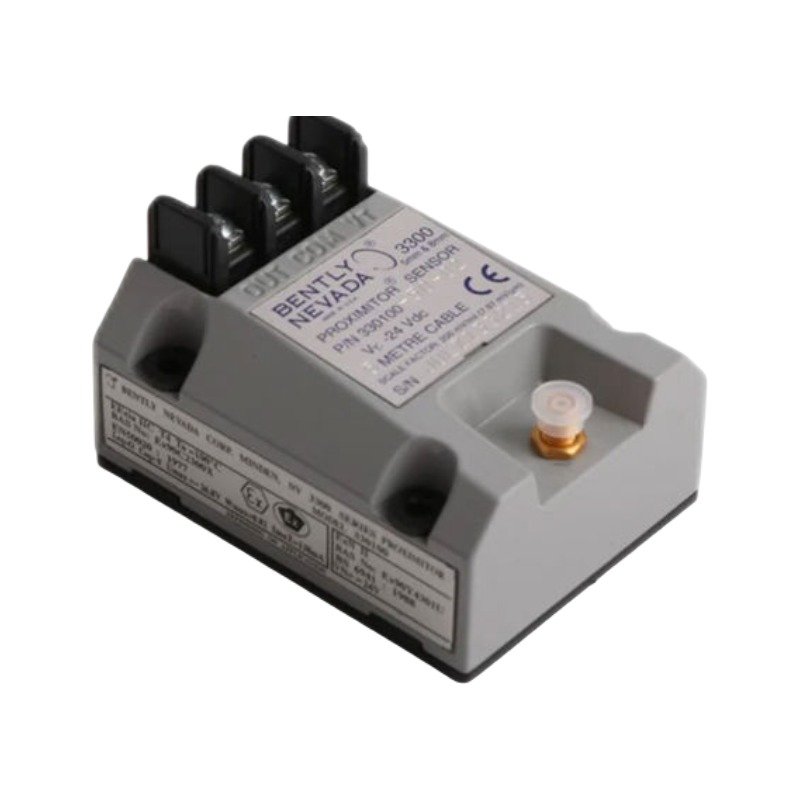

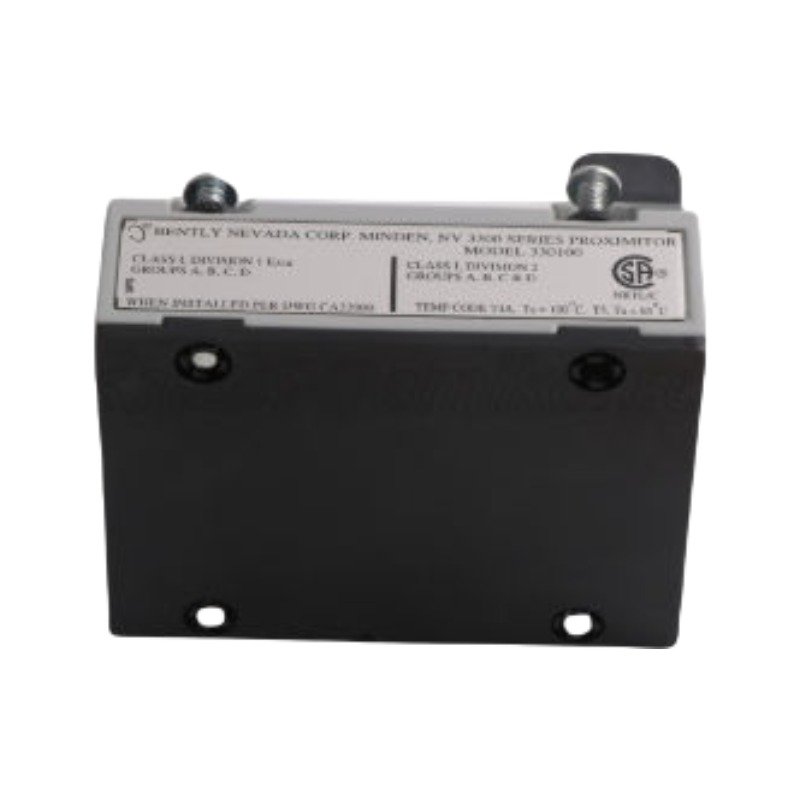

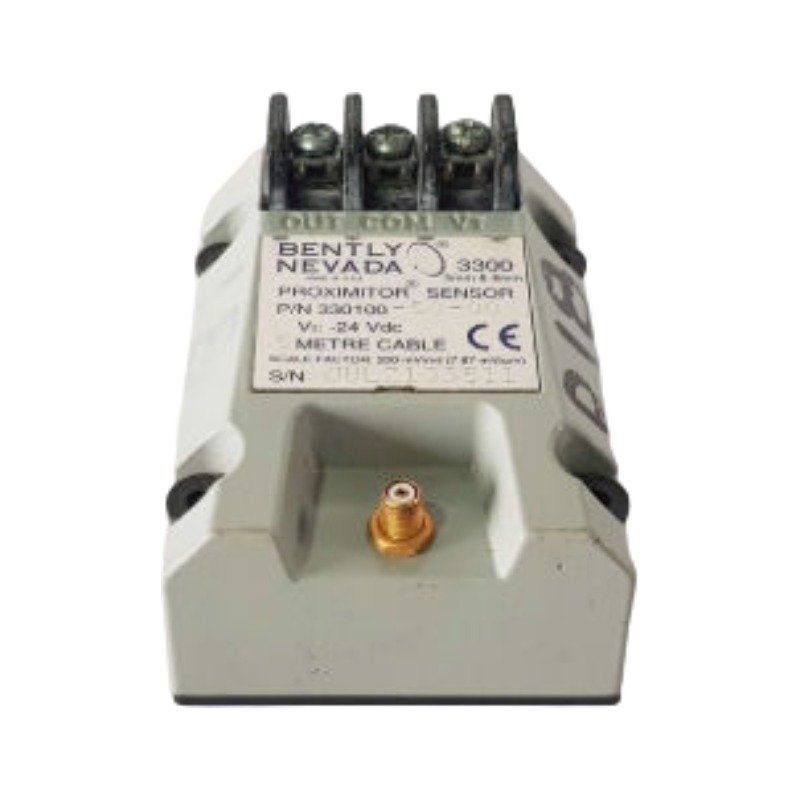

The Bently Nevada 330100-50-00, also cataloged as the 330100 Proximitor Sensor, operates as a dedicated hardware component for static position and dynamic vibration measurements within Bently Nevada proximity transducer systems.

Suffix Breakdown & Model Matrix

The specific alphanumeric configuration defines the integrated physical length and regional regulatory status of the hardware node:

• 50 (Total System Length Option): 5.0 meters (16.4 feet) system calibration footprint.
• 00 (Agency Approval Option): No regulatory certifications or hazardous area approvals requested.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Integration

The internal oscillator circuit conditions the high-frequency radio frequency signal sent to the connected tip. Consequently, the sensor establishes a continuous eddy-current probe scaling profile that converts raw physical target displacement into a directly proportional analog voltage output. This precise calibration permits direct gap voltage validation (-10 VDC targets) over standard target materials. Furthermore, the specialized shielding layout maintains strict signal cross-talk suppression during high-velocity rotor dynamics observations, preventing signal blending inside high-density multi-channel enclosures.

Frequently Asked Questions

Q: Does the 330100-50-00 hardware require explicit bench-top field calibration before service deployment?

A: No, the module belongs to a fully interchangeable family framework. Technicians can swap the probe, extension cable, and Proximitor sensor independently without component matching, provided the physical total cable length matches the 5.0-meter calibration profile.

Q: What structural isolation features are integrated directly into the physical housing of this sensor?

A: The hardware incorporates an integral fiberglass isolation baseplate design. This layer isolates the sensor case electronically from the mounting surface, eliminating the need for independent external isolator sheets.

Field Installation Guidelines

• Mounting Options: Fasten the assembly using either standard 4-hole panel-mount footprints or secure the unit onto an industrial DIN-rail bracket.
• Connector Torque Limits: Finger-tighten the miniature coaxial ClickLoc links, then apply a maximum final mechanical torque of 0.565 N-m using specialized connector tools.
• Clearance Envelope: Maintain a minimum clear diameter zone of 15.2 mm around the external target probe face to prevent surrounding structural steel from corrupting the magnetic field lines.
• Cable Bend Prohibitions: Route the coaxial extension media with a minimum physical bending radius of 25.4 mm, preventing core stress or signal dampening.
