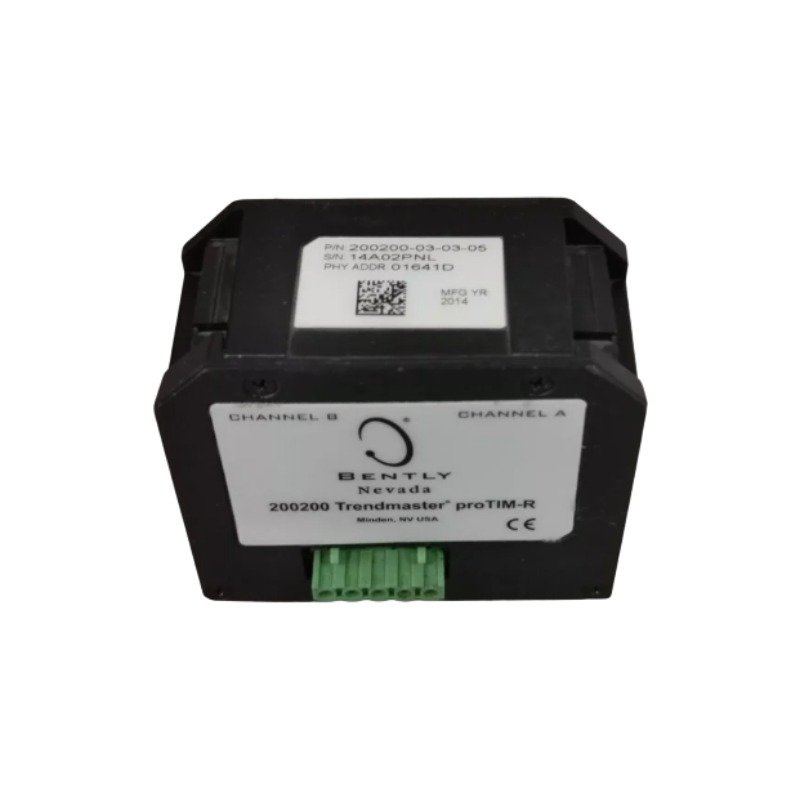

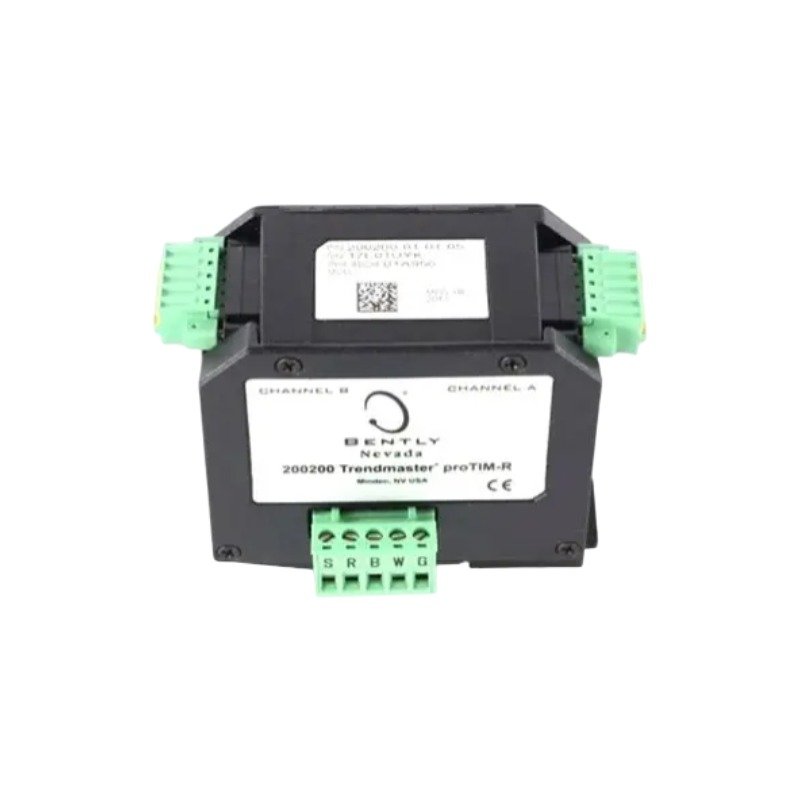

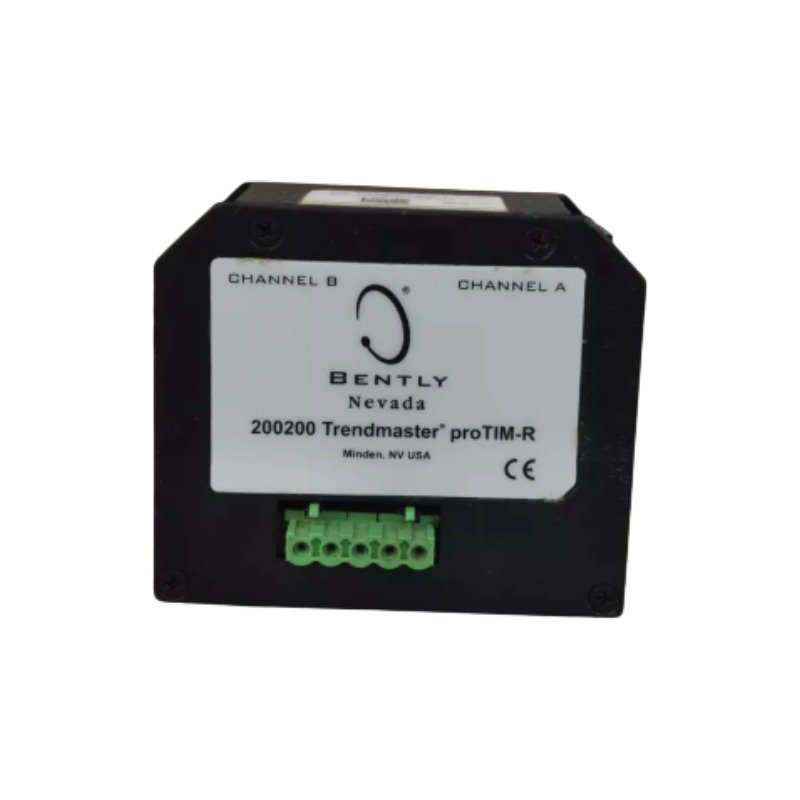

Bently Nevada 200200-03-03-05 Signal Conditioning Module
Bently Nevada 200200-03-03-05 Signal Conditioning Module. Brand New Original Stock available for Global Shipping.
Description
Configured for signal conversion and multi-channel temperature monitoring in Trendmaster networks, the Bently Nevada 200200-03-03-05 (200200 Signal Conditioning Module) provides direct physical/electrical execution.
Suffix Breakdown & Model Matrix
| Option Code | Breakdown Description |
|---|---|
| 200200 | Base Model: Trendmaster Signal Conditioning Module |
| -03 | Channel A Input Option: 2 or 3 Wire Pt. RTD |
| -03 | Channel B Input Option: 2 or 3 Wire Pt. RTD |
| -05 | Agency Approval Option: Multiple Approvals (CSA, ATEX, IECEx) |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 200200-03-03-05 |
| Brand | Bently Nevada |
| Origin | USA |
| Weight | Standard Module Assembly Weight |
| Dimensions | Standard Trendmaster Module Enclosure Dimensions |
| Operating Temp | -40 deg C to +85 deg C |
| Power Consumption | Powered via Trendmaster bus loop voltage |
| Product Type | Signal Conditioning Modules |
| Input Channel A | 2 or 3 Wire Pt. RTD |
| Input Channel B | 2 or 3 Wire Pt. RTD |
| Approvals | Multiple Approvals |
Machinery Monitoring & Signal Calibration
The 200200-03-03-05 processes dynamic resistance data from RTD field elements and transfers digitised values directly across the Trendmaster network loop. Internal signal conditioning components maintain precise probe scaling parameters while preventing thermal drift. Integrated channel-isolation features suppress cross-talk interference between signal channels during rotor dynamics evaluations, preserving data integrity across dense sensor networks.
Frequently Asked Questions
Q: How does the 200200-03-03-05 module obtain operating power?
A: The module draws power directly from the Trendmaster field bus loop, eliminating external DC wiring connections.
Q: What input sensors interface with the 200200-03-03-05 channels?
A: Option -03 configures both Channel A and Channel B to interface with standard 2-wire or 3-wire Platinum RTD temperature sensors.
Field Installation Guidelines
- Mount the module inside an approved weather-tight enclosure to protect signal connections from industrial contaminants.
- Connect shield wiring to designated grounding terminals to mitigate stray electromagnetic noise interference.
- Verify bus communication wiring polarity prior to energizing the Trendmaster communication loop.
- Route RTD signal cables away from high-voltage power lines and variable frequency drive outputs.
