Description

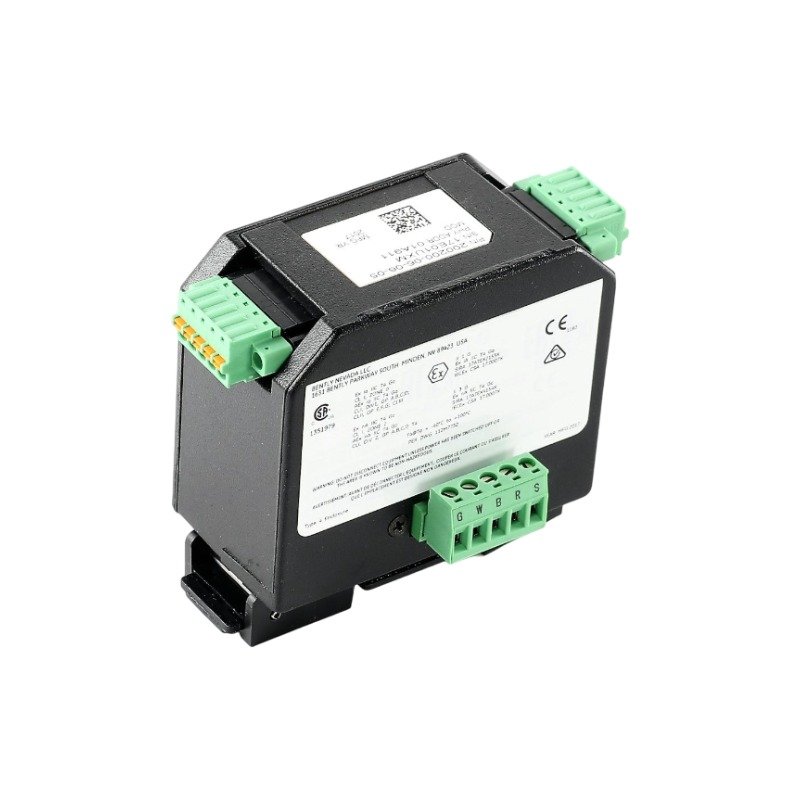

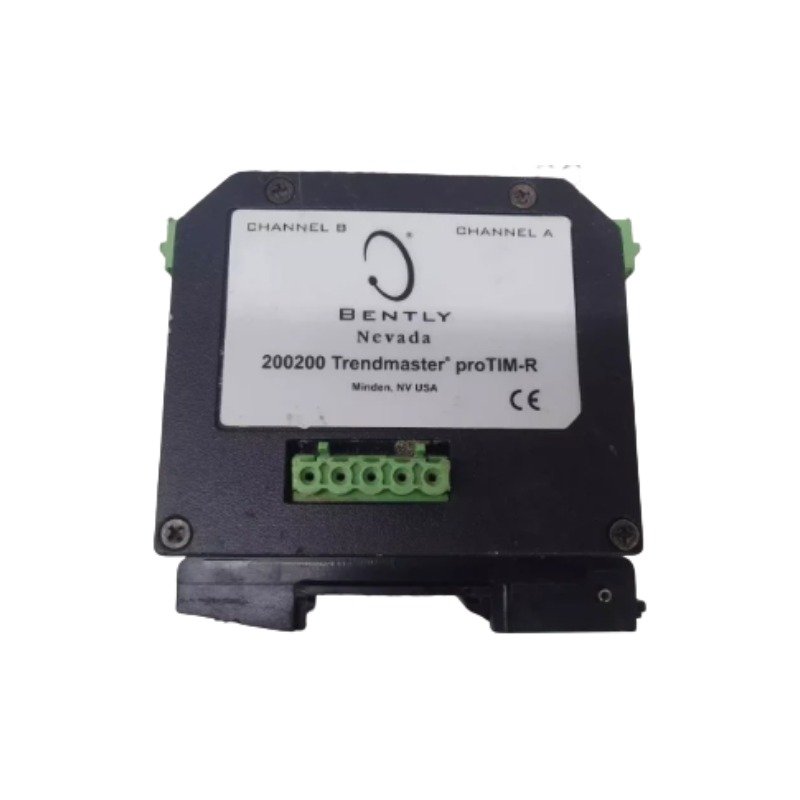

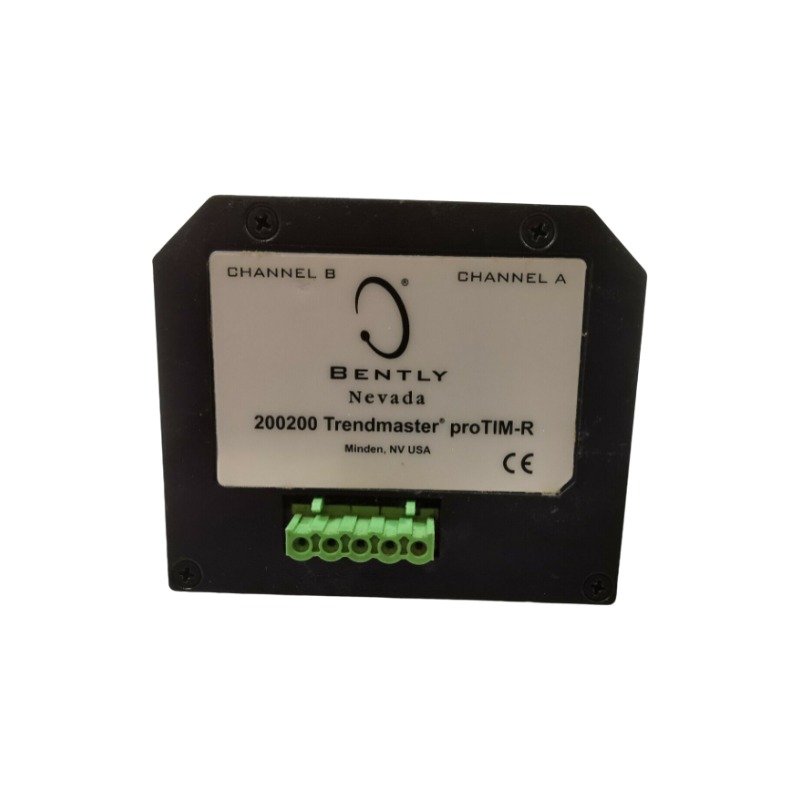

The Bently Nevada 200200-02-02-CN, also cataloged as the 200200 Signal Conditioning Module, operates as a dedicated hardware component for dual-channel low-frequency acceleration signal conditioning within Trendmaster condition monitoring networks.

Hardware Specifications

Transducer Scaling & Rotor Dynamics Analysis

The 200200-02-02-CN conditions low-frequency seismic accelerometer signals and converts raw acceleration inputs directly into velocity data streams across the Trendmaster network loop. Internal signal processing circuits perform precise eddy-current probe scaling integration and maintain gap voltage validation (-10 VDC targets) across dynamic measurement paths. Integrated filter stages provide robust cross-talk suppression between adjacent measurement channels, ensuring accurate rotor dynamics evaluation during low-speed machinery operation.

Frequently Asked Questions

Q: What primary signal conversion does the 200200-02-02-CN execute on field sensor inputs?

A: The module processes acceleration inputs from dynamic seismic transducers and converts the raw signals into low-frequency velocity measurements for both Channel AA and Channel BB.

Q: How does the 200200-02-02-CN interface electrically with the monitoring system?

A: The hardware connects directly to the Trendmaster digital communication bus, drawing operating power and transmitting digitized signal data over the multi-drop sensor network.

Field Installation Guidelines

• Mount the 200200-02-02-CN module inside an approved field junction box to shield physical connections from moisture and ambient chemical exposure.
• Terminate all sensor shield wiring at designated chassis grounding points to prevent electrical ground loop interference on low-amplitude channels.
• Verify field transducer bias voltages using calibrated test points prior to placing signal channels into active monitoring service.
• Route input signal cabling through grounded metal conduit, separated from high-voltage AC lines to prevent electromagnetic coupling.
