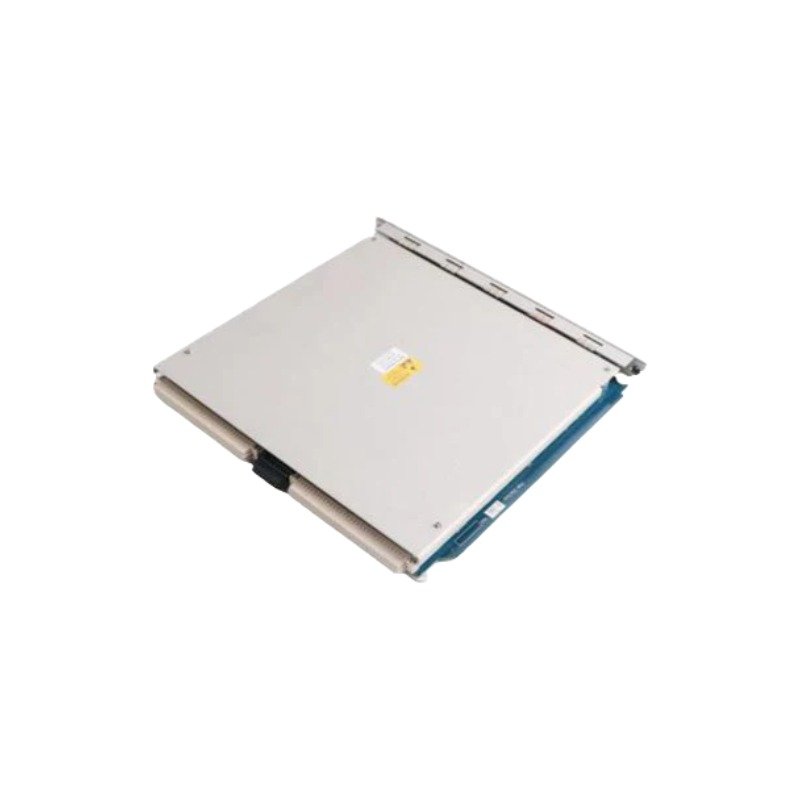

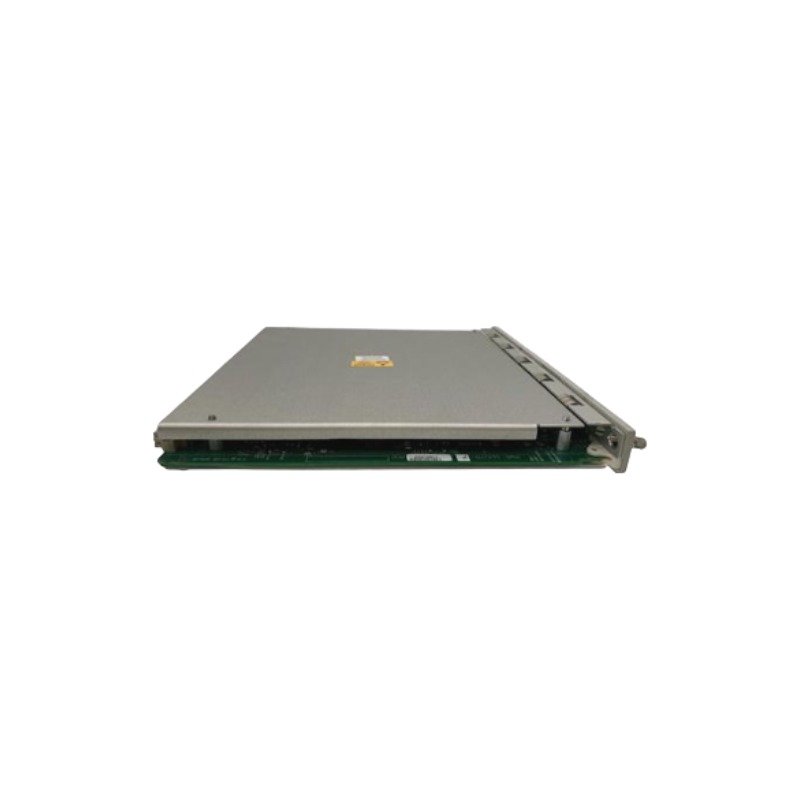

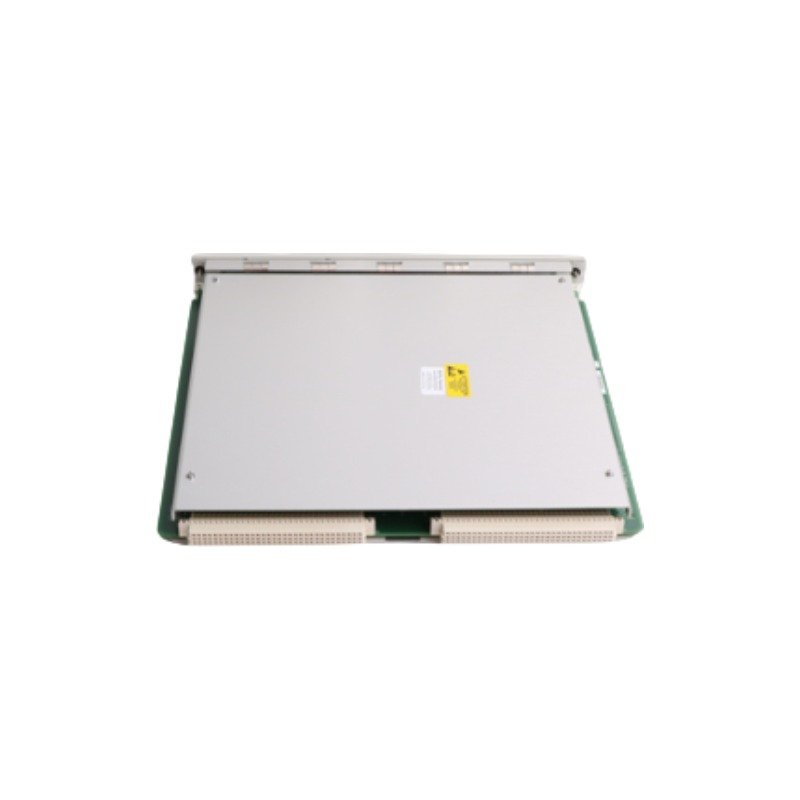

Bently Nevada 185310-01 Wireless Sensor Interface Module
Bently Nevada 185310-01 Wireless Sensor Interface Module. Brand New Original Stock available for Global Shipping.
Description
The Bently Nevada 185310-01, also cataloged as the 185310 Wireless Sensor Interface Module, operates as a dedicated hardware component for ISA100.11a wireless signal relay and sensor interfacing within Bently Nevada condition monitoring networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 185310-01 |
| Brand | Bently Nevada |
| Origin | USA |
| Weight | Standard Module Assembly Weight |
| Dimensions | Standard Industrial Enclosure Dimensions |
| Operating Temp | -40 deg C to +85 deg C |
| Power Consumption | 24 VDC external supply |
| Product Type | Wireless Sensor Interface Modules |
| Wireless Protocol | ISA100.11a |
| Frequency Band | 2.4 GHz ISM |
| Antenna Interface | External antenna connector for range extension |
| Mounting Options | DIN rail, panel, or enclosure mount |
Machinery Monitoring & Transducer Signal Conditioning
The 185310-01 captures dynamic field measurements over the 2.4 GHz ISA100.11a wireless interface and transfers structured data packets to central diagnostic networks. Internal signal processing circuits support accurate eddy-current probe scaling and gap voltage validation (-10 VDC targets) during remote data aggregation from rotating machinery. Channel management protocols incorporate active cross-talk suppression and frequency-hopping mechanisms, preserving data integrity across dense wireless transducer deployments for rotor dynamics evaluation.
Frequently Asked Questions
Q: How is operating power supplied to the 185310-01 module?
A: The module operates on a standard 24 VDC direct current power input connected through field terminal connections.
Q: What wireless communication standard does the 185310-01 utilize?
A: The hardware communicates via the ISA100.11a wireless protocol over the 2.4 GHz ISM frequency spectrum.
Q: What physical mounting methods are supported for the 185310-01 housing?
A: The module enclosure supports standard 35 mm DIN rail mounting, flat panel mounting, or direct enclosure integration.
Field Installation Guidelines
- Secure the 185310-01 onto a standard 35 mm DIN rail or panel surface within a protective enclosure.
- Connect the 24 VDC power supply leads to the designated terminal block, ensuring correct polarity prior to applying line power.
- Attach the external antenna assembly to the module connector and position it to ensure direct line-of-sight pathing across wireless field nodes.
- Connect the enclosure ground lug to local earth ground using a short, heavy-gauge conductor to protect against electrostatic discharge.
Additional information
| Weight | 0.61 kg |
|---|---|
| Dimensions | 64 × 52 × 83 mm |
