Description

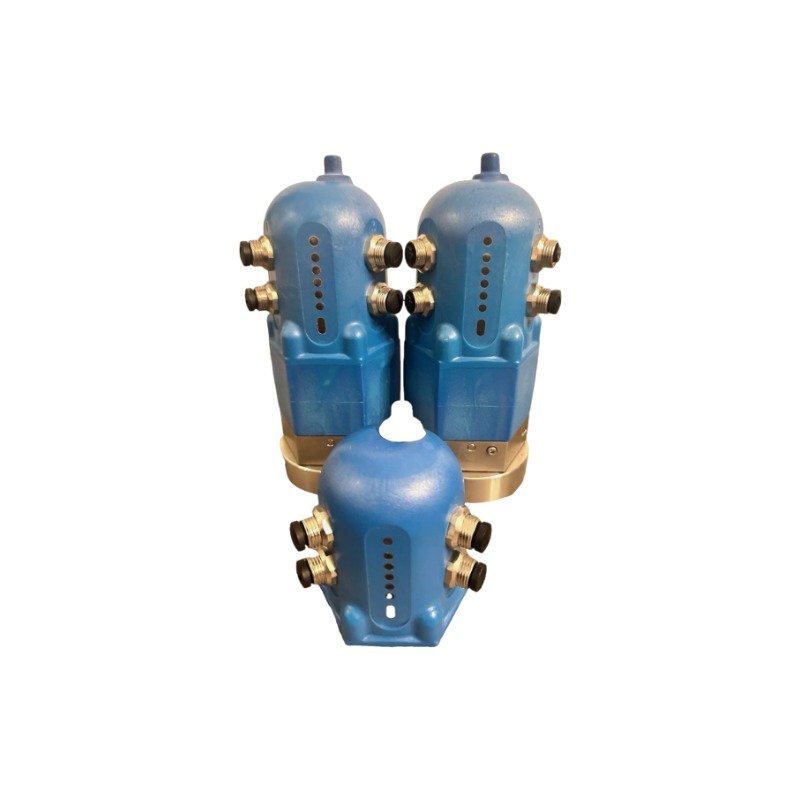

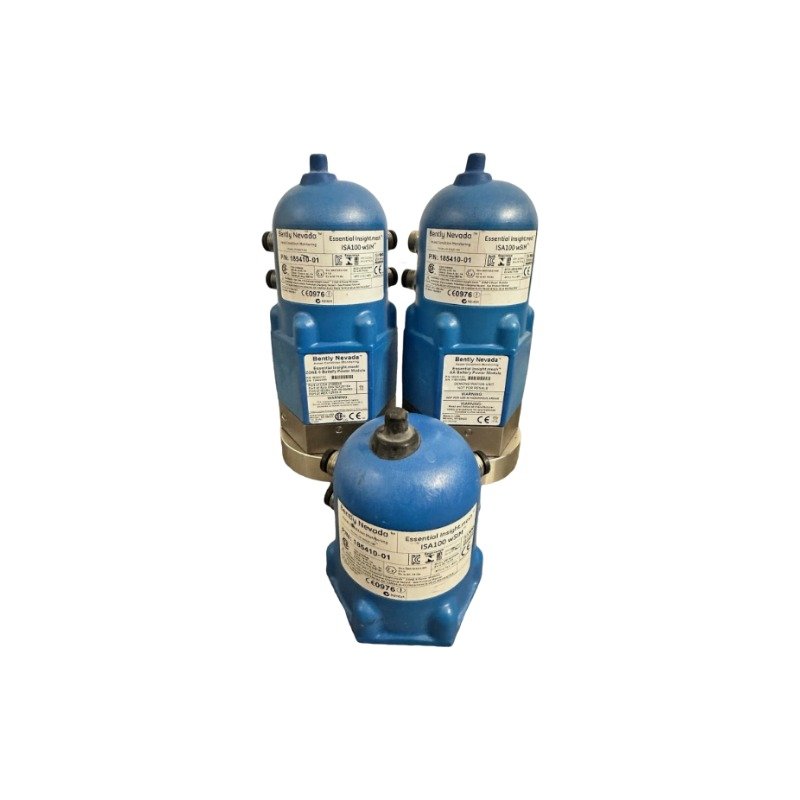

The Bently Nevada 185410-01, also cataloged as the 185410 Wireless Data Acquisition Hardware, operates as a dedicated hardware component for multi-channel dynamic measurement collection and wireless mesh transmission within 3300 XL condition monitoring platforms.

Hardware Specifications

Transducer Signal Integration & Rotor Dynamics

The 185410-01 execution unit digitizes dynamic analog signals across four independent channels to process rotor dynamics vibration profiles and thermal trends simultaneously. Internal signal conditioning preserves precise eddy-current probe scaling coefficients and maintains gap voltage validation (-10 VDC targets) across continuous sampling runs. Communication handling incorporates automated cross-talk suppression and mesh-path rerouting to ensure deterministic data transfer across multi-node field arrays.

Frequently Asked Questions

Q: What primary sensor types can be terminated directly at the 185410-01 hardware channels?

A: The four independent input channels support direct termination of 200150, 200155, and 200157 accelerometers alongside K-Type, J, T, and E-Type thermocouples.

Q: Which central software platform processes data packets transmitted from the 185410-01?

A: The module transmits structured field data to Bently Nevada System 1 classic software (version 6.90 or later) via an ISA100 manager gateway interface.

Field Installation Guidelines

• Secure the 185410-01 unit to a rigid mounting plate or enclosure surface using the designated housing mounting holes.
• Ground all field cable shields at the module ground lug to mitigate local high-frequency electromagnetic interference.
• Validate sensor bias loop voltages on all connected accelerometer lines prior to initiating network synchronization.
• Position adjacent wireless mesh nodes within specified line-of-sight range limits to maintain uninterrupted signal routing pathways.
