Bently Nevada 185450-01 Essential Insight.mesh Wireless System

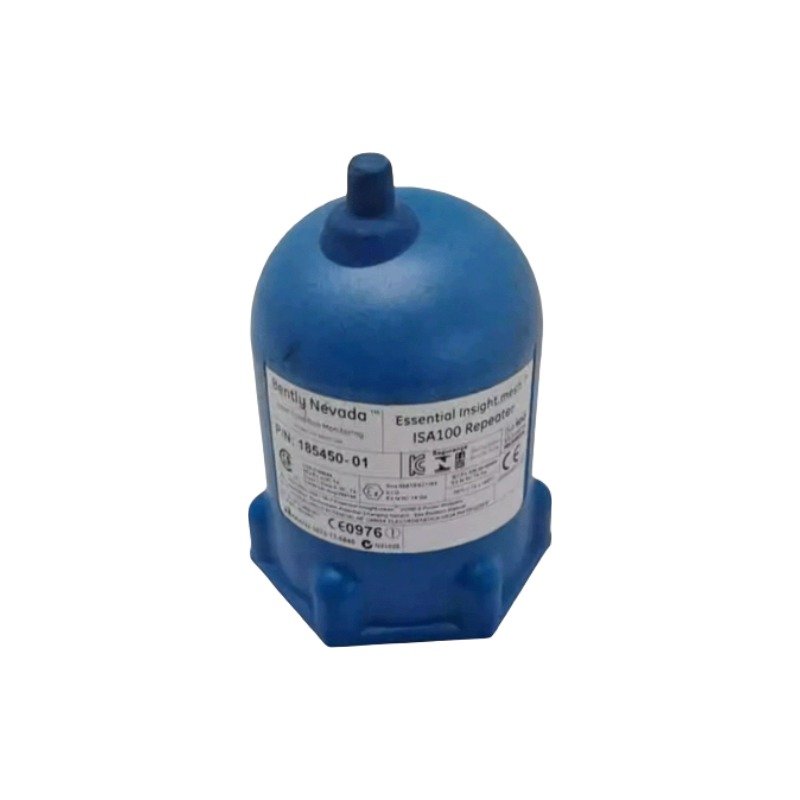

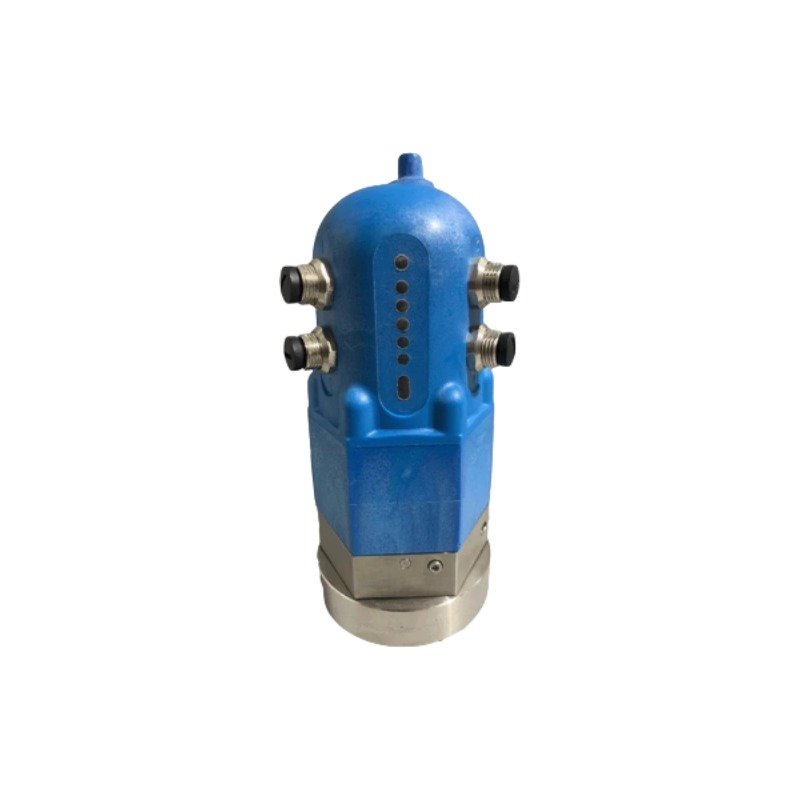

Bently Nevada 185450-01 Essential Insight.mesh ISA100 Repeater. Brand New Original Stock available for Global Shipping.
Description
The Bently Nevada 185450-01, also cataloged as the 185450 Essential Insight.mesh ISA100 Repeater, operates as a dedicated hardware component for extending wireless field transmission and maintaining signal routing within Essential Insight.mesh network architectures.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 185450-01 |
| Brand | Bently Nevada |
| Origin | USA |
| Weight | 0.5 kg |
| Dimensions | 133 cm x 25 cm x 4 cm |
| Operating Temp | -40 deg C to +85 deg C |
| Power Consumption | Powered via direct DC connection or field loop |
| Product Type | Wireless Repeaters |
| Wireless Protocol | ISA100.11a wireless mesh network protocol |
| Compatible System | System 1 classic software (version 6.90 or later) |
| System Components | Manager Gateway, Wireless Sensor Interface Modules (wSIM), Repeaters |
| Channel Capability | Interfaces wSIM nodes with 4 independent channels (Vibration/Temperature) |
Transducer Signal Conditioning & Rotor Dynamics
The 185450-01 repeater relays digitized dynamic measurement packets across self-forming mesh nodes, preserving amplitude scaling for 200150, 200155, and 200157 accelerometers alongside K-Type (200125), J, T, and E-Type thermocouples. Internal communication processing preserves eddy-current probe scaling accuracy and gap voltage validation (-10 VDC targets) during wireless data translation. Multi-path routing routines provide active cross-talk suppression and packet verification across dense rotating equipment arrays to safeguard rotor dynamics evaluations.
Frequently Asked Questions
Q: What primary function does the 185450-01 execute within the wSIM architecture?
A: The 185450-01 functions as an ISA100 wireless repeater, relaying data packets between wSIM field sensor nodes and the central manager gateway.
Q: Which central diagnostic software platform supports the 185450-01 network?
A: The repeater network integrates directly with Bently Nevada System 1 classic software version 6.90 or later.
Field Installation Guidelines
- Mount the 185450-01 securely on an elevated structure or mounting pole to establish optimal line-of-sight propagation pathing.
- Connect the module ground lug directly to the local earth ground system using a low-impedance conductor to prevent electrostatic discharge.
- Verify power supply input wiring polarities before applying operating voltage to the repeater terminals.
- Position adjacent wSIM nodes within maximum rated wireless transmission distances to ensure reliable auto-forming mesh network formation.
Additional information
| Weight | 0.50 kg |
|---|---|
| Dimensions | 67 × 82 × 46 mm |
