Description

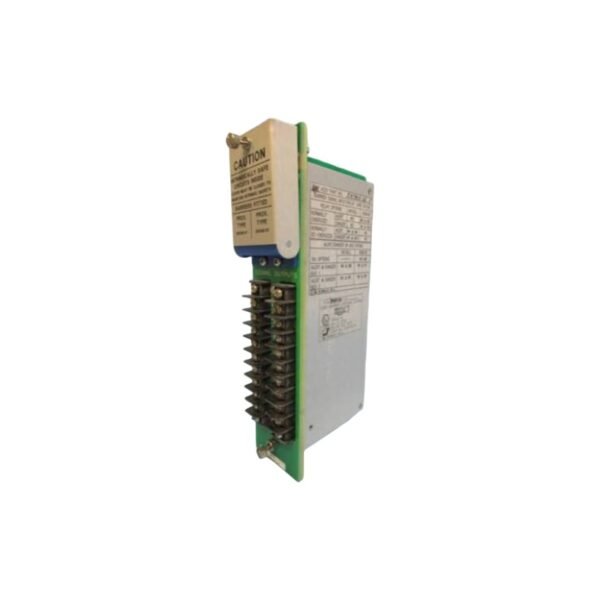

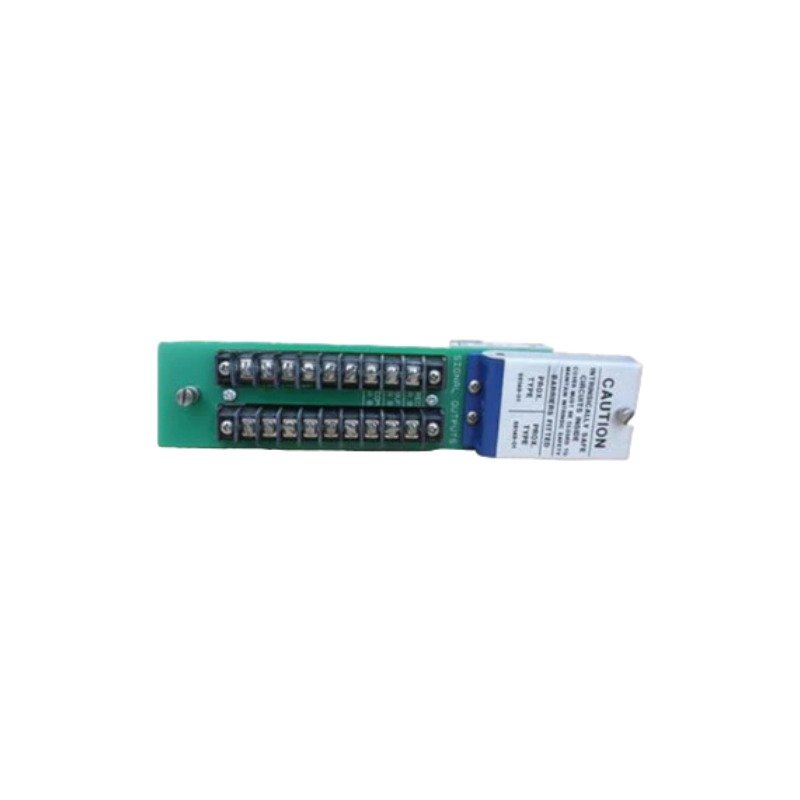

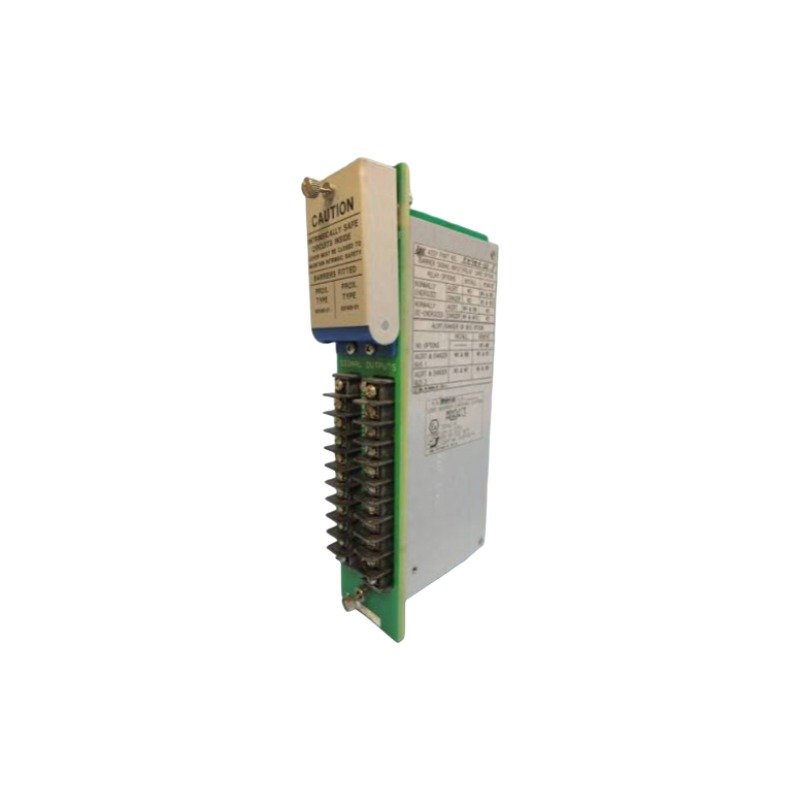

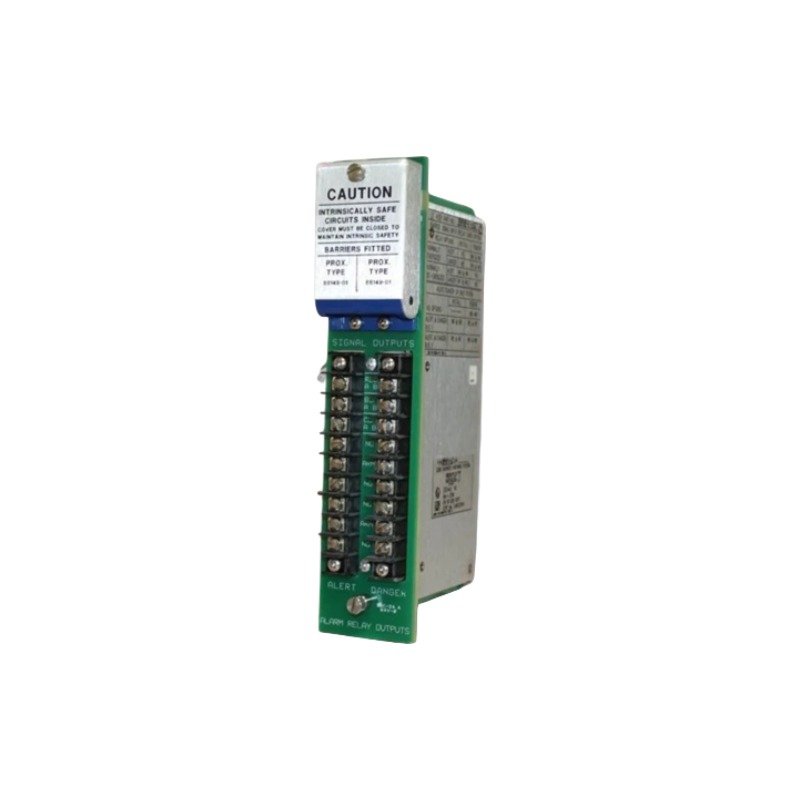

The Bently Nevada 88984-02, also cataloged as the 88984-02 System Component Module, operates as a dedicated hardware component for signal processing and channel conditioning within Bently Nevada machinery monitoring platforms.

Hardware Specifications

Machinery Monitoring & Dynamic Signal Acquisition

The 88984-02 module conditions transducer signals to facilitate precise rotor dynamics evaluation across monitored machine trains. Internal circuitry maintains eddy-current probe scaling accuracy and gap voltage validation (-10 VDC targets) during static gap measurements. Channel isolation features integrated into the module architecture prevent cross-talk suppression failures when handling dense proximity probe or velocity signal inputs.

Frequently Asked Questions

Q: How is the 88984-02 installed within the monitoring chassis?

A: The 88984-02 installs into its designated slot on the system backplane assembly and is secured using captive mounting screws.

Q: Does replacing an 88984-02 module require sensor recalibration?

A: Replacement of the hardware module does not alter physical probe scaling, provided the field transducer loop and proximity probe system remain unchanged.

Field Installation Guidelines

• Insert the 88984-02 module into the assigned chassis slot, ensuring full engagement with the backplane connector before tightening retaining hardware.
• Connect all cable shields to designated chassis ground points on the terminal assembly to prevent electrical noise coupling.
• Verify field target bias voltage (-10.0 VDC nominal target) using test points prior to placing signal channels into active trip service.
• Keep low-level transducer input cabling isolated from high-voltage field wiring inside the control enclosure.
