Description

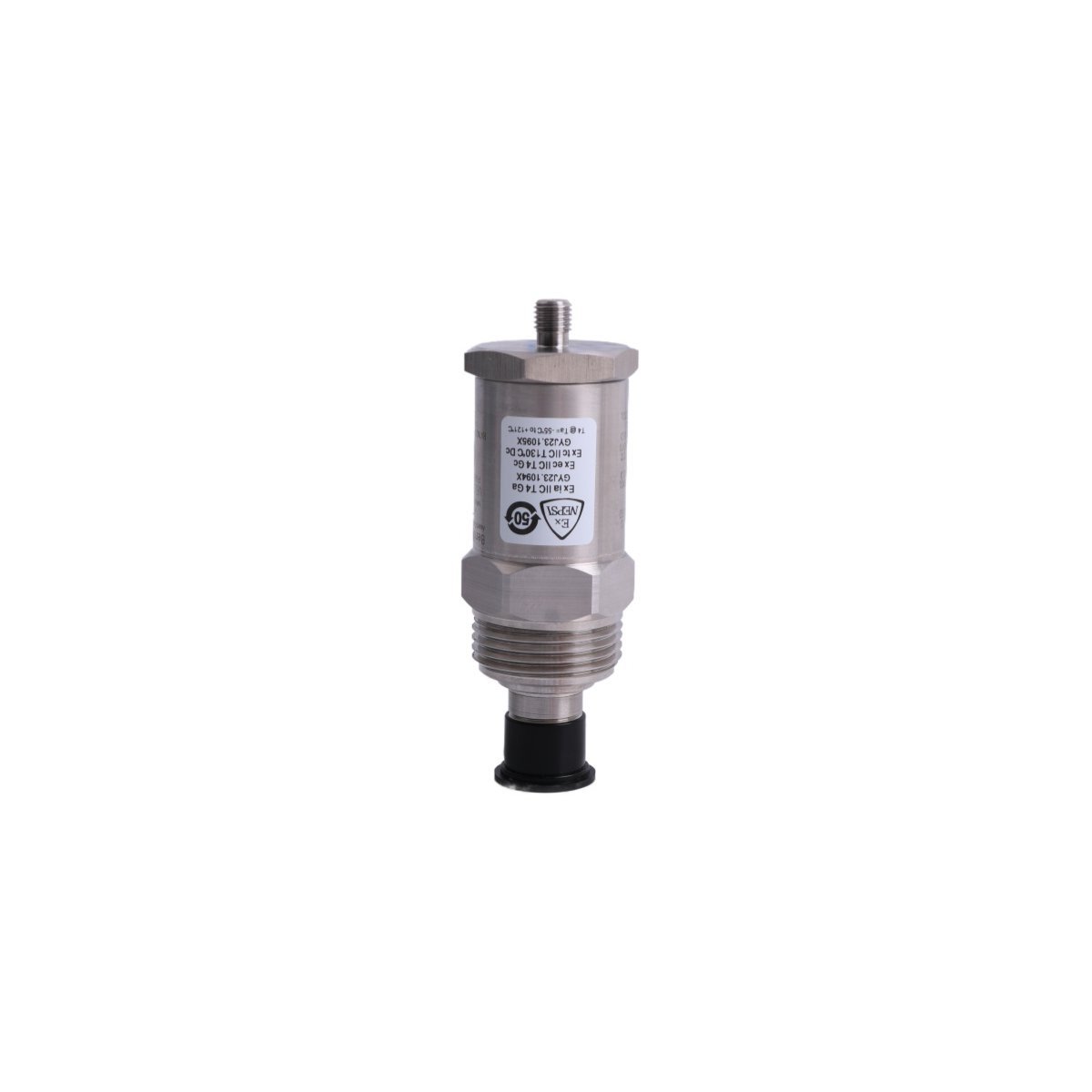

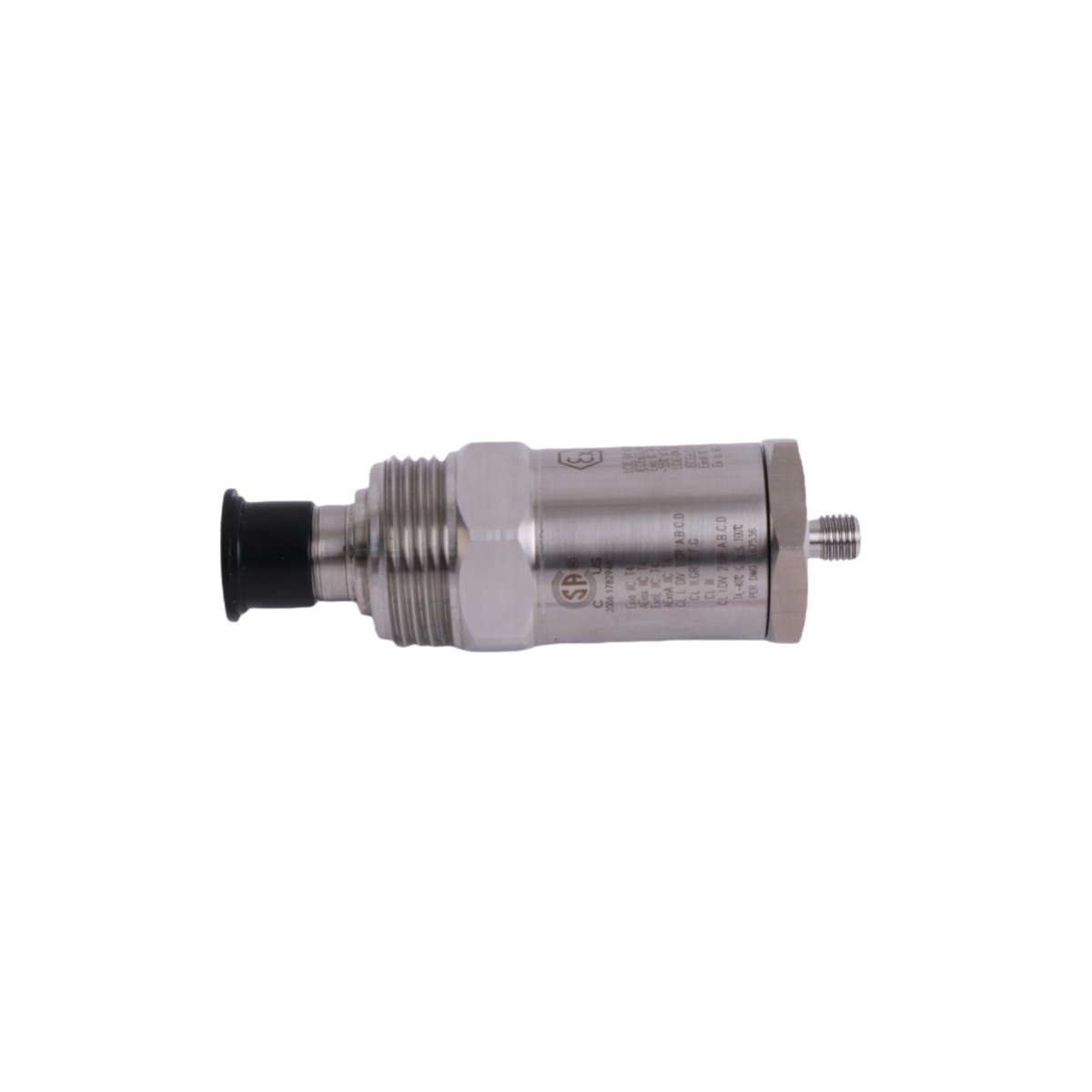

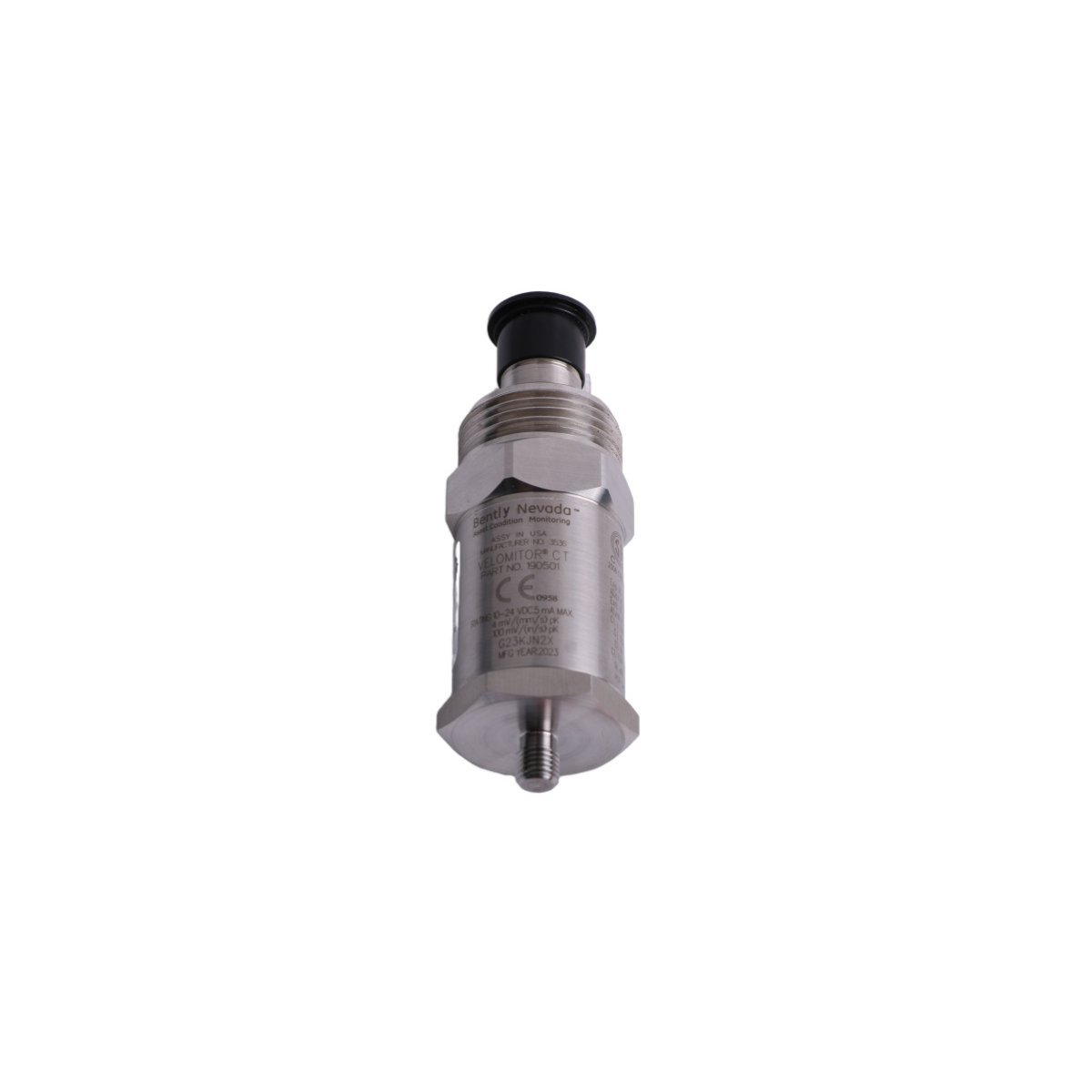

Configured for low-frequency seismic vibration monitoring in Turbomachinery Information (TSI) systems, the Bently Nevada 190501-19-00-04 (190501 Velocity Transducer) provides direct physical/electrical execution.

Hardware Specifications

Mechanical Monitoring & TSI Characteristics

The 190501 Velomitor CT utilizes an internal piezoelectric element and integrated solid-state electronics to convert mechanical casing velocity into a proportional voltage signal. Furthermore, unlike proximity transducers—which necessitate precise gap voltage validation (typically -10 VDC targets)—this device functions as a seismic sensor mounted directly to the machine housing. Consequently, for low-frequency applications, such as cooling tower fans, signal integrity is maintained through rigorous cross-talk suppression and shielding practices; this is particularly important to prevent electromagnetic interference originating from high-frequency motor drives. Ultimately, proper scaling of the output signal is required to ensure that the monitored velocity amplitudes accurately reflect the underlying rotor dynamics and the comprehensive structural health of the monitored machine component.

Summary of Transitions Used:

• Furthermore: Used to add information while maintaining continuity.

• Consequently: Used to show the cause-and-effect relationship between the mounting style and signal integrity requirements.

• This is particularly important: Used to emphasize the specific engineering necessity of shielding in noisy electrical environments.

• Ultimately: Used to conclude the paragraph by summarizing the overarching goal of the measurement process.

Frequently Asked Questions (FAQ)

Q: What is the primary operational frequency range for this transducer?

A: This model is specifically optimized for low-frequency applications, providing linear output for machinery speeds as low as 90 RPM.

Q: Can this sensor be used in hazardous locations?

A: The sensor design complies with standard industrial requirements; ensure that the installation meets the specific regulatory approvals for your site environment before deployment.

Field Installation Guidelines

• Surface Preparation: The sensor mounting surface must be machined flat and free of coatings to ensure a rigid mechanical connection, which is required for accurate high-frequency signal transmission.
• Orientation: While the internal piezoelectric element is designed for performance in multiple axes, mounting the transducer in the direction of the expected primary vibration axis is standard practice.
• Grounding: Terminate the cable shield at the monitoring system input end to create a single-point ground reference, effectively mitigating ground loops and common-mode noise.
• Connections: Use the provided connector interfaces and ensure that threaded connections are tightened to the recommended torque specifications to prevent resonant amplification caused by loose mounting.
