Description

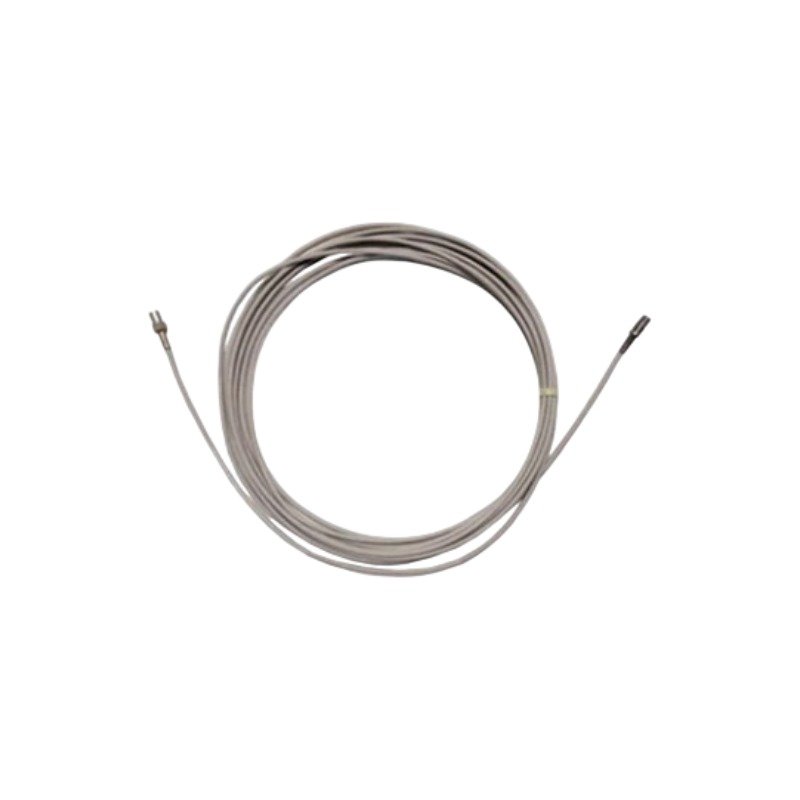

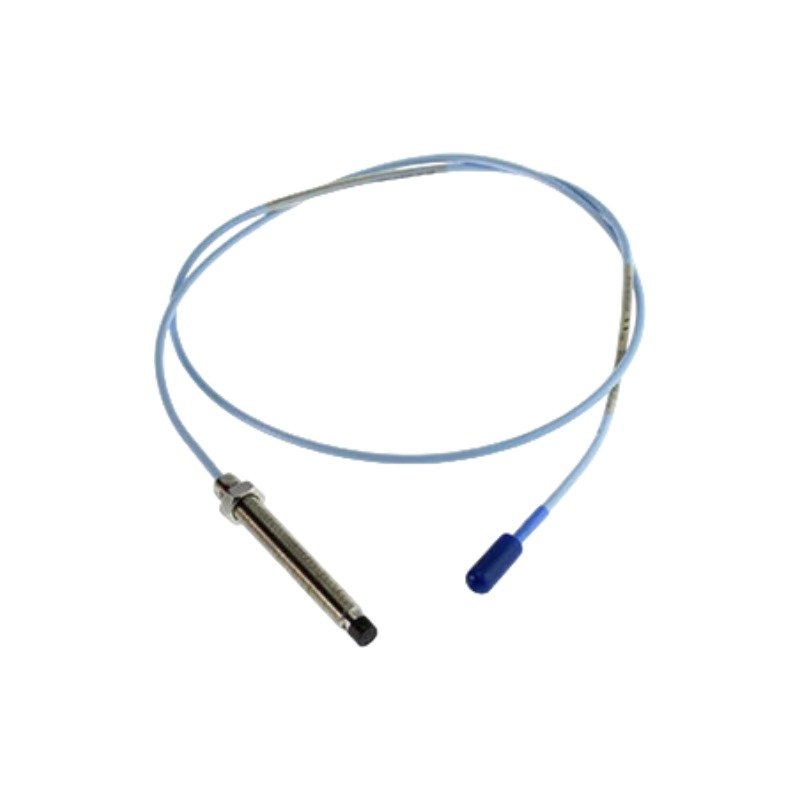

The Bently Nevada 330101-00-16-10-02-CN, also cataloged as the 330101 Proximity Probe, operates as a dedicated hardware component for non-contact displacement and vibration measurements within Bently Nevada 3300 XL Series Machinery Protection platforms. Consequently, this non-contacting sensor translates physical gap variations between the probe tip and a rotating shaft into an analog radio frequency feedback loop. The configuration designated by suffix -CN matches the physical footprint of the standard 330101-00-16-10-02-00 base variant while adding localized compliance markings.

Suffix Breakdown & Model Matrix

• 330101: Base model number for 3300 XL 8 mm Proximity Probe with standard 3/8-24 UNF mounting threads.
• -00: Unthreaded length option designating 0 inches of unthreaded case section.
• -16: Overall case length option designating a 1.6 inch threaded body length.
• -10: Total length option specifying a 1.0 meter (3.3 feet) integrated cable configuration.
• -02: Connector and cable option designating a miniature coaxial ClickLoc connector on standard cable.
• -CN: Agency approval option specifying Chinese regional certifications (NEPSI/CCC) for hazardous area installations.
• -00: Agency approval option specifying standard configuration with basic global factory certifications.

Hardware Specifications

Transducer Interface & Mechanical Monitoring Characteristics

This probe system establishes a calibrated magnetic field to maintain precise eddy-current probe scaling when targeting industrial materials such as AISI 4140 steel. The physical construction ensures a low-loss signal path to support accurate gap voltage validation (-10 VDC targets) within the center of the calibrated linear range. Furthermore, the internal sensing coil provides native cross-talk suppression against adjacent probe assemblies, isolating external electronic noise from the dynamic waveforms used to evaluate high-speed rotor dynamics.

Frequently Asked Questions

Q: Why must a technician use a matching extension cable with this 1.0-meter proximity probe?

A: The Proximitor sensor internal tuning requires a strict total electrical length matching either 5.0 meters or 9.0 meters. Therefore, connecting a 1.0-meter probe directly without a 4.0-meter or 8.0-meter extension cable causes severe calibration shift and scale factor breakdown.

Q: What operational effects occur if the probe face experiences substantial accumulation of mineral oil?

A: Because oil and oil-gas mixtures behave as non-conductive dielectric media, their physical presence on the probe face does not alter the underlying eddy-current path. The system maintains accurate calibration parameters as long as the underlying target path remains free of carbonized debris.

Field Installation Guidelines

1. Thread the 3/8-24 UNF probe case into the machined casing hole by hand to prevent cross-threading the mounting profile.
2. Adjust the probe depth mechanically while evaluating the live DC loop voltage to reach the designated -10 VDC baseline setting.
3. Torque the primary mounting locknuts to standard engineering values to ensure mechanical locking without warping the body.
4. Clean the gold-plated brass ClickLoc coaxial terminals and press them together firmly by hand until an audible physical click registers positive mechanical engagement.
