Description

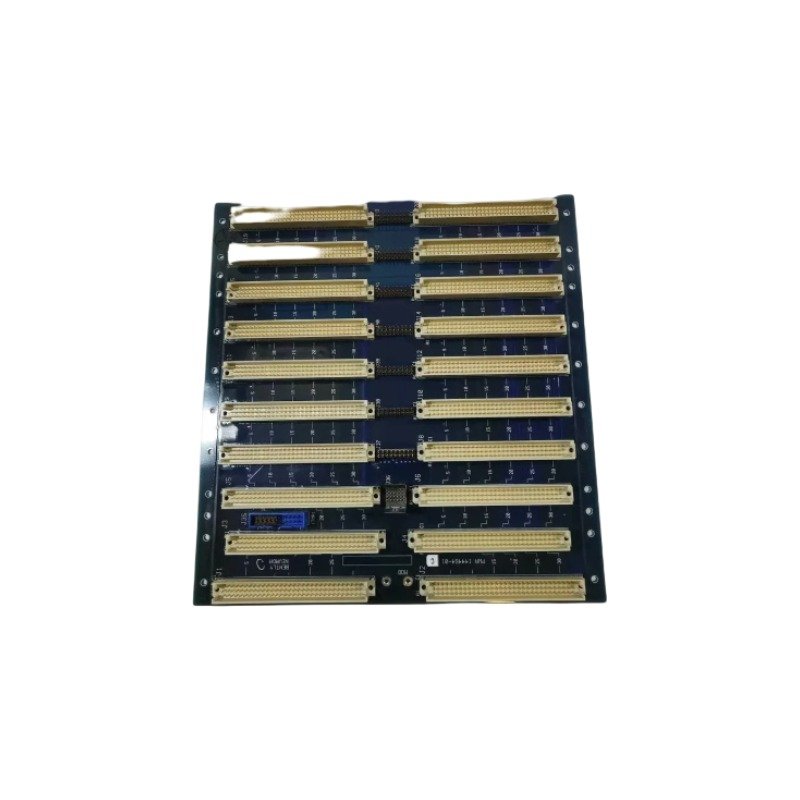

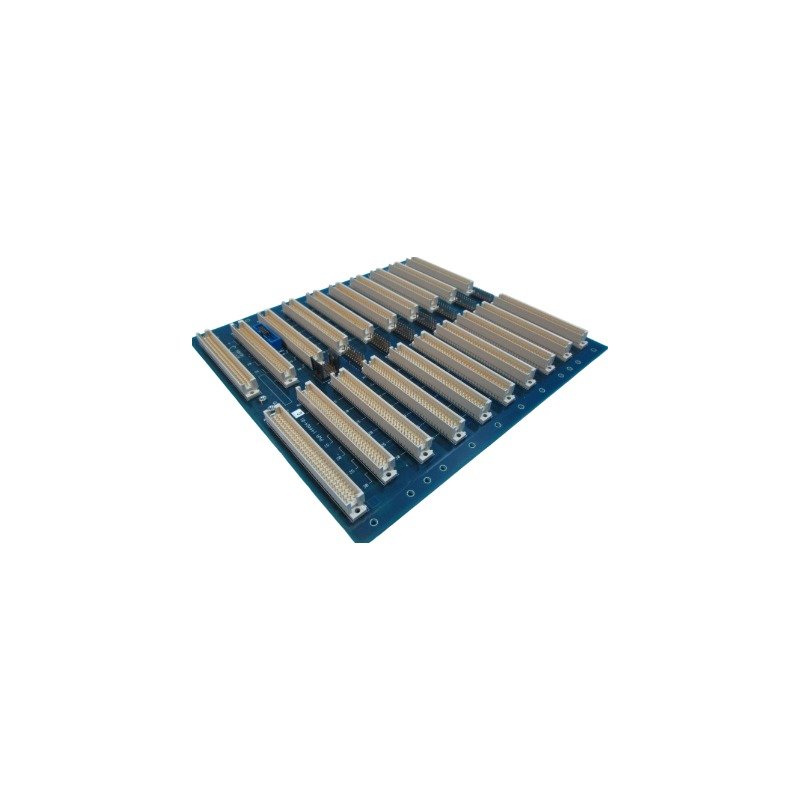

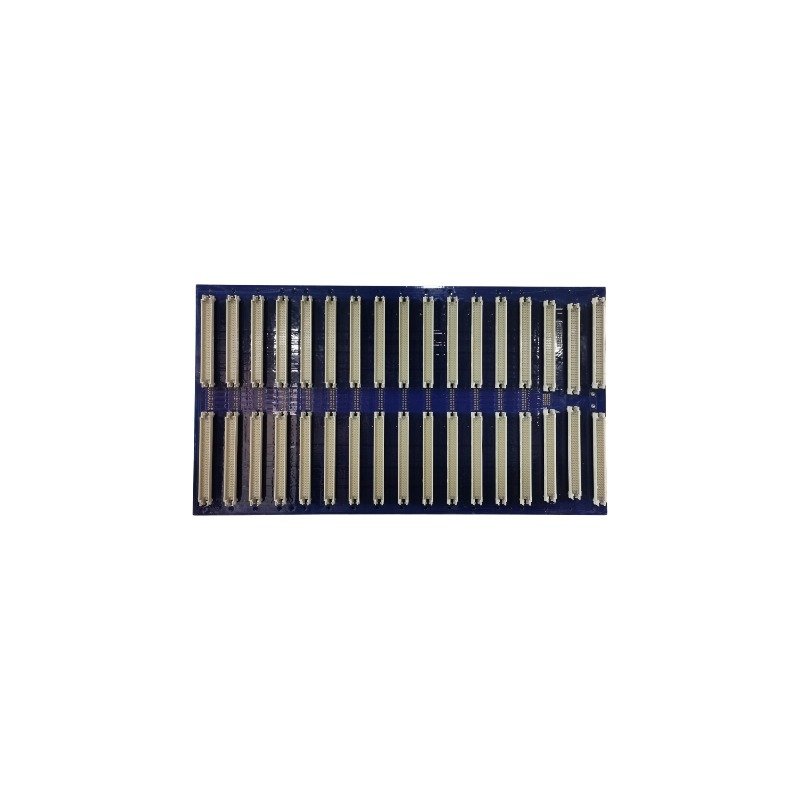

The Bently Nevada 144464-01, also cataloged as the 144464-01 Backplane, operates as a dedicated hardware component for module interconnection and power distribution within Bently Nevada 3500 Series machinery monitoring racks. Specifically, it establishes direct physical and electrical execution of the internal system bus channels across the chassis slots. Therefore, the assembly routes signal lines, power traces, and communication networks between adjacent monitoring modules without external jumper paths.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The backplane trace geometry facilitates seamless data exchange between sensor interfaces and processing cards. Consequently, the hardware structure supports accurate eddy-current probe scaling configurations down to the individual module level. Furthermore, the internal power distribution networks provide the clean, isolated rails required for static gap voltage validation (-10 VDC targets) across multiple machinery monitoring channels. The physical trace routing also incorporates specific spacing constraints, which achieve hardware-level cross-talk suppression during high-frequency rotor dynamics recording.

Frequently Asked Questions

Q: Does the 144464-01 backplane support hot-swap operations for all connected modules?

A: The physical backplane paths permit online insertion and removal of compatible 3500 series modules. However, operators must follow specified software bypass procedures prior to hardware extraction to prevent accidental trip execution.

Q: How does the backplane interface handle internal power line noise?

A: The multilayer circuit board design isolates low-voltage signal pathways from primary power distribution buses. Consequently, this architecture prevents electrical noise from corrupting proximity transducer feedback loops.

Q: What is the primary function of the 10-slot layout on this specific unit?

A: The layout provides physical mounting locations and electrical terminals for up to ten individual 3500 series modules. Therefore, it establishes the necessary backplane bus connection velocity for real-time machinery protection networks.

Field Installation Guidelines

• Mounting Mechanics: Bolt the backplane assembly securely into the standard 3500/05 chassis frame. Ensure that all retaining screws engage fully to prevent physical distortion and to maintain accurate alignment for line-in cards.
• Shielding Requirements: Connect the designated chassis grounding studs directly to the main instrument ground bus bar. Maintain a clean, low-impedance connection using copper conductors with a minimum size of 4 mm squared.
• Wiring Separations: Route all external field wiring bundles through segregated wire ways. Specifically, separate the high-voltage power input source lines from the low-voltage sensor lines connected to the backplane terminals by at least 200 mm.
• Thermal Management: Verify that cabinet cooling fans maintain an internal ambient airflow temperature within the operational range of -30 deg C to +65 deg C. Do not allow dust or debris to accumulate inside unpopulated backplane slot connectors.
