Description

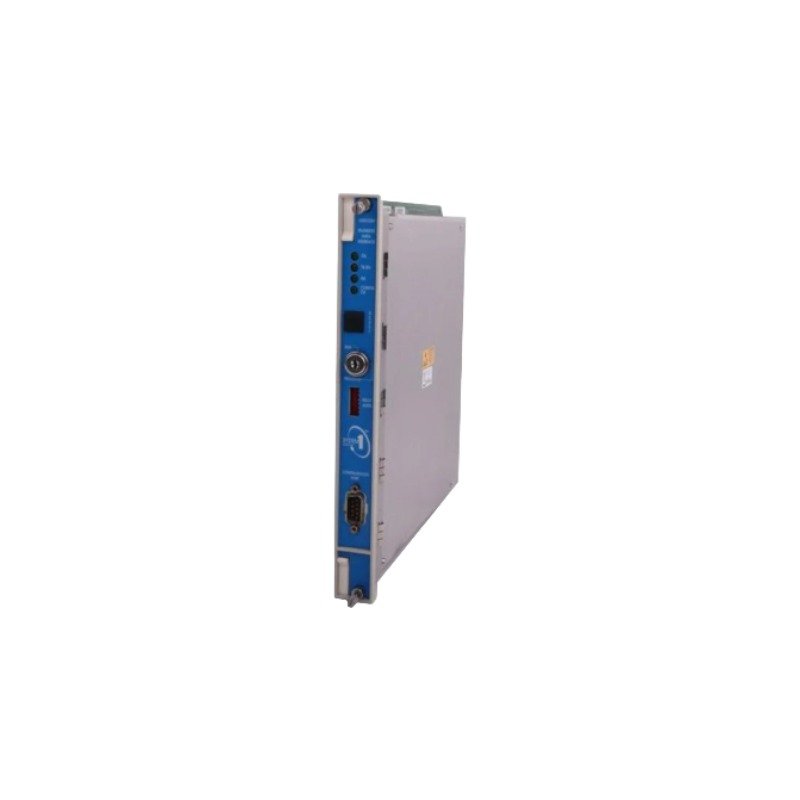

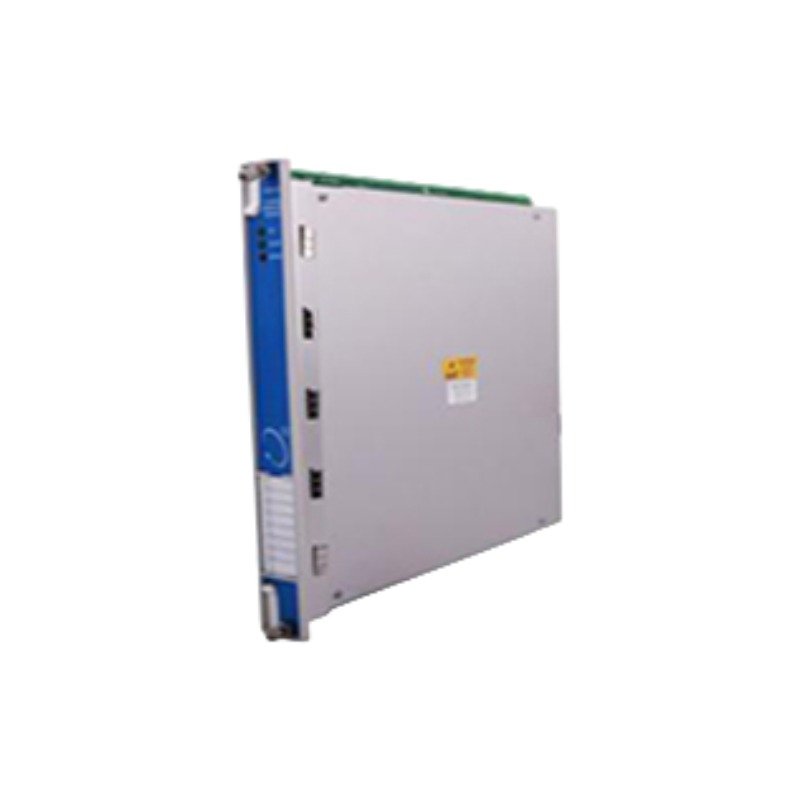

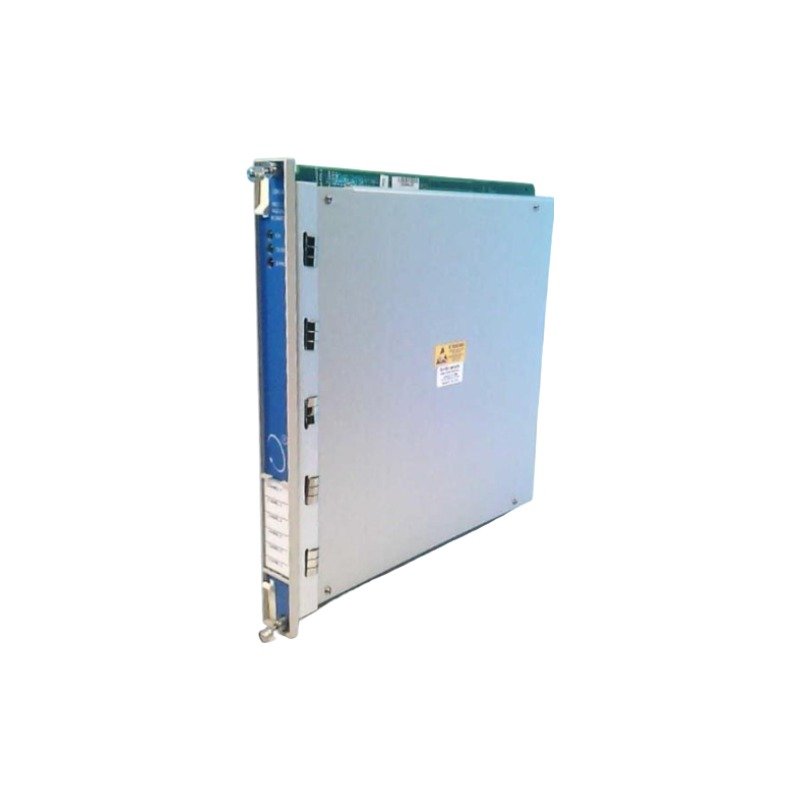

The Bently Nevada 140734-03 serves as the primary 140734-03 Vibration Monitoring Module utilized to execute high-speed dynamic signal processing across machinery monitoring network platforms. Specifically, it manages the direct physical execution of raw sensor inputs derived from four independent channels and dual Keyphasor phase reference inputs. The module translates these structural dynamic signals into internal register values for processing by host diagnostic architectures.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The internal measurement instrumentation enforces exact eddy-current probe scaling to guarantee the fidelity of target displacement profiles. Consequently, the conditioning circuits perform continuous gap voltage validation (-10 VDC targets) across all four signal input channels to monitor proximity probe calibration integrity. The integration of dual Keyphasor inputs enables synchronous tracking of complex rotor dynamics by locking vibration frequencies directly to shaft rotation speed. Furthermore, the electronic layout incorporates active cross-talk suppression between adjacent channels to minimize high-frequency signal contamination during rapid transient acceleration cycles.

Frequently Asked Questions

Q: What primary transducer hardware types interface directly with the 140734-03 input terminal matrix?

A: The four independent input channels accept low-voltage electrical signals directly from either proximity probes or accelerometers, while the secondary dual inputs accept dedicated Keyphasor phase reference transducers.

Q: Is this module capable of sustaining normal execution if the DC supply drop down to 18 VDC?

A: Yes. The internal DC-DC converter regulators maintain voltage stability across an operational input range of 18 to 36 VDC, preventing raw loop supply variations from introducing measurement drift.

Q: Can the 140734-03 module handle hot-swap hardware extraction while the processing backplane remains powered?

A: Physical insertion and removal parameters depend on the hosting chassis enclosure rules. However, field engineers must activate the designated machinery protection software bypass loops prior to extraction to prevent triggering accidental hardware trip signals.

Field Installation Guidelines

• Mounting Mechanics: Insert the module assembly vertically into the assigned slot layout within the monitoring rack enclosure. Tighten all chassis retaining fasteners completely to establish proper backplane mating and structural isolation.
• Shielding Requirements: Run all external accelerometer and proximity probe wires within continuous, grounded metallic conduits. Terminate the overall copper shields strictly at the instrumentation ground bus bar located inside the main cabinet layout.
• Wiring Separations: Separate the low-voltage sensor input wiring bundles and Keyphasor coaxial lines from any parallel high-voltage AC distribution circuits by a minimum distance of 200 mm to mitigate inductive noise coupling.
• Thermal Management: Ensure that panel cooling loops maintain local environment conditions within the boundaries of -30 deg C to +65 deg C. Do not mount the unit directly above high-temperature heat sinks or exposed power converter modules.
