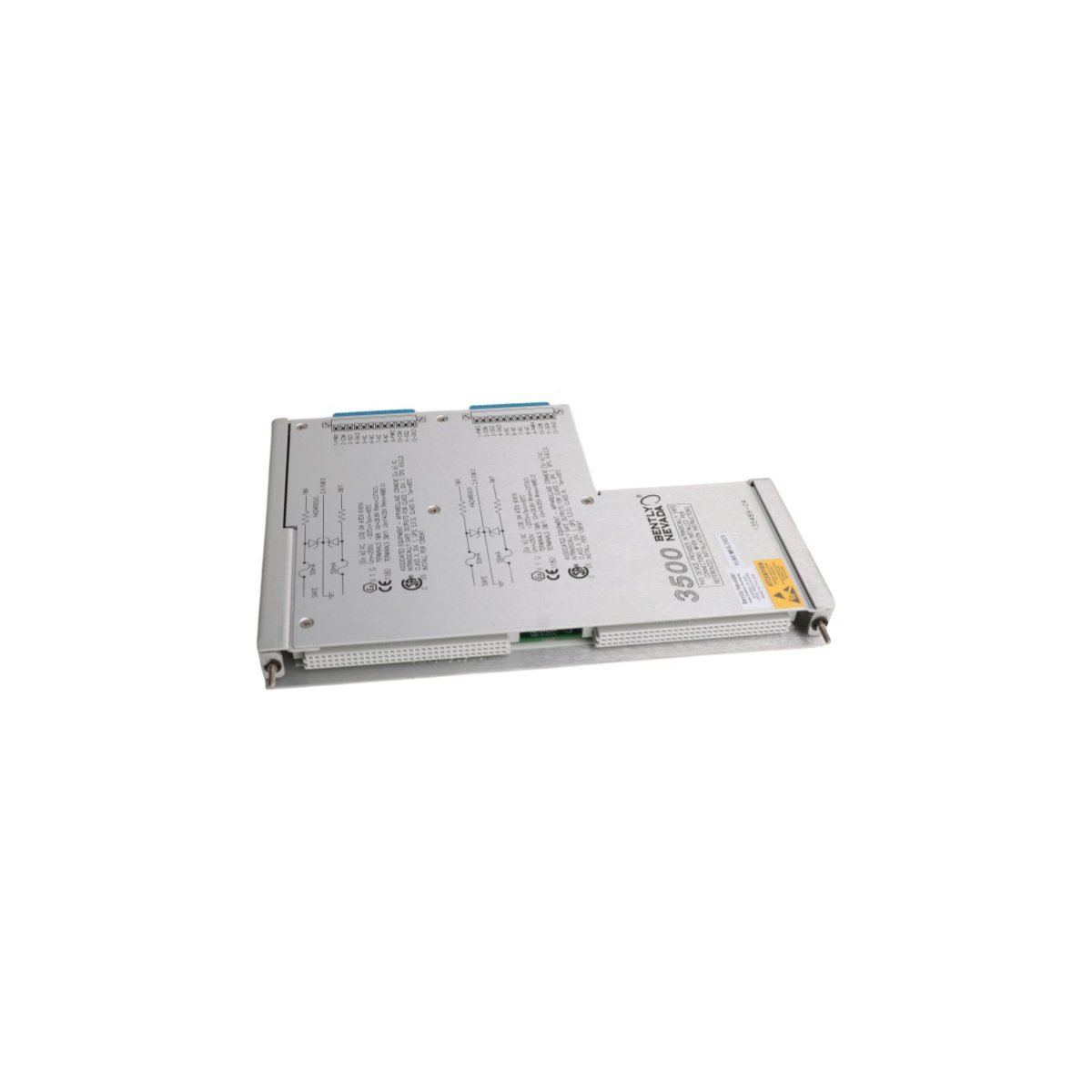

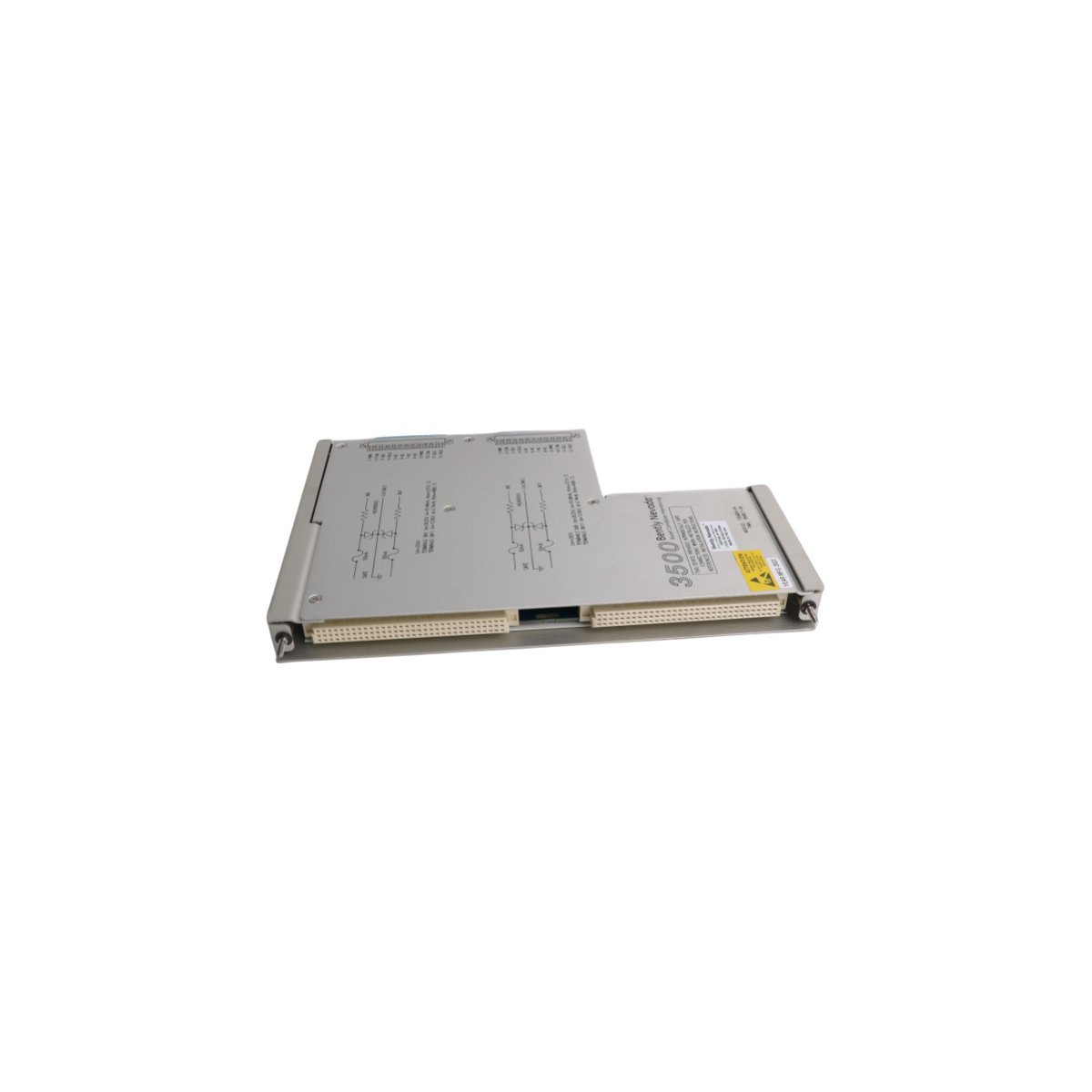

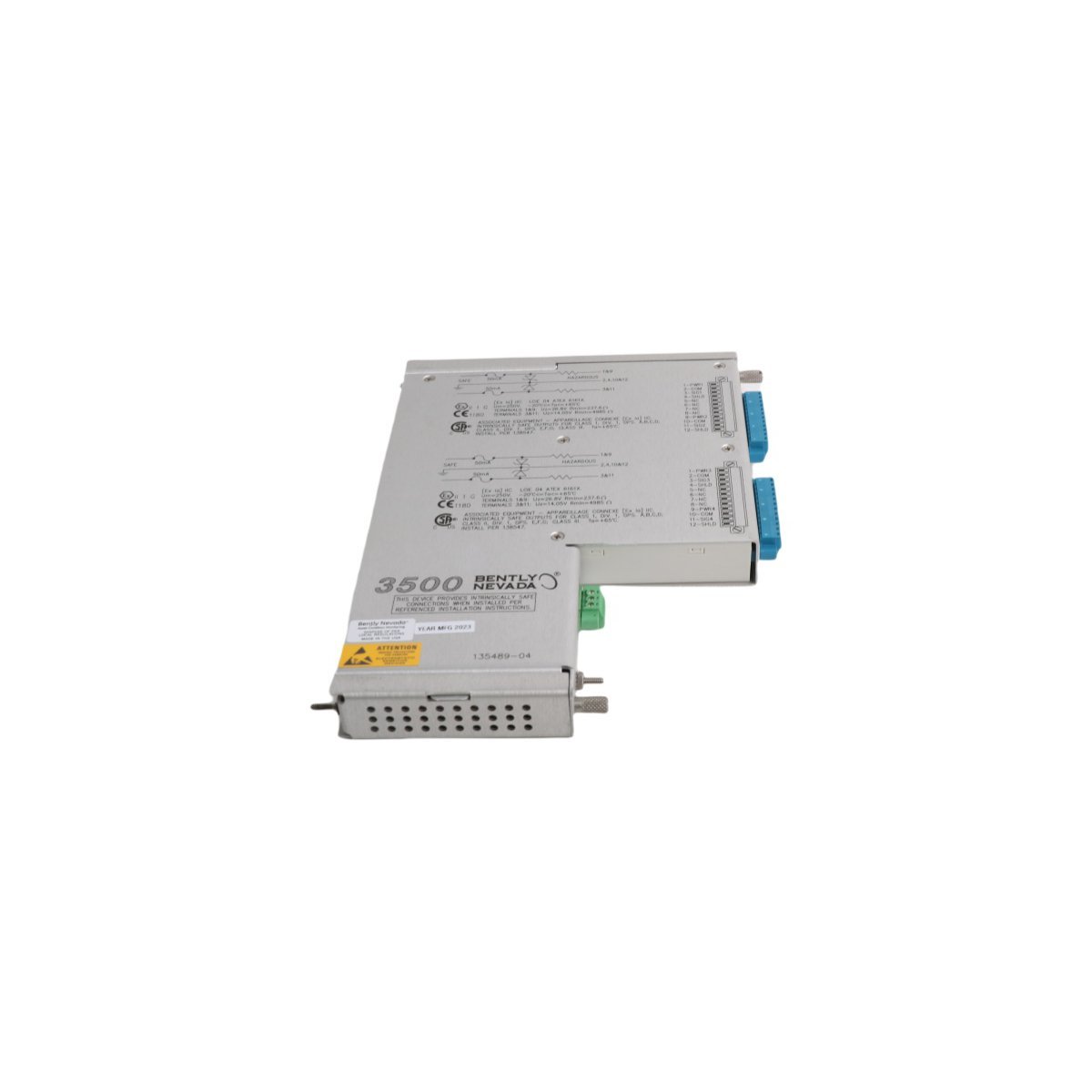

Bently Nevada 135489-04 | 3500 System I/O Module with Internal Barriers

The Bently Nevada 135489-04 is a specialized Input/Output (I/O) module designed for the 3500 Machinery Protection System. This specific variant is engineered for hazardous area applications, featuring integrated internal safety barriers that eliminate the need for external zener barriers or galvanic isolators. By incorporating internal terminations, the module simplifies the wiring architecture within the rack cabinet and reduces the overall footprint of the protection system. It provides the essential electrical interface between field-mounted transducers and the 3500 monitoring cards. Consequently, this module ensures that signals from vibration, position, or speed sensors are safely and accurately transmitted while maintaining strict compliance with intrinsic safety standards.

Core Technical Characteristics

Designed for high-reliability environments, the 135489-04 module focuses on signal integrity and ease of maintenance. The internal barriers are designed to limit the energy available to field circuitry, preventing the ignition of flammable atmospheres. Furthermore, the internal termination design allows for direct connection of field wiring to the module’s screw terminals, which minimizes potential failure points and streamlines troubleshooting. The module is constructed with industrial-grade shielding to protect against electromagnetic interference (EMI). Therefore, it is a preferred solution for facilities that require robust machinery protection without the complexity of additional external safety hardware.

Technical Specifications

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Number: 135489-04
• Module Category: I/O Module with Internal Barriers
• System Series: 3500 Series Machinery Protection
• Termination Style: Internal (Screw Terminals)
• Safety Feature: Integrated Intrinsic Safety Barriers
• Weight: 0.94 kg (2.07 lbs)
• Dimensions: 2.5 cm x 18.5 cm x 24.1 cm
• HS Code: 8537101190
• Country of Origin: USA
• Compliance: ATEX, IECEx, and CSA for hazardous areas

Industrial Applications and System Benefits

Global leaders in the oil and gas, petrochemical, and power generation sectors rely on the 135489-04, especially when they operate machinery in classified hazardous zones. For instance, engineers frequently select this component to monitor vibration in offshore compressor trains and refinery turbine sets. By integrating safety barriers directly into the hardware, this module eliminates extra installation labor and frees up valuable cabinet space. Furthermore, the unit’s rugged construction sustains continuous 24/7 operation even in extreme industrial climates. When users pair this I/O module with the 3500 system, they establish a high-fidelity data path that empowers predictive maintenance and actively prevents catastrophic machine failures.

Frequently Asked Questions

What is the benefit of internal barriers compared to external ones?

Internal barriers streamline the signal path by reducing the total number of components and saving significant rail space inside the control cabinet. This configuration creates a cleaner installation and removes multiple points of potential wiring error.

Is this module compatible with all 3500 monitor modules?

The 135489-04 interfaces specifically with certain monitor series, such as the 3500/40M or 3500/42M. You should always consult the 3500 system manual to verify compatibility between the main monitor card and the I/O module.

Can the 135489-04 operate in non-hazardous areas?

While it functions perfectly in non-hazardous areas, its primary value comes from its intrinsic safety certifications. In non-hazardous zones, standard I/O modules without barriers typically offer a more cost-effective solution.

How does the internal termination impact maintenance?

Internal terminations grant technicians direct access to wiring at the rear of the rack. This accessibility simplifies loop checks and allows maintenance teams to verify transducer signals more efficiently during routine intervals.
