Description

Product Overview

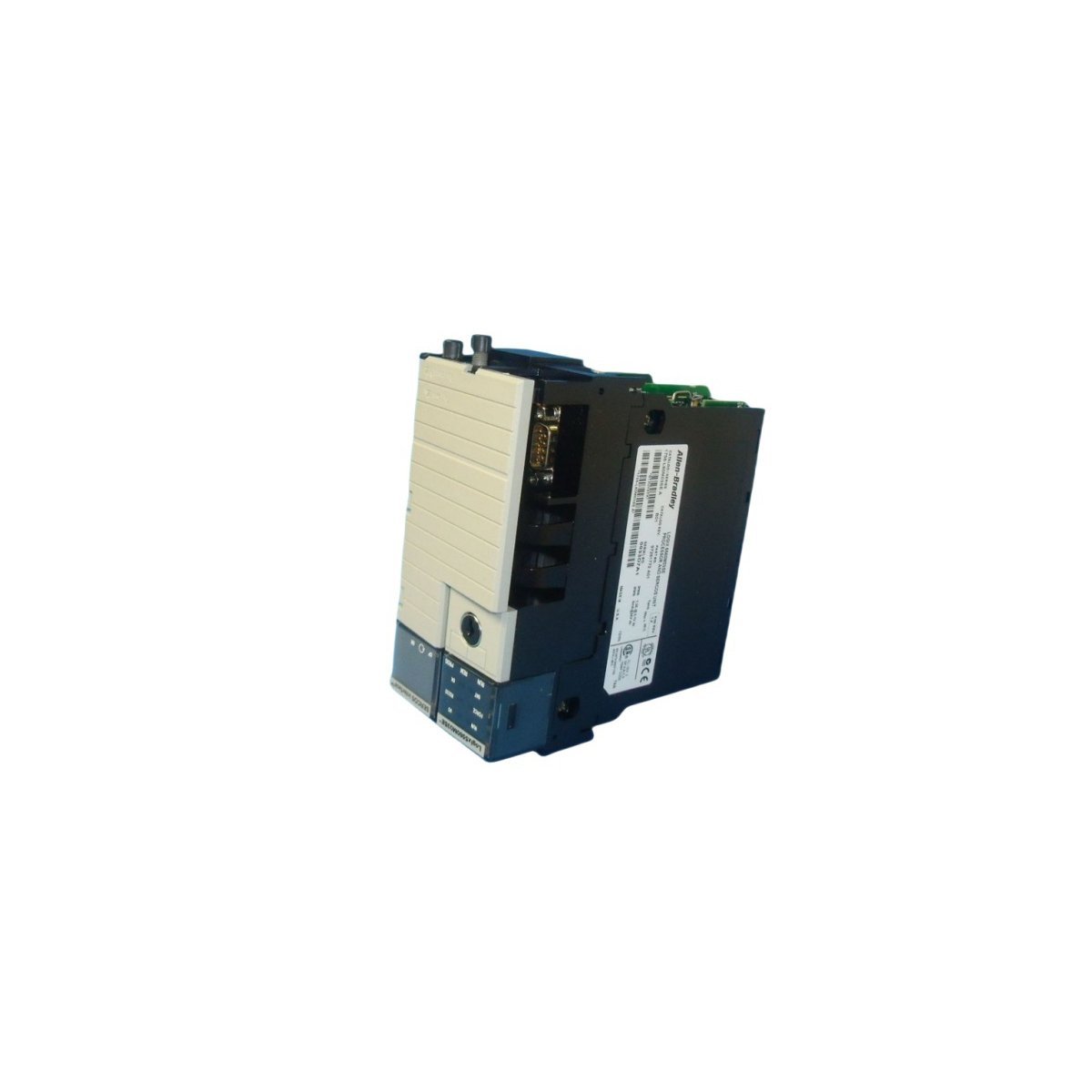

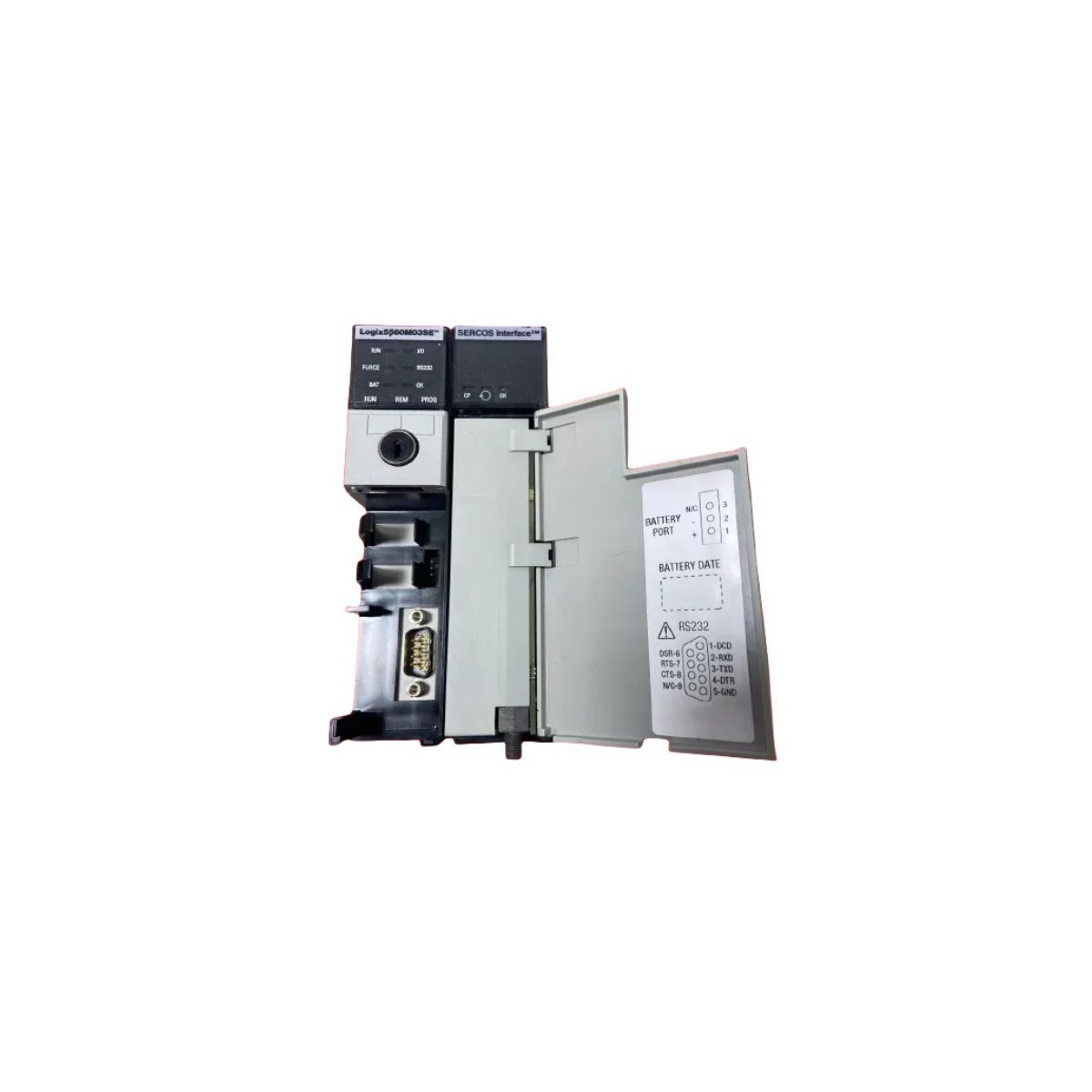

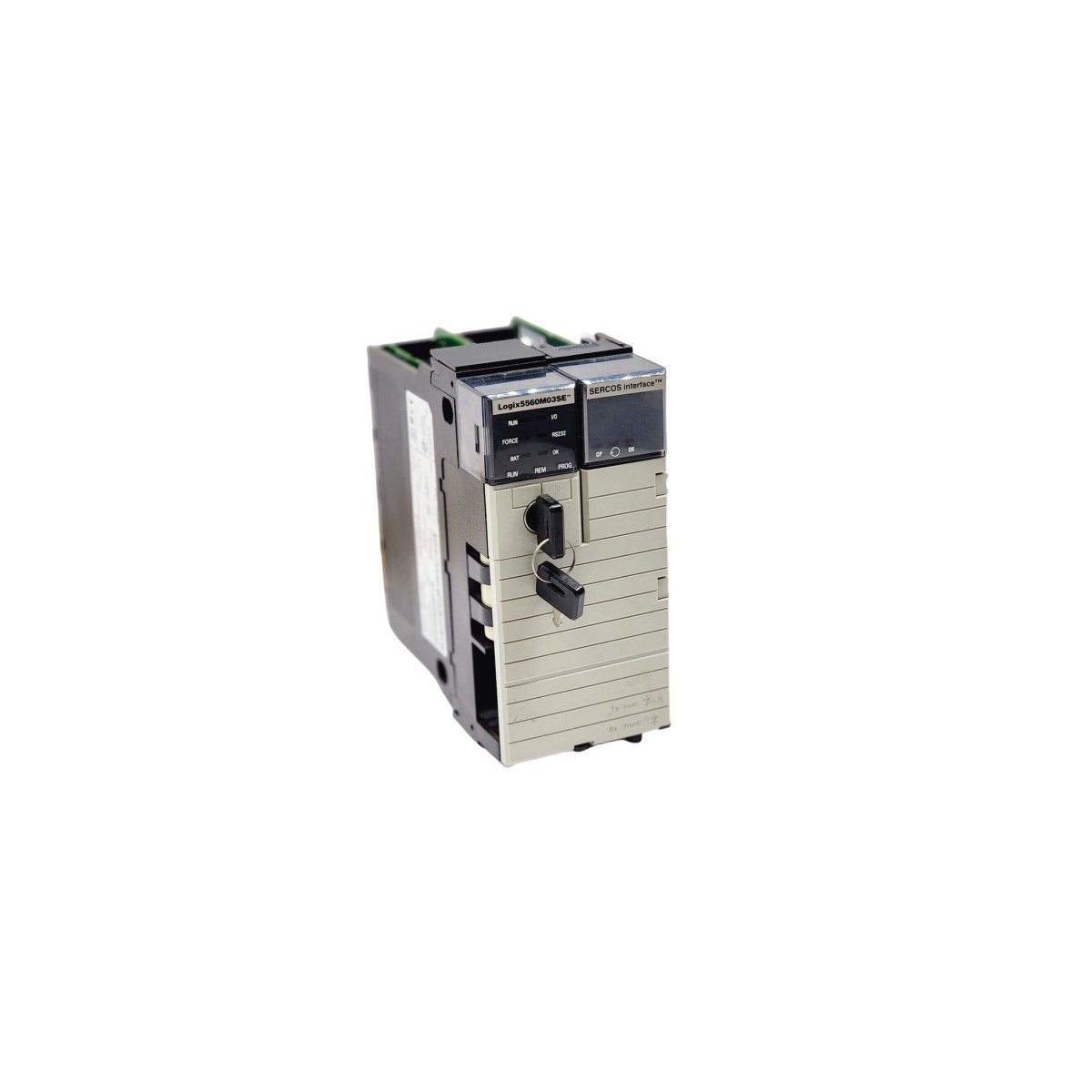

The 1756-L60M03SE serves as a specialized GuardLogix 5562S processor within the Allen-Bradley ControlLogix ecosystem, engineered to integrate standard control with high-level safety functionality. This module provides a robust solution for industrial environments that require simultaneous execution of discrete automation and motion control. Because it features three built-in SERCOS interface axes, the unit excels in applications involving synchronized motion, such as packaging and material handling. The processor operates with 750 KB of user memory and 478 KB of dedicated I/O memory, facilitating efficient data handling for complex logic sequences.

Core Technical Capabilities

Connectivity remains a primary strength of this controller, as it supports an array of network protocols through the ControlLogix backplane. While it features an onboard RS-232 serial port for DF1, DH-485, and ASCII communications, it also facilitates seamless integration with EtherNet/IP, ControlNet, and DeviceNet via separate communication bridge modules. Furthermore, the 1756-L60M03SE manages up to 250 controller connections, which allows for substantial scalability in distributed I/O architectures.

Motion Control and Programming

This unit provides comprehensive support for diverse motion hardware including servo motors and stepper drives. It maintains compatibility with multiple feedback interfaces such as SSI, LDT, and traditional encoder inputs. For programming, the module adheres strictly to the IEC 61131-3 standard. Consequently, engineers can develop logic using Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), and Sequential Function Chart (SFC) languages. This multi-language support ensures that the controller can adapt to various programming preferences and technical requirements.

Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation
• Series: ControlLogix / GuardLogix
• Model: 1756-L60M03SE
• Processor Type: GuardLogix 5562S
• User Memory: 750 KB
• I/O Memory: 478 KB
• Motion Support: 3-Axis SERCOS Integrated
• Communication Port: RS-232 (Serial)
• Maximum Connections: 250
• Programming Standards: IEC 61131-3
• Weight: 0.38 kg
• Dimensions: 3.5 x 14 x 14.5 cm
