Product Description

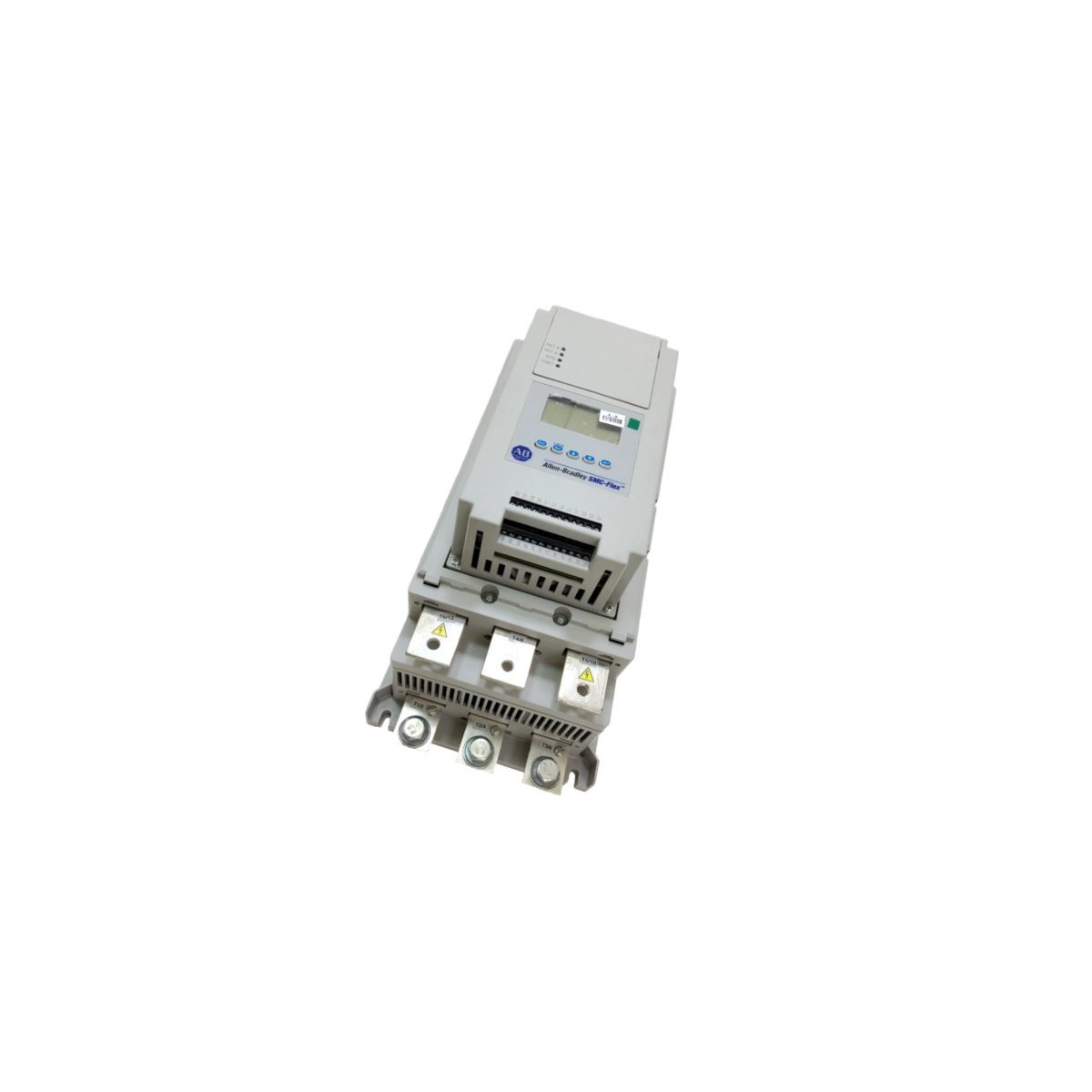

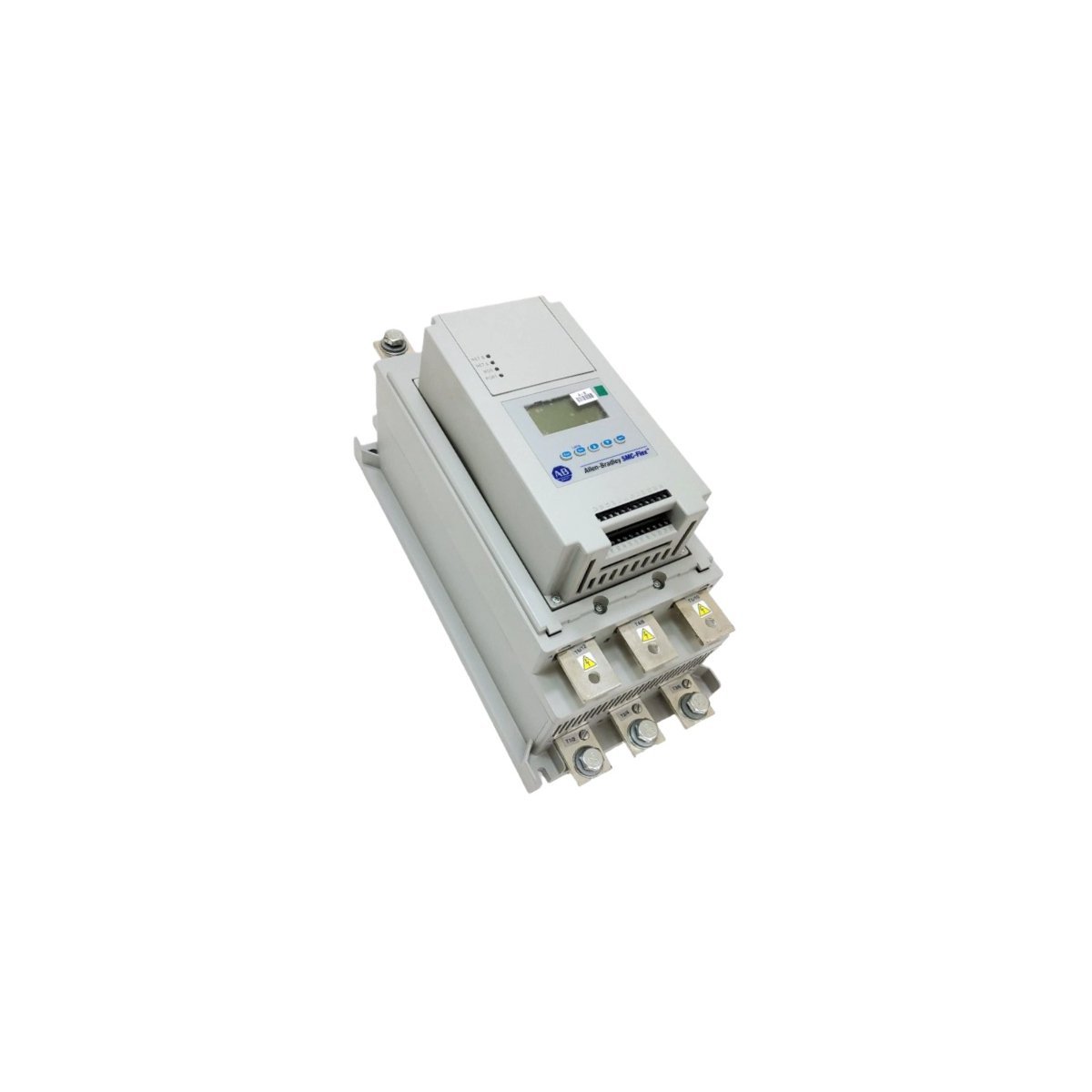

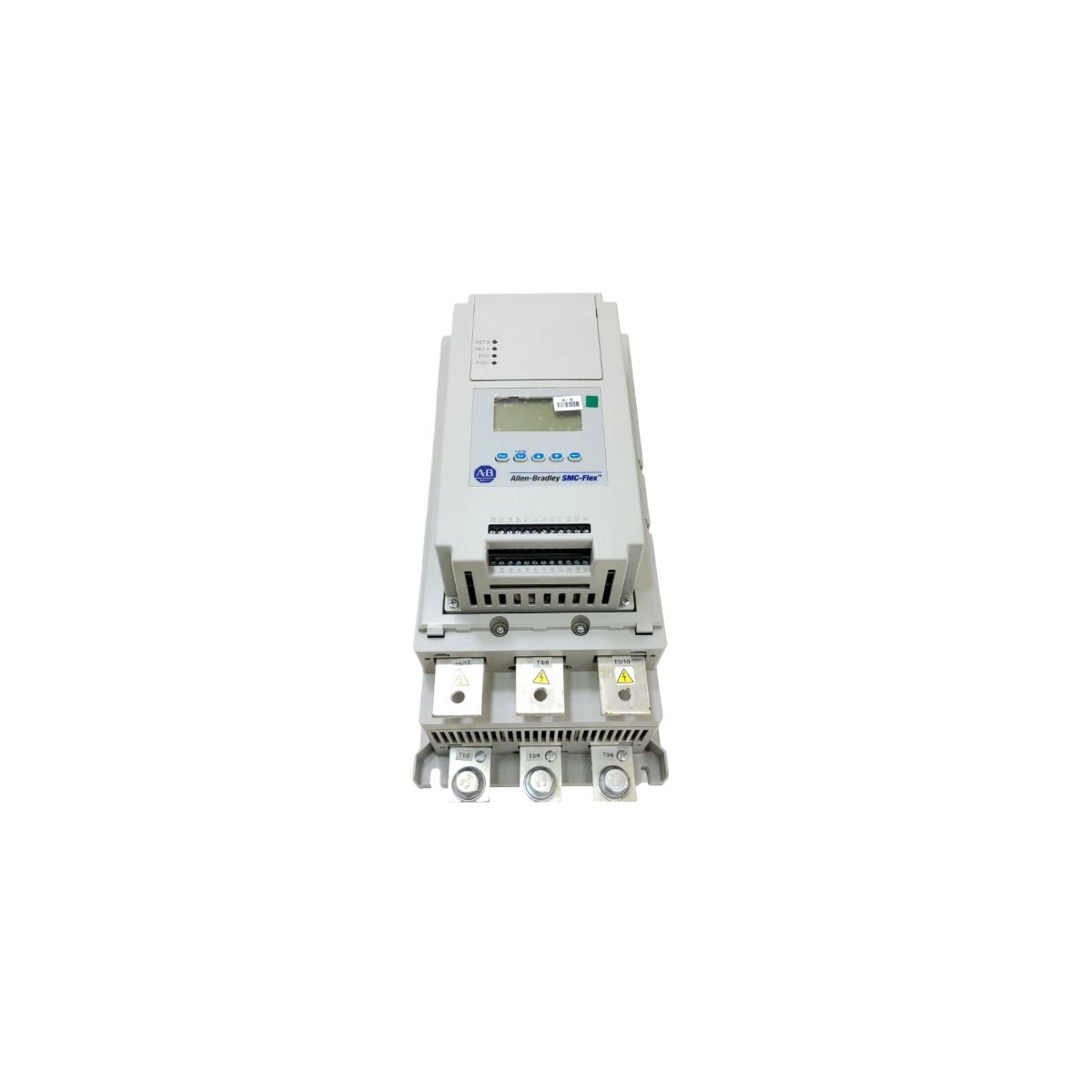

The Allen-Bradley 150-F135NBDB is a high-performance SMC Flex Smart Motor Controller engineered to provide precise regulation and protection for industrial motor applications. As a critical component of the Bulletin 150 series, this solid-state device facilitates efficient motor starting and stopping while minimizing mechanical stress on the drivetrain. It functions effectively within complex automated environments, acting as the primary interface between manual operator commands and intelligent motor management.

This controller excels in demanding industrial settings by offering versatile starting modes, including soft start, current limit start, and full voltage start. Furthermore, the unit incorporates an internal SCR bypass contactor, which significantly reduces heat generation during continuous operation. Because the 150-F135NBDB integrates seamlessly with DPI communication protocols, engineers can easily implement the device into broader network architectures for remote monitoring and diagnostics.

Safety and equipment longevity remain central to its design. The module provides comprehensive electronic motor overload protection using advanced algorithms to monitor thermal levels. Additionally, it features built-in safeguards against phase imbalance, overvoltage, and undervoltage conditions. Consequently, this controller ensures that every operational sequence remains within safe parameters, protecting expensive motor assets from electrical faults and operational hazards.

Technical Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation
• Model Number: 150-F135NBDB
• Product Series: SMC Flex Smart Motor Controller
• Current Rating: 135 Amps
• Input Voltage: 200 to 460V AC (3-Phase)
• Control Voltage: 100 to 240V AC
• Enclosure Type: Open Type (IP00)
• Communication: DPI Protocol Support
• Operating Temperature: -5 to 50 degrees Celsius
• Primary Application: Pump control, braking, and soft-start motor management
